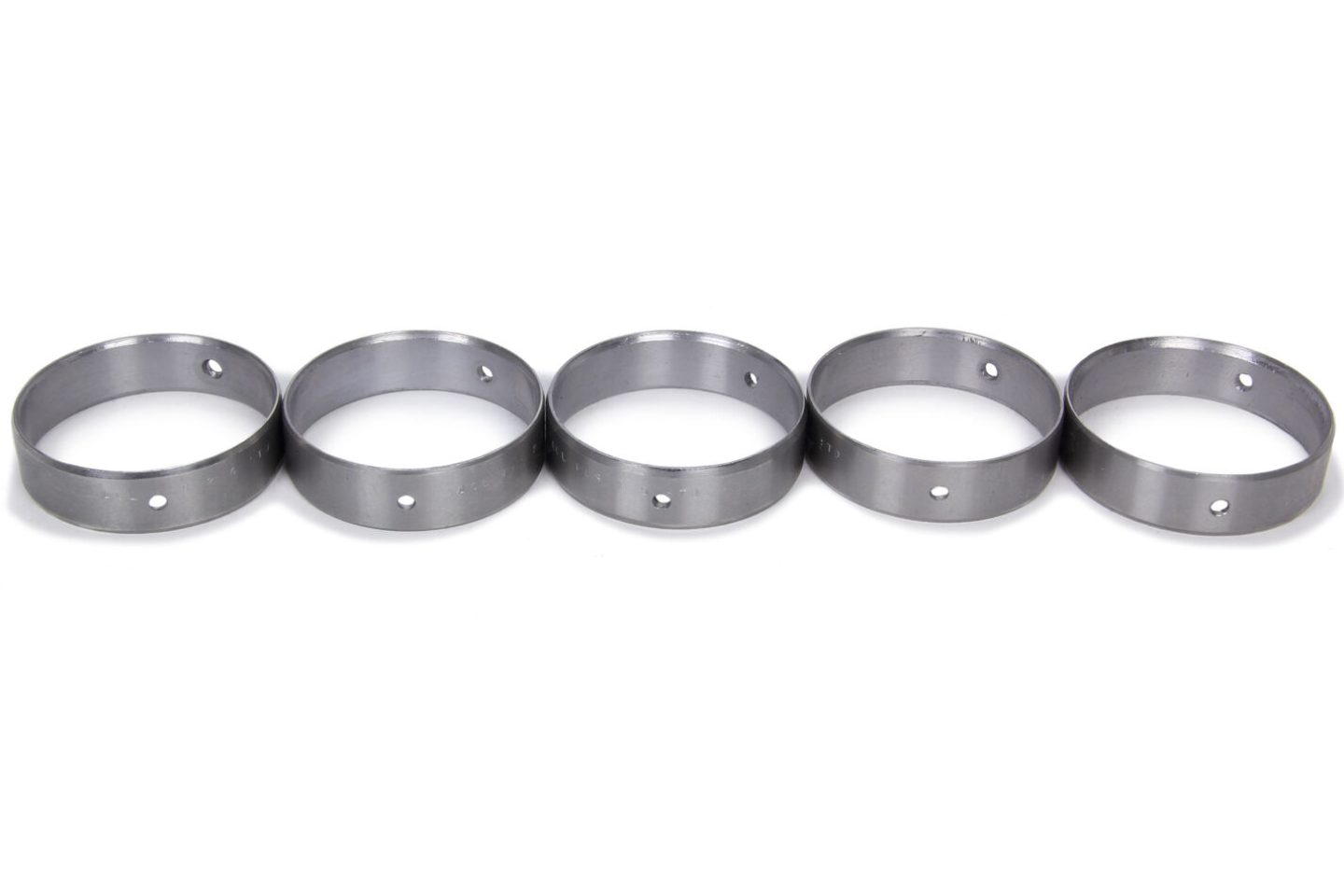

ACL 2003+ Chevy V8 4.8/5.3/5.7/6.0L Gen III 2nd Design Standard Size Camshaft Bearings
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Cam Bearings, Tri-Metal, Chevrolet, LS, 4.8, 5.3, 5.7, 6.0, 2nd Design, Set
ACL Performance offers cam bearing sets for a wide range of vehicles from 1955 and up. The high performance tri-metal engine bearings are designed to withstand higher RPM conditions. Each direct-fit replacement bearing features a high-strength overlay plate with reduced thickness for improved fatigue properties. Oder the set recommended for your year/make and engine application. Additional details: *Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. * Increased crush for improved bearing retention * Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing * Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil film * 3/4 in. grooved main bearings GROOVED MAIN BEARINGS to optimize bearing load carrying surface area and oil flow to the conrod bearings * Tight consistent wall tolerances to help you maintain consistent clearances * Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts
UPC | 9315726161180 |
Brand | ACL Race Series Performance Engine Bearings |
Notes | 2nd design. |
Quantity | Sold as a set. |
Part Type | Cam Bearings |
Product Line | ACL Performance Cam Bearing Sets |
Bearing Usage | Direct replacement |
Grooved Bearing | No |
Bearing Material | Tri-metal copper-lead nickel |
Engine Block Align Bored | No |
Cam Bearing Oversize (mm) | Stock |
Cam Bearing Oversize (in.) | Stock |
Manufacturer's Part Number | 5C1001S-00 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Make | CHEVROLET |
Beginning Year | 2003 |
Ending Year | 2009 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 4.8L/294 |
Application Notes | 2nd design. |
Make | CHEVROLET |
Beginning Year | 2003 |
Ending Year | 2009 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | 2nd design. |
Make | CHEVROLET |
Beginning Year | 2003 |
Ending Year | 2009 |
Engine Type | V8 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Application Notes | 2nd design. |
