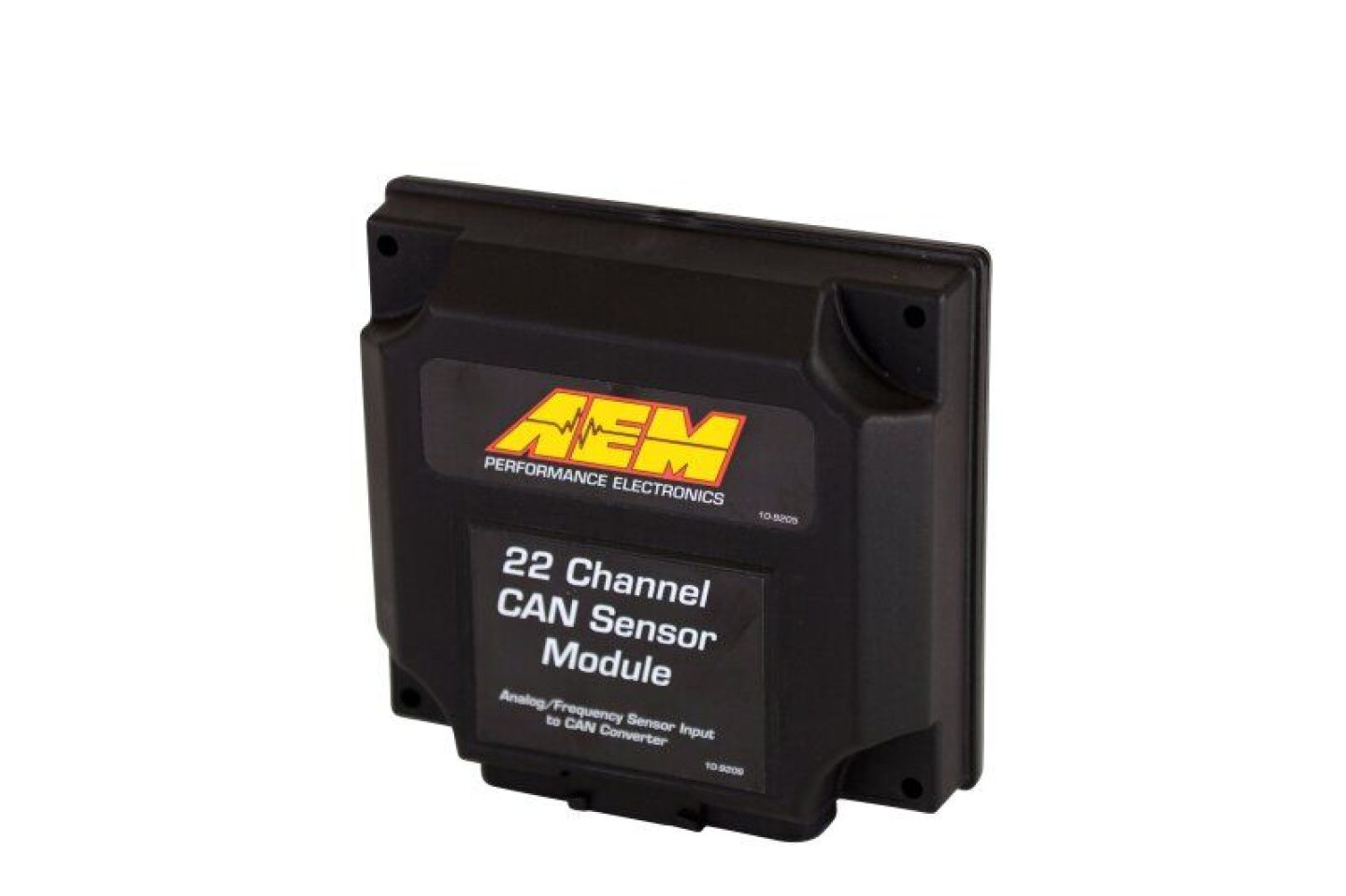

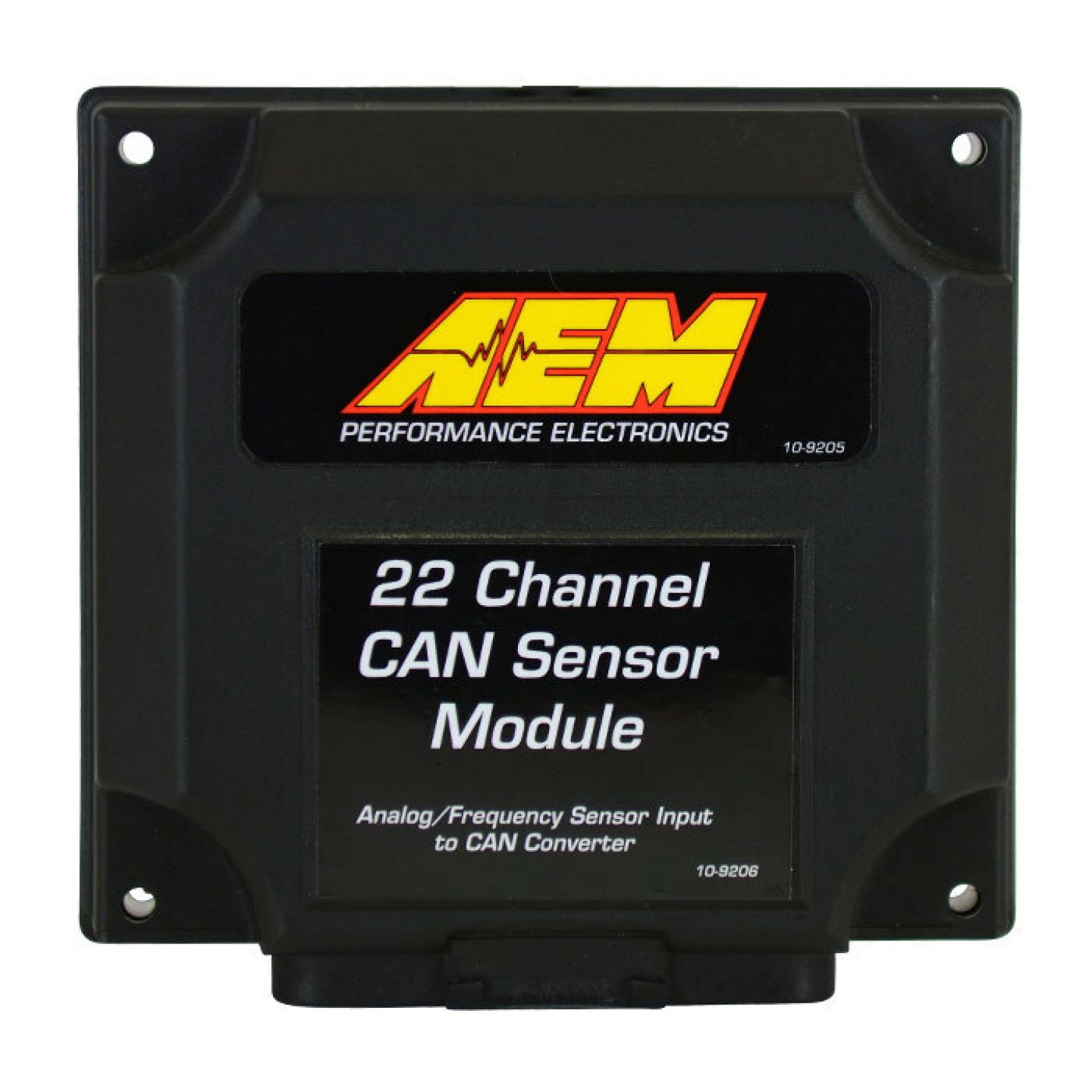

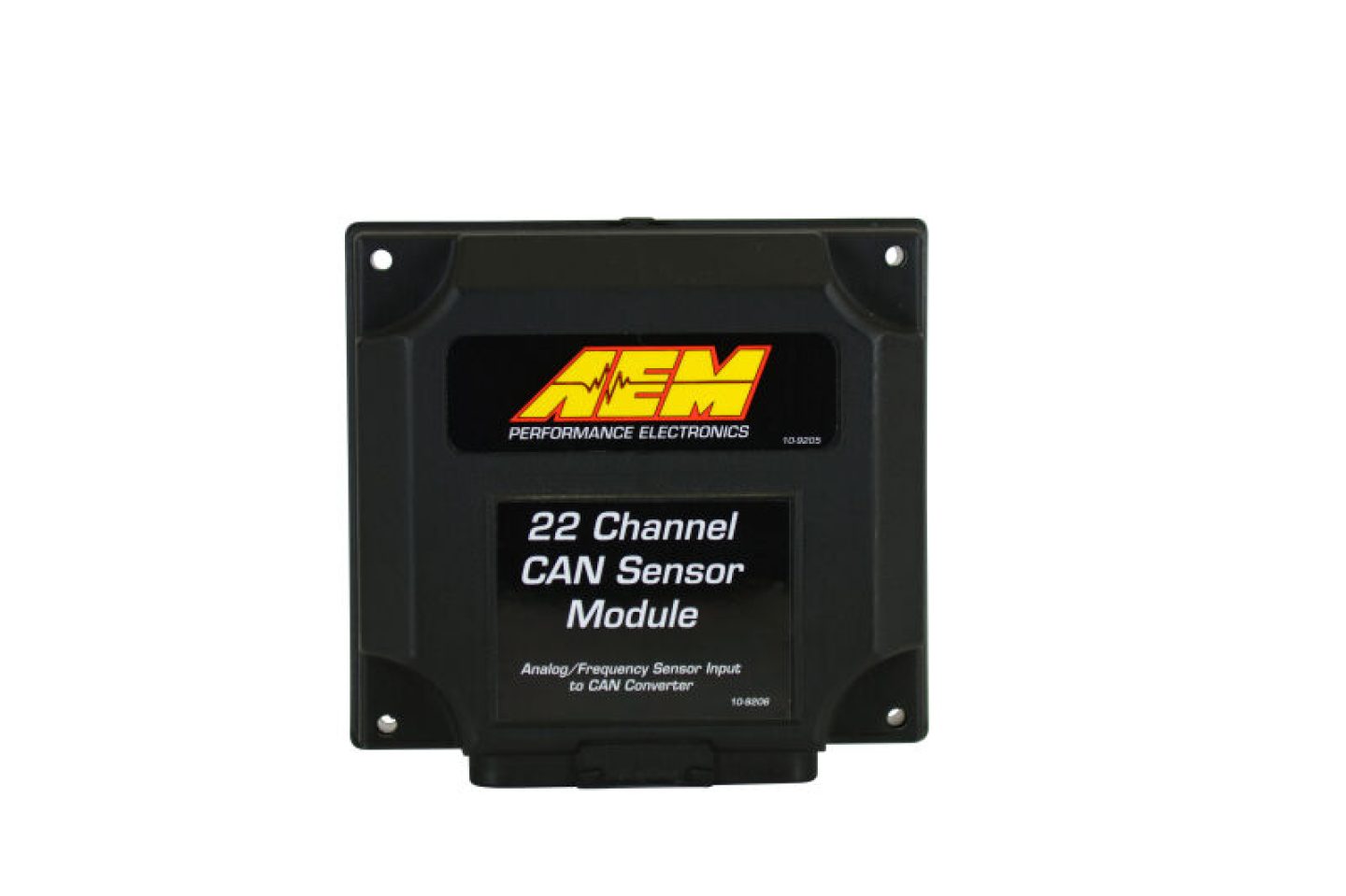

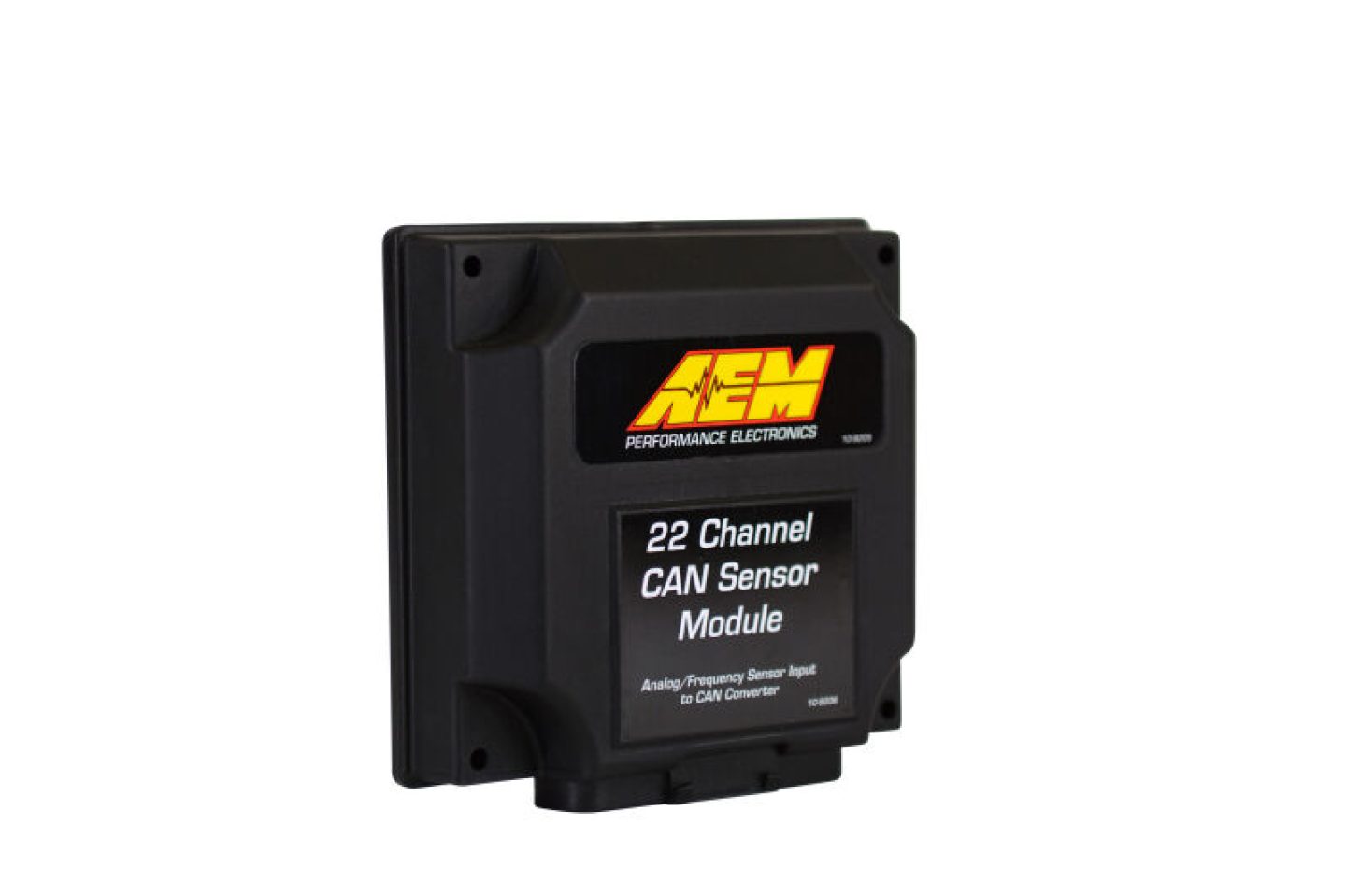

22Ch CAN Sens Module
22 Channel CAN Sensor Module, Analog & Frequency to CAN Converter Module, Incl. Module for Converting 4 0-5V Analog Inputs, 4 Temp Inputs, 4 Selectable Analog Inputs (0-5V, Thermistor or RTD), 6 Digital Inputs, Tach Input, 2 VR (Frequency) Inputs, Fuel Level Input, IP65 Enclosure, Wiring Harness w/ 36" Flying Leads
Multiple digital, analog, and frequency inputs
Controller Area Network (CAN) Adapter
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Data Acquisition Component, 22-Channel CAN Sensor, Each

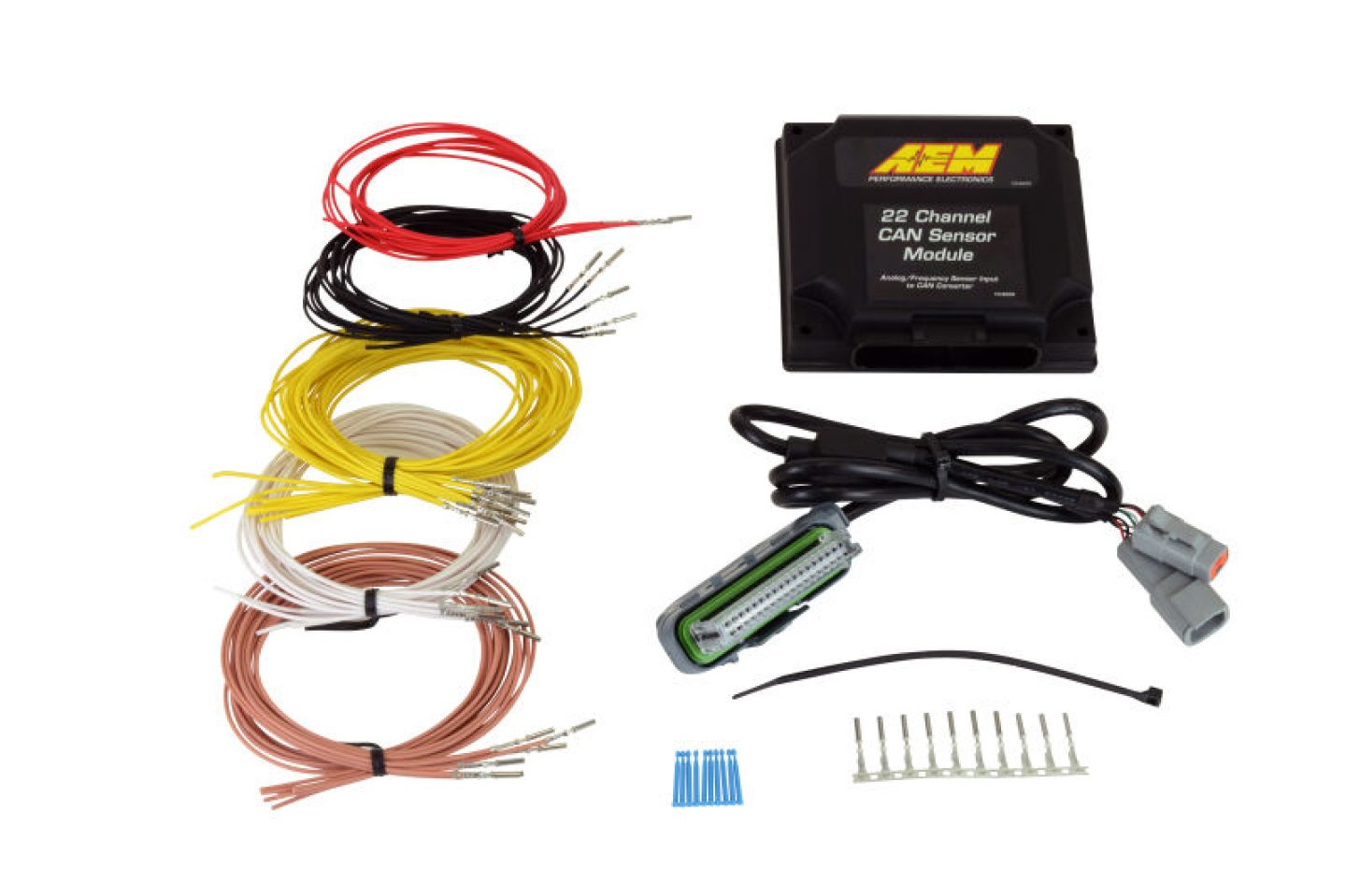

AEM 22-channel CAN sensor modules provide a way for users with carbureted vehicles to add an AEM CD digital dash display. They also let users with existing CAN-based devices add more channels to the display for viewing and/or data logging. These 22-channel modules convert analog, digital, and frequency inputs into an AEMnet CAN bus signal that can be transmitted to AEM's CD-5 carbon and CD-7 digital dashes. AEM Electronics 22-channel CAN sensor module includes: * Wiring harness with 36 in. flying leads and pre-wired CAN cable * IP65-rated enclosure is dust-tight and water-resistant * Daisy-chain two modules together for additional channels (modules sold individually) * Four dedicated 0-5 V analog inputs * Four temperature (thermistor) inputs * Four user-configurable inputs for 0-5 V, temp (including RTD) * One dedicated fuel level input (0 to 250 ohm range) * Six digital inputs, active low, protected to about 18 V, frequency, duty cycle or simple switch * One tach input, trigger when low, 12 V internal pull up * Two VR pair frequency inputs (crank, wheel, or driveshaft speeds) * Jumper selectable CAN bus speeds, 250k, 500k, 1M * Jumper selectable terminating resistor * Jumper selectable header length, 11 bit or 29 bit
UPC | 840879025908 |
Brand | AEM Electronics |
Notes | 22-channel sensor module. For use with the CD-5 and CD-7 digital dash displays. |
Quantity | Sold individually. |
Part Type | Data Acquisition Components |
Product Line | AEM Electronics 22-Channel CAN Sensor Modules |
Manufacturer's Part Number | 30-2212 |
Data Acquisition Component Type | CAN sensor modules |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Data Acquisition Component Use | Automotive |
Data Acquisition Component Use | Drag Race |
