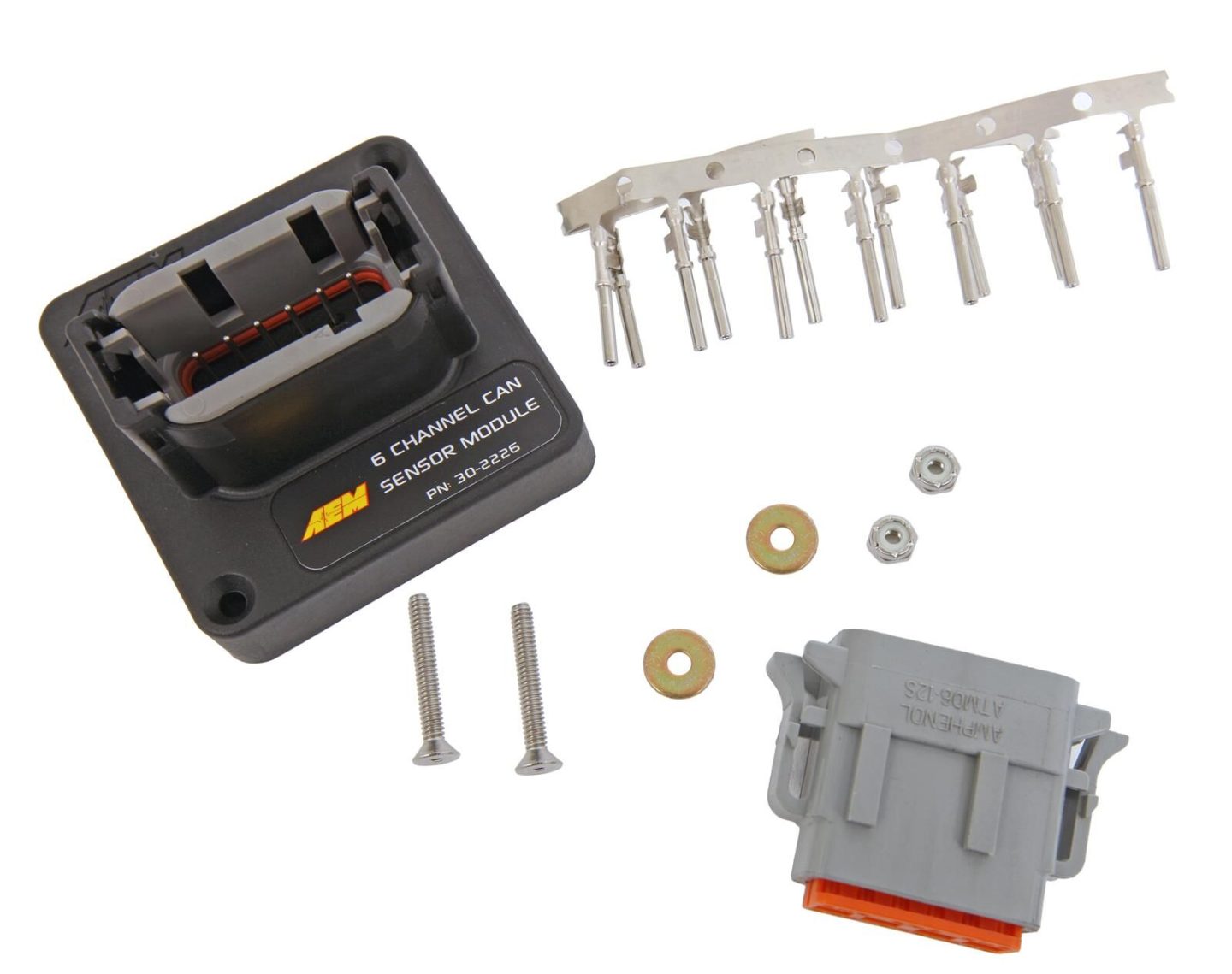

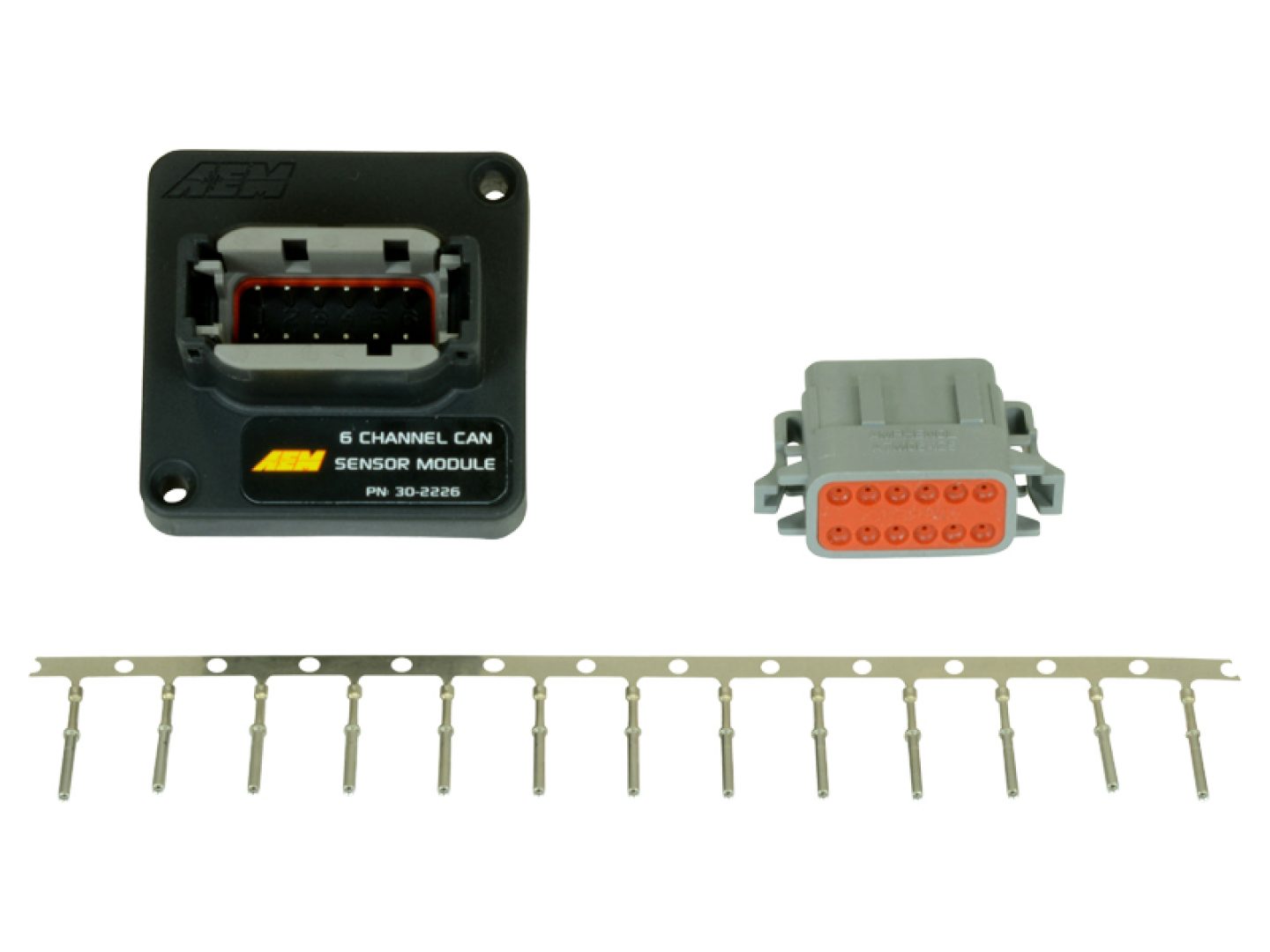

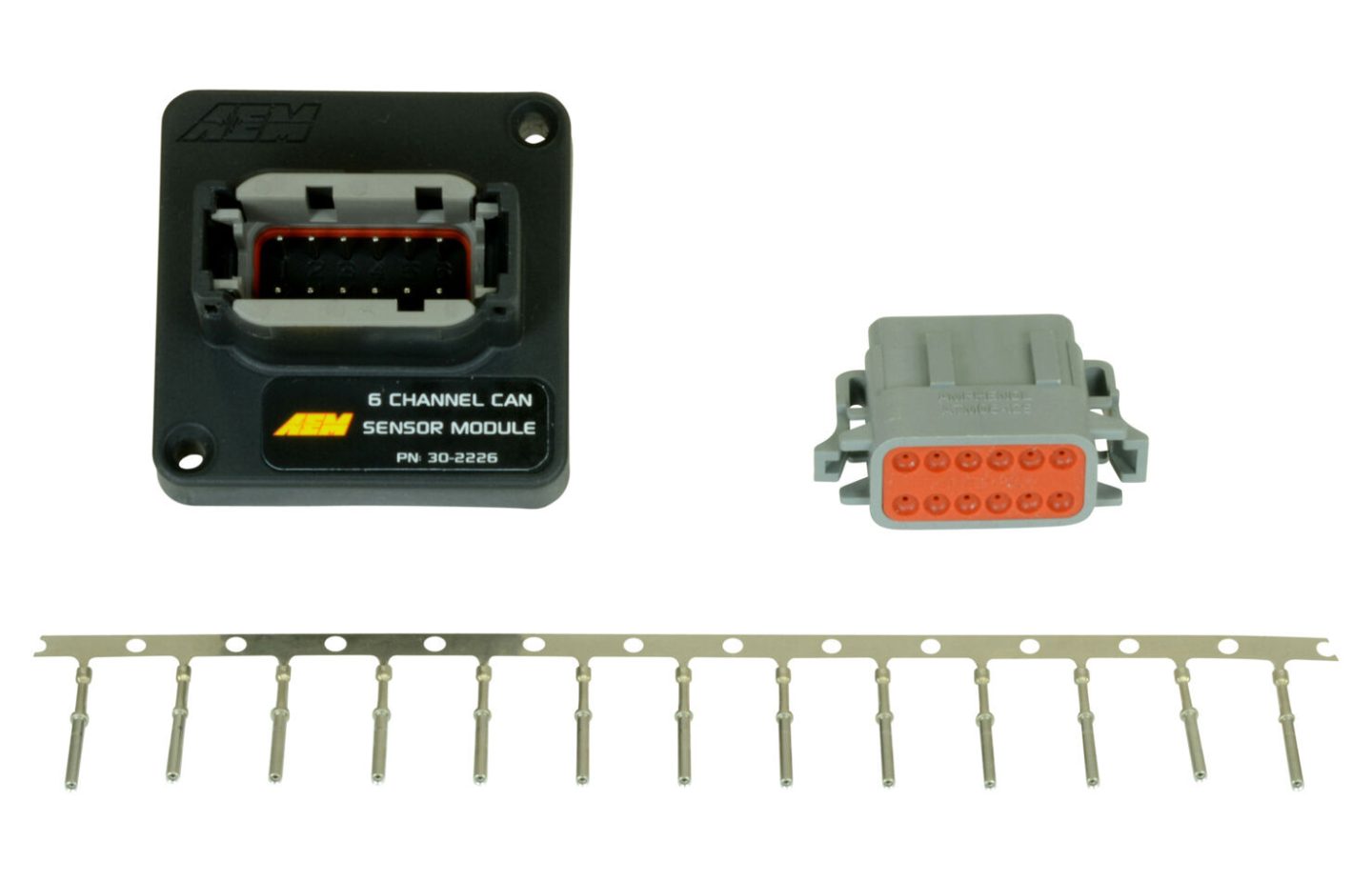

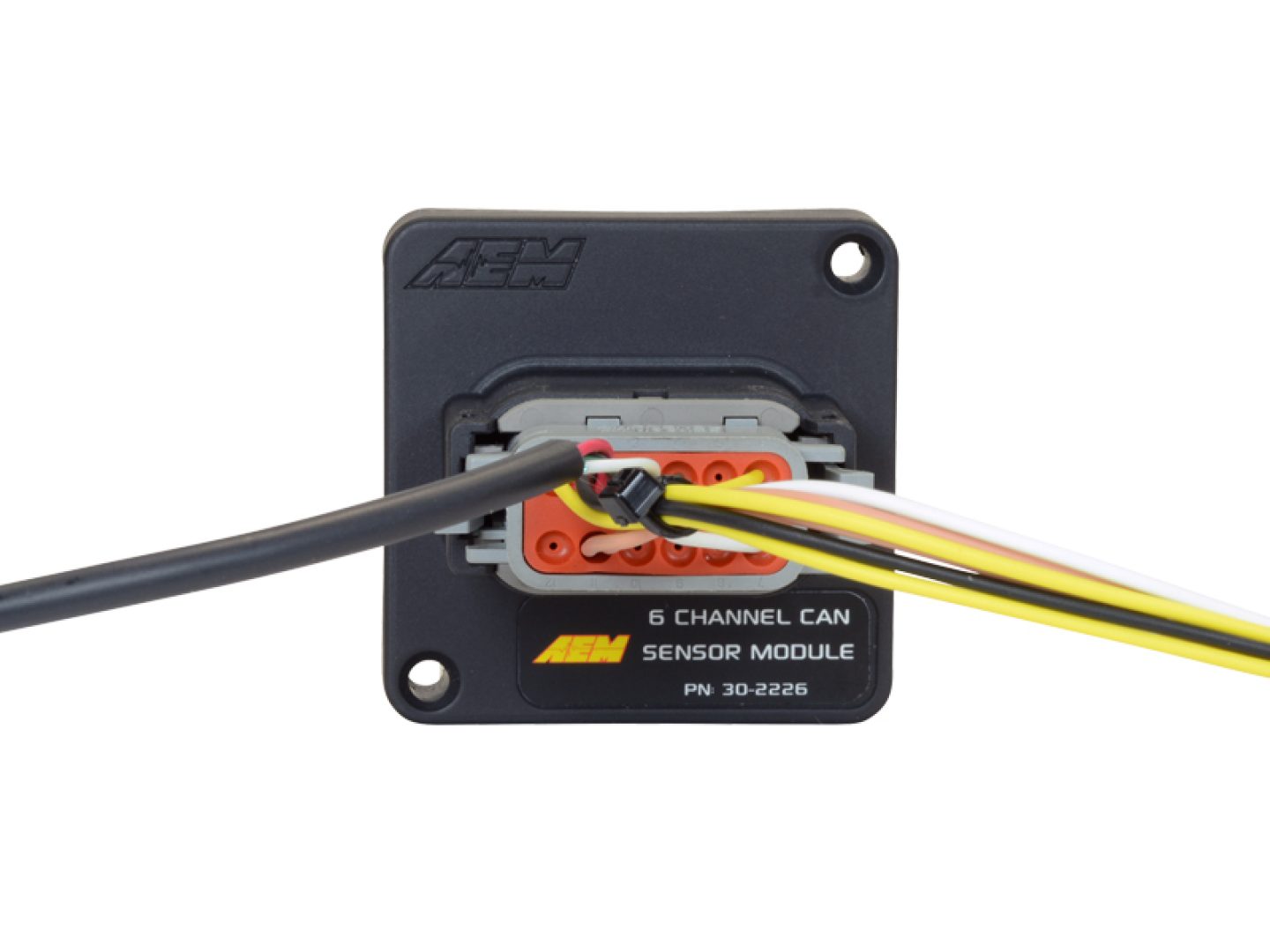

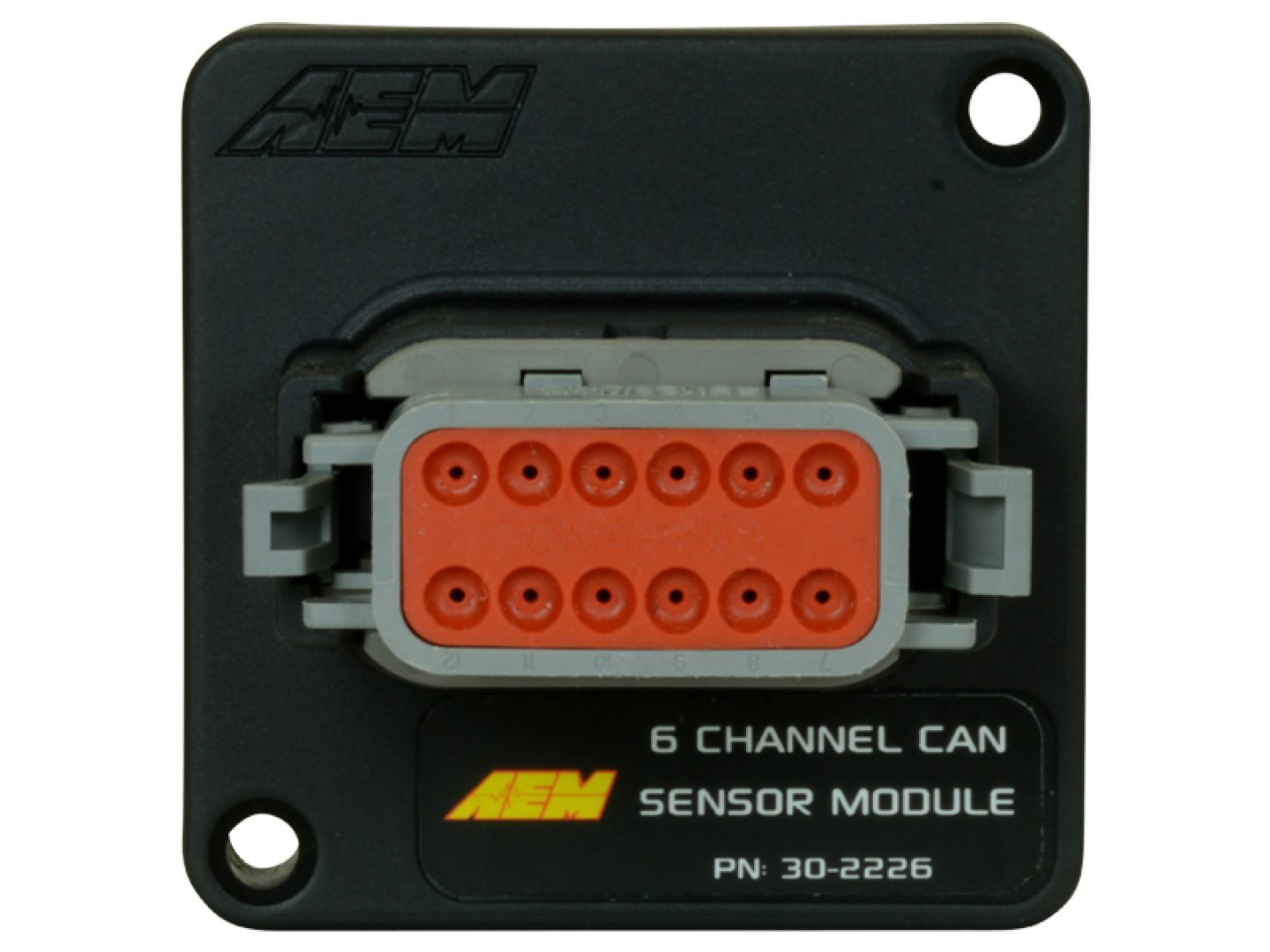

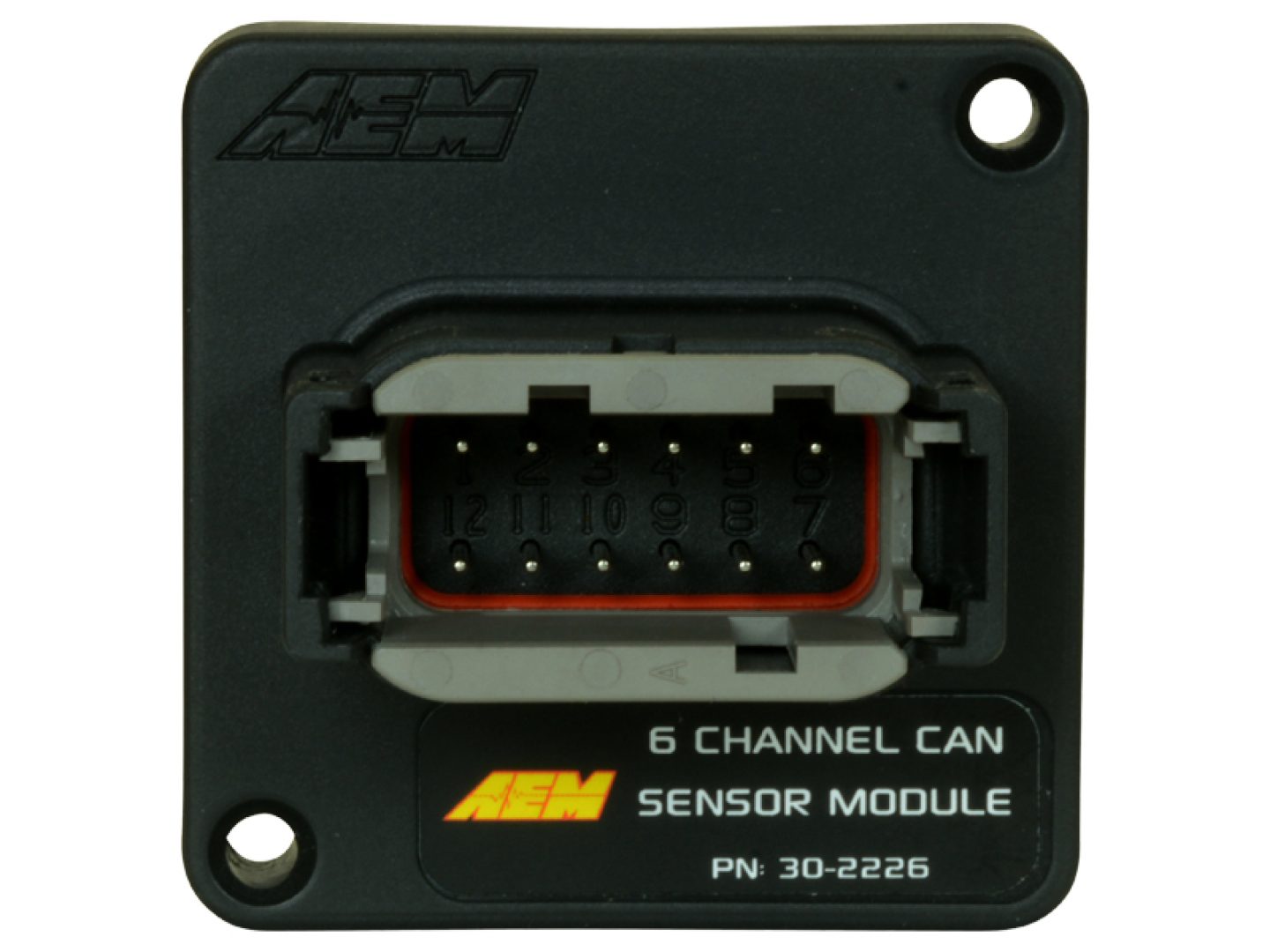

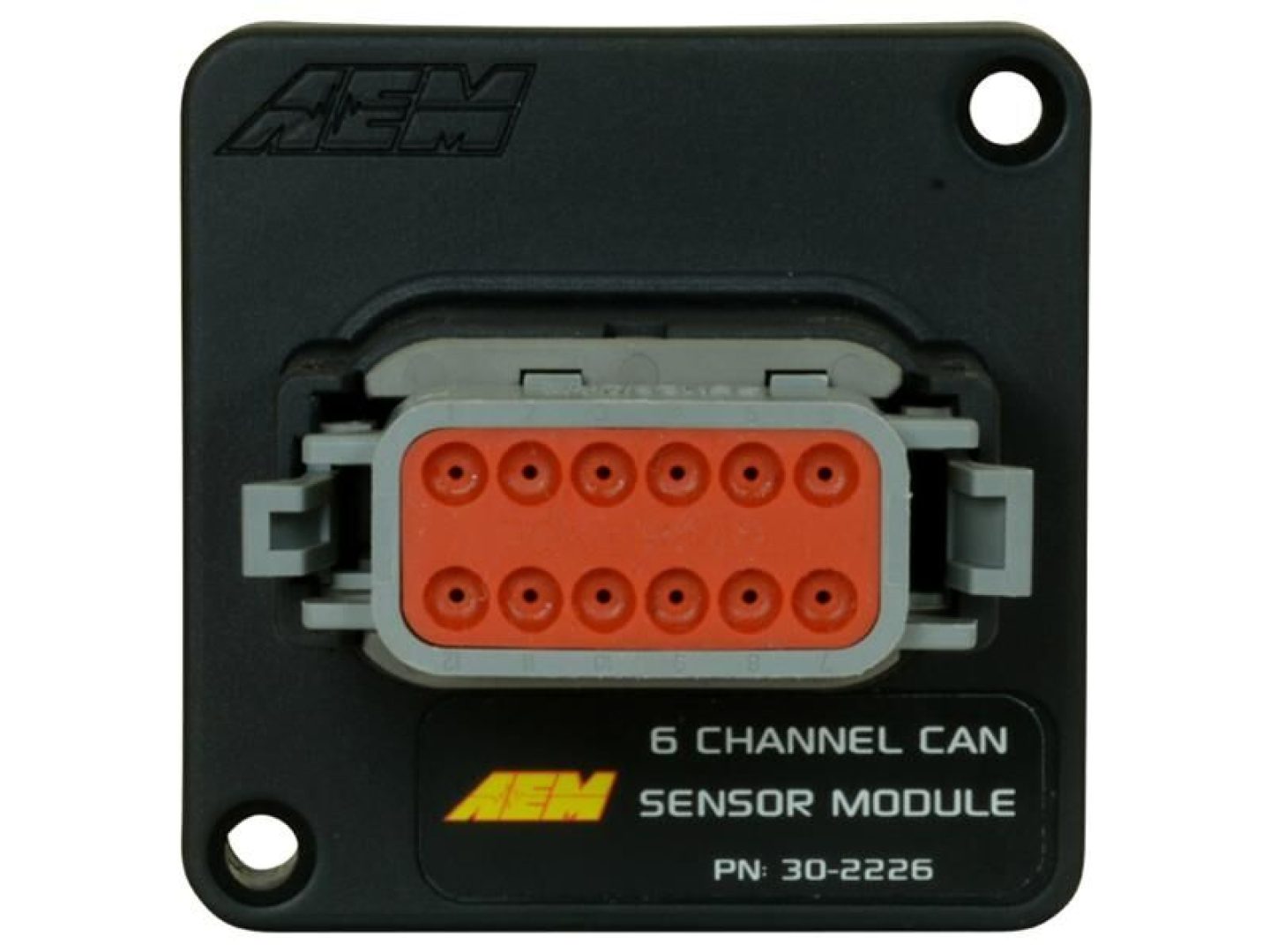

6 ChannelCAN Module
WHAT YOU GET
Converts two analog temp channels, two analog pressure channels, a tach input and fuel level input to AEMnet CANbus
Controller Area Network (CAN) Adapter
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Data Acquisition Components, CAN Sensor Module, 6 Channel for RPM, Fuel Level, 2 Temperature, 2 Pressure, Each
AEM Electronics 6-Channel CAN sensor modules provide an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to your CD Carbon Digital dash through AEMnet CAN bus. The modules support the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash, or logger. Features include: * Two temperature (thermistor) inputs * Two dedicated 0 to 5 V analog inputs * One dedicated fuel level input (0 to 250 Ohm range) * One tachometer/coil input * Fixed CAN bus speed, header length, and base address * IP67 potted enclosure/sealed connector—dust-tight and protected against water spray * Protected inputs * 12-pin DTM-style connector and pins
UPC | 00840879026073 |
Brand | AEM Electronics |
Quantity | Sold individually. |
Part Type | Data Acquisition Components |
Product Line | AEM Electronics 6-Channel CAN Sensor Modules |
Manufacturer's Part Number | 30-2226 |
Data Acquisition Component Type | Sensor input module |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Data Acquisition Component Use | Automotive |
Data Acquisition Component Use | Drag Race |
