Digital Display Kit

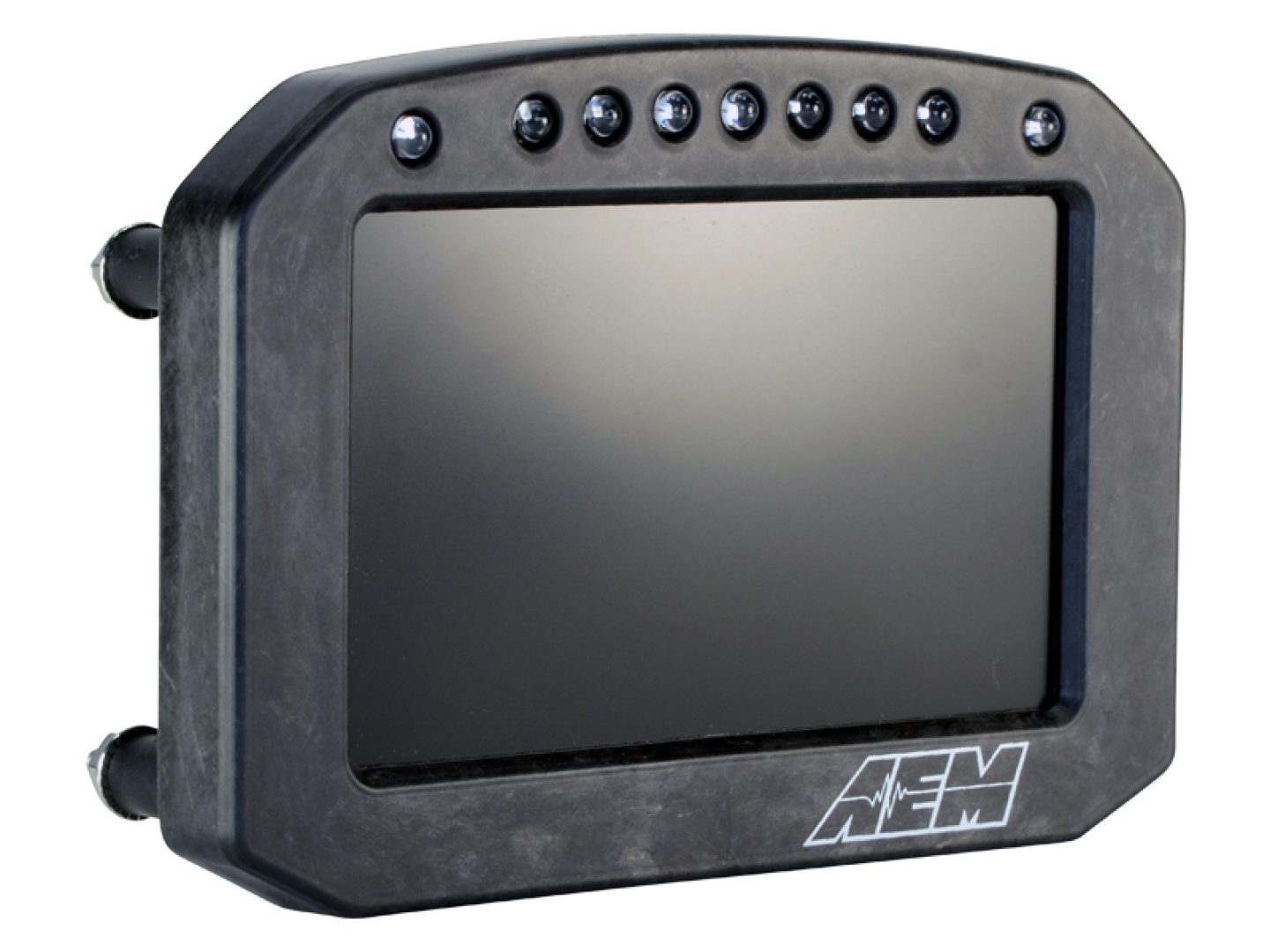

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable
5-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)
Information Display Module
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Flat Panel Display Kit, CD-5LG Carbon
AEM CD-5 Carbon digital racing dash displays are the lightest, brightest, ultimate track day digital dashboard displays that play well with others! The CD-5 units accept channels from two separate user programmable CAN bus connections—works with AEMnet enabled devices and non-AEM third party devices side-by-side. More key features and benefits: * Full-color, 5 in. screen * Direct sunlight readable (1000cd/m2 brightness and anti-glare filter) * Seven LED rpm/shift light indicators on top of the housing are programmable and dimmable * Layout files interchangeable with all versions of the CD-7 * Wiring interface/harness is identical to the CD-7 * Rugged, lightweight flow-molded carbon fiber composite enclosure * Two additional programmable LEDs are located above toggle buttons on the top of the housing on either side of the integrated LED shift lights * IP66 water resistance allows for operation in boats and motorcycles without worry * Seven programmable pages, including four main pages, alarm, on-change and start-up pages * Dedicated alarm page quickly identifies problems, and is programmable in almost any language (user defined) * Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc. * Convert CAN bus channel values to user-defined text in multiple languages * Available with or without 200Mb internal logging (up to 1,000Hz/channel) * Available with or without on-board GPS receiver and antenna * Use included page layouts and input your channels and text, or create your own from scratch
UPC | 840879026431 |
Brand | AEM Electronics |
Notes | Features panel logging display with internal GPS. |
Quantity | Sold individually. |
Part Type | Digital Dashboard Displays |
Display Type | LED |
Product Line | AEM Electronics CD-5 Carbon Digital Racing Dash Displays |
WiFi Compatible | No |
OBD II Compatible | Yes |
Display Customizable | No |
Display Housing Color | Natural |
Wiring Harness Included | Yes |
Display Housing Material | Carbon fiber composite |
Wiring Harness Terminated | Yes |
Manufacturer's Part Number | 30-5603F |
Mounting Hardware Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Sensor Included (application) | No |
Application Notes | Features panel logging display with internal GPS. |
