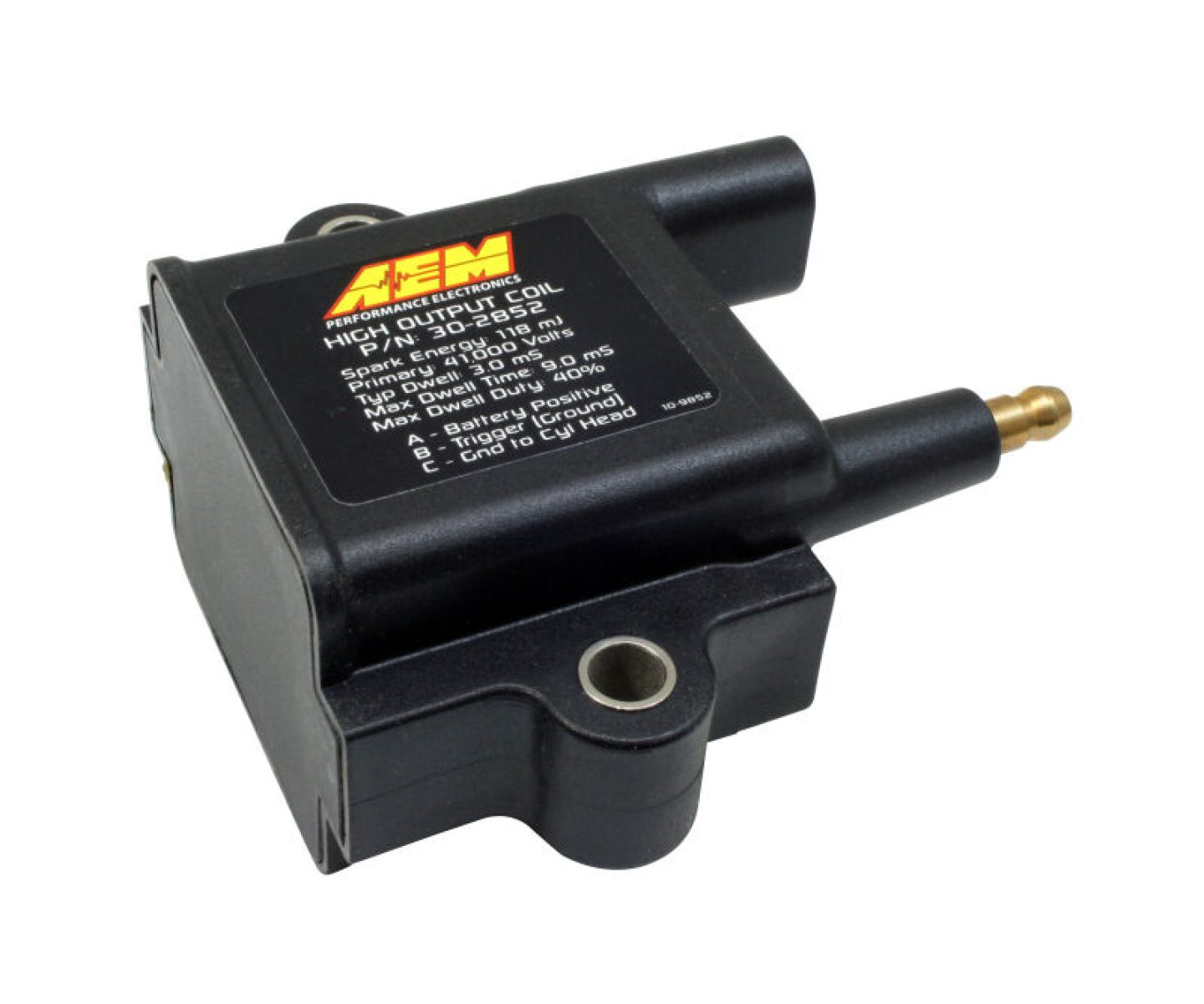

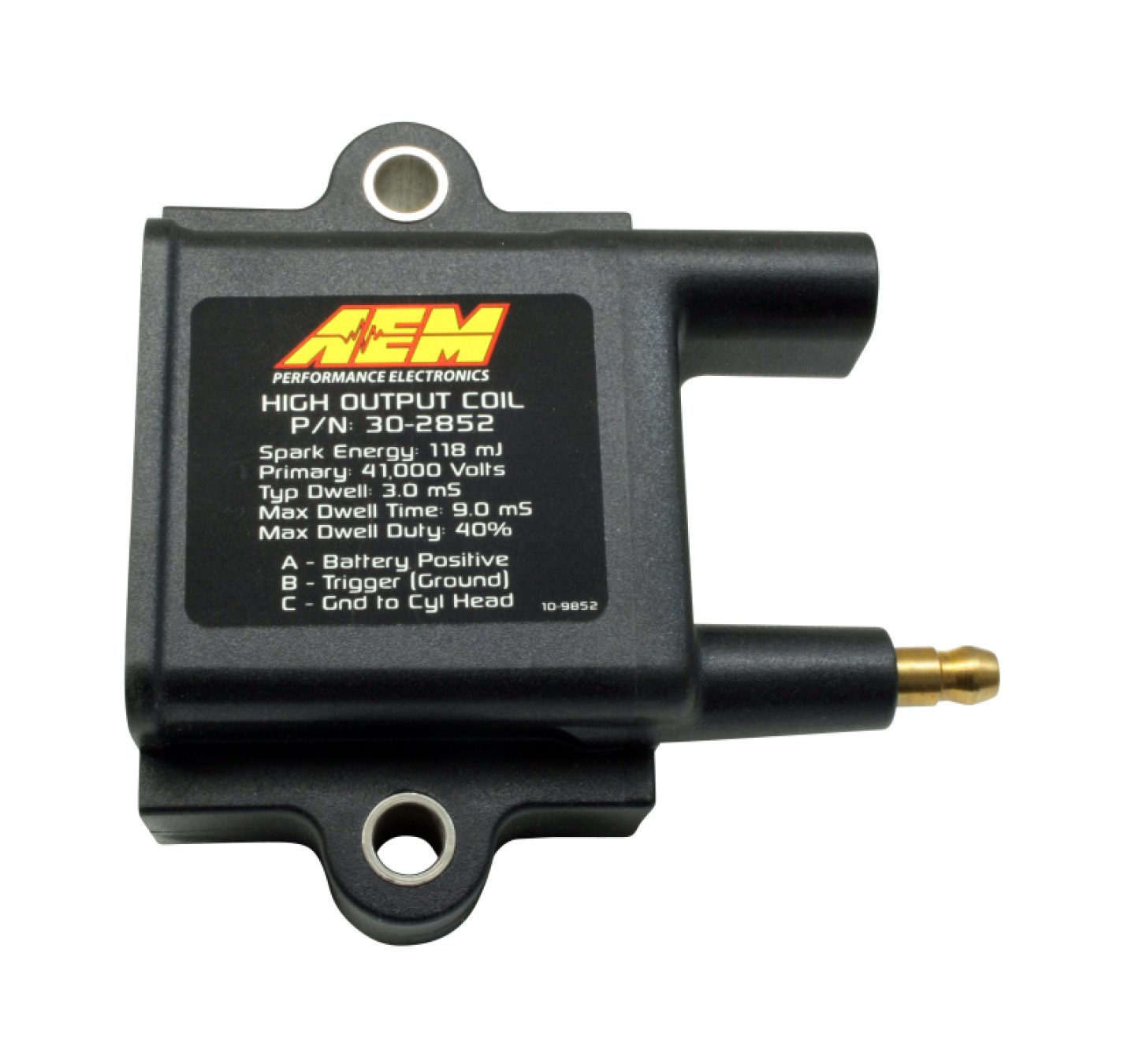

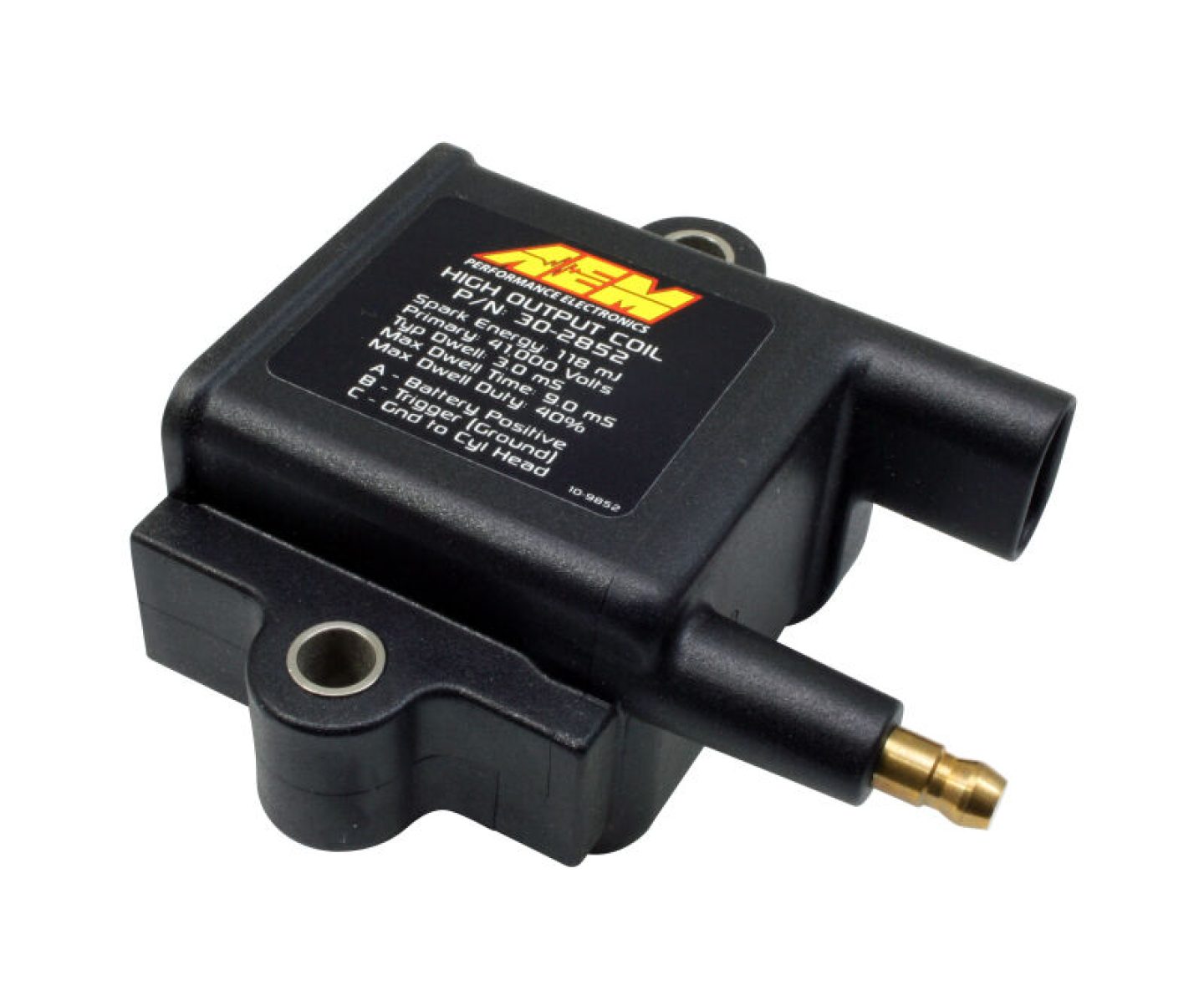

Ignition Coil, High Output Inductive Dumb, HEI, Square, Black, 0.500 ohms Primary Resistance, 41,000 V, Each
AEM Electronics high output inductive dumb ignition coils ain't so dumb! Designed to be used with an igniter, these AEM "dumb" coils offer CDI-like spark energy and voltage, plus the longer spark duration of inductive coils--and that's pretty smart! But that's not all. They easily install in the place of your existing coils, are shock and weather-proof, affordable, and they deliver world-class performance. That makes you smart for choosing them! If you want massive spark energy with an incredibly long spark duration, AEM high output inductive dumb ignition coils are an intelligent solution for any enthusiast running boost, nitrous, or high rpm.
UPC | 840879021801 |
Brand | AEM Electronics |
Notes | Includes connector and four contacts. For use with external ignitor systems or ECU with ignitor built into it. |
Quantity | Sold individually. |
Part Type | Ignition Coils |
Coil Color | Black |
Coil Shape | Square |
Inductance | 4.80 mH |
Turns Ratio | 71:1 |
Peak Current | 100 mA |
Product Line | AEM Electronics High Output Inductive Dumb Ignition Coils |
Spark Duration | 3.2 mS |
Maximum Voltage | 41,000 V |
Coil Wire Included | No |
Primary Resistance | 0.500 ohms |
Coil Wire Attachment | Male/HEI |
Secondary Resistance | 8.50K ohms |
Ballast Resistor Included | No |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 30-2852 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
