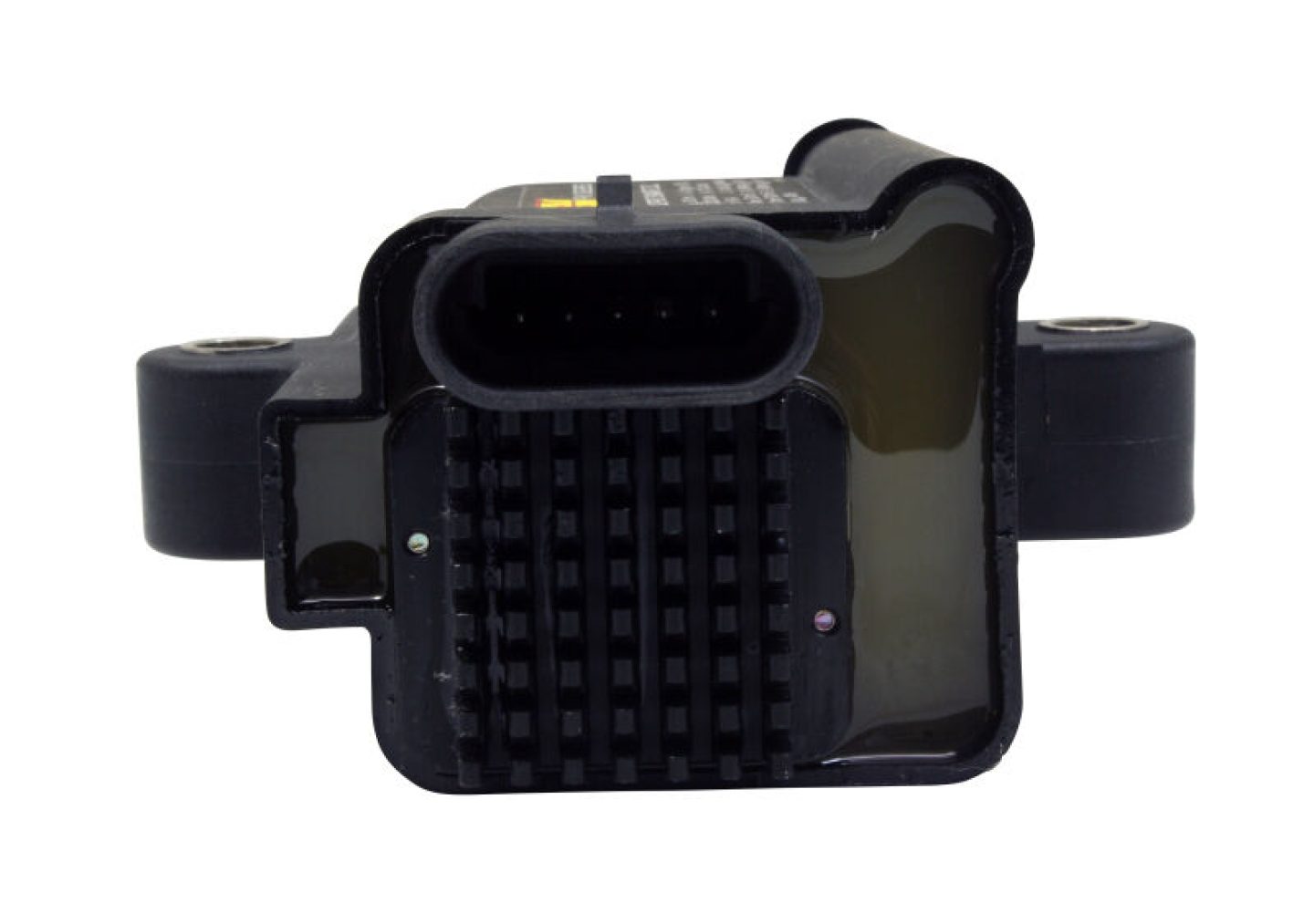

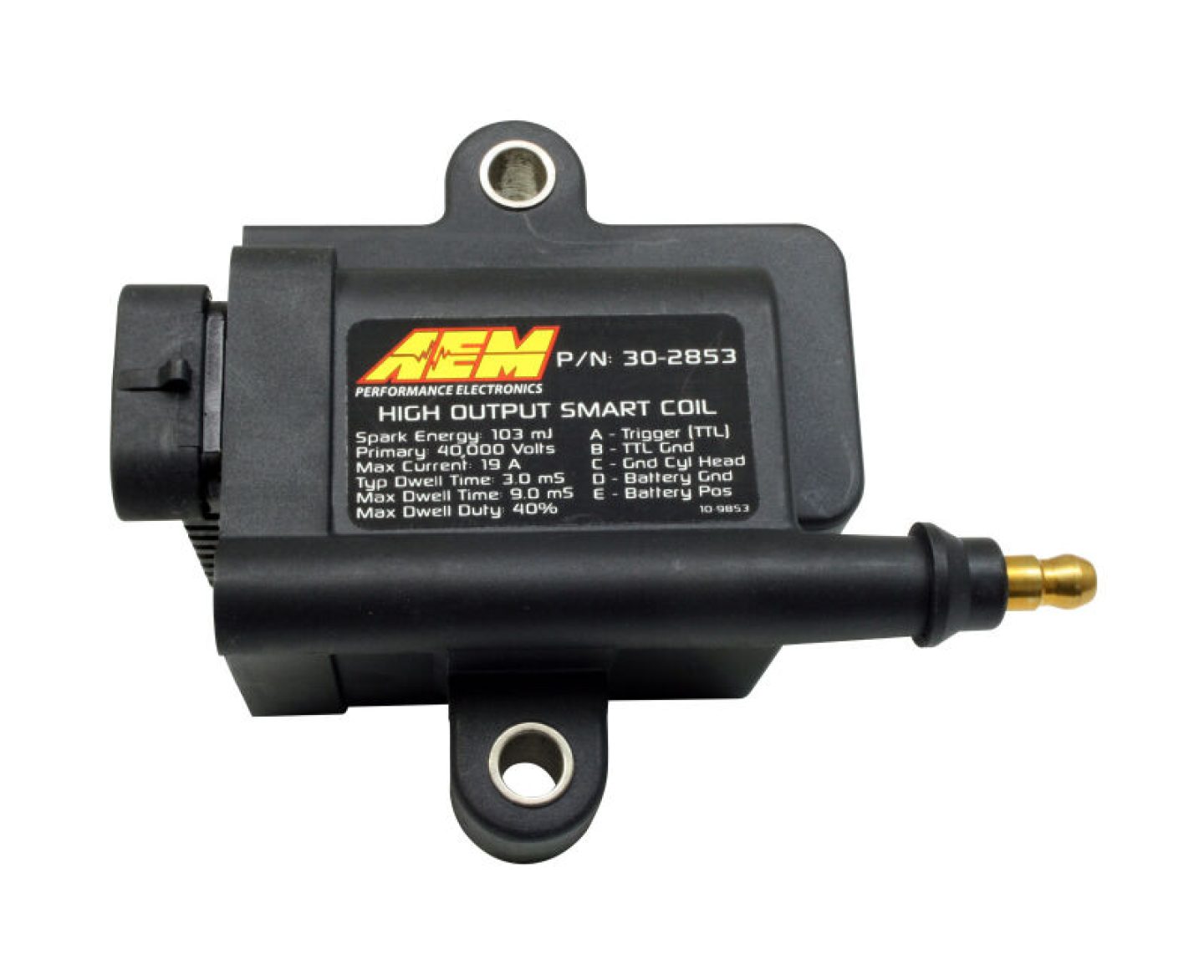

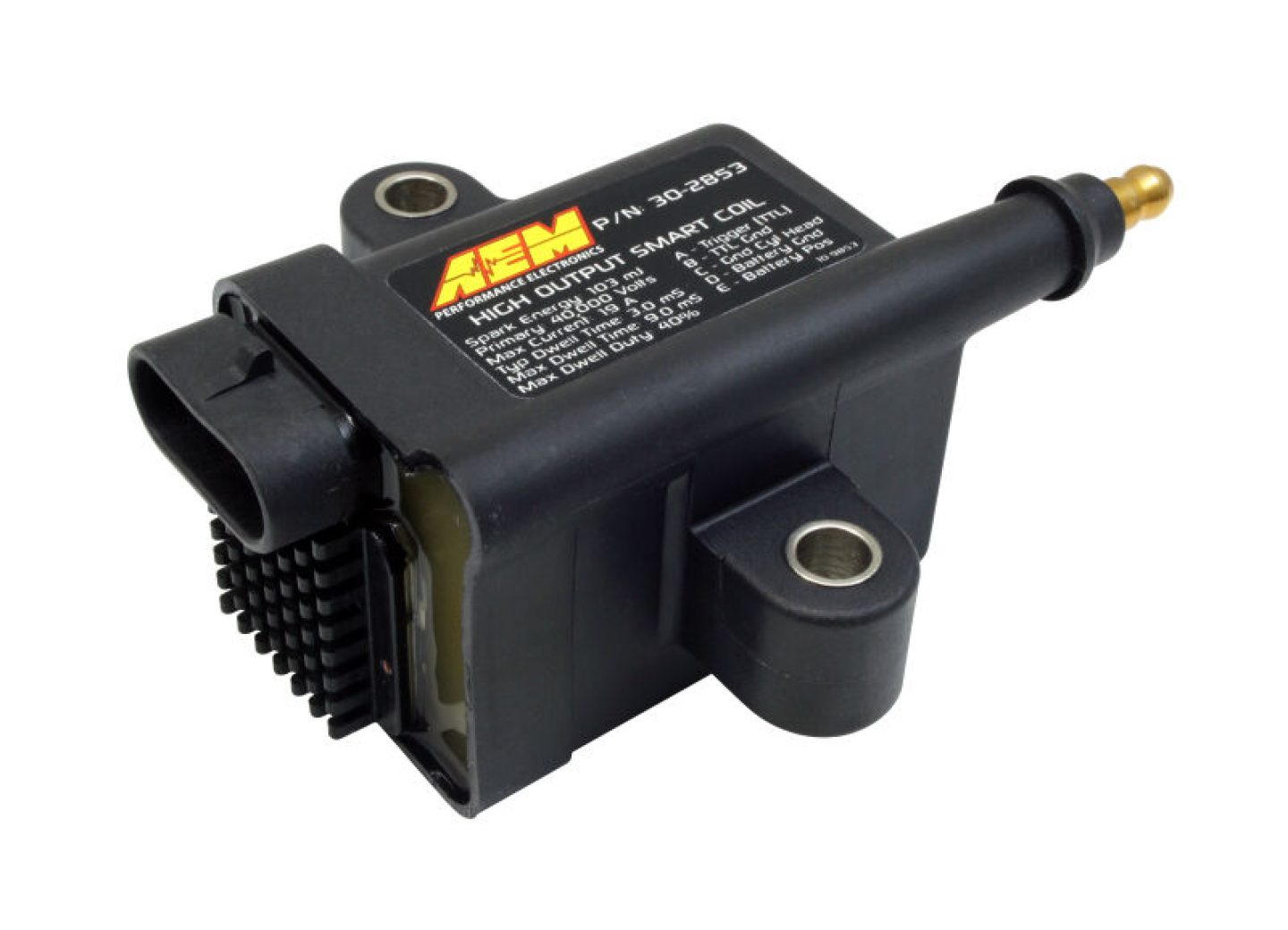

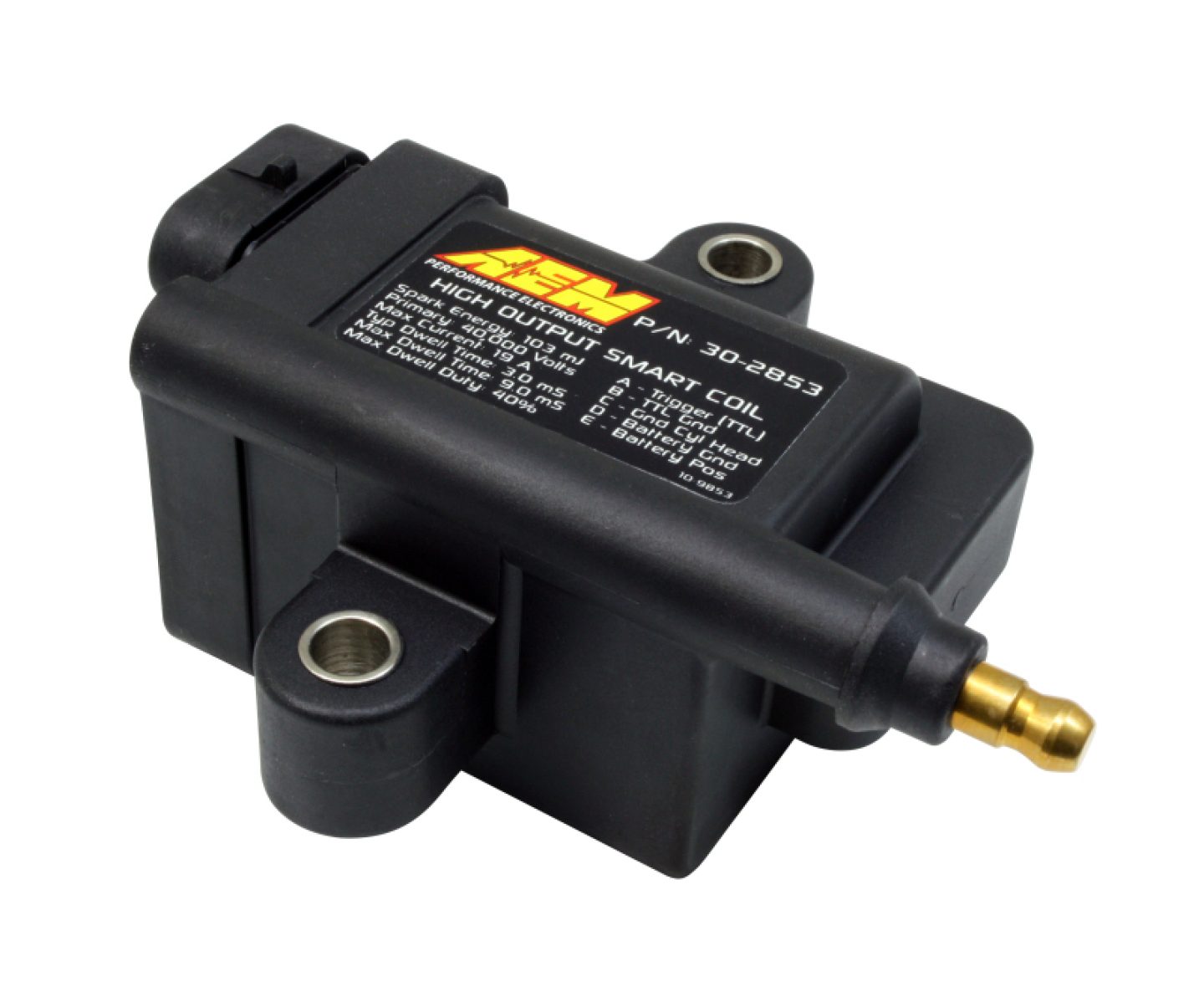

Hi Output Smart Coil
AEM's High-Output, Insulated Gate Bipolar Transistor (IGBT) "Smart" Inductive Coils are designed for use on applications that do not have an external igniter.
High Output Inductive Smart Coil
Ignition Coil
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Ignition Coil, Smart Coil, Inductive, Socket, 40,000 V, 102 mA Peak Current, Round, Black, Each
AEM Electronics high-output, insulated gate bipolar transistor (IGBT) inductive Smart Coils are designed for use on applications that do not have an external ignitor. The tradeoff between adequate spark energy and adequate spark duration ends with AEM's inductive Smart Coils, the first inductive coils that deliver CDI-like spark energy and voltage, and the long spark duration necessary for vehicles running high compression, high RPM, forced induction and/or nitrous engines. AEM's inductive Smart Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts! That's as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark duration. Smart Coil's feature a weather and shockproof design that can be mounted directly to the engine, and they cost less than other aftermarket LS coils. Upgrade your ignition on your forced induction, nitrous, or high RPM engine today with AEM Electronics IGBT inductive Smart Coils.
UPC | 840879021818 |
Brand | AEM Electronics |

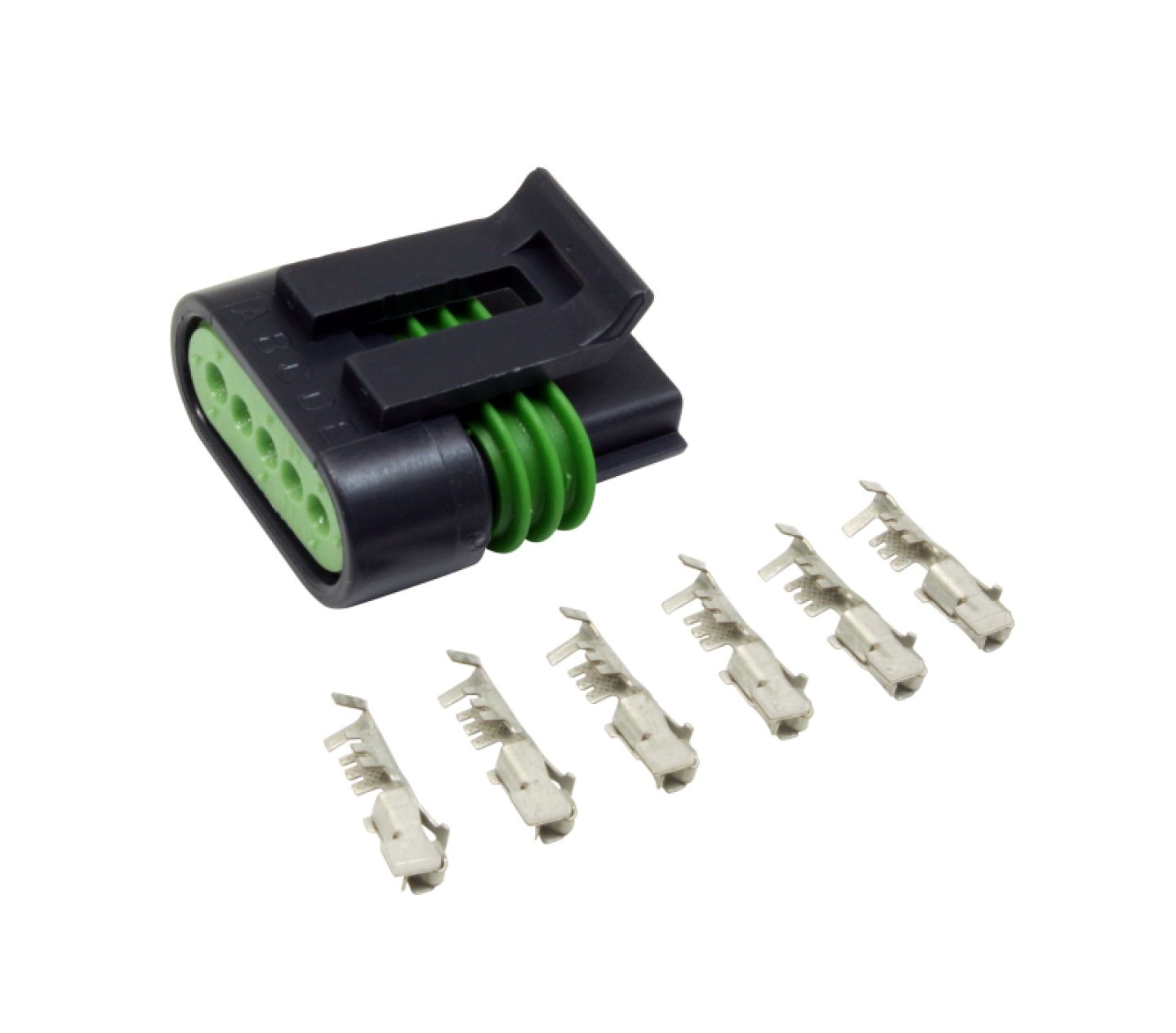

Notes | Includes coil, connector, connector pins, pin lock, weather seals, and dielectric grease. For use with AEM Twin Fire or aftermarket ignition modules. Not for use with distributed applications. AEM IGBT smart coils are intended for coil-near-plug use only. |
Quantity | Sold individually. |
Part Type | Ignition Coils |
Coil Color | Black |
Coil Shape | Rectangular |
Coil Style | Coil pack |
Turns Ratio | 71:1 |
Width (in.) | 1.732 in. |
Height (in.) | 2.510 in. |
Length (in.) | 3.800 in. |
Peak Current | 102 mA |
Product Line | AEM Electronics IGBT Inductive Smart Coils |
Maximum Voltage | 40,000 V |
Coil Wire Included | No |
Coil Wire Attachment | Male/HEI |
Ballast Resistor Included | No |
Mounting Bracket Included | No |
Manufacturer's Part Number | 30-2853 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Application Notes | Includes coil, connector, connector pins, pin lock, weather seals, and dielectric grease. For use with AEM Twin Fire or aftermarket ignition modules. Not for use with distributed applications. AEM IGBT smart coils are intended for coil-near-plug use only. |
