Regulator

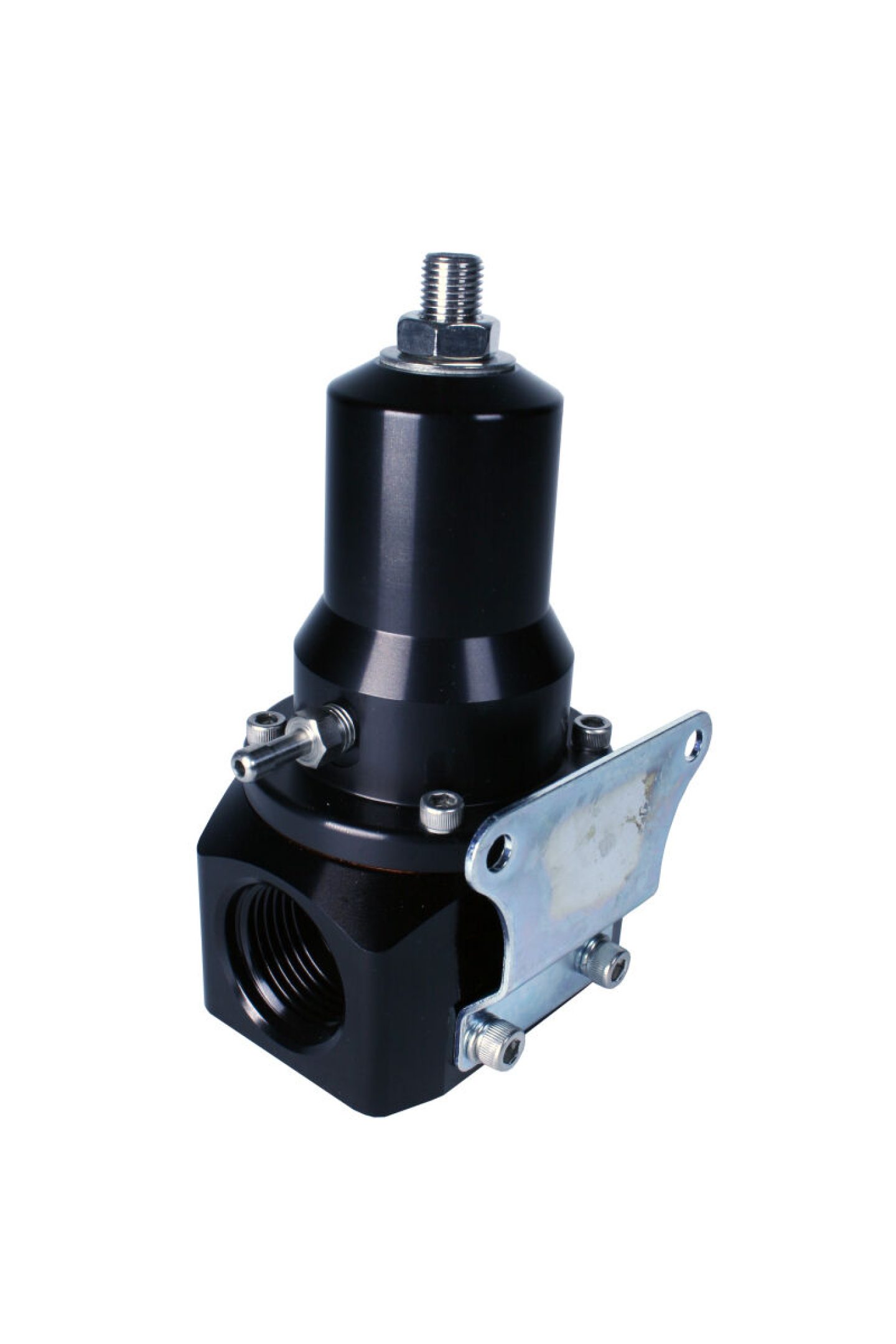

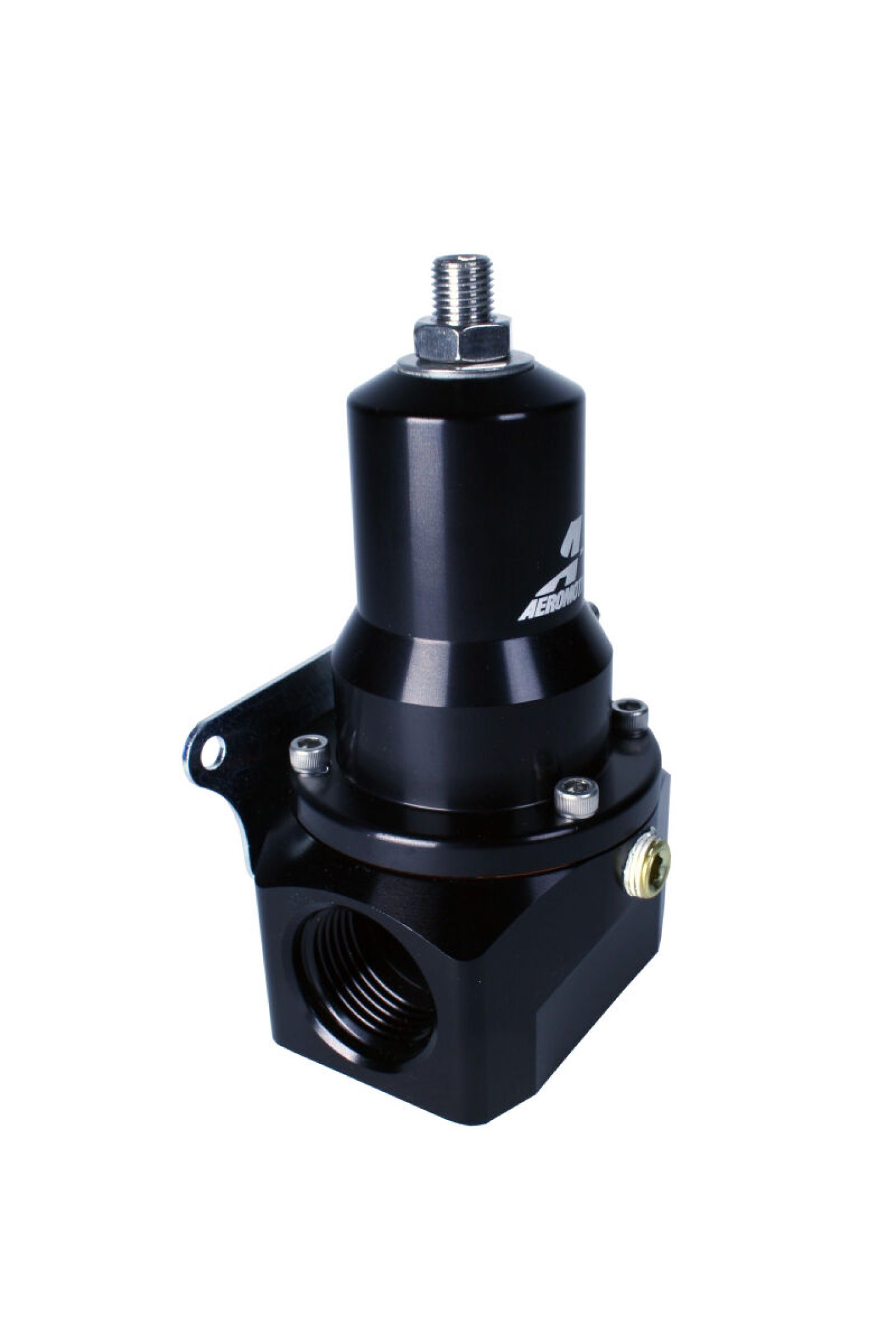

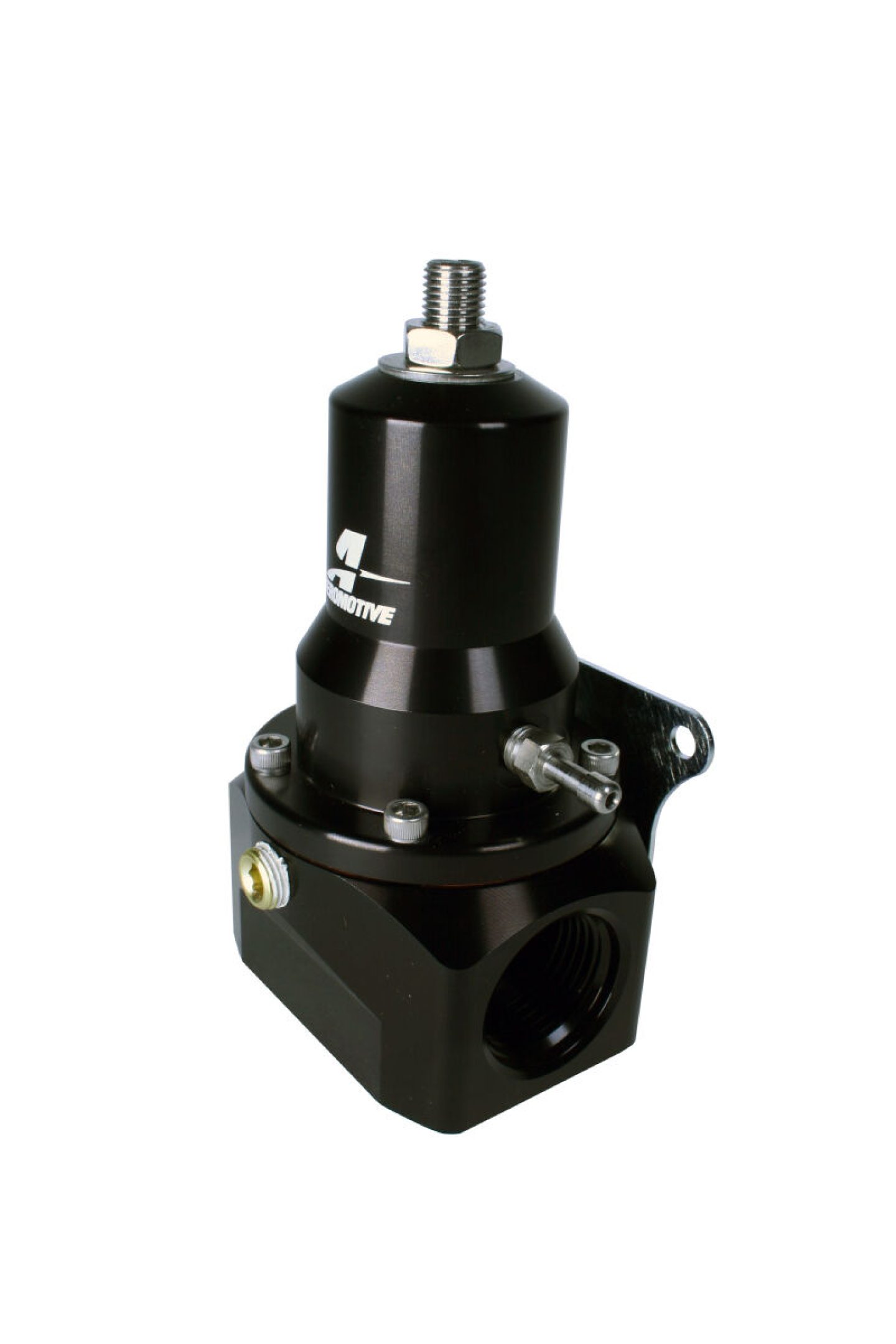

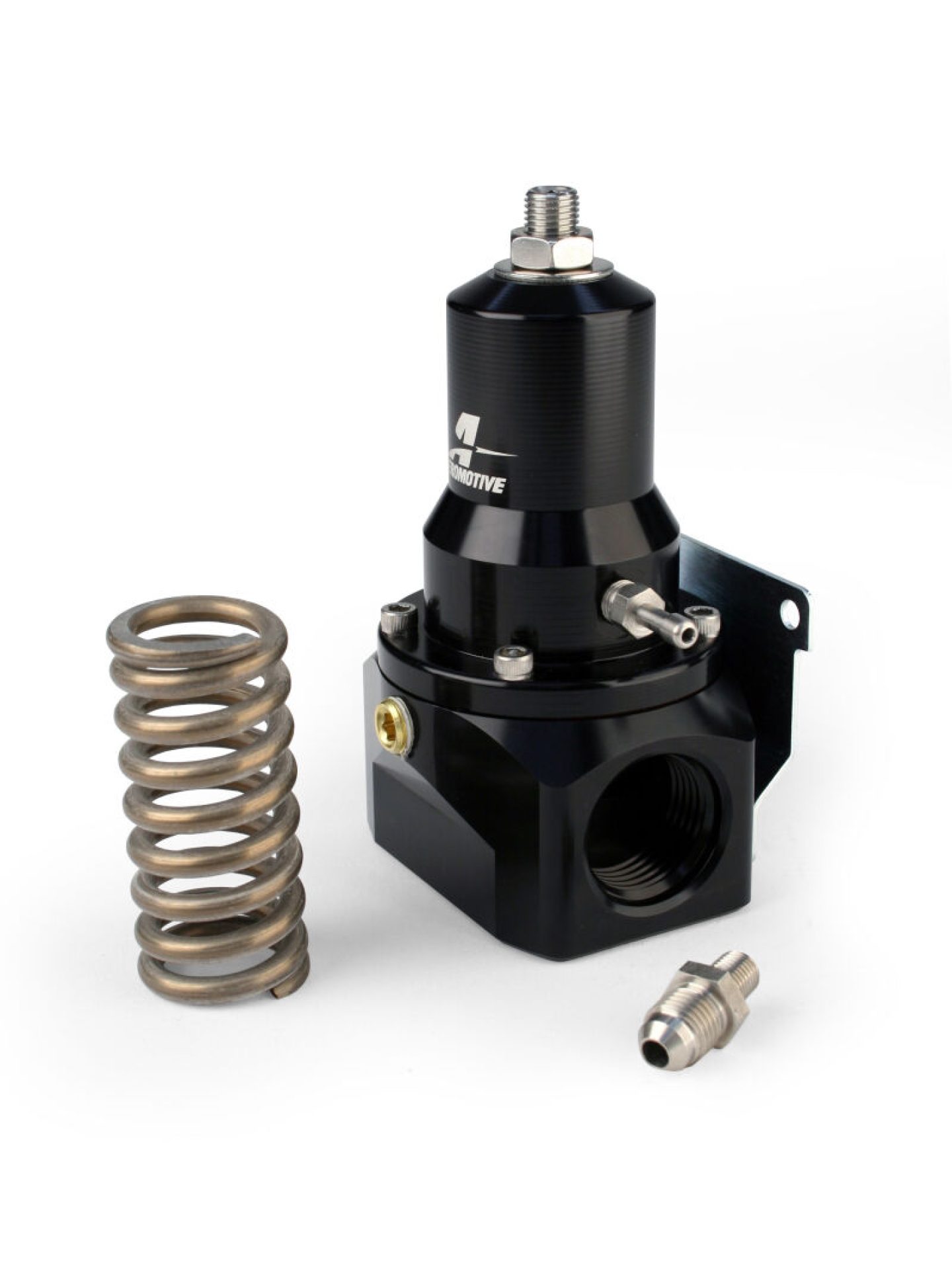

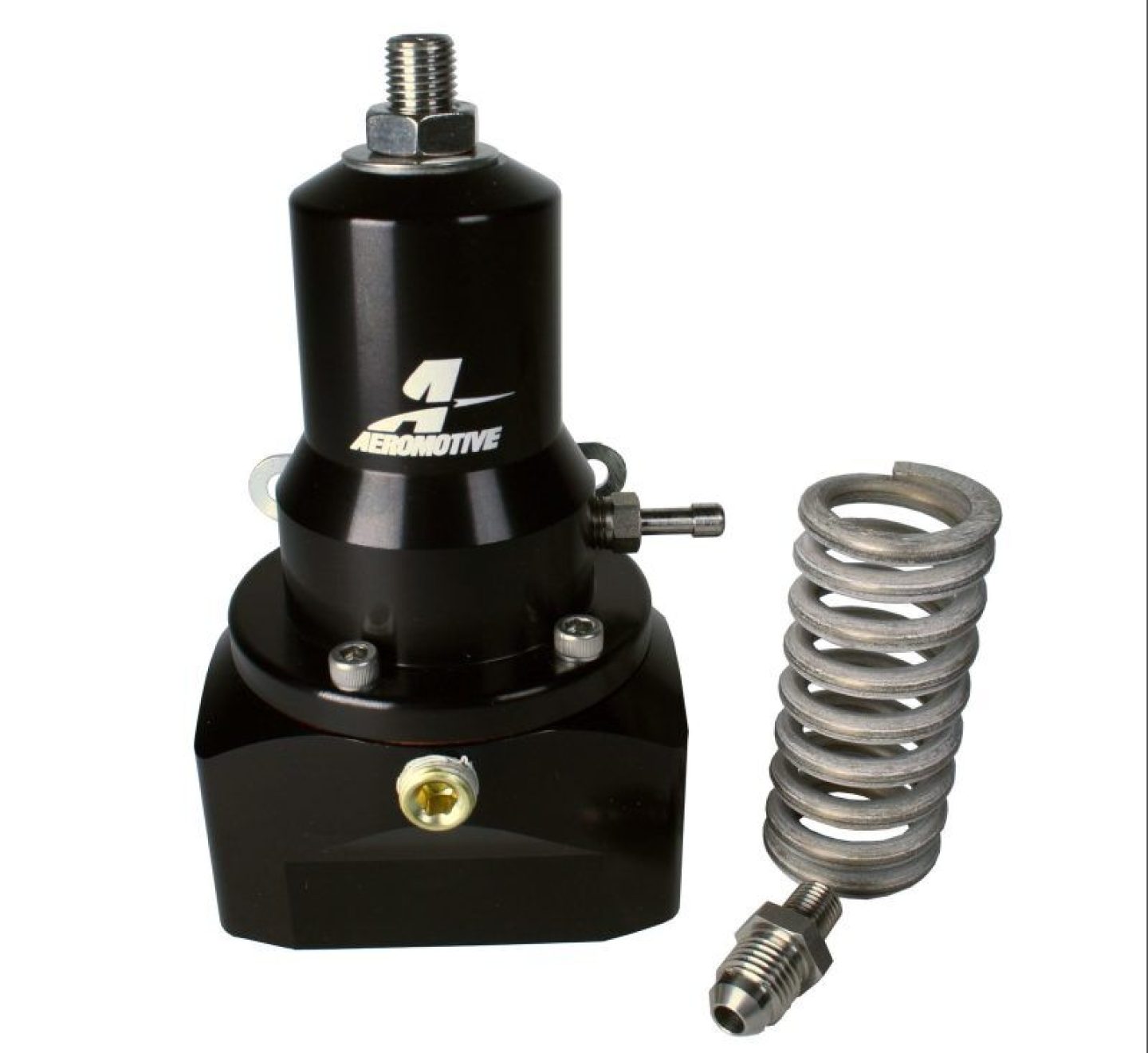

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It's designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500 high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Pro Mod EFI Gear Pump Regulator, 30-120 PSI, .500 Valve, (2) -12 inlets, (1) -12 return.
Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, Extreme Flow EFI, 30-120 psi, Inline, Return Style, Aluminum, Black Anodized, Each
Control your fuel pressure with one of these Aeromotive Extreme Flow EFI fuel pressure regulators. They're manufactured from durable aluminum, then anodized for maximum protection. The regulators include a standard spring (installed) that supports 30-75 psi base fuel pressure and a high pressure spring (included) to support 75-120 psi base fuel pressure. Aeromotive Extreme Flow EFI fuel pressure units also support vacuum and boost reference on a 1:1 ratio.
UPC | 00684980008609 |
Brand | Aeromotive |
Notes | For Belt/Hex Drive Fuel Pumps and EFI Engines. Features 0.500 in. high flow valve seat to support 7-26 GPM fuel pumps. |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Aeromotive Extreme Flow EFI Fuel Pressure Regulators |
Inlet Quantity | 1 |
Outlet Quantity | 2 |
Regulator Style | Return |
Inlet Attachment | Female straight cut O-ring |
Regulator Finish | Black anodized |
Fittings Included | No |
Outlet Attachment | Female straight cut O-ring |
Regulator Location | Inline |
Regulator Material | Aluminum |
Regulator Inlet Size | -12 AN |
Regulator Outlet Size | -12 AN O-ring |
Boost/Vacuum Rise Ratio | 1:1 |
Regulator Pressure (psi) | 30-120 |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 13137 |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Multi-port injection |
