Regulator
Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any bypass system. ORB-10 return port. 1/8' NPT gauge port. Provides superior pressure control and flow when installed before the carburetor or after a fuel log. P/N 13214 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17249 or 17251.
Dual Adjustable Alcohol Log Regulator For Belt and Direct Drive Mechanical Pumps.
Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

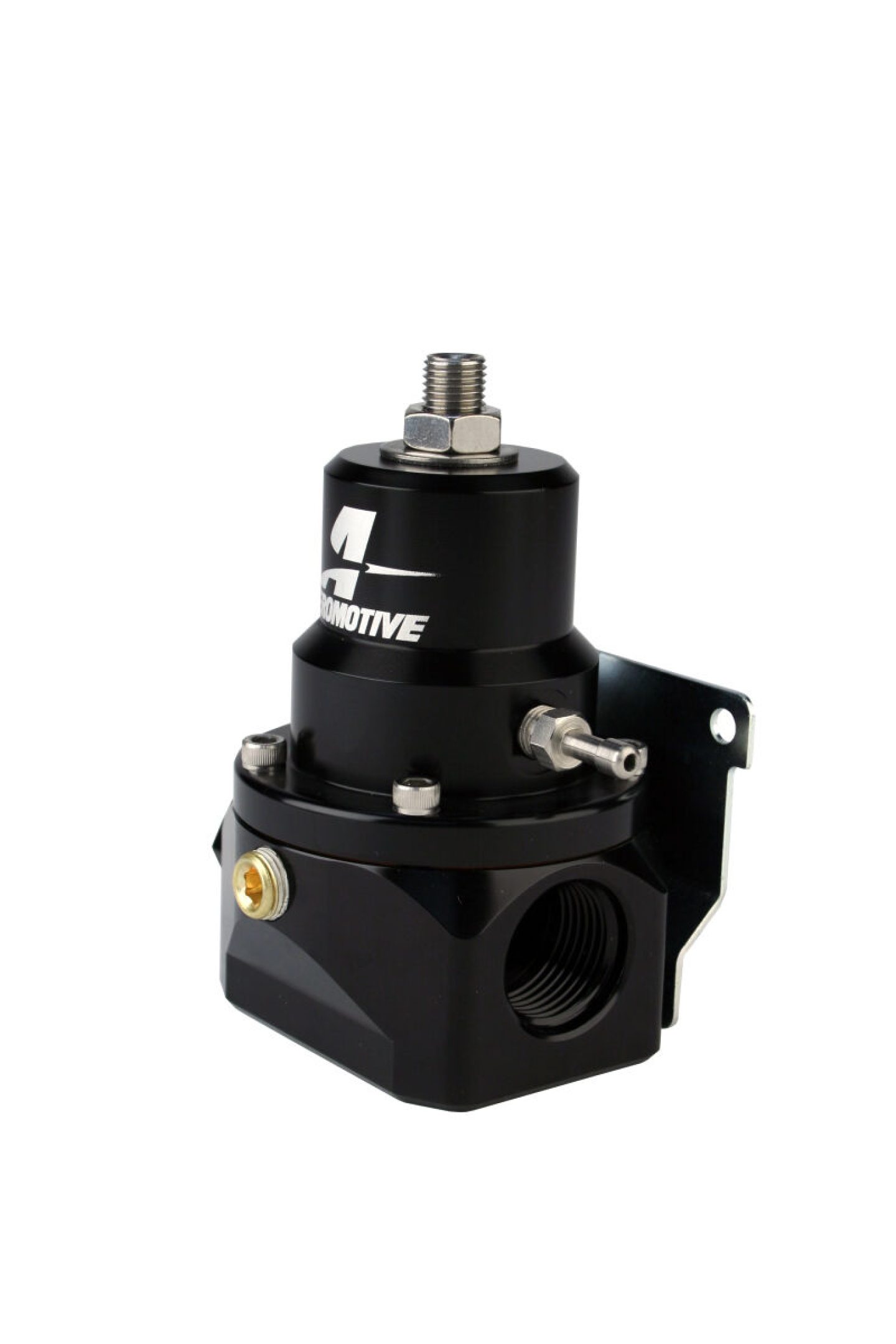

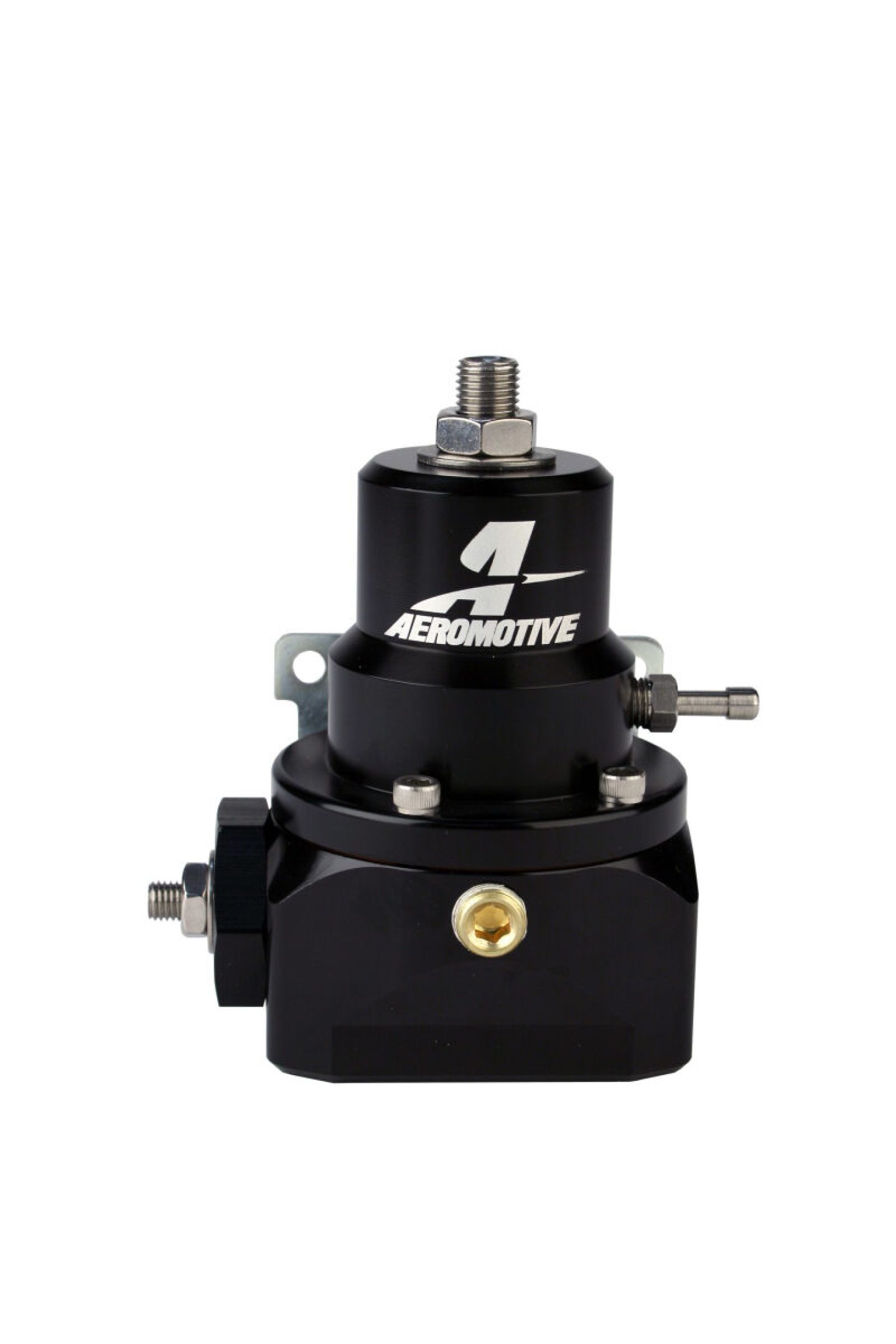

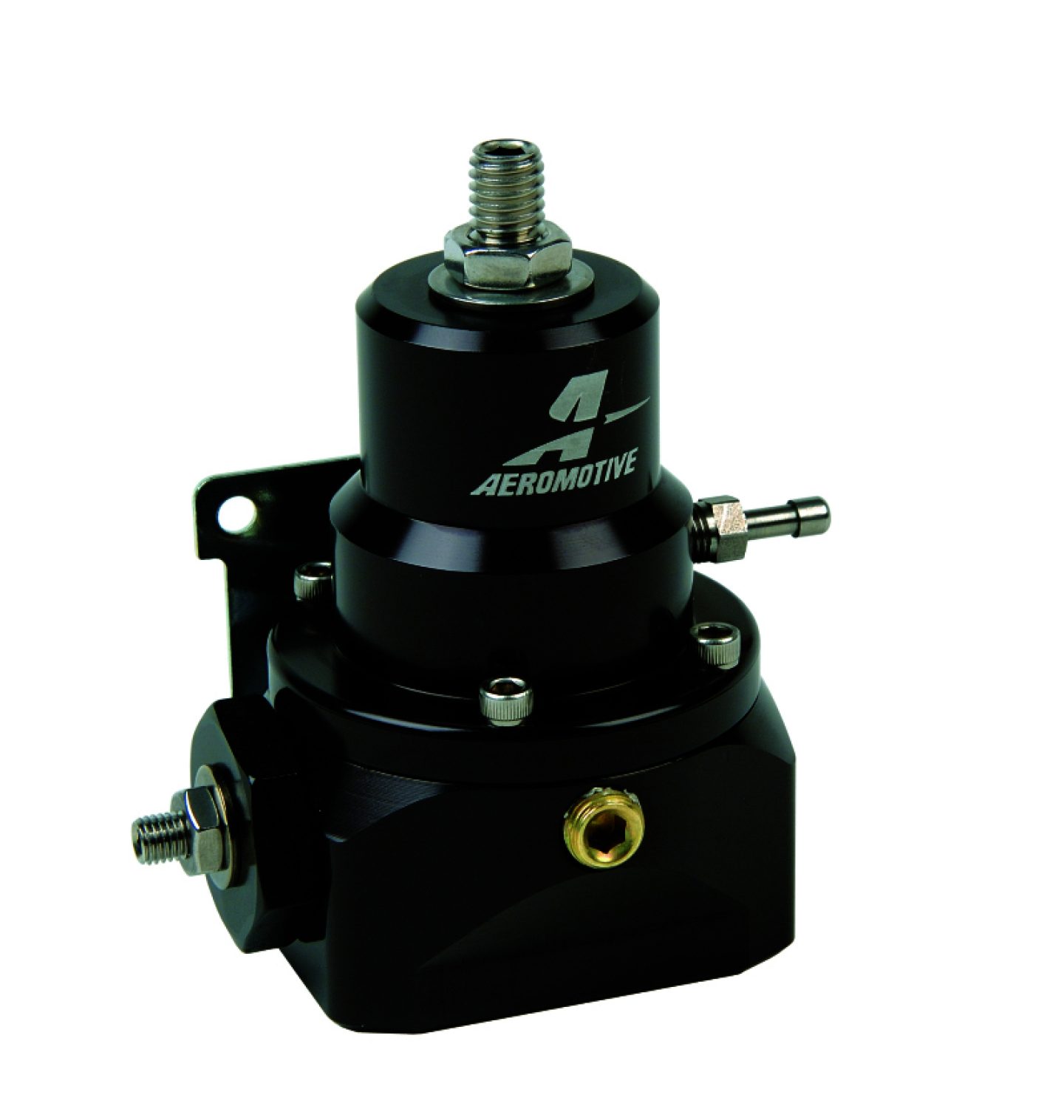

Fuel Pressure Regulator, 2-18 psi, Black, Universal, Double Adjustable, Return Style, Alcohol, Each
Aeromotive double adjustable carbureted regulators are designed for use with Aeromotive's series of mechanical drive fuel pumps. These regulators allow a dual pressure strategy often required for alcohol carbureted racing engines where fuel pressure must be lower at idle, but higher as rpm and loads increase. Aeromotive double adjustable carbureted regulators prevent flooding during low fuel demands, while eliminating starvation at high fuel demands. They are capable of supporting 2,000+ hp, alcohol-burning engines. These regulators do not require jets, pills, logs, or barrel valves.
Brand | Aeromotive |
Manufacturer's Part Number | 13214 |
Part Type | Fuel Pressure Regulators |
Product Line | Aeromotive Double Adjustable Carbureted Regulators |
UPC | 00684980001143 |
Regulator Pressure (psi) | 2-18 |
Regulator Style | Return |
Regulator Location | Inline |
Boost/Vacuum Reference Port | Yes |
Boost/Vacuum Rise Ratio | 1:1 |
Gauge Port | Yes |
Inlet Quantity | 1 |
Regulator Inlet Size | -10 AN |
Inlet Attachment | Female straight cut O-ring |
Return Fitting Size | -10 AN O-ring |
Return Attachment | Female straight cut O-ring |
Fittings Included | No |
Regulator Material | Aluminum |
Regulator Color | Black |
Rebuildable | Yes |
Mounting Bracket Included | No |
Remanufactured | No |
Quantity | Sold individually. |
Notes | Designed for belt or cam driven fuel pumps. |
No specific fitment data available for this part. For clarification, please contact us.
