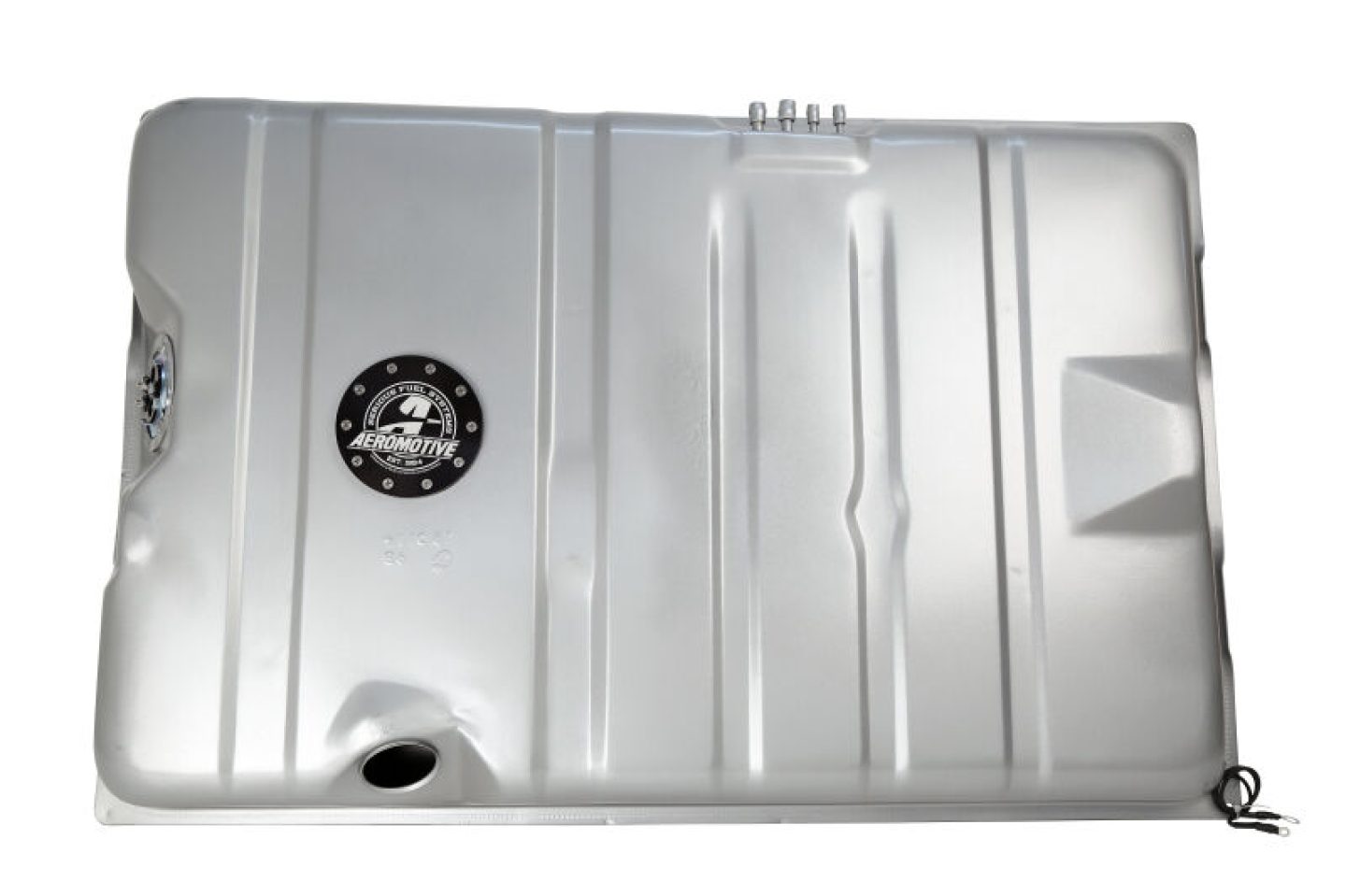

525 LPH 68-70 Charger Hellcat Fuel Tank.
Fuel Tank, 525lph, 68-70 Charger Hellcat Swap.
Fuel Tank
Aeromotive Gen II Stealth fuel tanks utilize patented and award-winning Phantom technology. This enables a quiet, high-flow EFI pump and baffle to maintain ample fuel supply around the inlet of the pump—which, in turn, ensures consistent fuel delivery and drivability even in low fuel conditions. The tanks feature outlet and return ports, along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers. All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, an Aeromotive Gen II Stealth tank will get you out of the garage and on the road in no time. Order the model recommended for fitment on your vehicle.
UPC | 684980011654 |
Brand | Aeromotive |
Quantity | Sold individually. |
Flow Rate | 139 gph/525 lph |
Part Type | Fuel Tanks |
Baffled Sump | Yes |
Product Line | Aeromotive Gen II Stealth Fuel Tanks |
Fuel Tank Color | Silver painted |
Outlet Quantity | 1 |
Fuel Pump Included | Yes |
Fuel Tank Material | Steel |
Sending Unit Included | Yes |
Lock Ring Kit Included | Yes |
Mounting Strap Included | No |
Fuel Sump Welded on Tank | No |
Summit Racing Part Number | AEI-18859 |
Manufacturer's Part Number | 18859 |
Mounting Hardware Included | No |
Compatibility & Application Information | |
---|---|
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1969 |
Ending Year | 1970 |
Engine Type | L6 |
Drivetrain | RWD |
Engine Family | Mopar inline 6-cylinder |
Engine Size | 3.7L/225 |
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1969 |
Ending Year | 1970 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Mopar Hemi |
Engine Size | 7.0L/426 |
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1969 |
Ending Year | 1970 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Mopar big block B |
Engine Size | 6.3L/383 |
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1969 |
Ending Year | 1970 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Mopar big block RB |
Engine Size | 7.2L/440 |
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1969 |
Ending Year | 1970 |
Engine Type | V8 |
Drivetrain | RWD |
Engine Family | Mopar small block LA |
Engine Size | 5.2L/318 |
Make | DODGE |
Model | CHARGER |
Submodel | 500 |
Beginning Year | 1970 |
Ending Year | 1970 |
Aeromotive 68-70 Dodge Charger Hellcat Swap Fuel Tank | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1968 | Dodge | Charger | R/T | US |
1968 | Dodge | Charger | Base | US |
1969 | Dodge | Charger | 500 | US |
1969 | Dodge | Charger | R/T | US |
1969 | Dodge | Charger | Daytona | US |
1969 | Dodge | Charger | Base | US |
1969 | Dodge | Charger | SE | US |
