Regulator
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control. Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

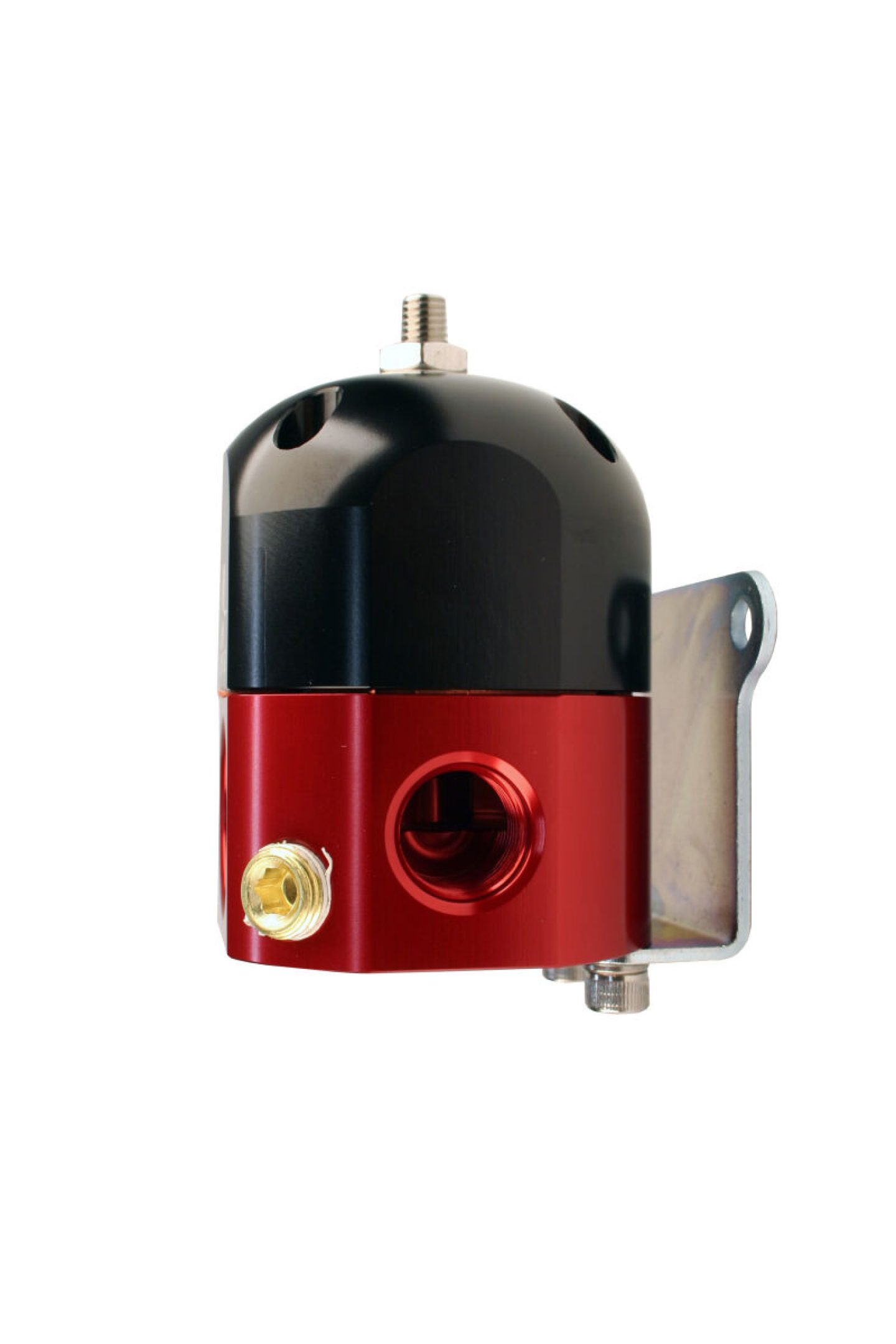

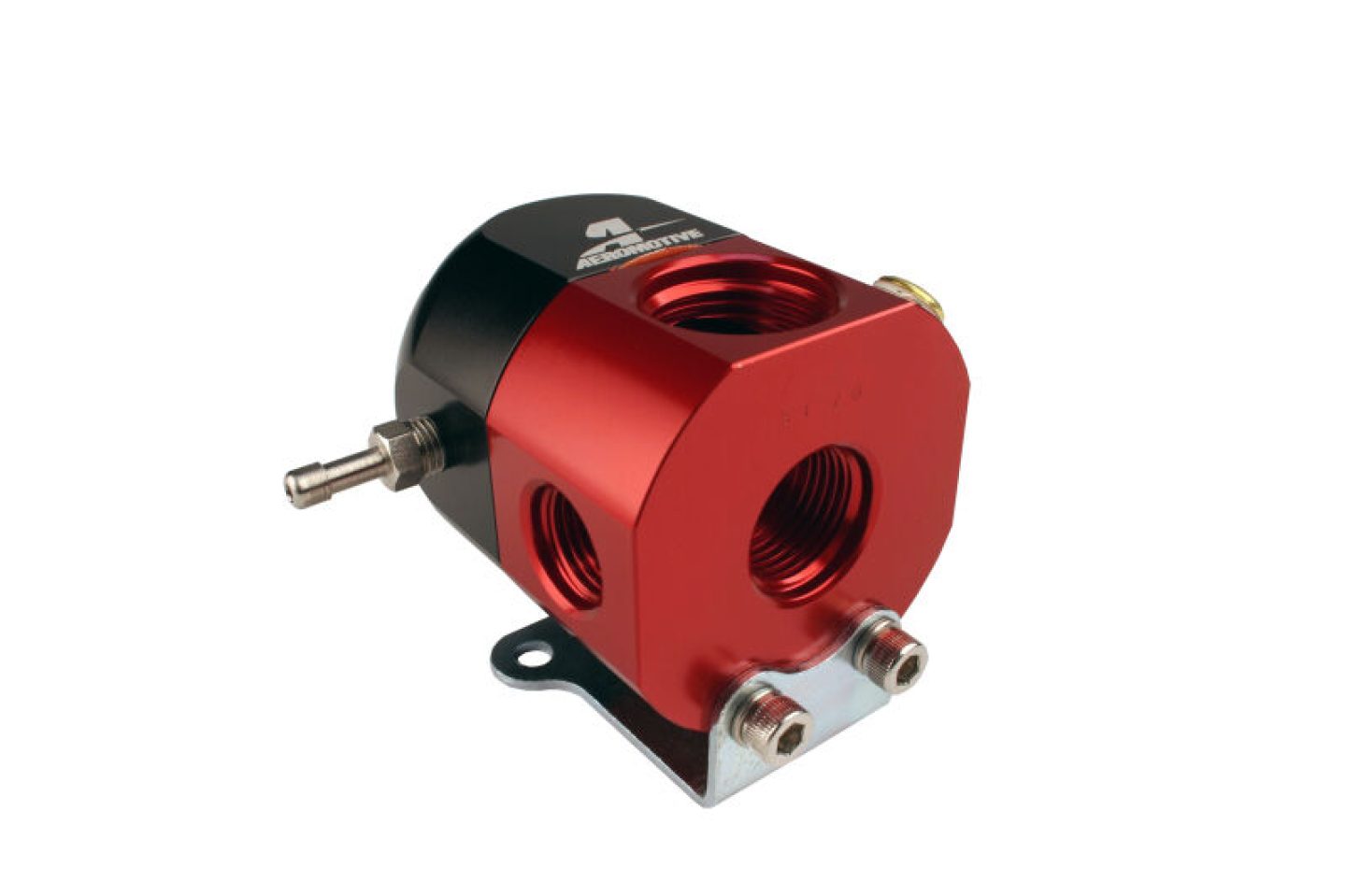

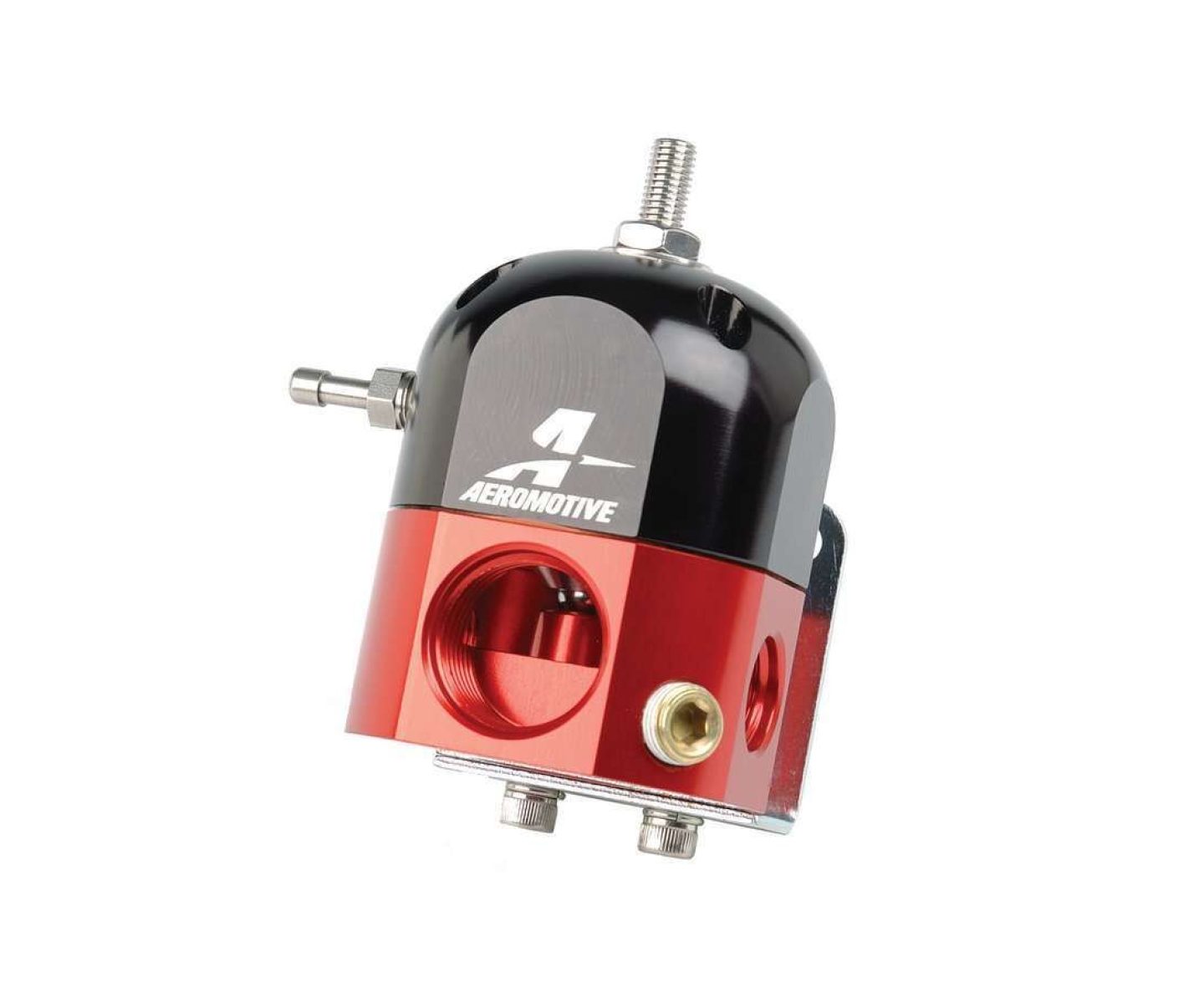

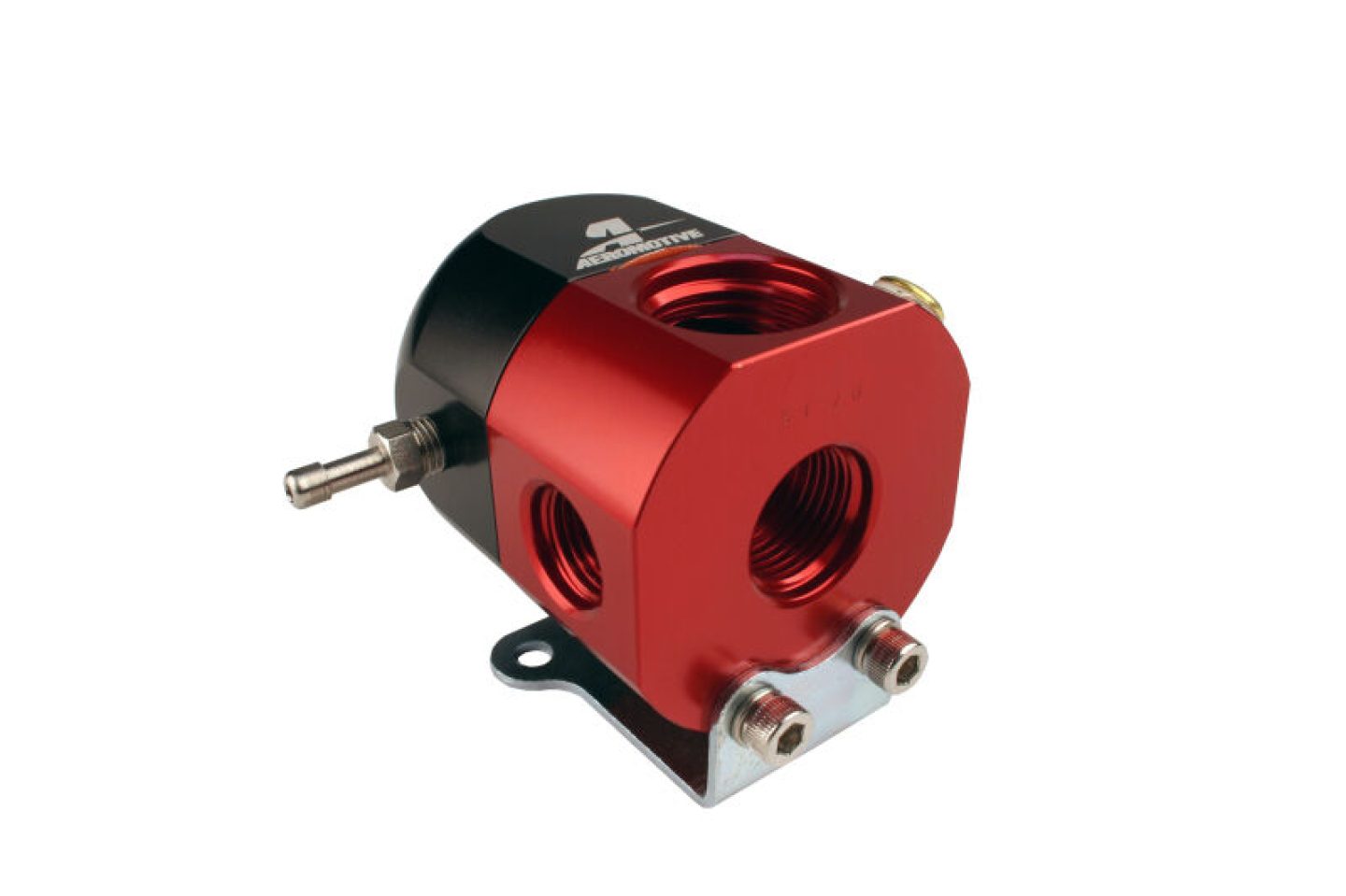

A1000 Carbureted Bypass Regulator - 2-Port.
Fuel Pressure Regulator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, 3-15 psi, Red and Black, Universal, Each
These A1000 carbureted bypass regulators from Aeromotive allow you to convert from fuel injection to carburetion by using your EFI fuel pump. They deliver consistent volume at perfect pressure, right to your carburetor. They feature adjustable base fuel pressure and are perfect for any application, from the street to the track, naturally aspirated or supercharged. Their bypass design provides the ultimate dynamic fuel delivery system.
UPC | 00684980000320 |
Brand | Aeromotive |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Aeromotive A1000 Carbureted Bypass Fuel Pressure Regulators |
Inlet Quantity | 1 |
Outlet Quantity | 2 |
Regulator Style | Return |
Inlet Attachment | Female straight cut O-ring |
Regulator Finish | Red anodized |
Fittings Included | No |
Outlet Attachment | Female straight cut O-ring |
Return Attachment | Female straight cut O-ring |
Regulator Location | Inline |
Regulator Material | Aluminum |
Return Fitting Size | -8 AN |
Regulator Inlet Size | -10 AN |
Regulator Outlet Size | -6 AN |
Boost/Vacuum Rise Ratio | 1:1 |
Regulator Pressure (psi) | 3-15 |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 13204 |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Regulator Usage | Carburetor |
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Carburetor |
