Regulator

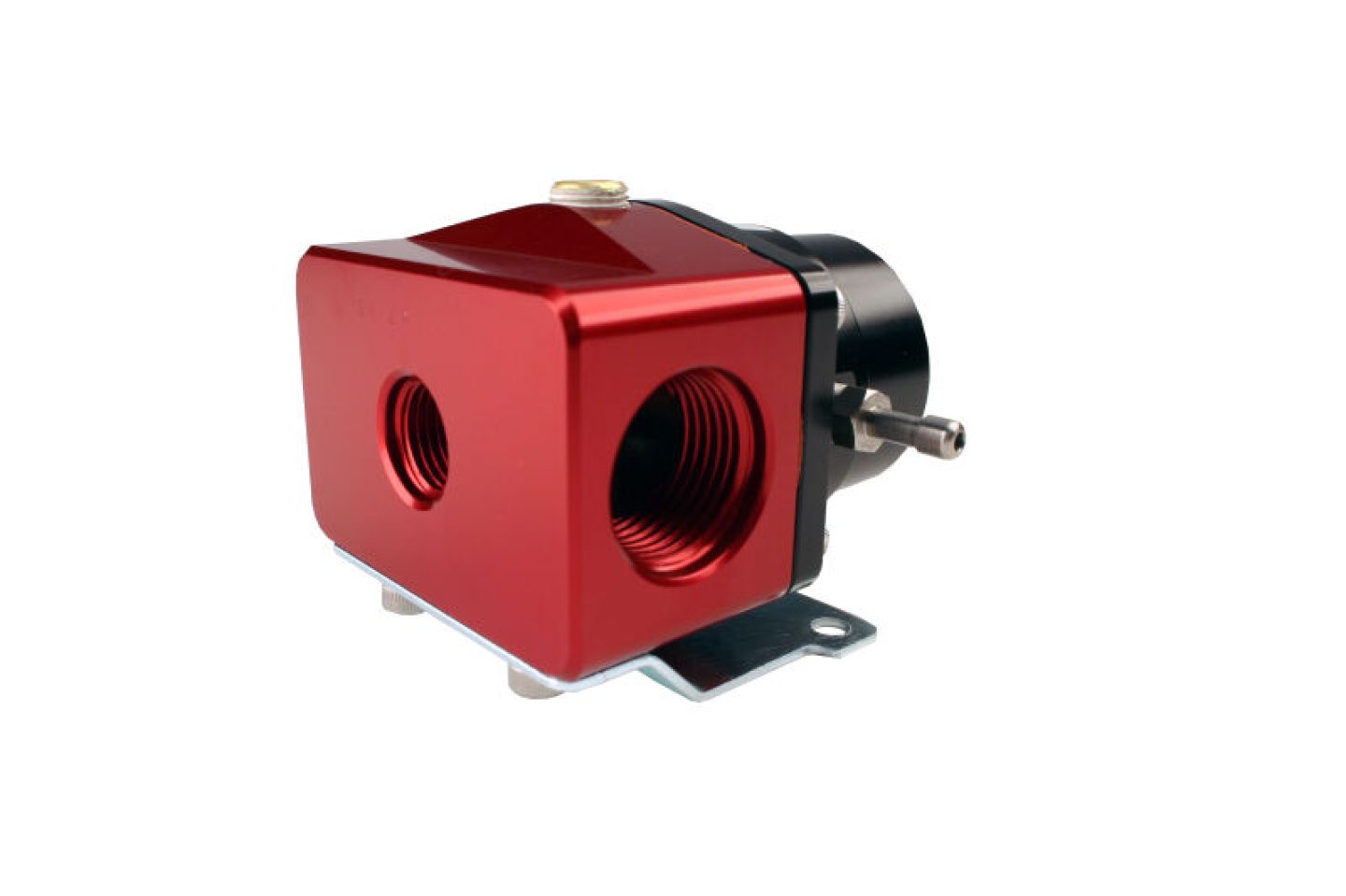

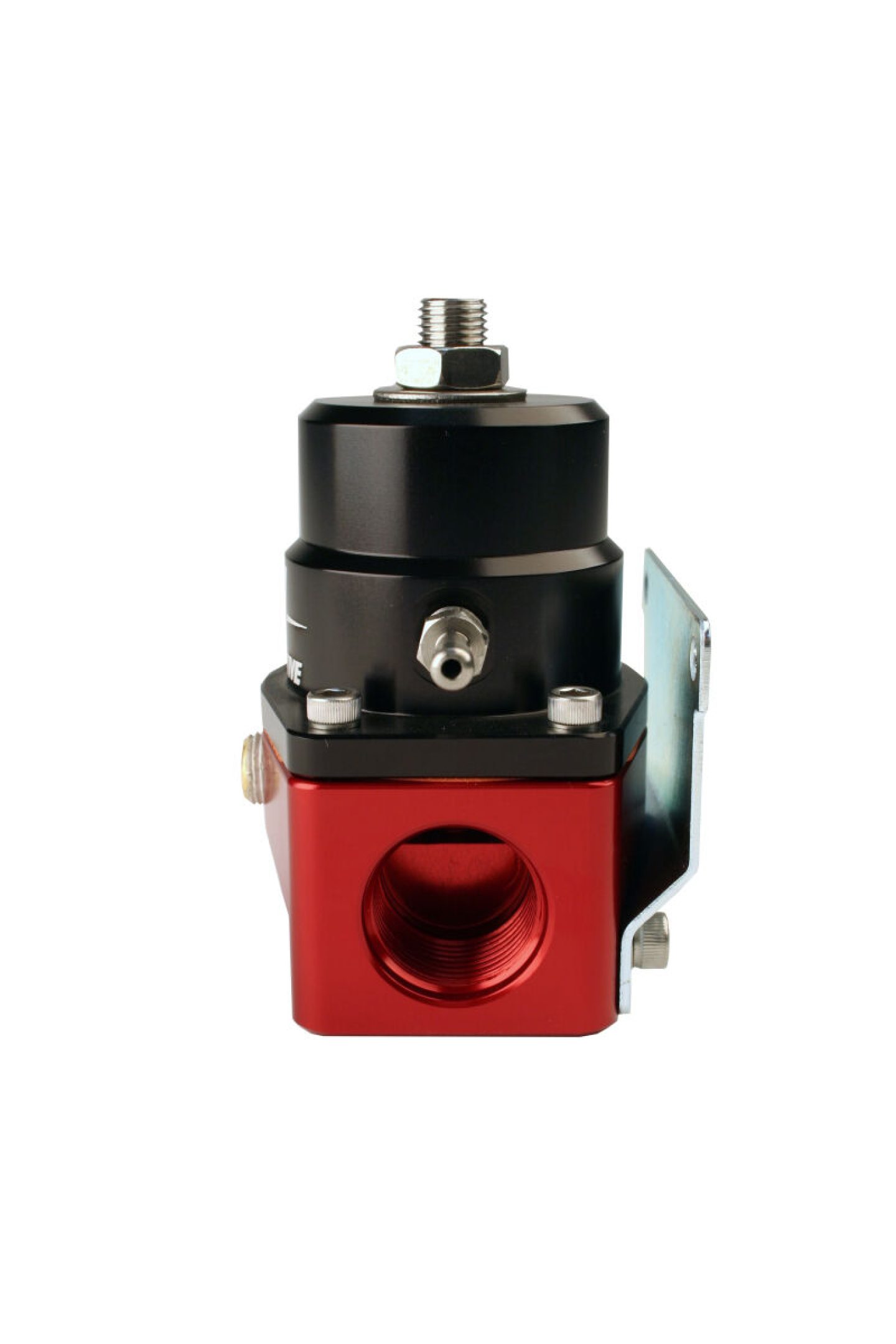

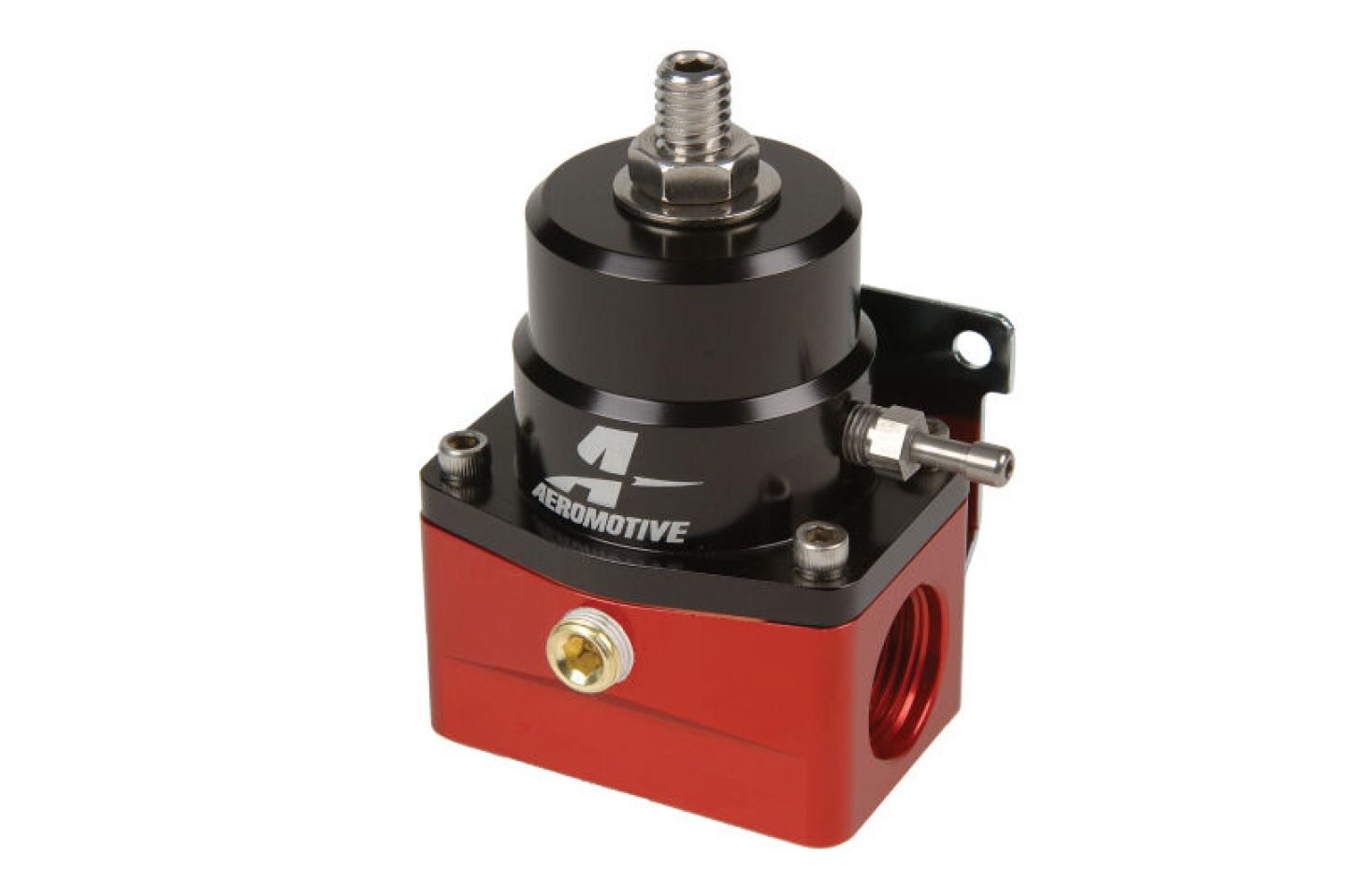

Performance EFI regulator designed for medium to high horsepower applications. This regulator features Aeromotive's high-flow design, superb pressure control, and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline, ethanol and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8' NPT gauge port. P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port.
A1000 Injected Bypass EFI Regulator, Adjustable, (2) -10 inlets, -6 return.
Fuel Pressure Regulator
This item was designed and engineered in the USA for US domestic vehicles. While it may be suitable for vehicles outside of the USA, compatibility cannot be guaranteed. Please review the images and descriptions carefully to ensure this product meets your needs. Returns are not accepted for special order products. Contact a StreetFX agent for clarification if you are uncertain.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, 40-75 psi, Red and Black Anodized, Universal, Each
Intended for use with custom fuel rails, Aeromotive A1000 injected bypass fuel pressure regulators feature a design specifically for use with their A1000 fuel pumps. These true billet, alcohol-compatible regulators have a beautiful finish in anodized red and black or a mirror-like, show-quality nickel!
UPC | 00684980000047 |
Brand | Aeromotive |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Aeromotive A1000 Injected Bypass Fuel Pressure Regulators |
Inlet Quantity | 2 |
Outlet Quantity | 1 |
Regulator Style | Return |
Inlet Attachment | Female straight cut O-ring |
Regulator Finish | Red anodized |
Fittings Included | No |
Outlet Attachment | Female straight cut O-ring |
Return Attachment | Female straight cut O-ring |
Regulator Location | Inline |
Regulator Material | Aluminum |
Return Fitting Size | -6 AN O-ring |
Regulator Inlet Size | -10 AN O-ring |
Regulator Outlet Size | -10 AN O-ring |
Boost/Vacuum Rise Ratio | 1:1 |
Regulator Pressure (psi) | 40-75 |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 13101 |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | DIESEL |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | FLEX |
Regulator Usage | Multi-port injection |
