Fuel Pump
From Stock Eliminator to Pro Mod, the Aeromotive A2000 is a versatile force to reckoned with and stands alone as a 'big' carbureted fuel pump. The A2000 flows enough fuel to support the world's quickest nitrous Pro Mods on gasoline, and is the industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights. High torque, low RPM motor design delivers more than 350 GPH free flow, while developing less current draw than any other pump in its class. Adjustable diaphragm bypass valve outperforms ineffective poppet designs, minimizing flow loss and pressure fluctuation to the regulator and carburetor. ORB-10 inlet and outlet ports with ORB-8 return and 1/8' NPT gauge port. Proprietary seal design eliminates leakage. Alcohol compatible. Multiple bolt patterns on the bottom of the pump body fit many chassis mounting options.

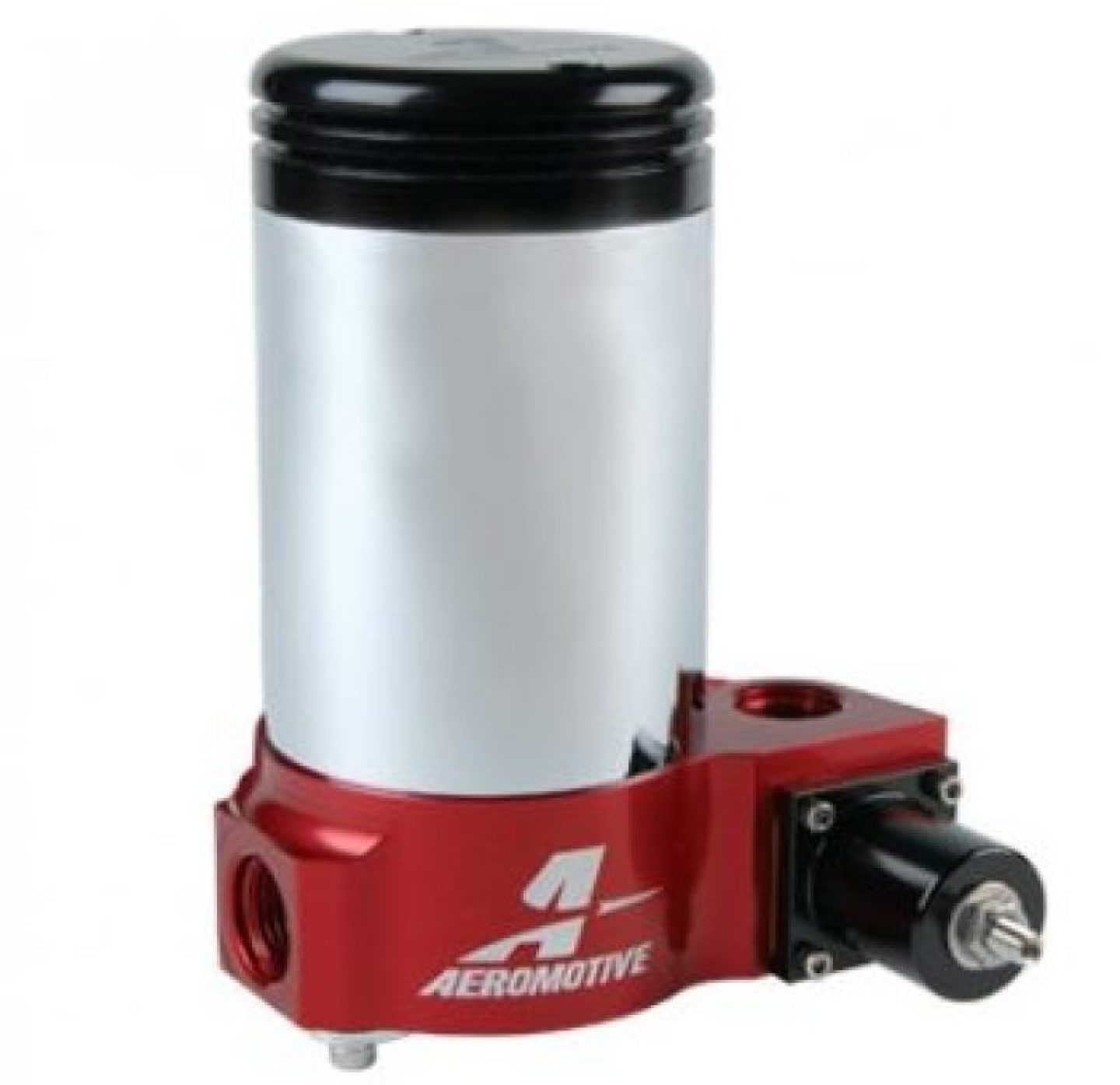

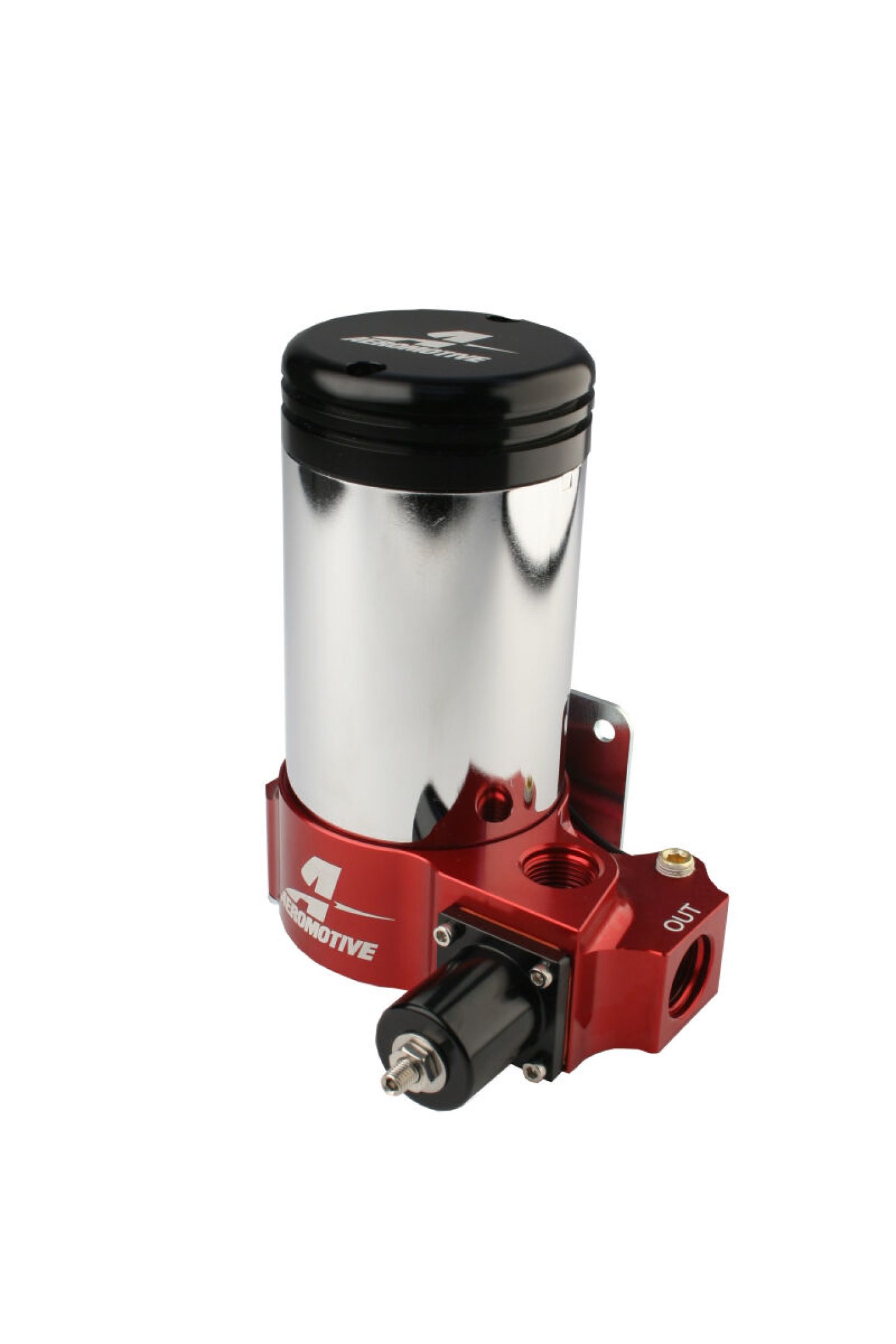

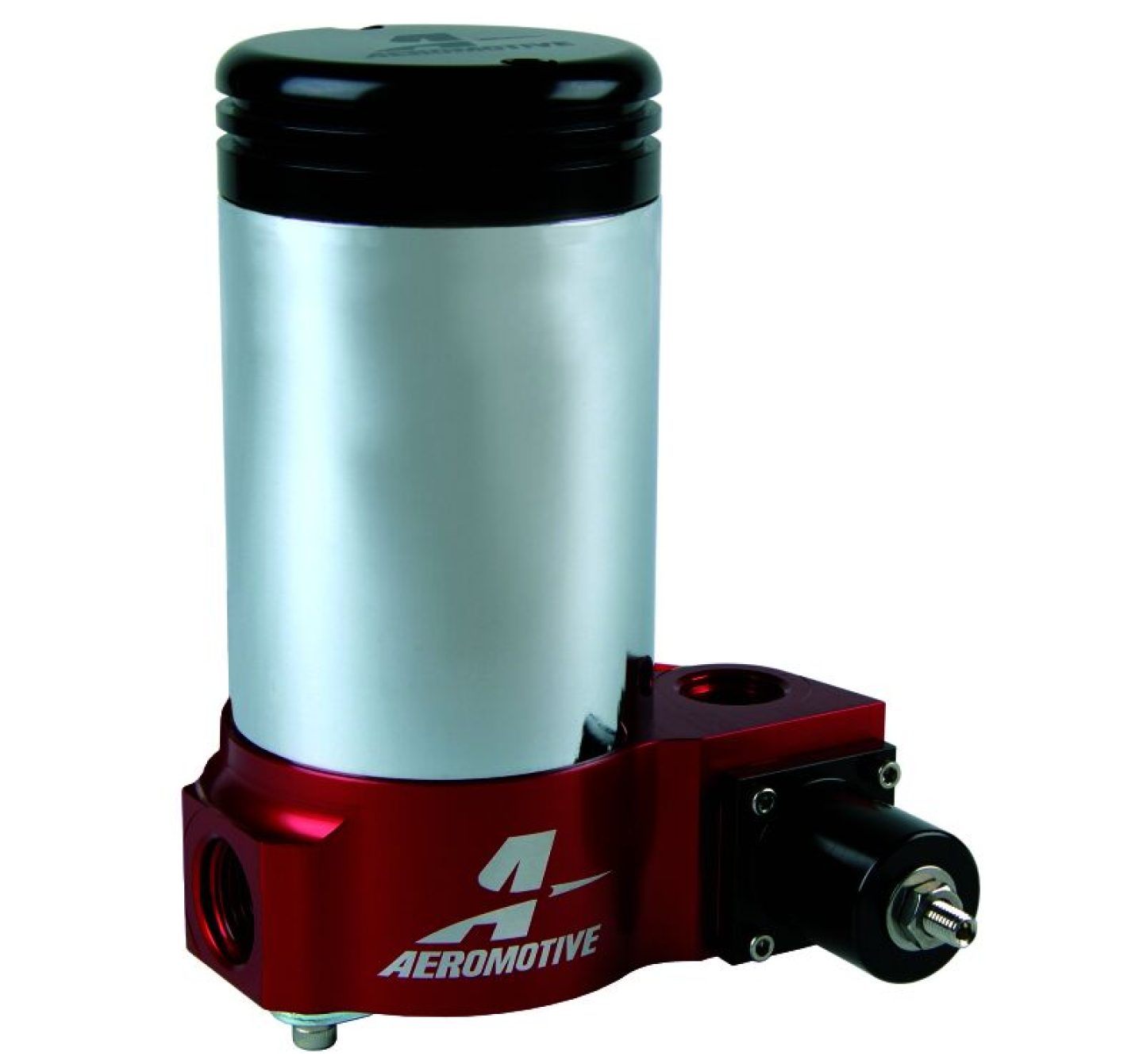

A2000 Drag Race Carbureted Fuel Pump.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pump, Electric, A2000 Drag Race, External, Gas/Alcohol, Universal, Each
Aeromotive A2000 drag race fuel pumps deliver 350 gph of fuel at free flow—enough for engines between 500 and 2,000 hp. They use a diaphragm-controlled regulator for even, reliable flow without sudden pressure spikes. The results are more consistent ETs and better overall performance. Compatible with gasoline and alcohol, the pumps feature a diaphragm bypass, -10 AN inlet and outlet ports, a -8 AN return port, a 1/8 in. NPT gauge port, and a proprietary shaft seal design.
UPC | 00684980000023 |
Brand | Aeromotive |
Notes | Has integrated bypass regulator with -8 AN O-ring return port and 1/8 in. NPT gauge port. |
Quantity | Sold individually. |
Flow Rate | 350 gph/1,325 lph |
Part Type | Fuel Pumps |
Product Line | Aeromotive A2000 Drag Race Fuel Pumps |
Fuel Pump Type | Electric external |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Inlet Attachment | Female straight cut O-ring |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Female straight cut O-ring |
Fuel Pressure (psi) | 30 psi |
Fuel Pump Inlet Size | -10 AN |
Fuel Pump Outlet Size | -10 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Manufacturer's Part Number | 11202 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Application Notes | Has integrated bypass regulator with -8 AN O-ring return port and 1/8 in. NPT gauge port. |
Universal | Yes |
Fuel Type | FLEX |
Application Notes | Has integrated bypass regulator with -8 AN O-ring return port and 1/8 in. NPT gauge port. |
Universal | Yes |
Fuel Type | GAS |
Application Notes | Has integrated bypass regulator with -8 AN O-ring return port and 1/8 in. NPT gauge port. |
