Fuel Pump
12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).

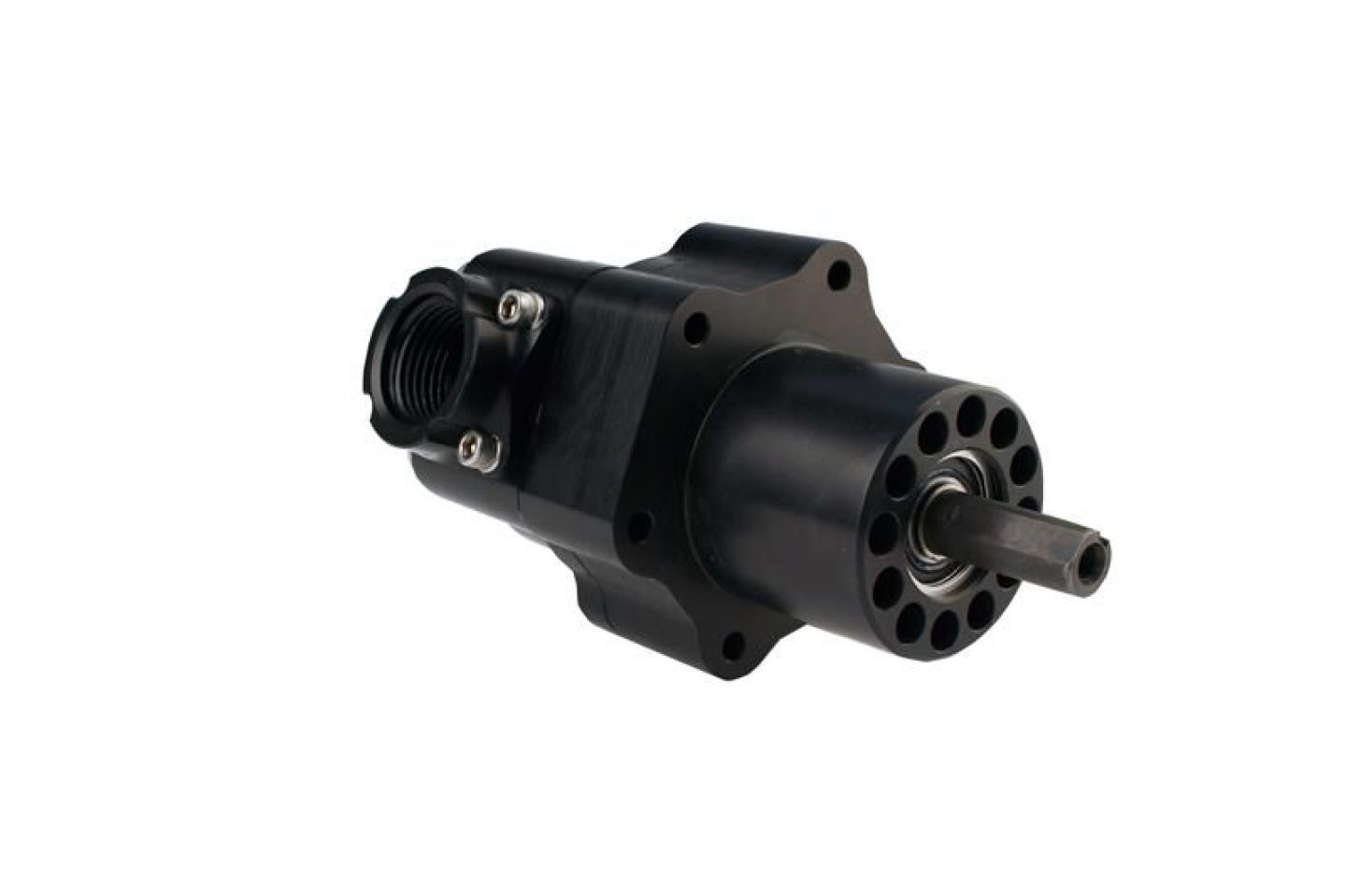

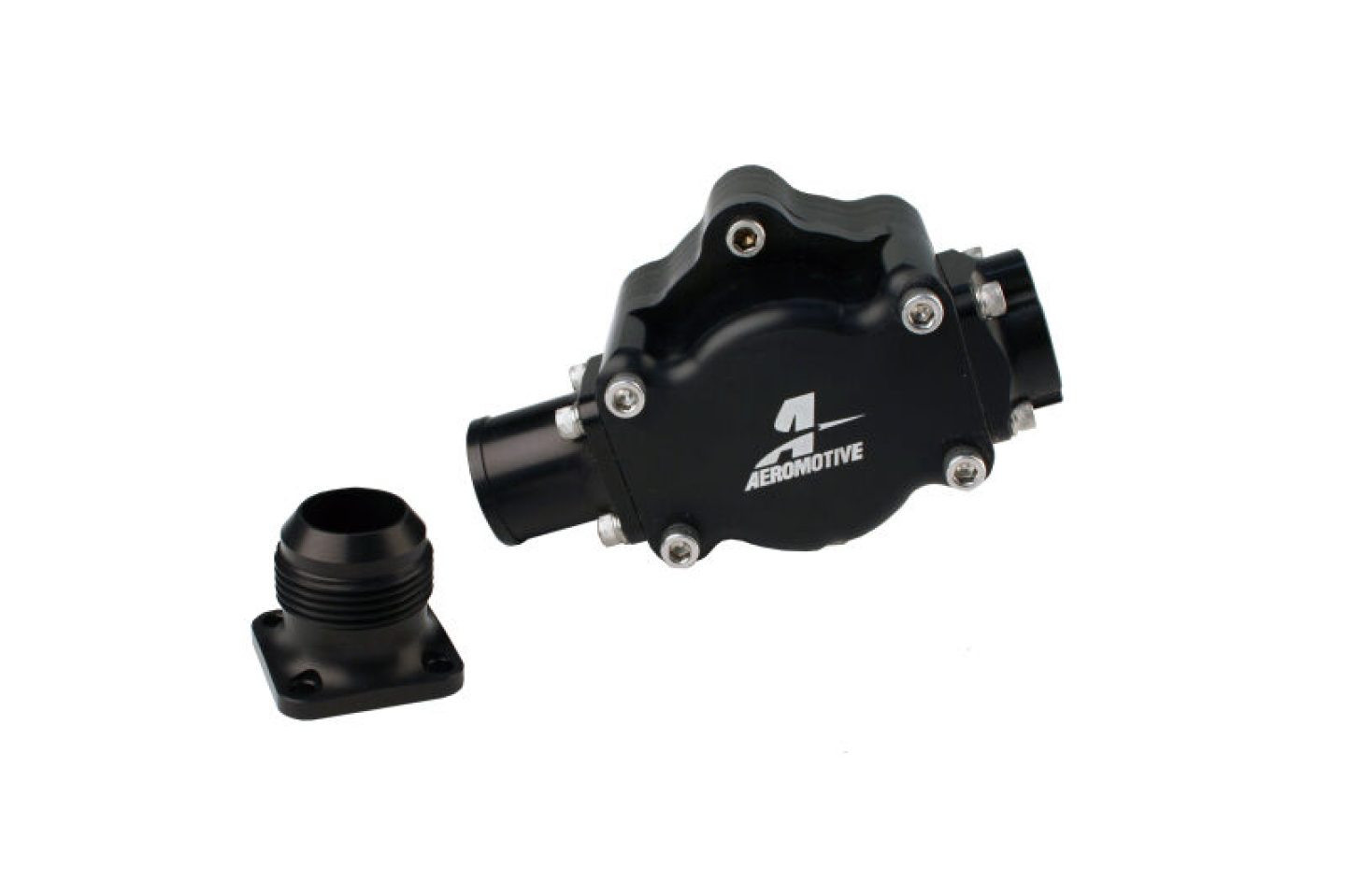

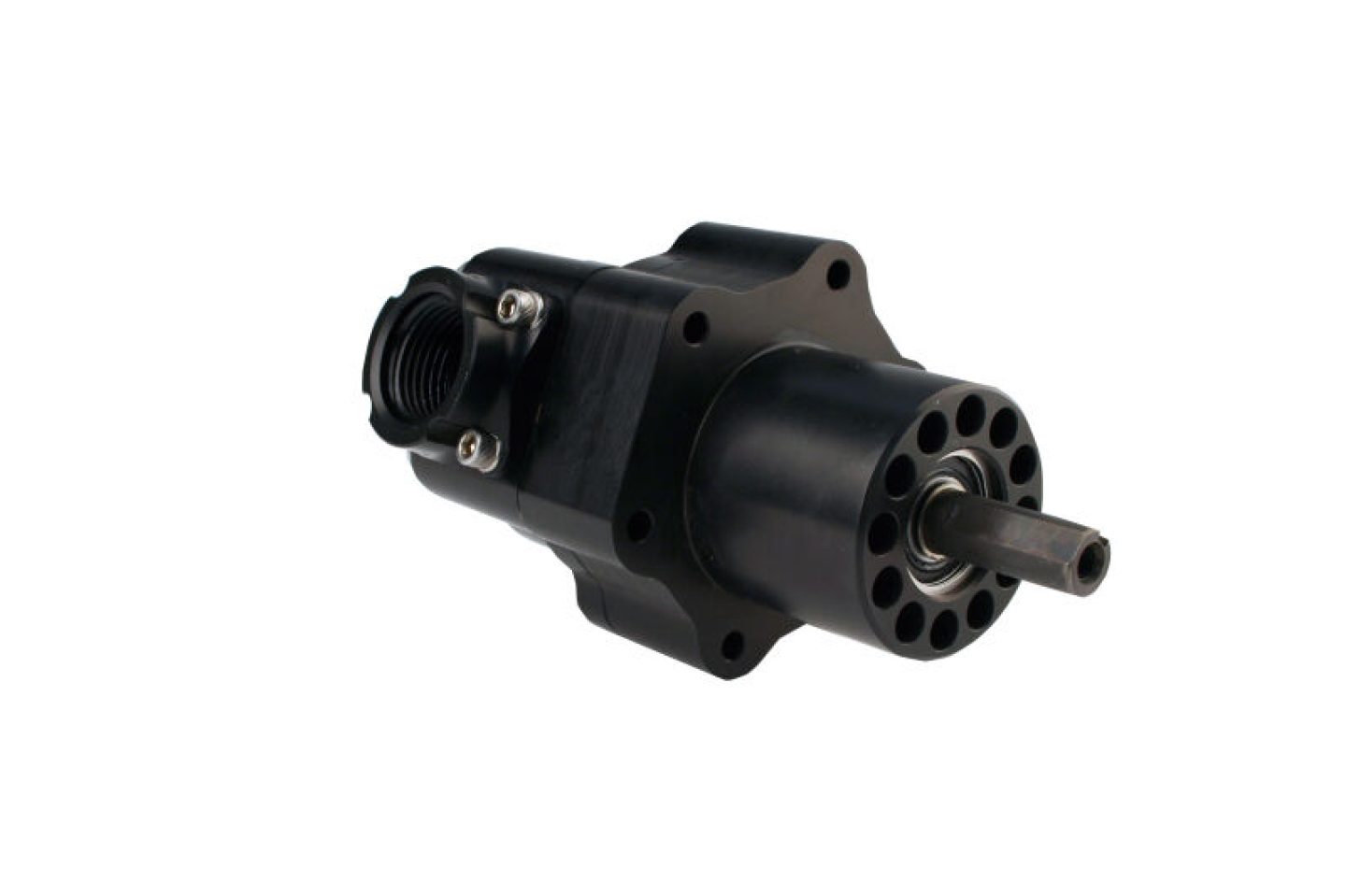

12 GPM Billet Belt Drive Mechanical Fuel Pump.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pump, Atomic, Belt Drive, Billet Aluminum, Black Anodized, -16 AN/1.25 in. hose barb Inlet, -12 AN Outlet, Universal, Kit
Aeromotive Atomic belt drive fuel pumps are designed to be operated by a pulley and a cog belt, allowing the pumps to be driven from your crankshaft. They can be used in low or high-pressure applications and flow in excess of 4,500 lbs. per hour and over 12 gpm at 100 psi. The Aeromotive Atomic belt drive fuel pumps will support from 1,500 to over 5,000 hp on gas and over 2,500 hp on ethanol and methanol fuels. Their special Type III hardcoat anodized finish protects the 6061-T6 aircraft billet aluminum alloy housing from harsh fuels while looking great. The body features removable ports with a -16 AN/1.125 in. hose barb inlet and a female -12 AN O-ring boss outlet port. This new modular inlet/outlet port design opens the door for you to interchange attachment styles to fit your engine's needs. If you're building a high-horsepower engine, use one of these Aeromotive Atomic belt drive fuel pumps as the foundation of your fuel system.
UPC | 00684980002355 |
Brand | Aeromotive |
Notes | Includes both 1.25 in. hose barb and -16 AN male inlet. |
Quantity | Sold individually. |
Flow Rate | 12.0 gpm |
Part Type | Fuel Pumps |
Product Line | Aeromotive Atomic Belt Drive Fuel Pumps |
Fuel Pump Type | Mechanical |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Inlet Attachment | Hose barb |
Outlet Attachment | Female straight cut O-ring |
Fuel Pressure (psi) | 2-200 psi |
Fuel Pump Inlet Size | 1 1/4 in. |
Fuel Pump Outlet Size | -12 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Manufacturer's Part Number | 11115 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Universal | Yes |
Fuel Type | FLEX |
Universal | Yes |
Fuel Type | GAS |
