Regulator

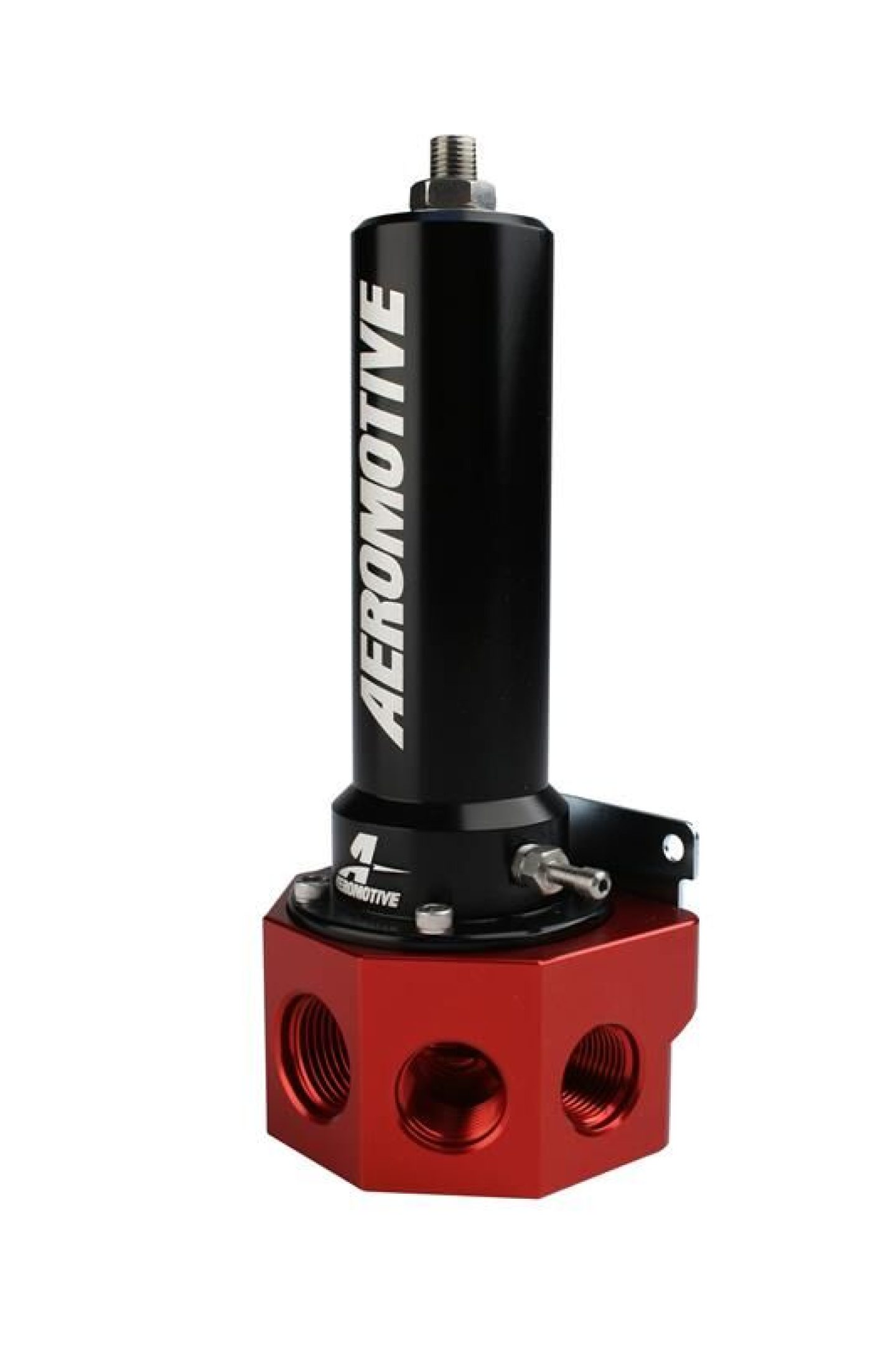

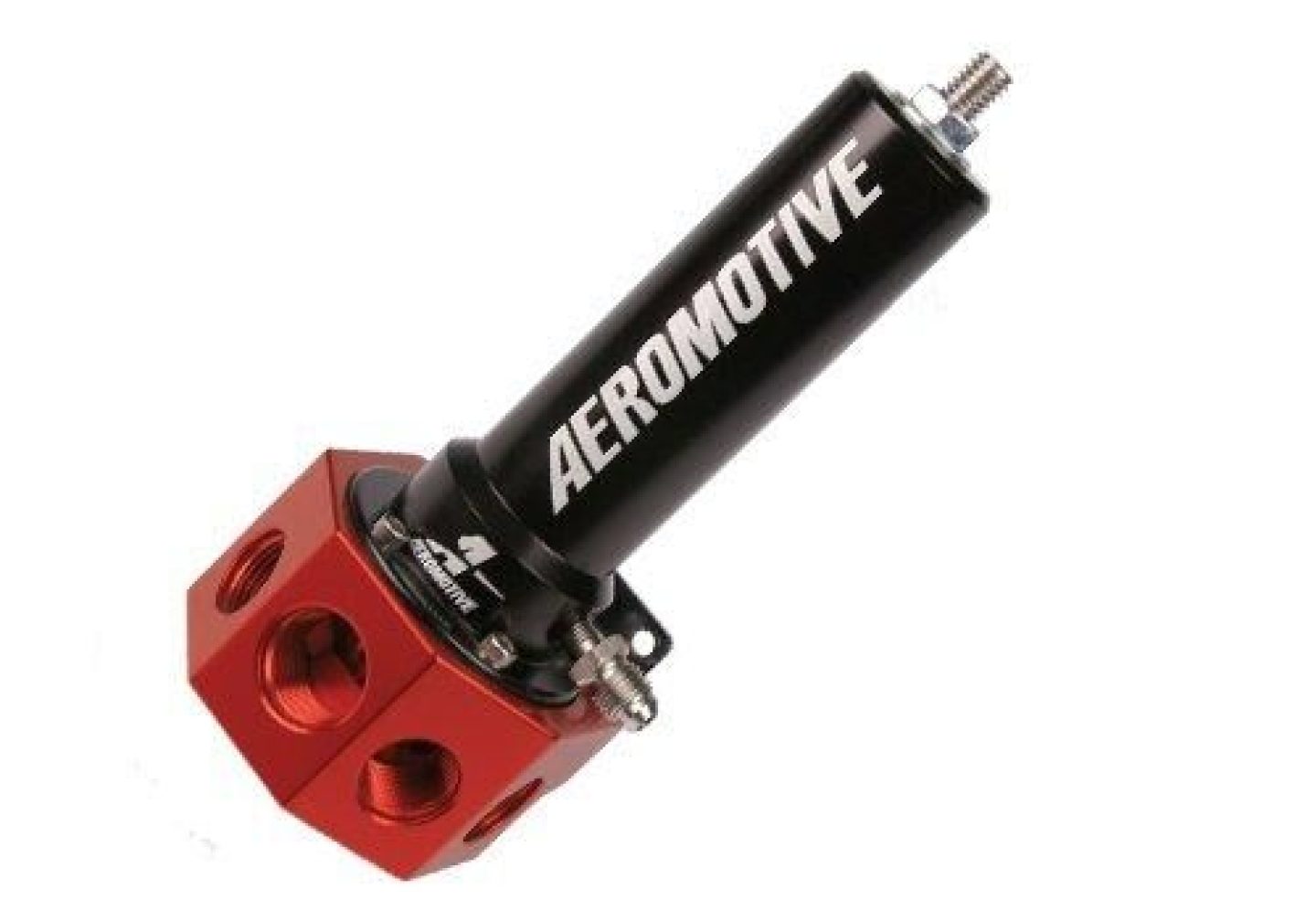

Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol. Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure. Base pressure adjustable from 40-100 PSI. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications). Ports available for nitrous fuel supply, pressure gauges and transducers. (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.
Single Spring Belt/Hex Drive EFI Regulator, 40-100 psi.
Fuel Pressure Regulator
This item was designed and engineered in the USA for US domestic vehicles. While it may be suitable for vehicles outside of the USA, compatibility cannot be guaranteed. Please review the images and descriptions carefully to ensure this product meets your needs. Returns are not accepted for special order products. Contact a StreetFX agent for clarification if you are uncertain.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulator, 40-100 psi, Universal, Red and Black Anodized, Each
Aeromotive belt pump ultra high-flow adjustable EFI regulators are designed for use with EFI belt-driven fuel pumps developing over 200 gph. They feature two CNC-machined stainless steel vacuum/boost fittings and a classic Aeromotive Type II bright dip anodized finish on the body and cap.
UPC | 00684980001921 |
Brand | Aeromotive |
Notes | Designed for belt-driven fuel pumps. |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | Yes |
Product Line | Aeromotive Belt Pump Ultra High Flow Adjustable EFI Regulators |
Inlet Quantity | 1 |
Outlet Quantity | 1 |
Regulator Style | Return |
Inlet Attachment | Female straight cut O-ring |
Regulator Finish | Red anodized |
Fittings Included | No |
Outlet Attachment | Female straight cut O-ring |
Return Attachment | Female straight cut O-ring |
Regulator Location | Inline |
Regulator Material | Aluminum |
Return Fitting Size | -10 AN |
Regulator Inlet Size | -8AN and -10AN |
Regulator Outlet Size | -8 AN |
Boost/Vacuum Rise Ratio | 1:1 |
Regulator Pressure (psi) | 40-100 |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 13113 |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Multi-port injection |
