Fuel Pump
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Fuel Pump, Universal, Phantom, Dual 340, 6-10" Depth .
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

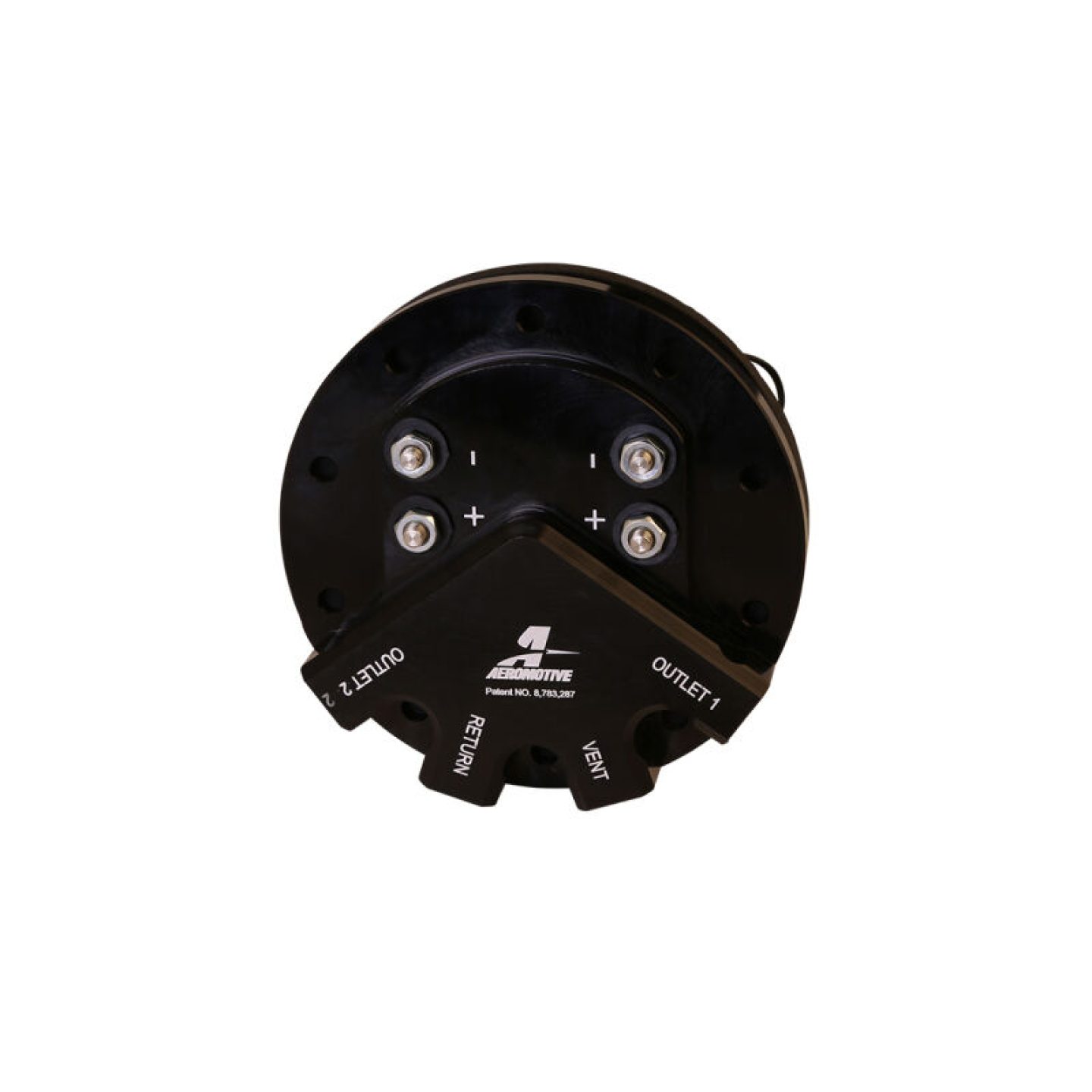

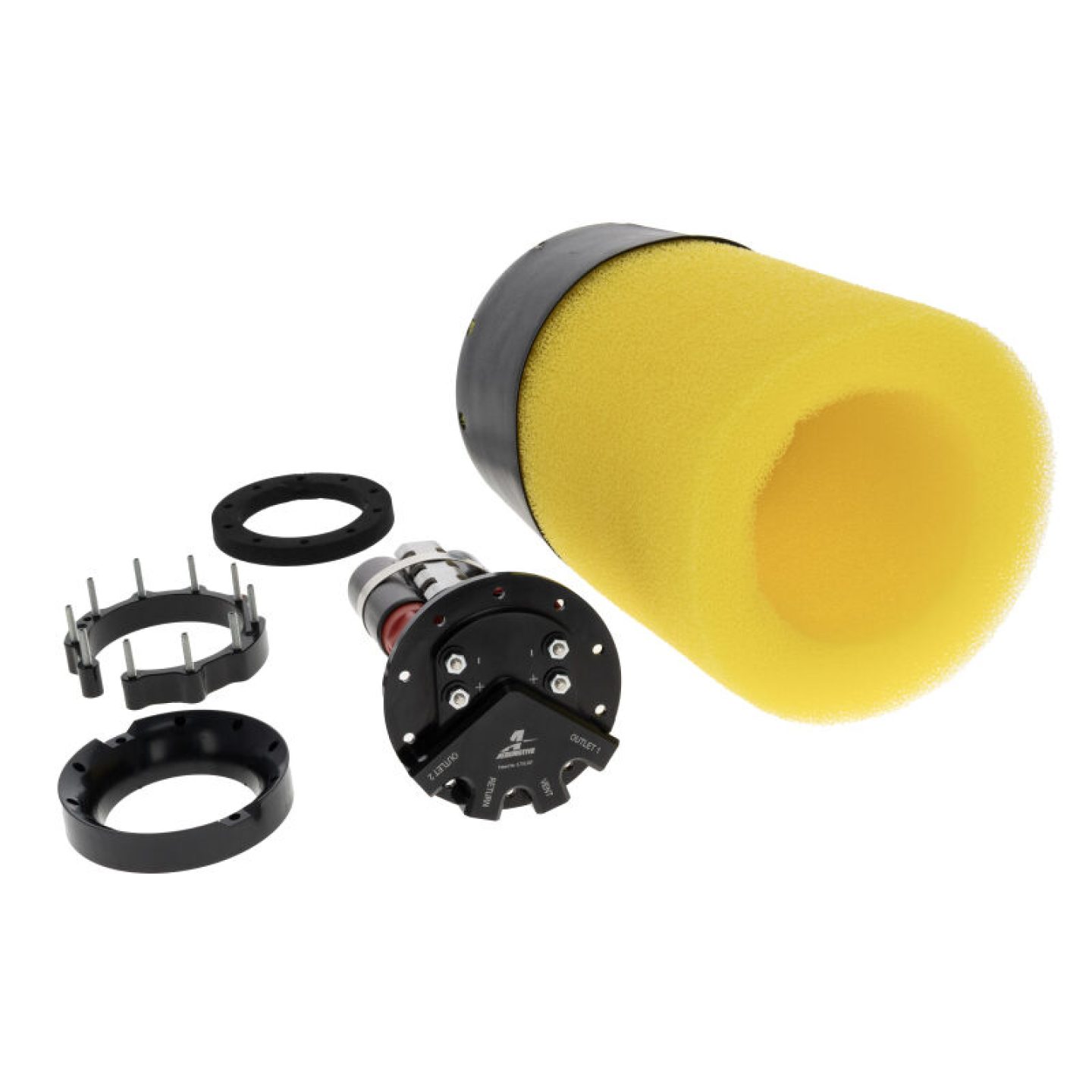

Fuel Pump, Electric, Dual Phantom, In-Tank, 90 psi, 680 lph, -6 AN O-Ring Threads, Each

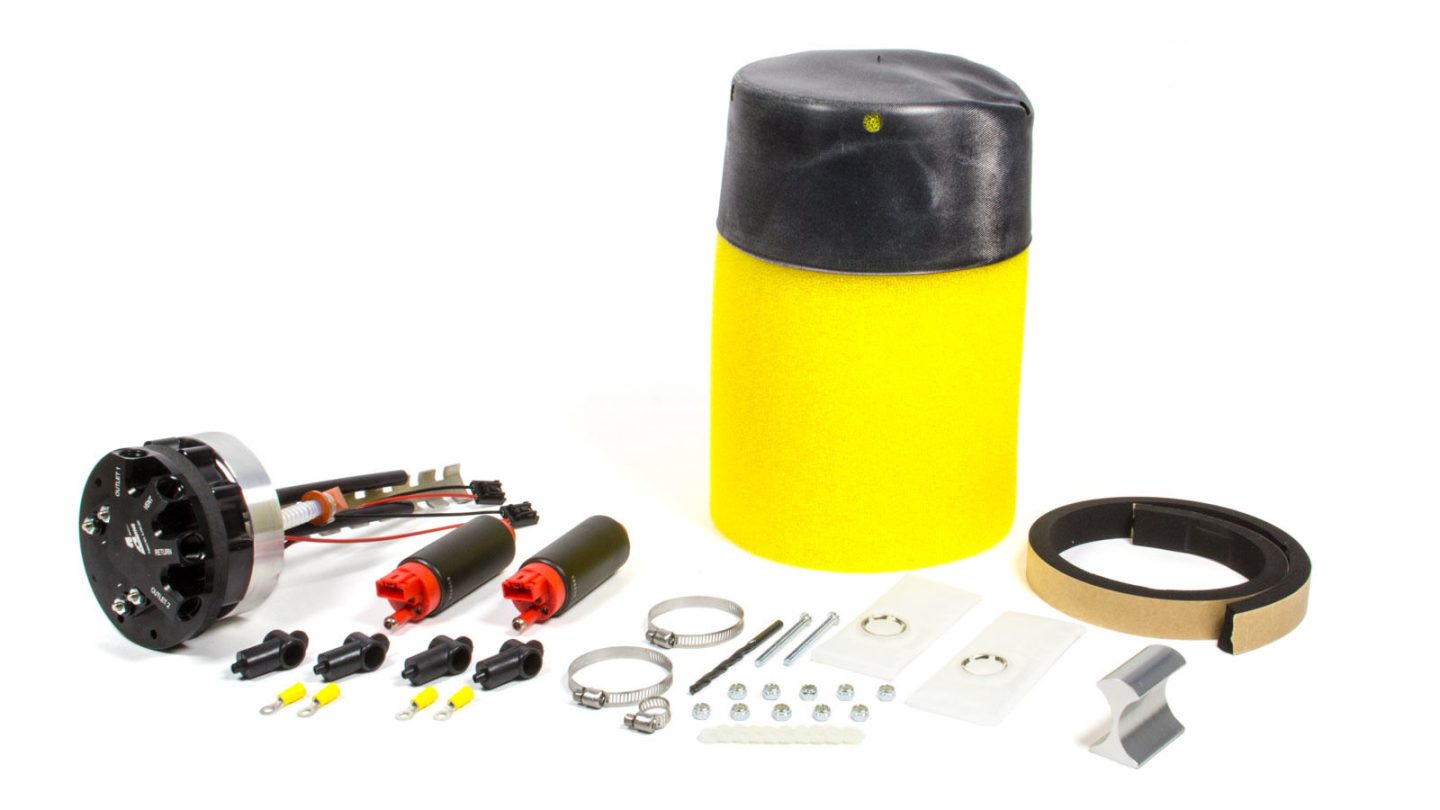

Today's aftermarket world makes it easy to pick up the phone and order 1000 HP for your street car. This has created several challenges for fuel delivery, ranging from hot fuel handling to pump noise. Aeromotive Dual Phantom Fuel Systems have been designed to solve this problem. They come loaded with two Aeromotive Stealth 340 lph fuel pumps, an additional set of electrical bulkheads, and a larger capacity foam and bladder. The pumps provide opportunity for supporting big power (see power ratings below) while remaining OEM quiet. Separate electrical bulkheads allow for an "on demand" fuel system, which reduces the amount of returned fuel and reduces the tank temperature, making vapor lock and cavitation a thing of the past. Also, this feature is a must when a redundant (back up) pump is needed in extreme conditions, such as off-road, desert, and endurance racing. The larger capacity foam and bladder combat fuel slosh while retaining enough fuel to feed the dual pumps. And the best feature is all of this done from your stock tank with no welding or fabrication! Features: * Two 340 lph Stealth fuel pumps * Supports up to 1400 HP EFI with forced induction, 1700 HP EFI naturally aspirated, 1700 HP Carbureted with forced Induction and 2000 HP carbureted naturally aspirated * Black anodized top hat * Four ORB-06 Ports – two supply, one return, one vent * Larger capacity fuel resistant baffle/basket (includes foam and bladder) * Two universal high flow pre-pump filters * Modular design can be cut to height to fit almost any fuel tank * EFI or Carbureted * Turbine pump mechanisms increase durability
UPC | 00684980006247 |
Brand | Aeromotive |
Notes | Pump assembly has 1 return port and 1 vent. |
Quantity | Sold individually. |
Flow Rate | 180 gph/680 lph |
Part Type | Fuel Pumps |
Product Line | Aeromotive Dual Phantom Fuel Systems |
Fuel Pump Type | Electric In-tank |
Inlet Quantity | 2 |
Gasket Included | No |
Outlet Quantity | 2 |
Pulley Included | No |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Female straight cut O-ring |
Fuel Pressure (psi) | 90 psi |
Fuel Pump Outlet Size | -6 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Manufacturer's Part Number | 18309 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | GAS |
Application Notes | Pump assembly has 1 return port and 1 vent. |
