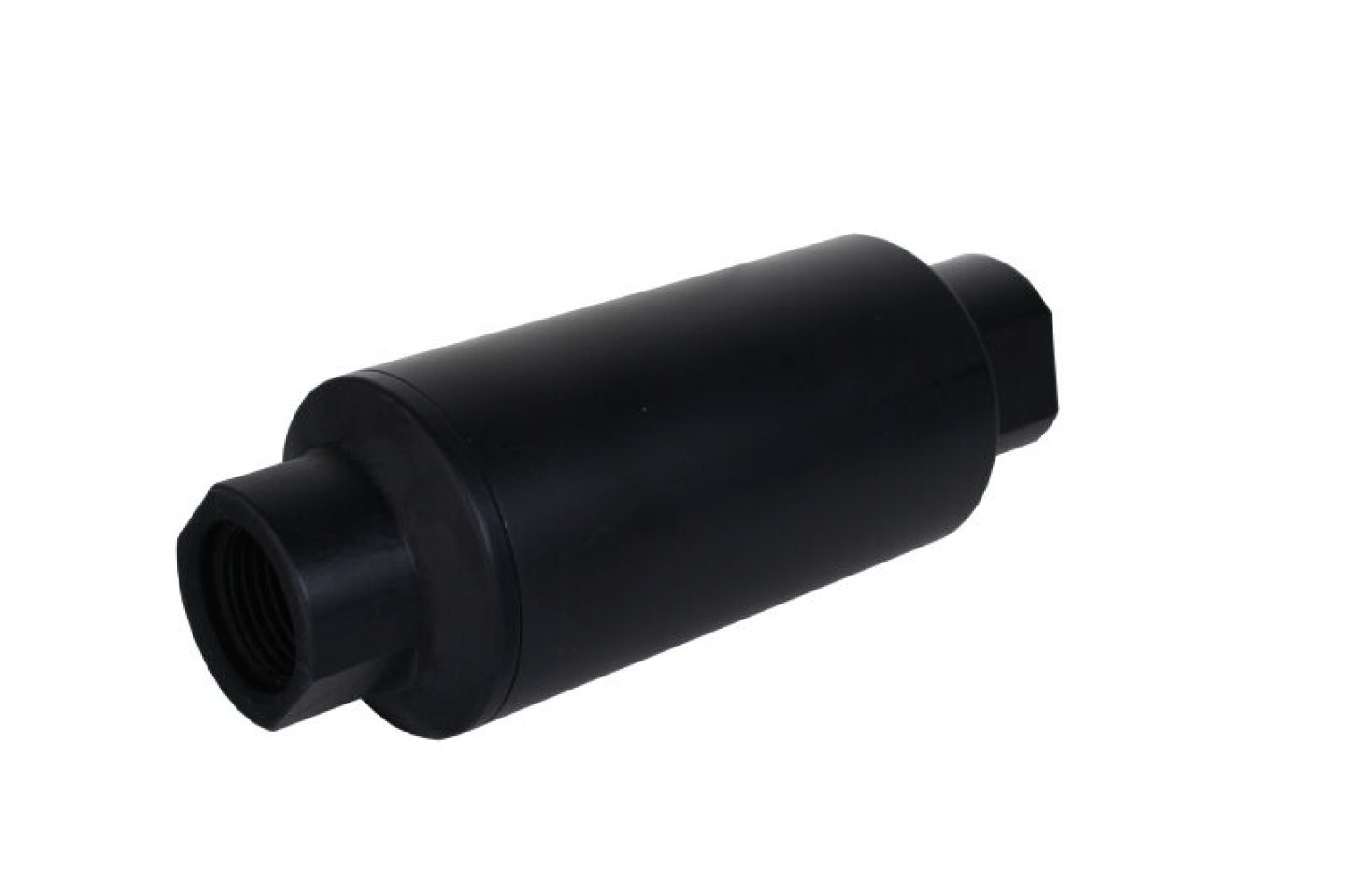

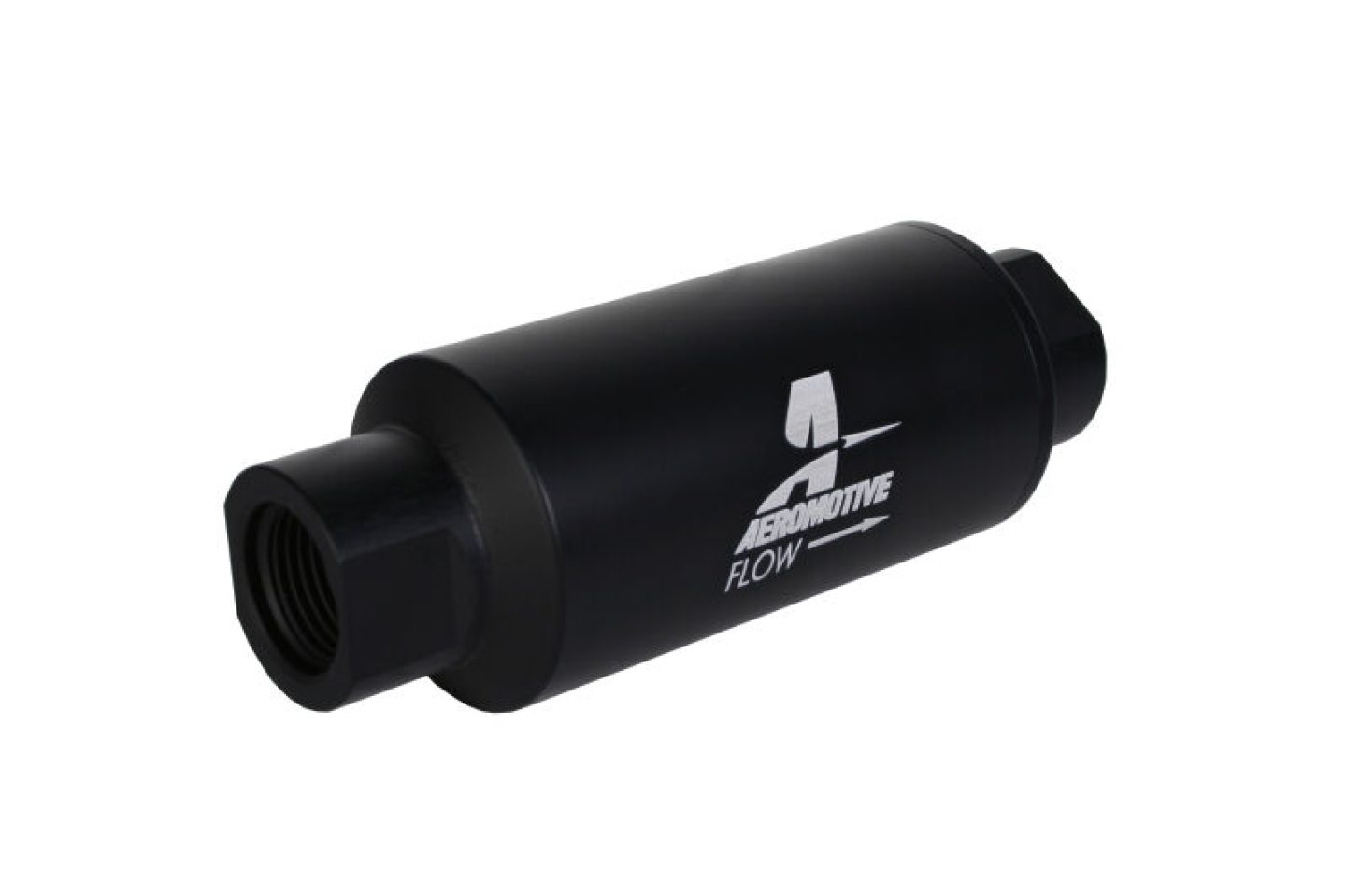

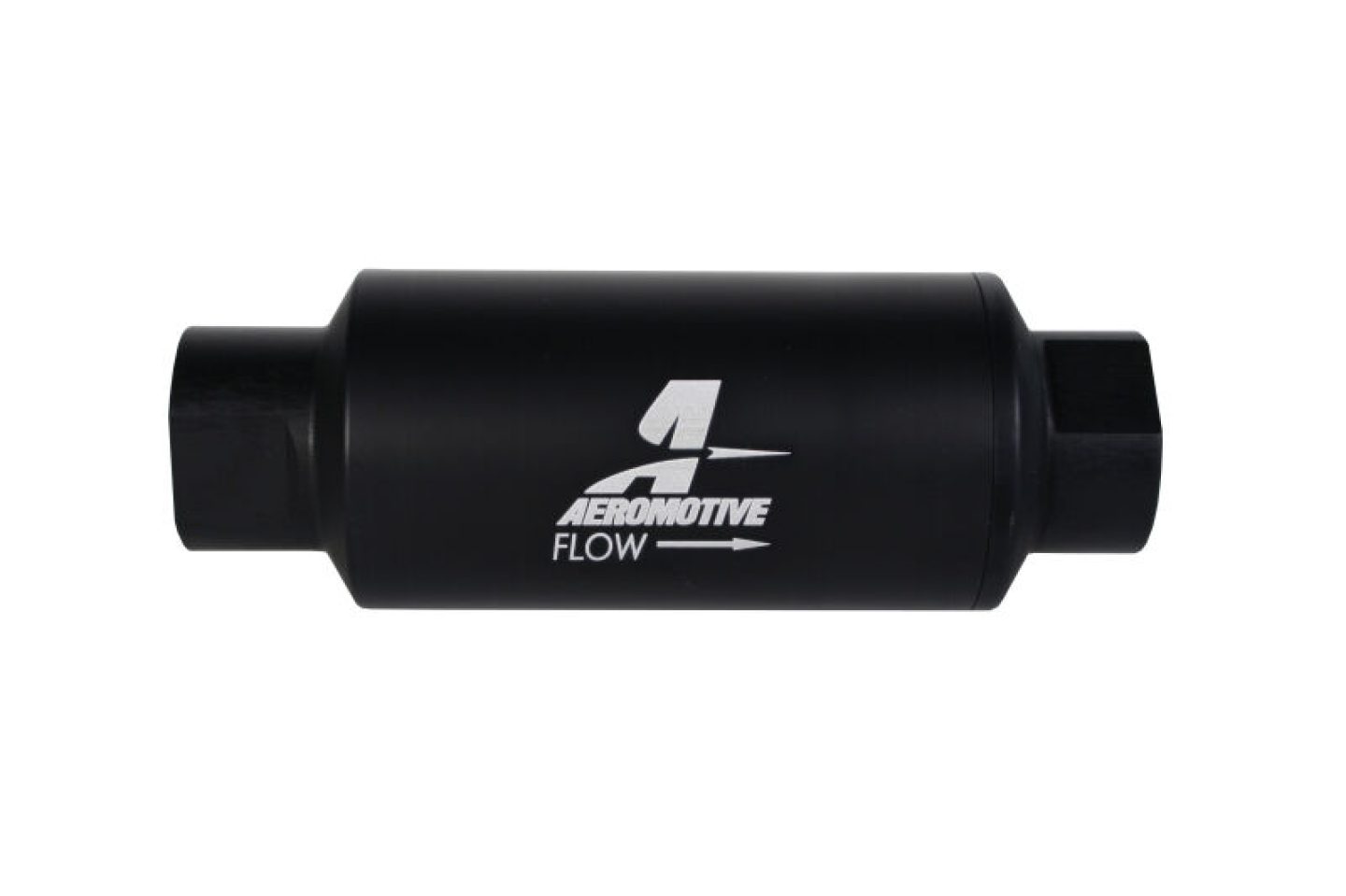

Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. High-flow, 10-micron Microglass (fine) replaceable element. Compatible with gasoline and alcohol fuels. Impervious to water contamination. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. Compact size: 5.5' long x 2' diameter.
Filter, In-Line, 10-m Microglass Element, ORB-10 Port, Black Hard-Coat, Marine, 2" OD.
Fuel Filter
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Filter, Inline, 10 Microns, Microglass, Aluminum, Black, -10 AN Female Inlet, Outlet, Each
Aeromotive fuel filters feature an advanced flow-through design to allow for steady fuel flow with less than a .15 psi pressure drop. Designed for carbureted or fuel injected engines from 200 to 3,000 hp, they're made from 6061-T651 aluminum alloy with the impeccable machining and finish you've come to expect from all Aeromotive components. The filters are available in a variety of size options for all types of fuel.
UPC | 684980008036 |
Brand | Aeromotive |
Quantity | Sold individually. |
Part Type | Fuel Filters |
Product Line | Aeromotive Fuel Filters |
Inlet Quantity | 1 |
Clamps Included | No |
Outlet Quantity | 1 |
Inlet Attachment | Female straight cut O-ring |
Fittings Included | No |
Fuel Filter Style | Inline |
Outlet Attachment | Female straight cut O-ring |
Filter Housing Color | Black anodized |
Overall Length (in.) | 5.50 in. |
Fuel Filter Inlet Size | -10 AN |
Outside Diameter (in.) | 2.000 in. |
Filter Element Included | Yes |
Filter Element Material | Microglass |
Filter Housing Material | Billet aluminum |
Fuel Filter Outlet Size | -10 AN |
Mounting Bracket Included | No |
Manufacturer's Part Number | 12346 |
Smallest Particle Filtered | 10 microns |
Maximum Fuel Pressure (psi) | 250 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Fuel Delivery | Carburetor |
Universal | Yes |
Fuel Type | ALCOHOL |
Fuel Delivery | Fuel injection |
Universal | Yes |
Fuel Type | GAS |
Fuel Delivery | Carburetor |
