Check Valve
High flow one-way check valves designed to prevent back-flow with minimal pressure drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual pumps are used and both pumps may not run simultaneously. CNC-machined billet aluminum and Type II bright dip black anodized finish. AN-10 male inlet, ORB-10 female outlet connections. Ideal configuration for easy installation into filter or fuel pump outlet port, no need for additional lines, hose-ends or fittings. Suitable for use with gasoline fuels only, not alcohol compatible. Use AN-10 o-rings P/N 15623 for installation into ORB-10 port.
In-Line Full Flow Check Valve (Male -10 AN inlet, Female -10 AN outlet).
Fuel Hose Fitting
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

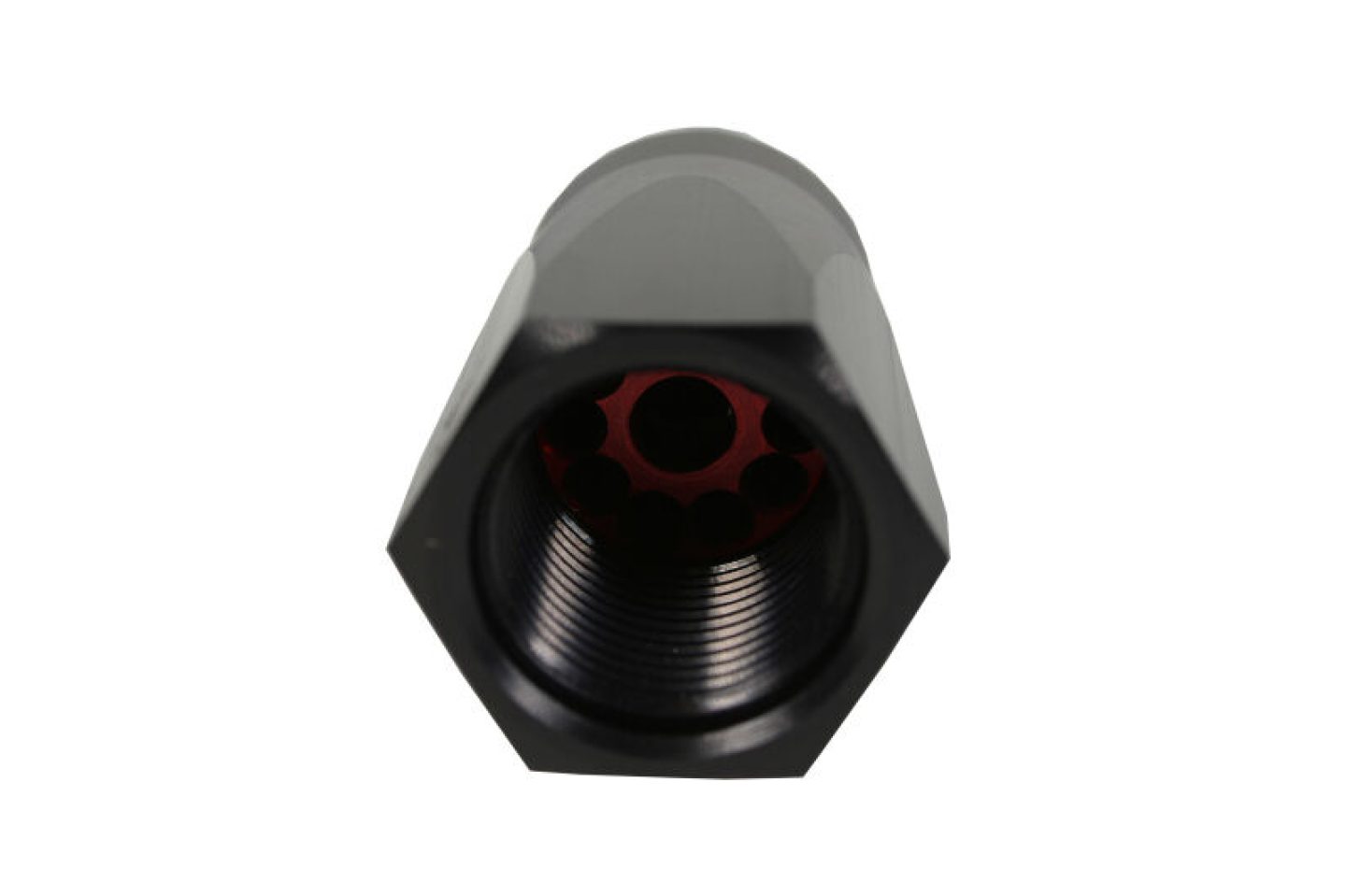

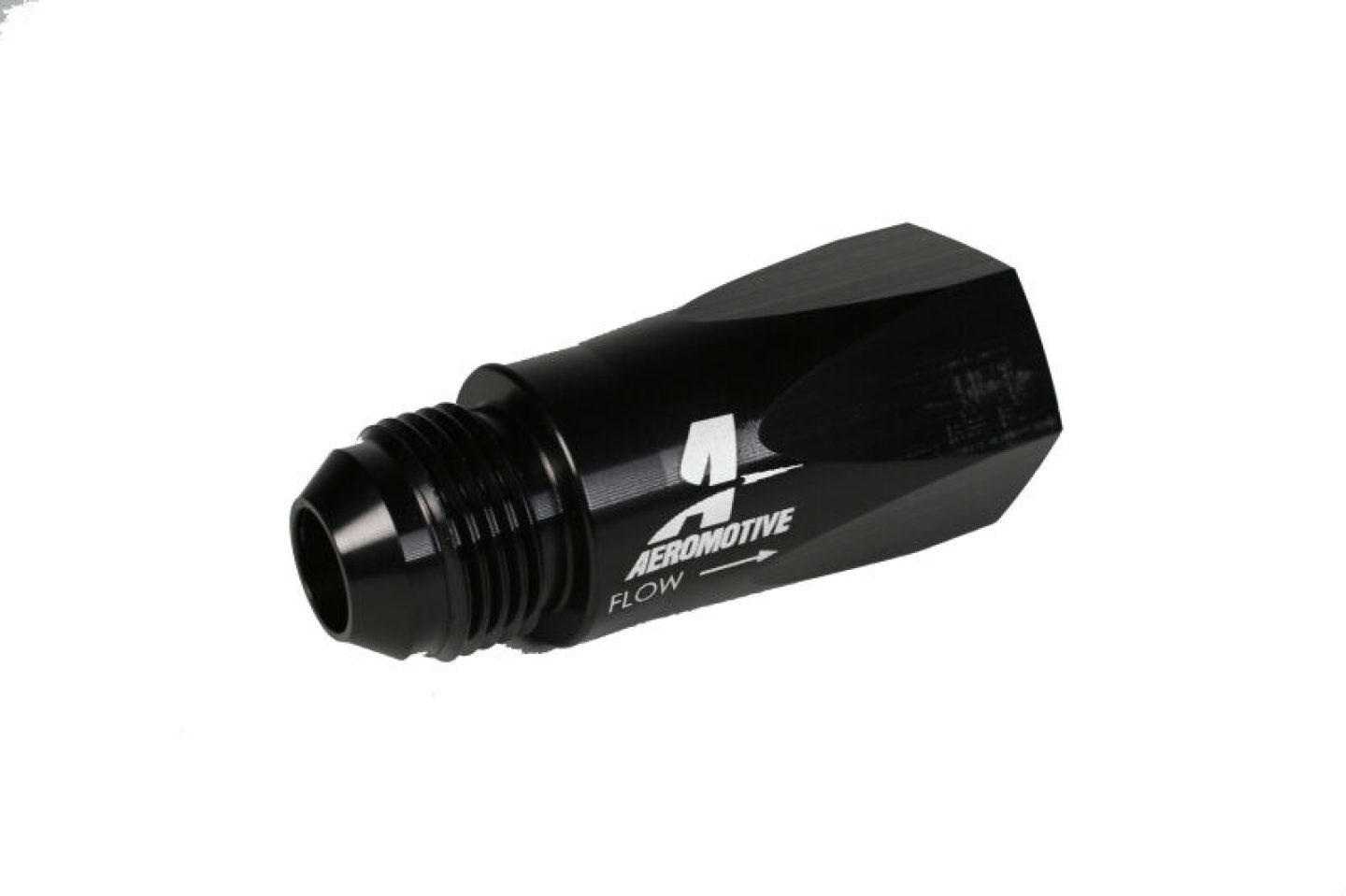

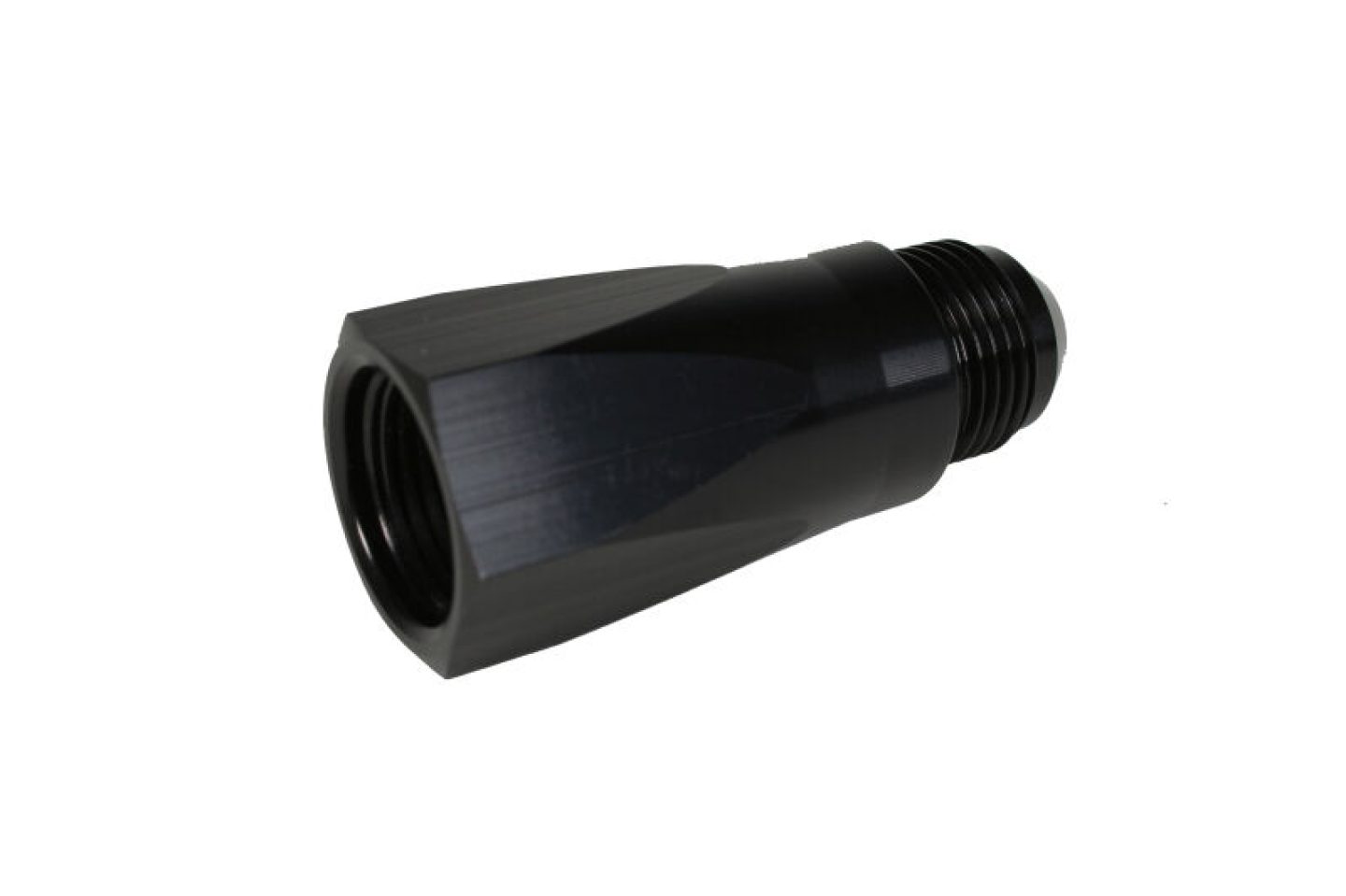

Fuel Check Valve, Black, Aluminum, -10 AN Male O-Ring to -10 AN Female O-Ring, Each
Aeromotive high-flow one-way check valves are designed to prevent back-flow with minimal pressure drop. AN O-ring male inlet/female outlet connections allow easy installation into a fuel pump outlet port without adding additional lines, hose ends, or fittings. They're ideal for use when preventing drainback after the fuel pump is turned off, or when dual pumps are employed and both pumps will not always be running together. CNC-machined from 6061-T651 billet aluminum alloy with a Type II bright dip anodized finish, the fuel check valves are available in multiple sizes.
UPC | 00684980000283 |
Brand | Aeromotive |
Notes | Male thread side is inlet. |
Quantity | Sold individually. |
Part Type | Check Valves, Fluid |
Product Line | Aeromotive High Flow One Way Check Valves |
Fitting Size 1 | -10 AN |
Fitting Size 2 | -10 AN O-ring |
Check Valve Color | Black anodized |
Check Valve Material | Billet aluminum |
Fitting Attachment 1 | Male threads |
Fitting Attachment 2 | Female threads |
Manufacturer's Part Number | 15107 |
No specific fitment data available for this part. For clarification, please contact us.
