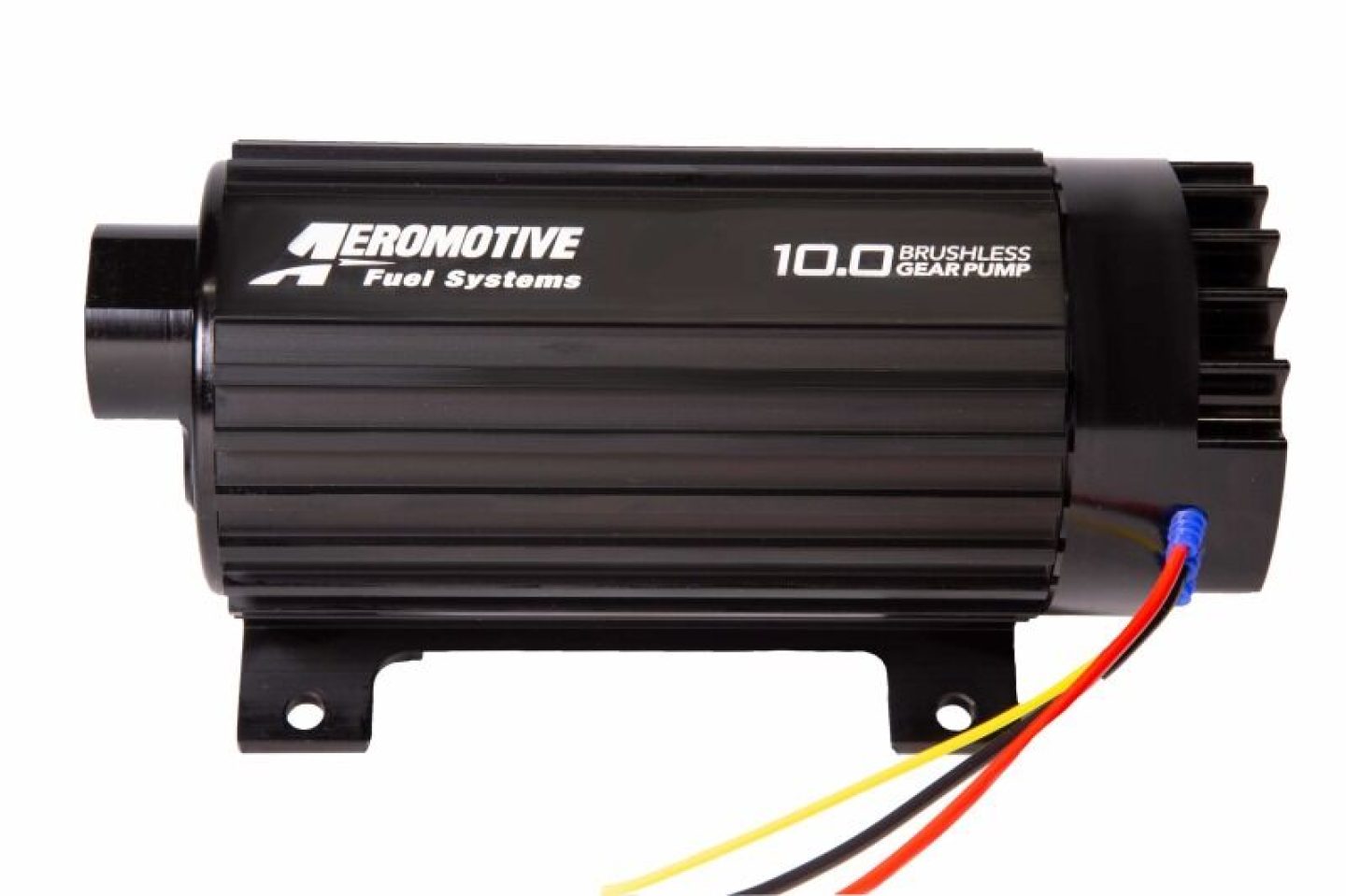

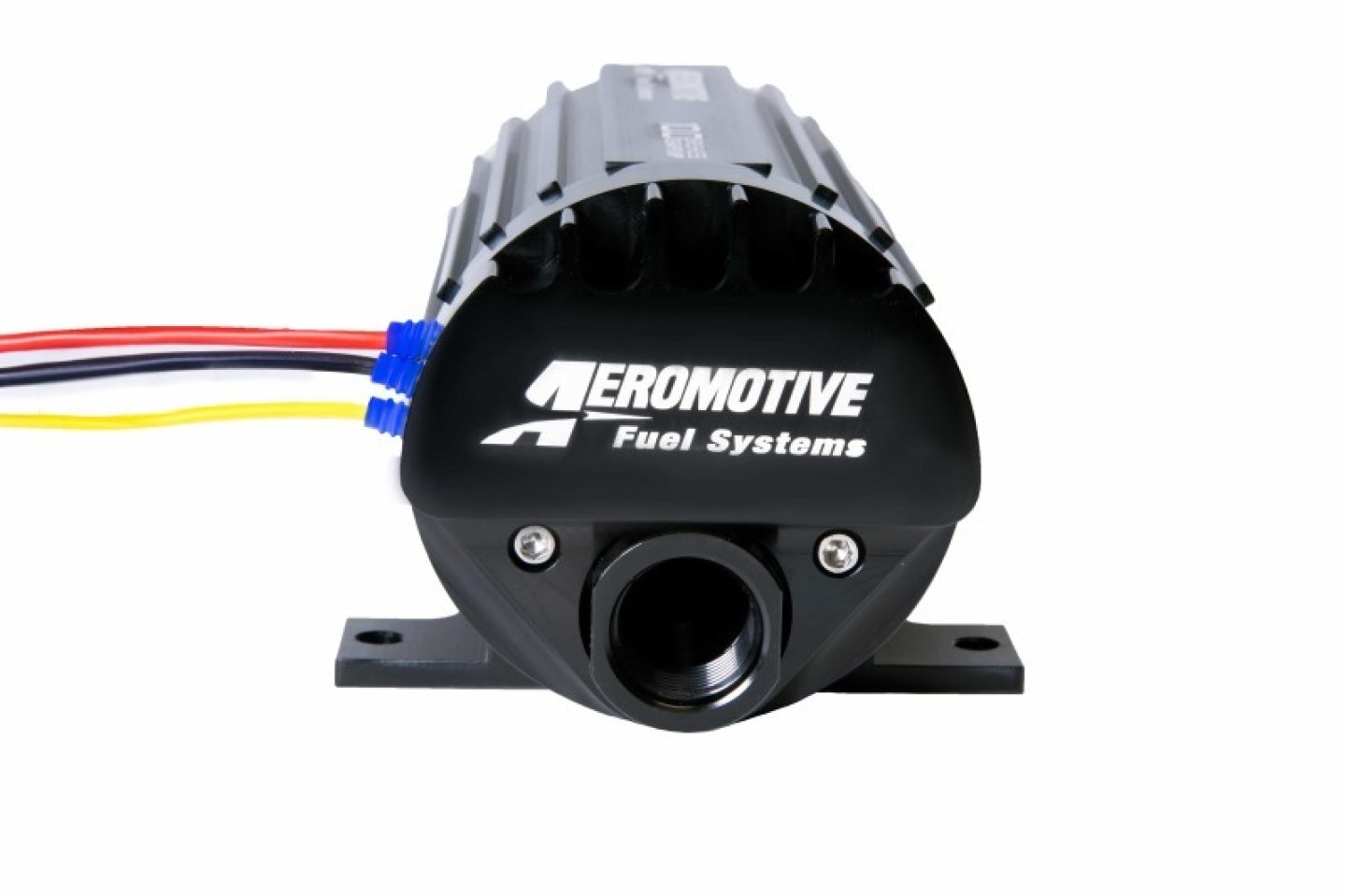

Aeromotive TVS In-Line Brushless Spur 10.0 External Fuel Pump
10.0 GPM Brushless Fuel Pump with True Variable Speed Controller. Ground-Shaking Performance Advanced Technology. Fuel Injected Engines: up to 6,900 FWHP on GAS naturally aspirated, up to 4,900 FWHP on GAS forced air induction, up to 4,830 FWHP on E85 naturally aspirated, up to 3,430 FWHP on E85 forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional external mount pumps. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism.
Fuel Pump, TVS, In-line, Brushless, Spur, 10.0.
Fuel Pump
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pump, Electric, External, 10 GPM, Aluminum, Black Anodized, Each
Aeromotive Pro-Series 10.0 gpm brushless gear pumps are engineered from the ground up for winning performance. In fact, they're the single highest-flowing electric fuel pumps on the market. These efficient pumps utilize a spur gear design, paired with a brushless motor, to deliver 10.0 gpm at 90 psi. Their inline flow-through design features contoured port machining and no shaft seals, while offering low-amp draw, excellent heat dissipation, and high-pressure capabilities. Lots of power needs lots of fuel; Aeromotive 10.0 gpm brushless gear pumps will feed your hungry high performance machine.
UPC | 684980011777 |
Brand | Aeromotive |
Quantity | Sold individually. |
Flow Rate | 10.0 gpm |
Part Type | Fuel Pumps |
Product Line | Aeromotive Pro-Series 10.0 GPM Brushless Gear Pumps |
Fuel Pump Type | Electric external |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Inlet Attachment | Female straight cut O-ring |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Female straight cut O-ring |
Fuel Pressure (psi) | 90 psi |
Fuel Pump Inlet Size | -12 AN |
Fuel Pump Outlet Size | -10 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 11198 |
Mounting Hardware Included | Yes |
Fuel Pressure Regulator Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
