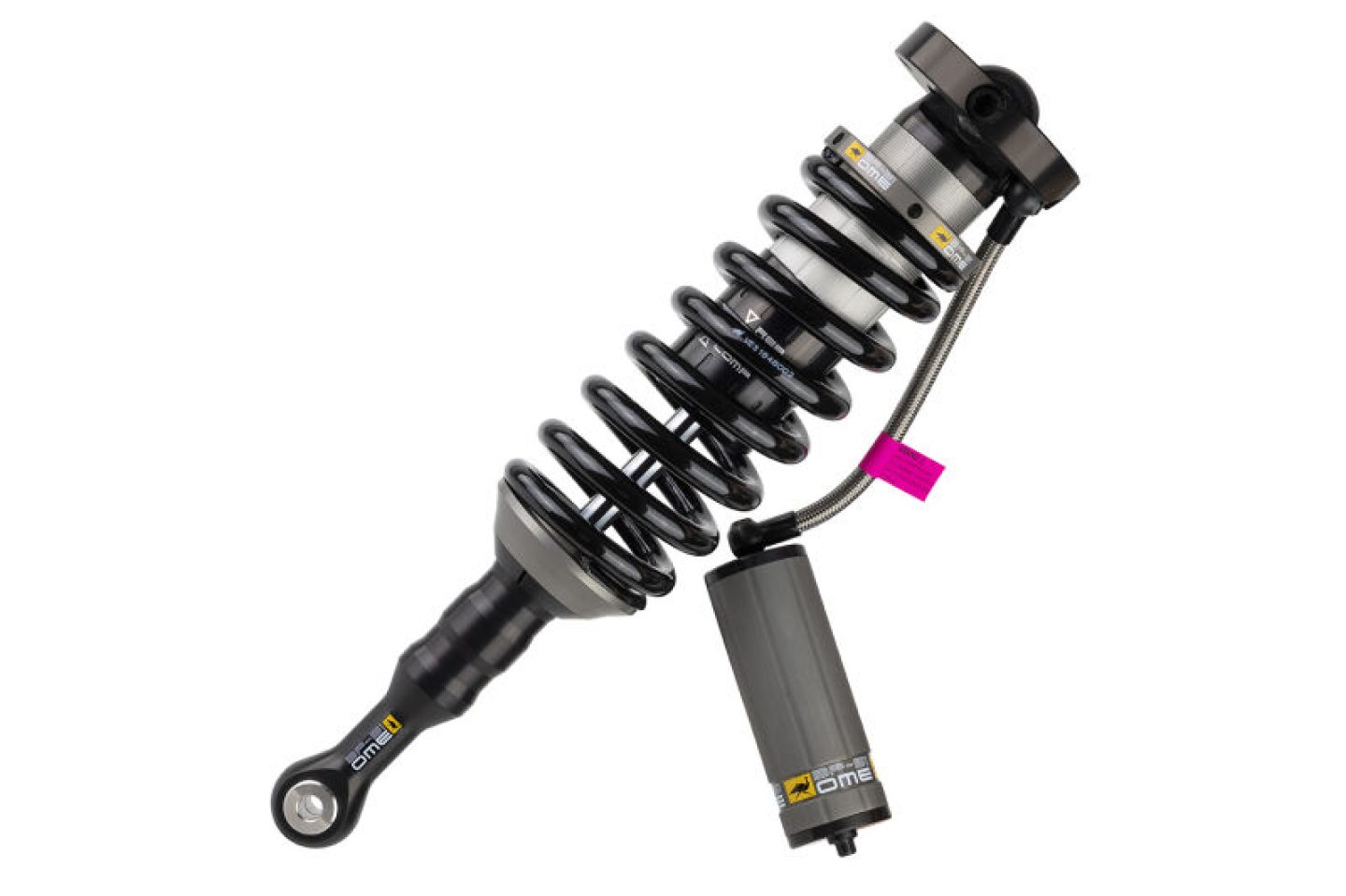

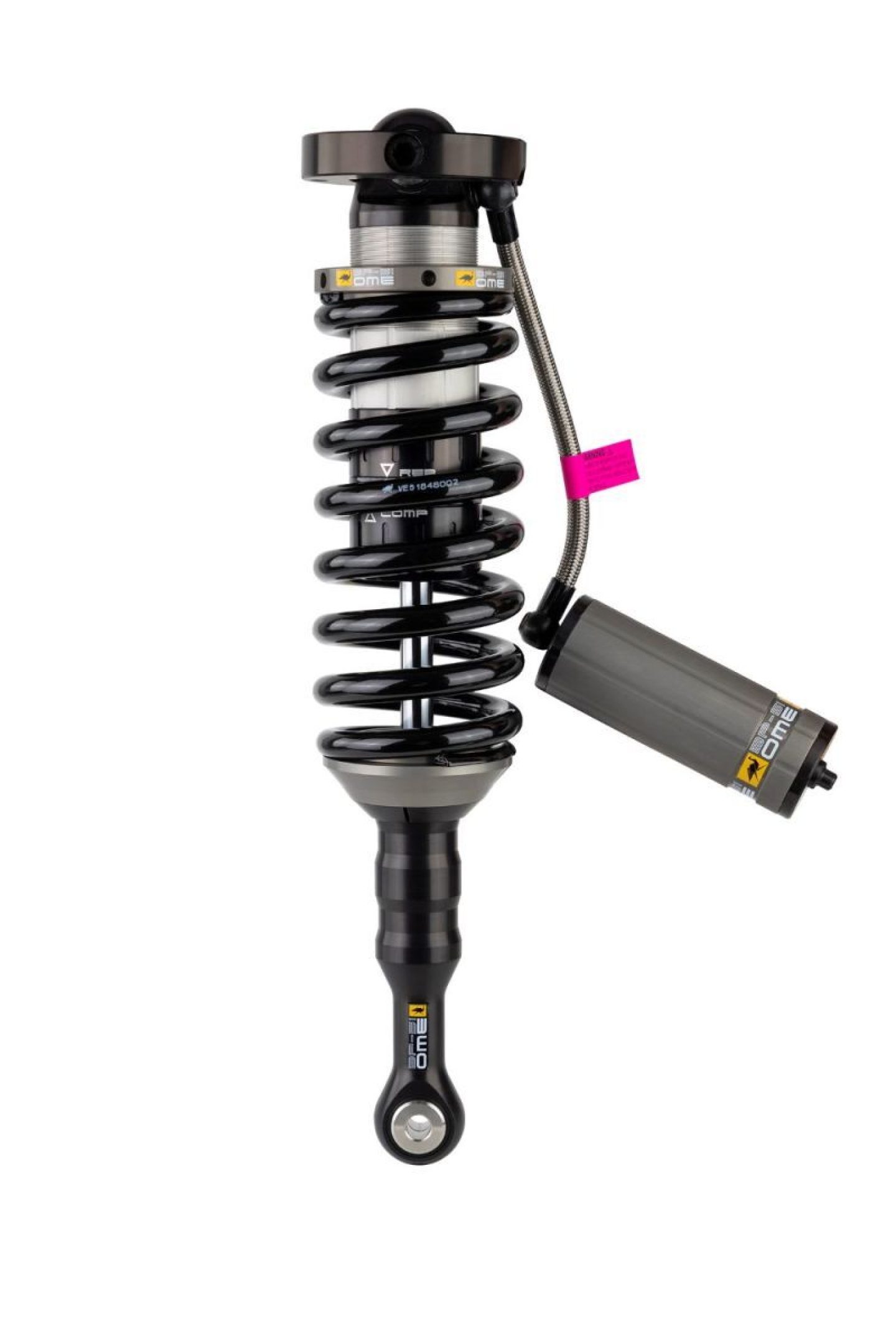

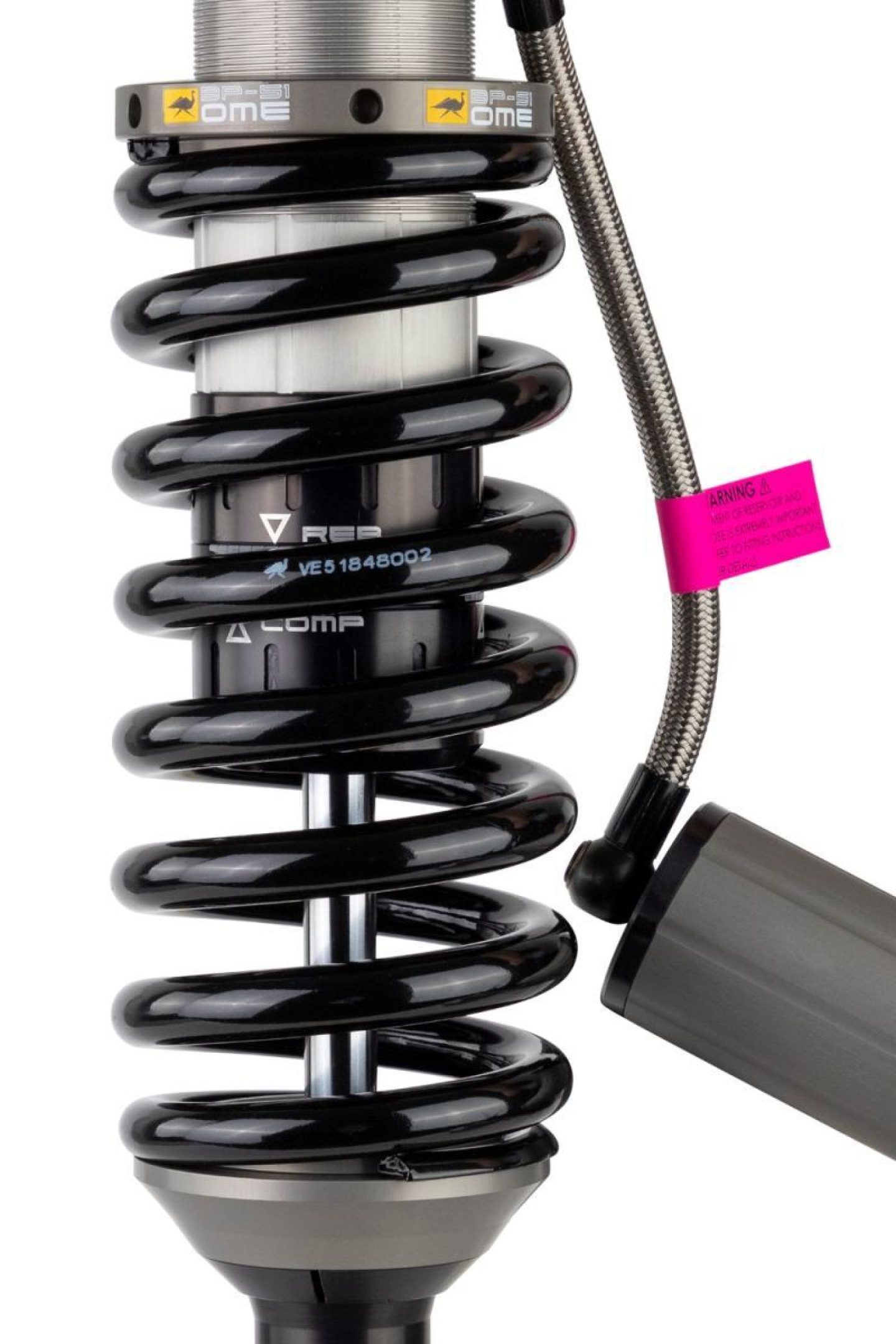

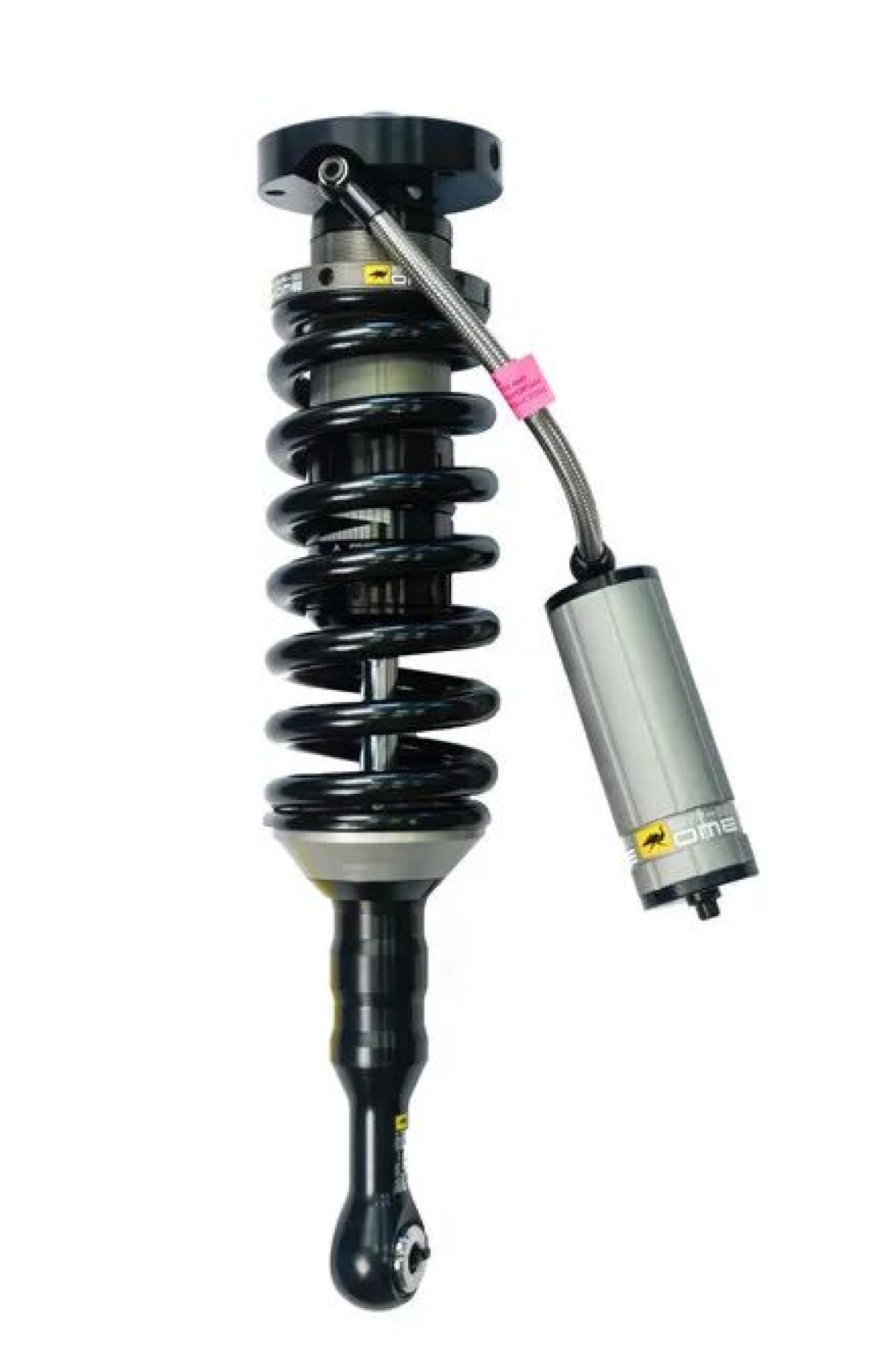

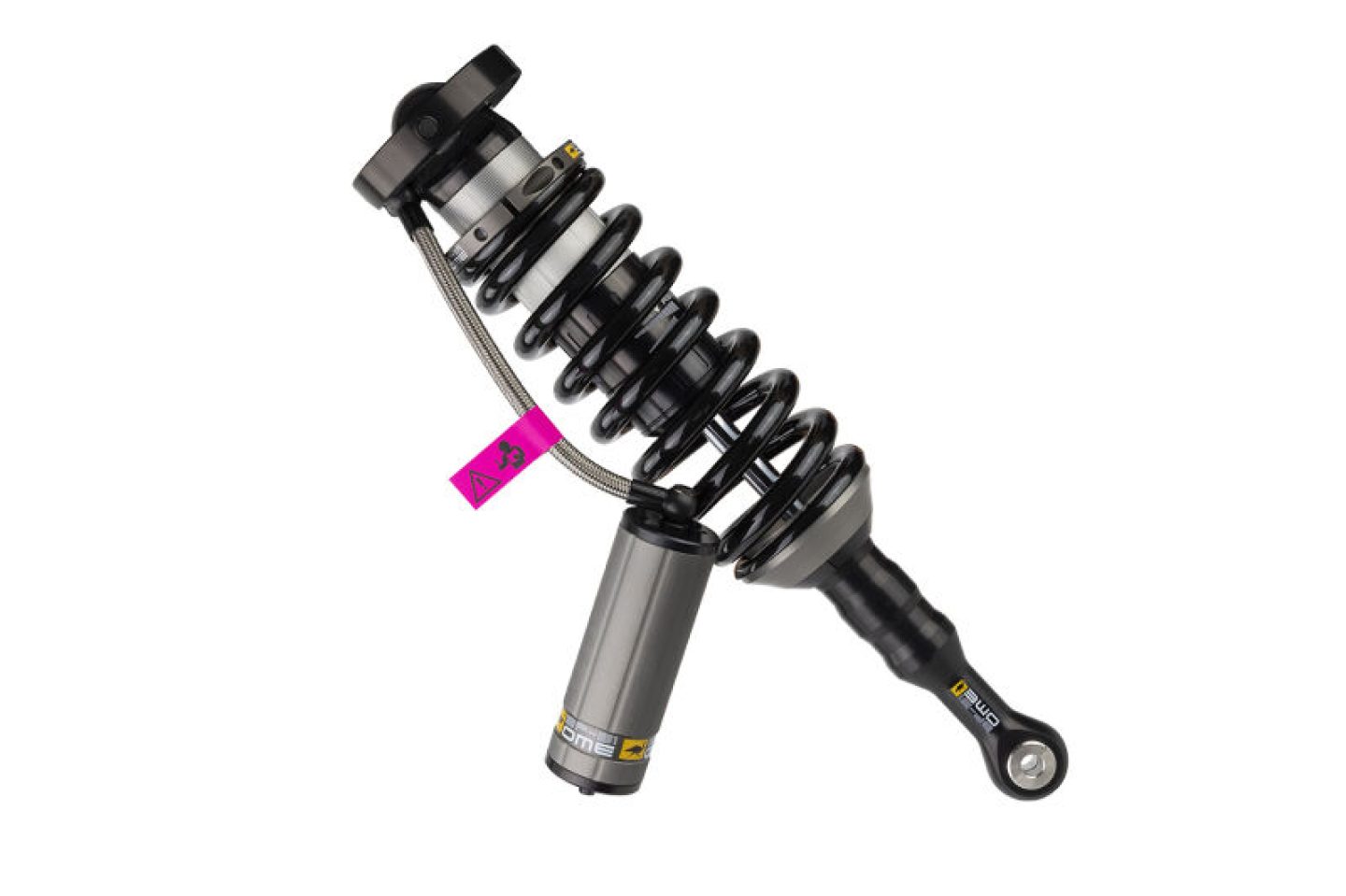

BP-51 Coilover
Bring race technology to your adventures with Old Man Emu's BP-51 Suspension system, featuring revolutionary patent-pending technology developed to deliver unparalleled on and off road performance. For use on coil over models, BP-51 employs high-quality X5K grade steel coils that incorporate application-specific design. Because they are engineered, developed, tested and manufactured entirely in-house by the Old Man Emu team, ARB can guarantee the highest possible quality. All Old Man Emu Suspension systems come with a 3-year warranty.
Old Man Emu BP-51 Coilover; Front; Right Side;
S/N.PRADO/FJ/4RUN FR RH
Suspension Shock Absorber
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Shocks and Struts Sport Shock; Bypass Coil Over;
Old Man Emu BP-51 coilovers deliver high performance shock absorption for the front of your vehicle. Preloaded with Old Man Emu coils, these revolutionary coilovers are set to the appropriate lift height for vehicles fitted with a bumper and winch. The spring preload will need to be adjusted to compensate for a lighter total weight vehicle. But, of course, OME BP-51 coilovers provide the independent adjustability of both rebound and compression to deliver the ultimate in both comfort and control, on or off-road. Inside and outside features of Old Man Emu BP-51 coilovers: * Body, reservoir, and components are crafted from 6061 T-6 aluminum * Type 3, 40 micron hard anodized finish * High-quality X5K grade steel coil * High-flow fittings with -6 high-temperature PTFE hose * Large PTFE-lined spherical bearings * High-pressure nitrogen reservoir with aluminum, anodized floating piston * Adjustable spring preload/ride height * 19mm hard chromed ground shaft * Quality oversized rubber bushings * High-temperature Viton® and PTFE seal pack * 51mm bore diameter body * Patent pending bypass, shim controlled, position sensitive damping * High performance, high-viscosity index oil * 1900 MPA polished, high-strength, high-fatigue shims * Kidney bypass ports * Multiple compression and rebound bypass zones
Brand | Old Man Emu |
Manufacturer's Part Number | BP5190002R |
Part Type | Coilover Shocks and Struts |
Product Line | Old Man Emu BP-51 Coilovers |
UPC | 09332018035837 |
Coilover Shock Type | Double-adjustable |
Shock Body Material | Aluminum |
Shock Body Finish | Black anodized |
Adjustable Valving | Yes |
Number of Valving Selections | 10 |
Upper Mount | Stud |
Lower Mount | Spherical rod end |
Internal Design | Monotube |
Gas Charged | Yes |
Coilover Springs Included | Yes |
Spring Finish | Black |
Adjustable Mounting Bracket Included | No |
Hardware Included | Yes |
Quantity | Sold individually. |
ARB / OME Bp51 Coilover S/N..Prado/Fj/4Run Fr Rh | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2010-2023 | Toyota | 4Runner | SR5, Limited, Trail, TRD Pro, TRD Off-Road, SR5 Premium, TRD Off-Road Premium, Nightshade, Venture, TRD Sport, 40th Anniversary Edition | US |
2010-2014 | Toyota | FJ Cruiser | Base | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
