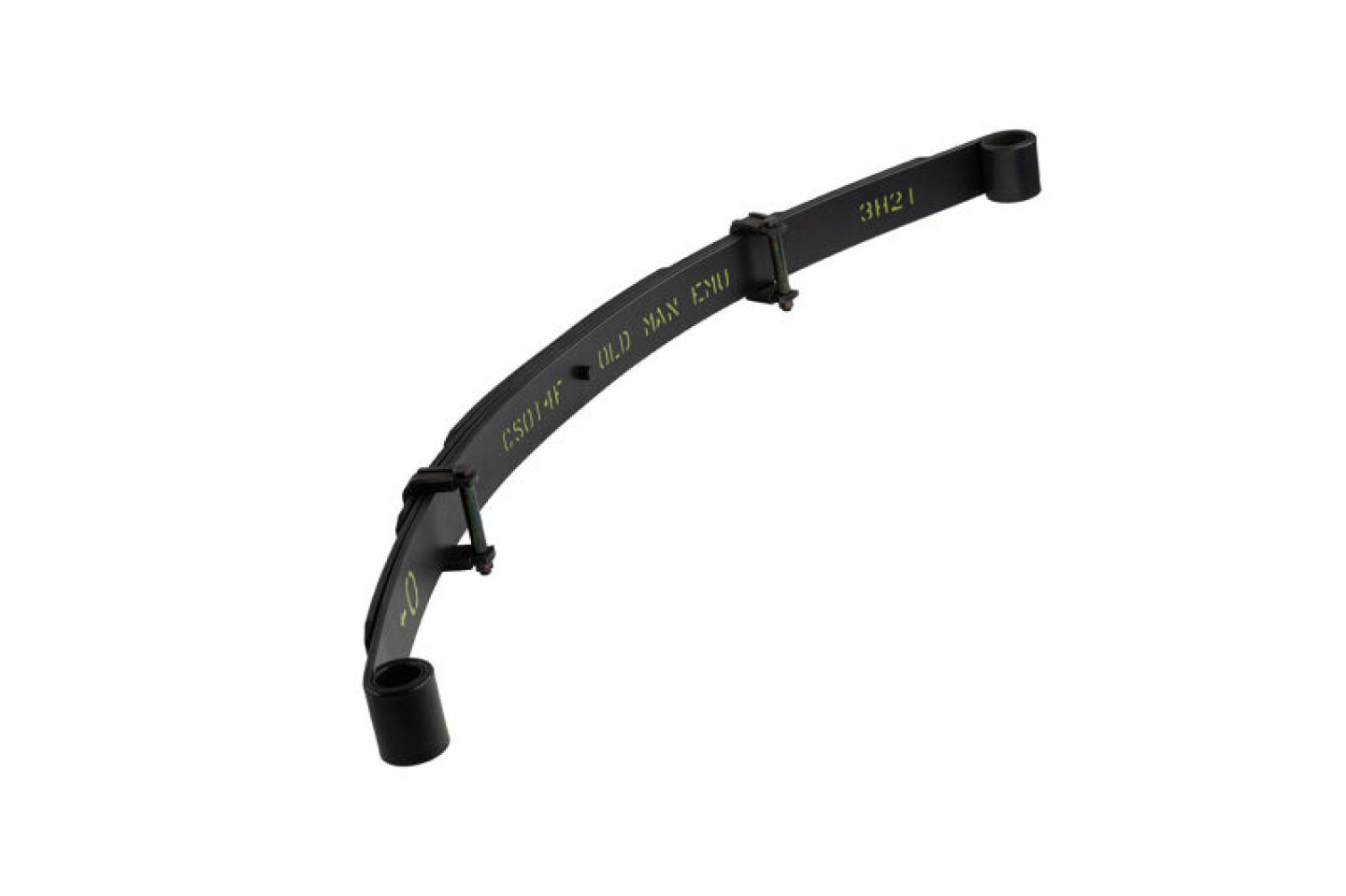

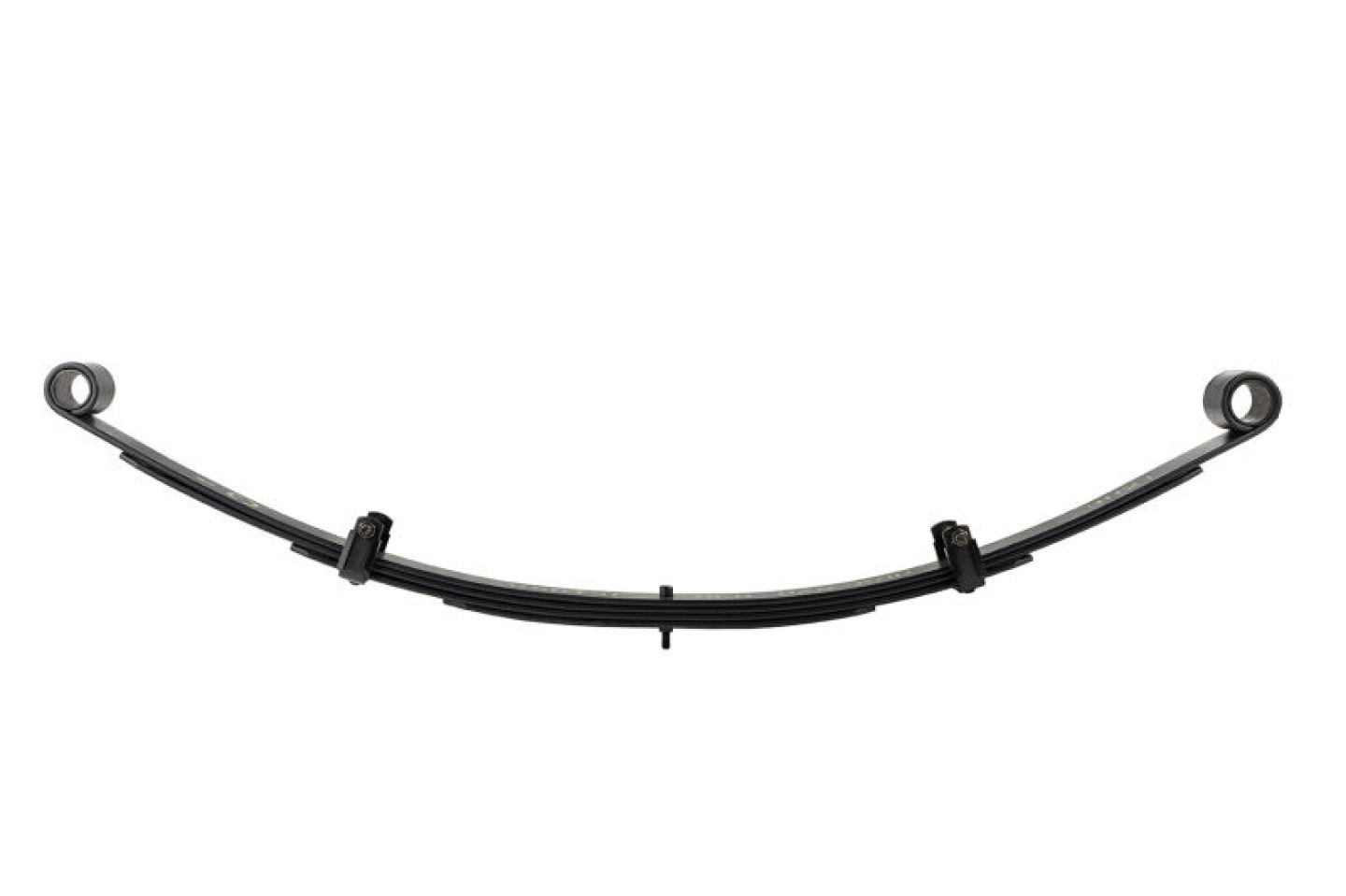

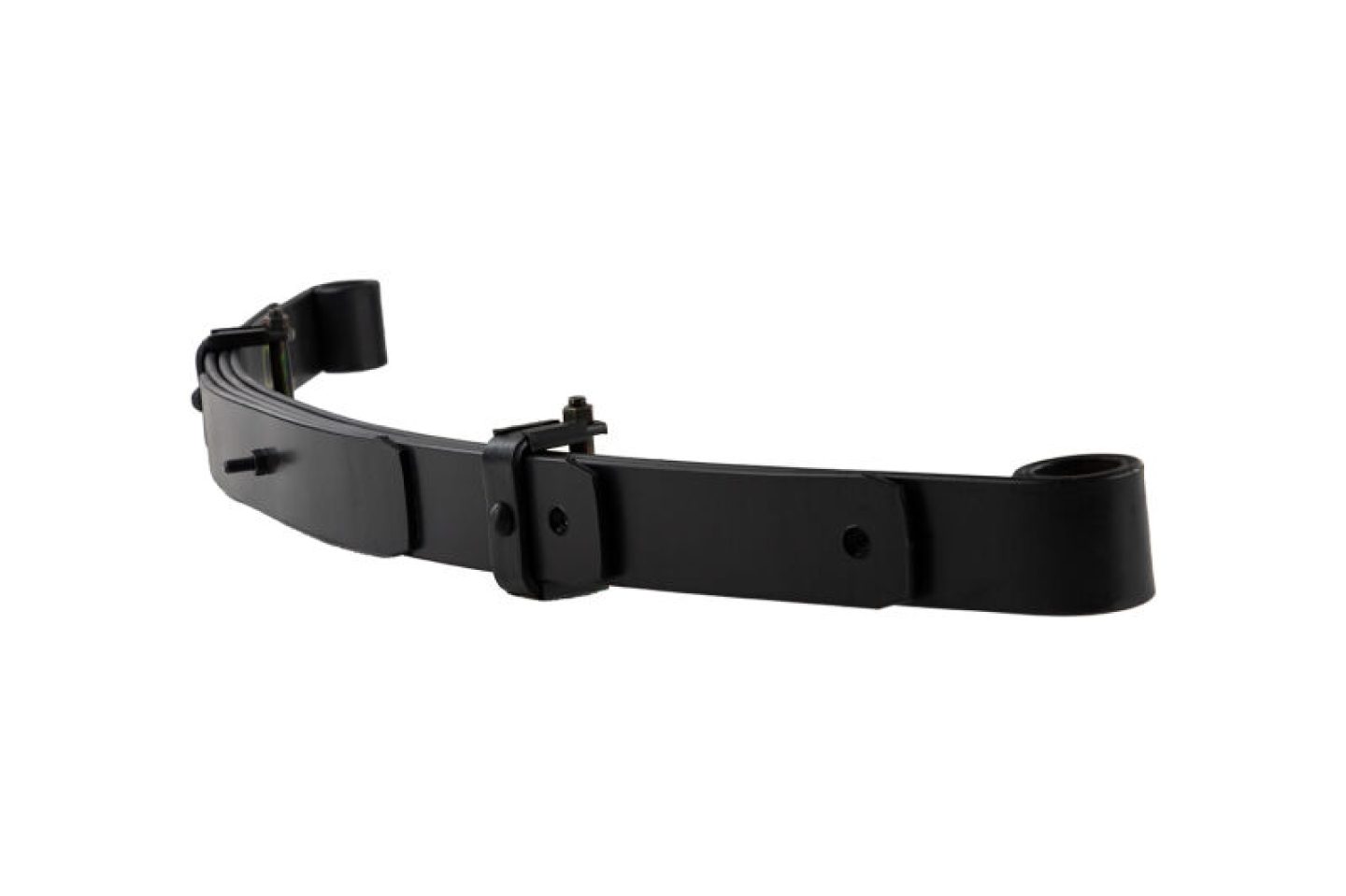

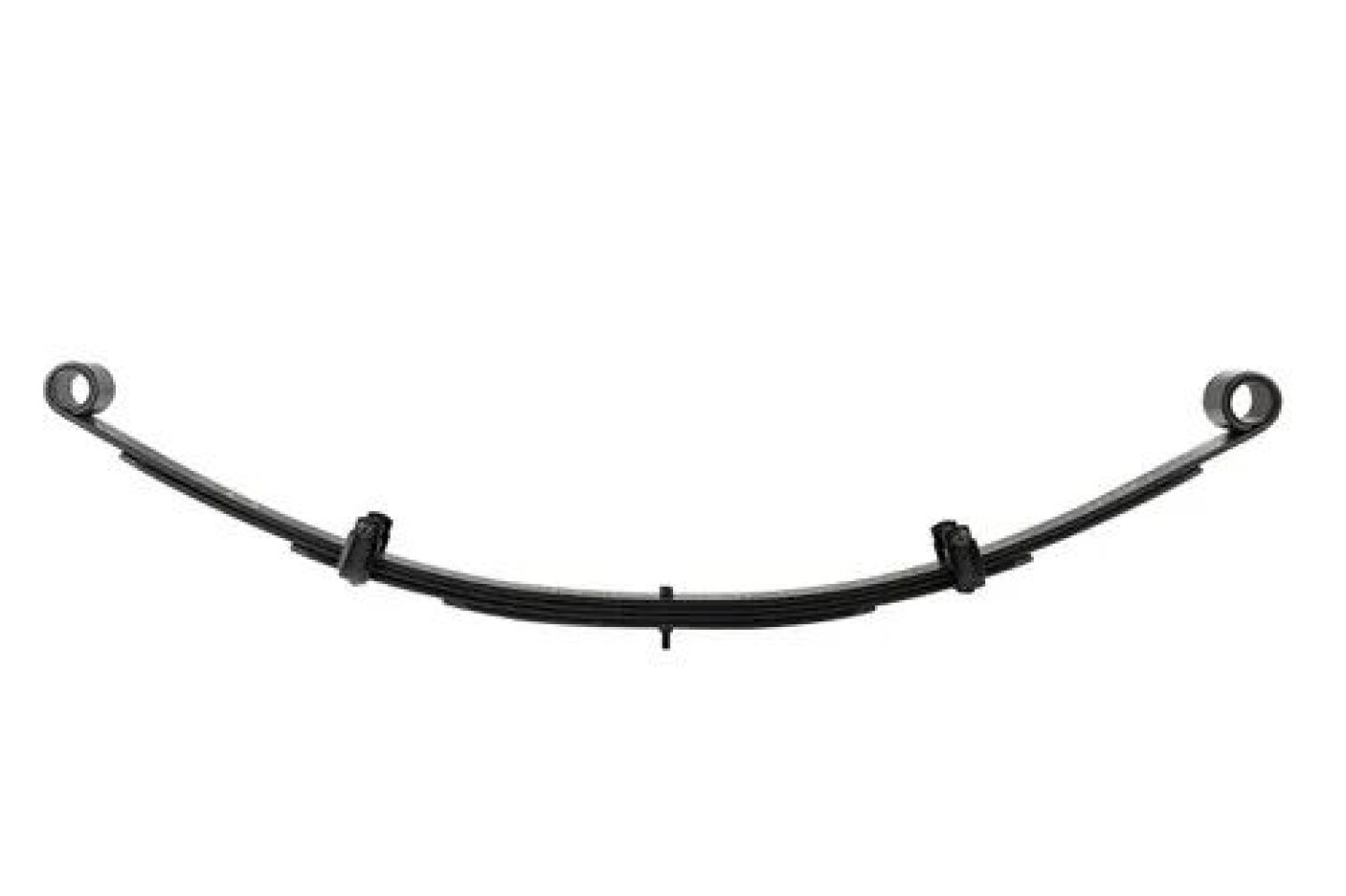

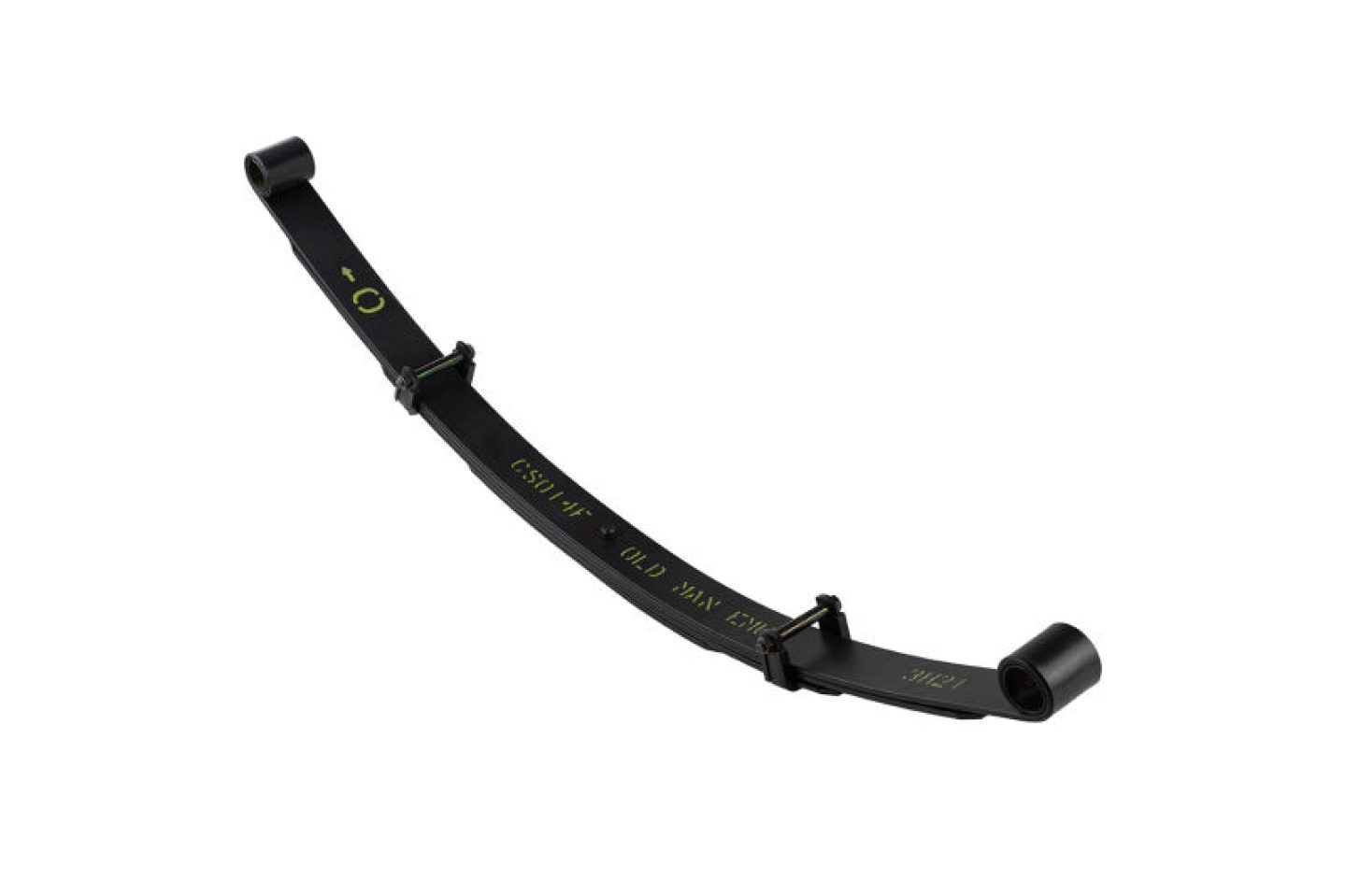

Leaf Spring
Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
Front
Leaf Spring Assembly
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Lift Spring, Leaf, Front, Jeep Wrangler, Each
Old Man Emu Dakar leaf springs are offered in numerous spring options to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu shocks will deliver a vastly improved ride, handling and load carrying capability to your vehicle. Emu Dakar leaf springs typically feature: * Draw-tapered and diamond-cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life * Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti-squeak nylon liners * Fully scragged and load-tested: Scragging ensures the spring takes a permanent "set" which reduces the risk of sagging. Load testing ensures the spring meets the required specification. * Graphite coating: To further reduce the friction between the spring leaves and friction pads. * Military wrap: Designed to provide added safety (not available on all applications) * Anti-friction pads: Re-greaseable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest * Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life * Shot peening: The tension side of all leaves is shot peened to reduce spring stress, process can also double the life of a spring * Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen, the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added
UPC | 09332018022707 |
Brand | Old Man Emu |
Notes | Fits Jeep Wrangler 1986-1996 rated up to 35 to 95 kilograms. Estimated lift is 40-50mm. |
Quantity | Sold individually. |
Part Type | Leaf Springs |
Ride Height | Lifted |
Product Line | Old Man Emu Dakar Leaf Springs |
Bushing Color | Black/Gray |
Spring Finish | Black |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Bushings Included | No |
Spring Positioning | Front |
Spring Rate (lbs/in.) | 148 lbs./in. |
Progressive Rate Spring | No |
Manufacturer's Part Number | CS014F |
Front Spring Raised Amount Range (in.) | 1.50 in. |
ARB / OME Leaf Spring Jeep Yj F | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1987-1995 | Jeep | Wrangler | Base, Laredo, Sport, Islander, S, Sahara, Renegade, SE, Rio Grande | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L4 |
Liter | 2.5 |
CID | 150 |
Engine Family | AMC 4-cylinder |
Engine Size | 2.5L/150 |
Drivetrain | 4WD |
Application Notes | 2 in. Lift; Sold As Single |
Engine VIN Code | H |
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L4 |
Liter | 2.5 |
CID | 150 |
Engine Family | AMC 4-cylinder |
Engine Size | 2.5L/150 |
Drivetrain | 4WD |
Application Notes | Extra Leaf can be fitted for heavier constant load carrying ability. Due to a variance in curb weight, 4 cylinder models may net slightly more lift than 6 cylinder models. |
Engine VIN Code | H |
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L6 |
Liter | 4.2 |
CID | 258 |
Engine Family | AMC inline 6-cylinder |
Engine Size | 4.2L/258 |
Drivetrain | 4WD |
Application Notes | 2 in. Lift; Sold As Single |
Engine VIN Code | C |
