Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
Rear

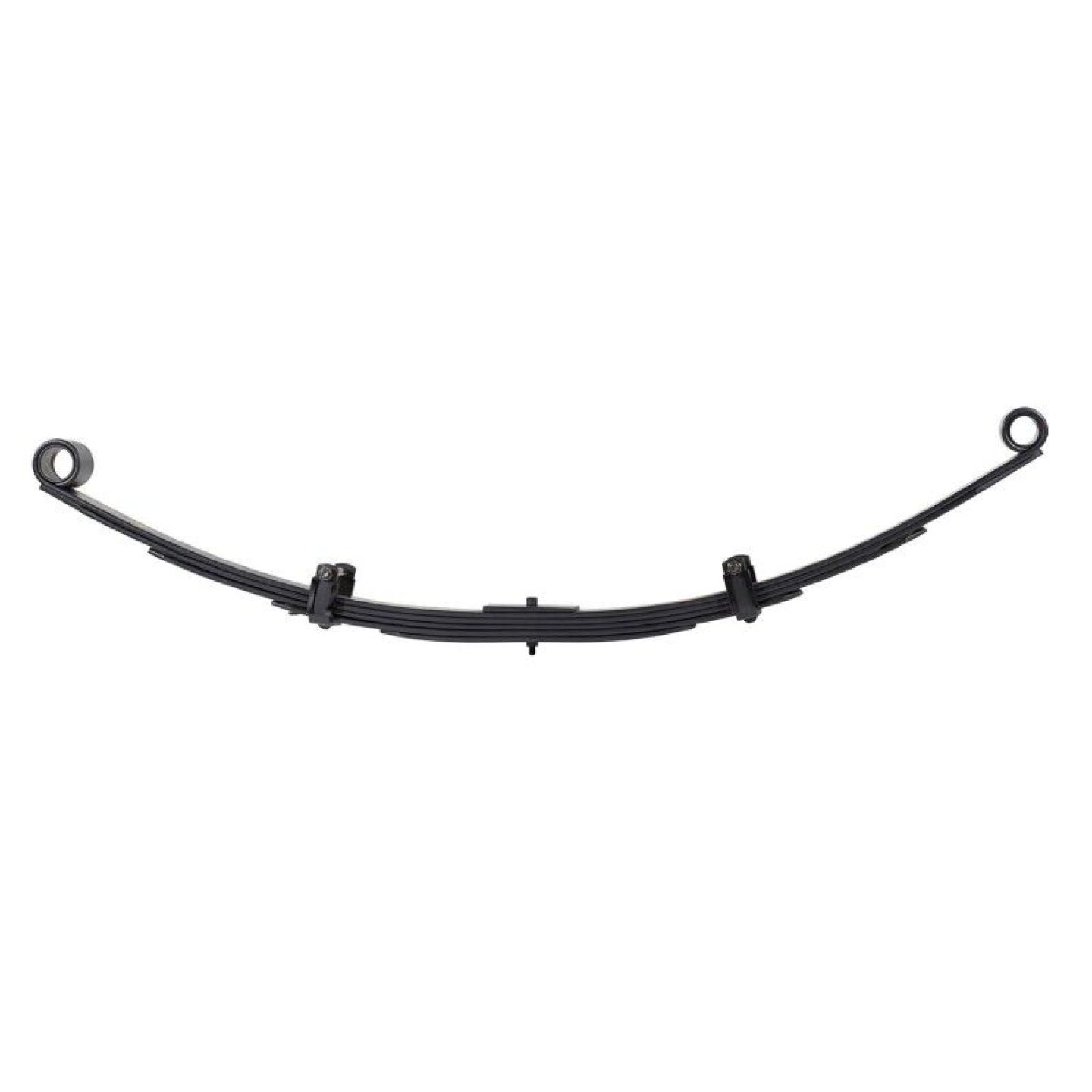

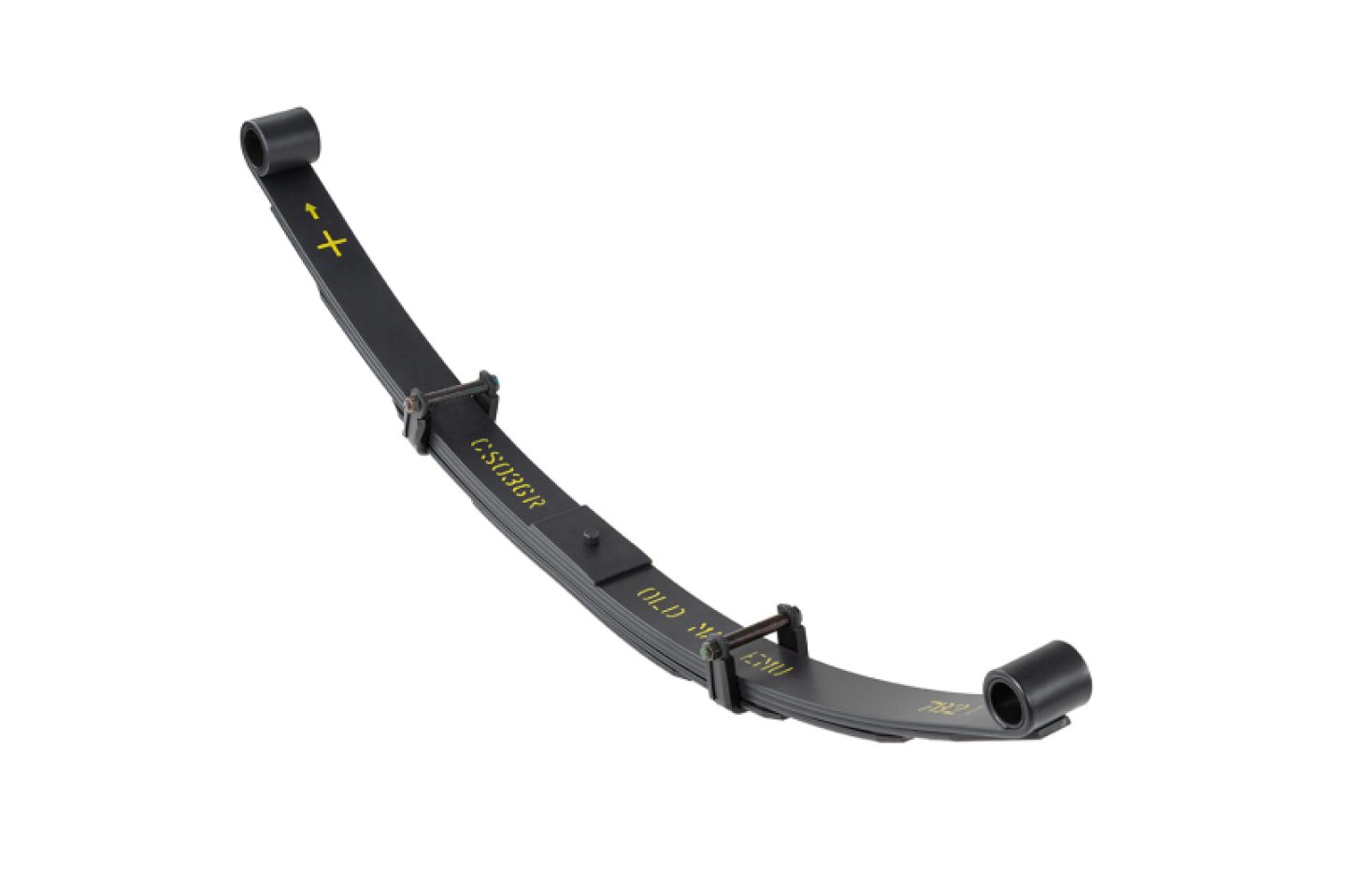

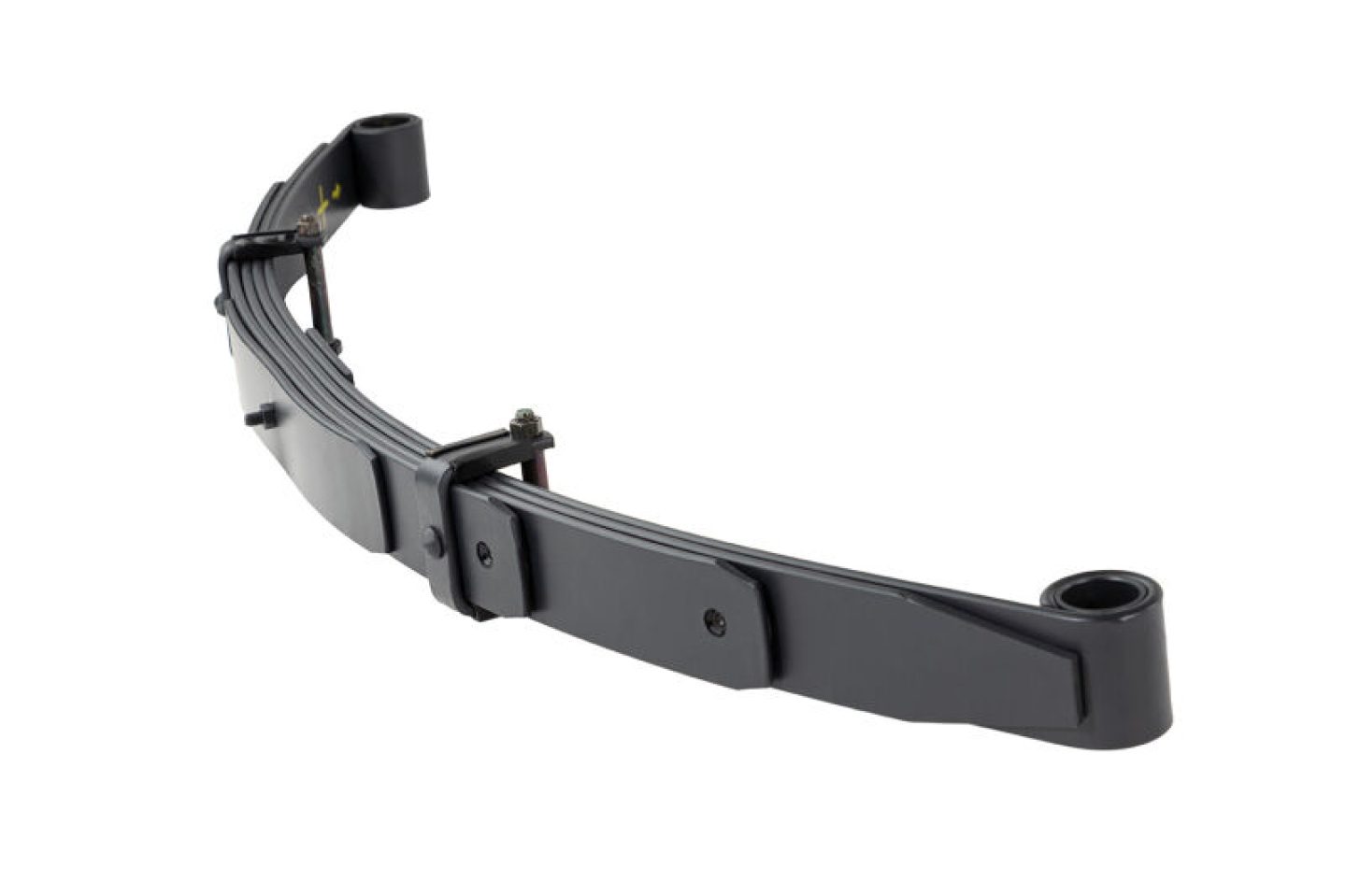

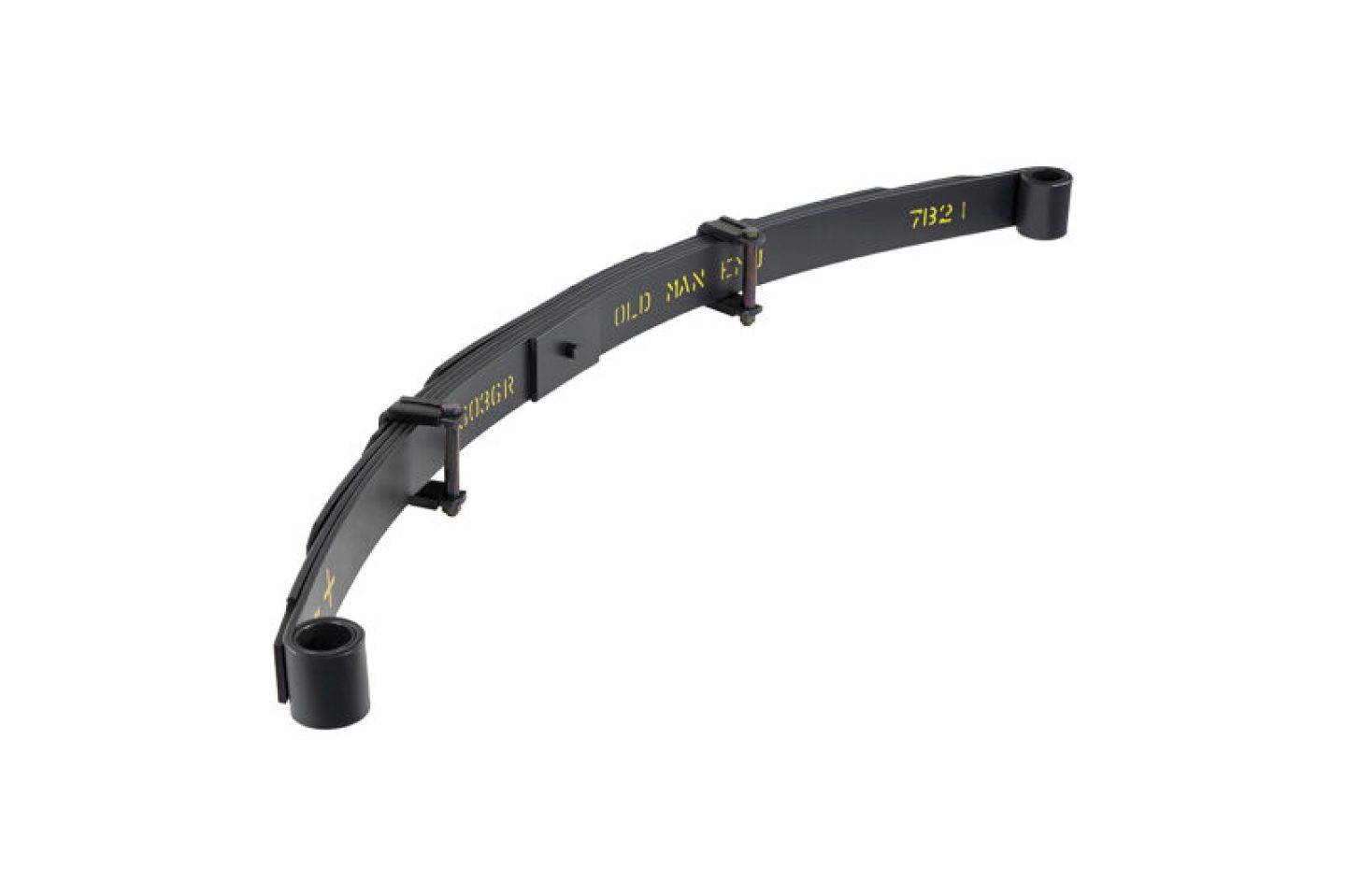

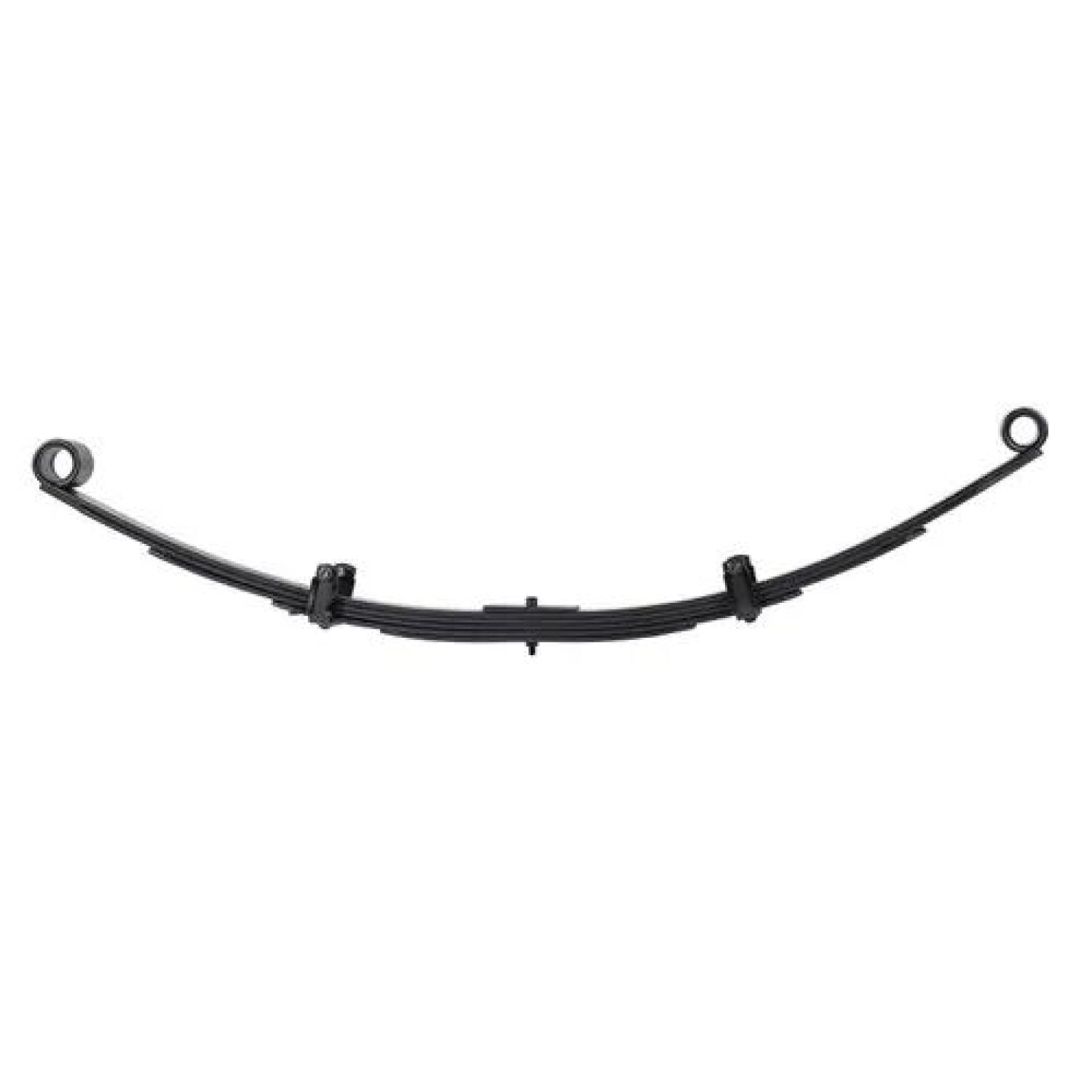

Leaf Spring Assembly
Old Man Emu Dakar leaf springs are offered in numerous spring options to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu shocks will deliver a vastly improved ride, handling and load carrying capability to your vehicle.
Emu Dakar leaf springs typically feature:
UPC | 09332018022981 |
Brand | Old Man Emu |
Notes | Fits hard top Jeep Wranglers built from 1986-1996. Medium rated springs load to 200 kilograms. Estimated lift is 50mm or 2.0 inches. |
Quantity | Sold individually. |
Part Type | Leaf Springs |
Ride Height | Lifted |
Product Line | Old Man Emu Dakar Leaf Springs |
Spring Finish | Black |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Bushings Included | No |
Spring Positioning | Rear |
Spring Rate (lbs/in.) | 188 lbs./in. |
Progressive Rate Spring | No |
Manufacturer's Part Number | CS036R |
Rear Spring Raised Amount Range (in.) | 3.00-3.50 in. |
Compatibility & Application Information | |
---|---|
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L4 |
Liter | 2.5 |
CID | 150 |
Engine Family | AMC 4-cylinder |
Engine Size | 2.5L/150 |
Drivetrain | 4WD |
Application Notes | 2 in. Lift; Heavy Load; Sold As Single |
Engine VIN Code | H |
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L4 |
Liter | 2.5 |
CID | 150 |
Engine Family | AMC 4-cylinder |
Engine Size | 2.5L/150 |
Drivetrain | 4WD |
Application Notes | When fitting CS036R to front, removing caster wedge is required prior to installation |
Engine VIN Code | H |
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L6 |
Liter | 4.2 |
CID | 258 |
Engine Family | AMC inline 6-cylinder |
Engine Size | 4.2L/258 |
Drivetrain | 4WD |
Application Notes | 2 in. Lift; Heavy Load; Sold As Single |
Engine VIN Code | C |
Make | JEEP |
Model | WRANGLER |
Submodel | BASE |
Beginning Year | 1987 |
Ending Year | 1988 |
Engine Type | L6 |
Liter | 4.2 |
CID | 258 |
Engine Family | AMC inline 6-cylinder |
Engine Size | 4.2L/258 |
Drivetrain | 4WD |
ARB / OME Leaf Spring Jeep Yj R | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1987 | Jeep | Wrangler | Laredo | US |
1987 | Jeep | Wrangler | Sport | US |
1987 | Jeep | Wrangler | Base | US |
1988 | Jeep | Wrangler | S | US |
1988 | Jeep | Wrangler | Sport | US |
1988 | Jeep | Wrangler | Laredo | US |
1988 | Jeep | Wrangler | Base | US |
1988 | Jeep | Wrangler | Islander | US |
1988 | Jeep | Wrangler | Sahara | US |
1989 | Jeep | Wrangler | Laredo | US |
1989 | Jeep | Wrangler | Base | US |
1989 | Jeep | Wrangler | Sahara | US |
1989 | Jeep | Wrangler | Islander | US |
1990 | Jeep | Wrangler | Islander | US |
1990 | Jeep | Wrangler | Laredo | US |
1990 | Jeep | Wrangler | Base | US |
1990 | Jeep | Wrangler | Sahara | US |
1991 | Jeep | Wrangler | S | US |
1991 | Jeep | Wrangler | Sahara | US |
1991 | Jeep | Wrangler | Islander | US |
1991 | Jeep | Wrangler | Base | US |
1991 | Jeep | Wrangler | Renegade | US |
1992 | Jeep | Wrangler | Base | US |
1992 | Jeep | Wrangler | Sahara | US |
1992 | Jeep | Wrangler | Islander | US |
1992 | Jeep | Wrangler | Renegade | US |
1992 | Jeep | Wrangler | S | US |
1993 | Jeep | Wrangler | S | US |
1993 | Jeep | Wrangler | Renegade | US |
1993 | Jeep | Wrangler | Base | US |
1993 | Jeep | Wrangler | Sahara | US |
1994 | Jeep | Wrangler | Sahara | US |
1994 | Jeep | Wrangler | SE | US |
1994 | Jeep | Wrangler | Renegade | US |
1994 | Jeep | Wrangler | S | US |
1995 | Jeep | Wrangler | Sahara | US |
1995 | Jeep | Wrangler | SE | US |
1995 | Jeep | Wrangler | Rio Grande | US |
