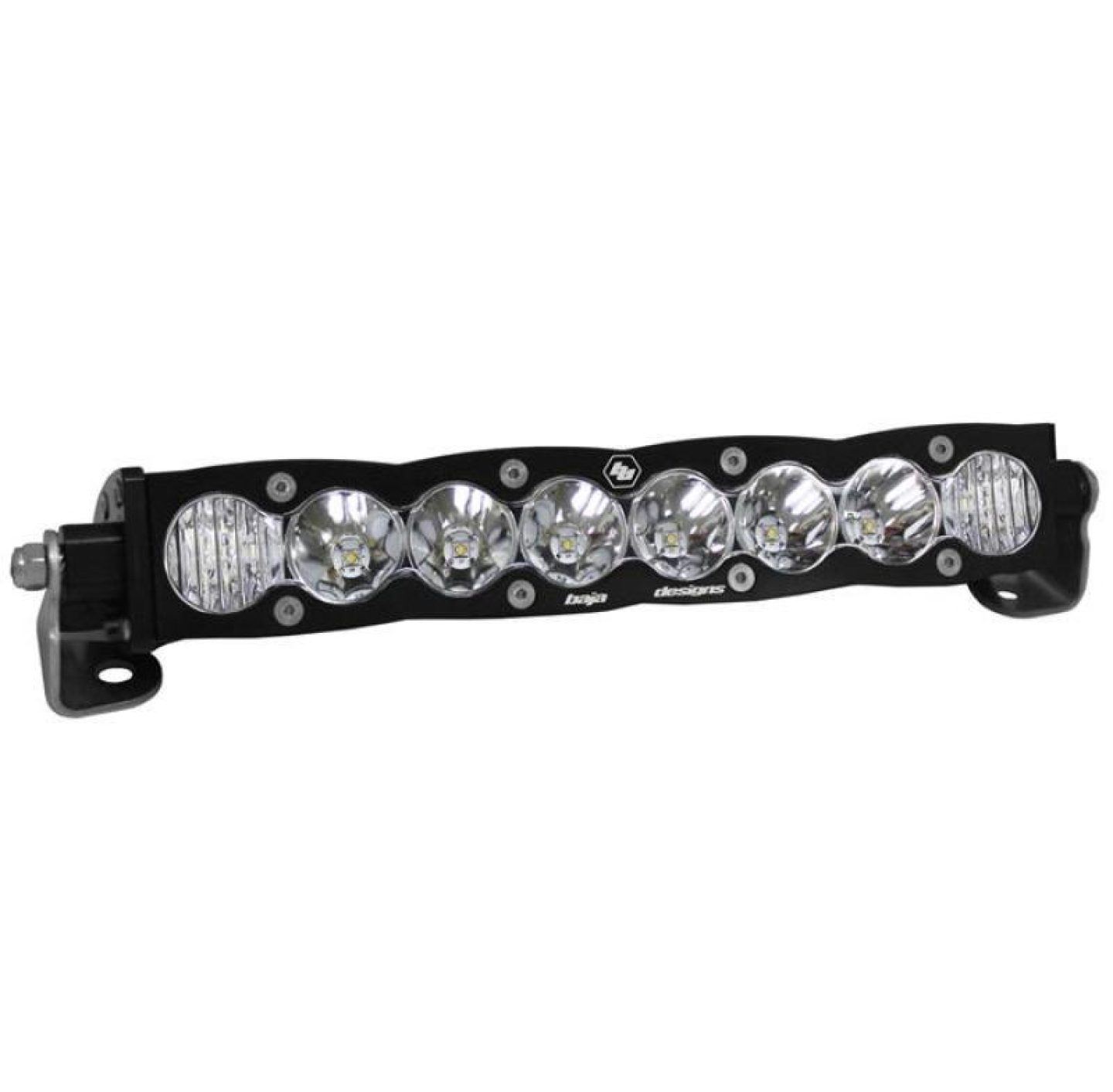

Baja Designs S8 Series Driving Combo Pattern 10in LED Light Bar
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
LED Light Bars, 10 Inch, Driving Combo Pattern S8 Series
Baja Designs' S8 10-inch LED light bars offer a slim and sleek design utilizing eight LEDs per 10-inch section. These 10 in. light bars feature high-performance reflectors, and the additional feature of an amber backlight that makes the S8 a light bar that shines with your vehicle. The light bars are backed by Baja Designs 30-day satisfaction guarantee and limited lifetime warranty, giving you the ultimate in-purchase protection! Product highlights: * One 10 in. LED light bar * Housing material—aircraft grade aluminum with Mil-Spec hard anodize * Bezel material—billet machined aluminum * Lens material—clear hardcoated polycarbonate * LED lighting technology * ClearView—all the light, right where you need it * Stainless steel mounting hardware * Built-in overvoltage protection * IP69K rated (waterproof up to 9 ft. and pressure washable) * IK10 compliant (Mechanical Impact Testing) * Exceeds MIL-STD810G (Mil-Spec Testing) Optic styles: * Driving Combo: Maximum trail coverage in a single light—the driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3 * Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights * Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots, and enhancing peripheral visibility in lighting zones 1 and 2—this cornering pattern is perfect for inclement weather such as dust, snow, rain, or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards, making it easier to navigate through tight turns, winding trails, or through wooded areas * Select models with Work/Scene optics offer excellent work light or "scene light" with an extremely smooth 120 degree circle that projects about 40 ft. (This pattern is not suitable for driving) Note: This light bar does not include a wiring harness (sold separately).
Brand | Baja Designs |
Manufacturer's Part Number | 701003 |
Part Type | Light Bars, Light Pods and Fog Lights |
Product Line | Baja Designs S8 10-inch LED Light Bars |
UPC | 852156007224 |
Light Type | Light bar |
Bulb Type | LED |
Light Bar Type | Straight single row |
Optics Style | Driving/Spot |
Light Bar Size (in.) | 10 in. |
Watts | 60.0 watts |
Amp Draw | 4.00 amps |
Lumens | 6,350 |
Beam Distance | 98.45 m |
Beam Pattern | 116 degree |
Number of LEDs | 8 |
Bulb Color | White |
Lens Color | Clear |
Housing Color | Black anodized |
Housing Material | Aluminum |
Light Cover Included | No |
Hardware Included | Yes |
Relay Included | No |
Wiring Harness Included | No |
Quantity | Sold individually. |
No specific fitment data available for this part. For clarification, please contact us.
