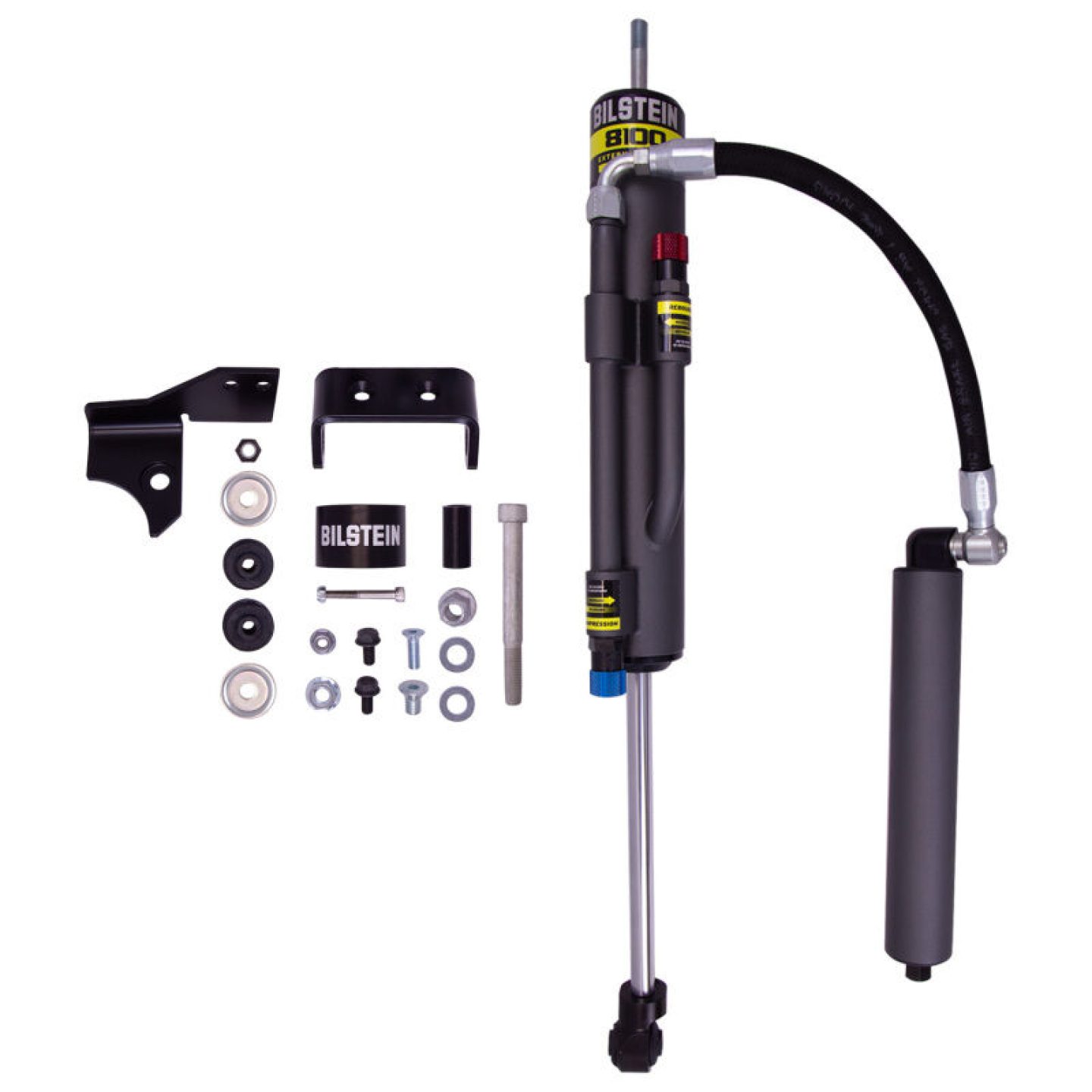

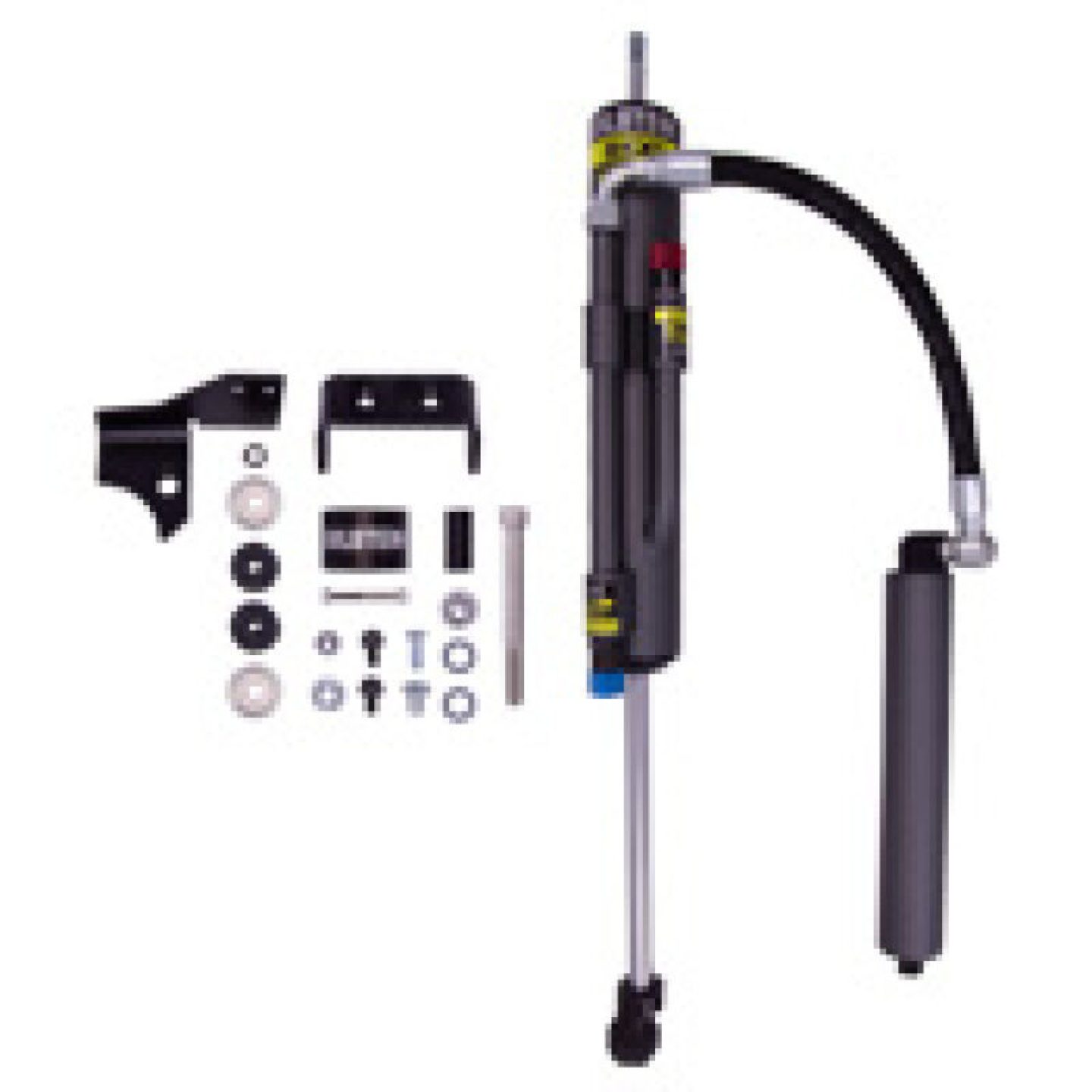

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
Jeep Wrangler 2017-2007, Wrangler JK 2018
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
Brand | Bilstein |
Manufacturer's Part Number | 25-291292 |
Part Type | Shocks and Struts |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
UPC | 651860899244 |
Ride Height | Stock |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Extended Length (in.) | 27.03 |
Collapsed Length (in.) | 17.20 |
Internal Design | Monotube |
Adjustable Valving | Yes |
Gas Charged | Yes |
Upper Mount | Stud |
Lower Mount | Eyelet |
Bushing Material | Rubber |
Bushing Color | Black |
Boot Included | No |
Boot Color | Gray |
Body Diameter (in.) | 2.360 |
Remanufactured | No |
Quantity | Sold individually. |
Bilstein 07-17 Jeep Wrangler / 2018 Jeep Wrangler JK B8 8100 (Bypass) Front Shock Absorber | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2007 | Jeep | Wrangler | Sahara | US |
2007 | Jeep | Wrangler | Unlimited Rubicon | US |
2007 | Jeep | Wrangler | Unlimited Sahara | US |
2007 | Jeep | Wrangler | Unlimited X | US |
2007 | Jeep | Wrangler | Rubicon | US |
2007 | Jeep | Wrangler | X | US |
2008 | Jeep | Wrangler | Unlimited X | US |
2008 | Jeep | Wrangler | Unlimited Sahara | US |
2008 | Jeep | Wrangler | Rubicon | US |
2008 | Jeep | Wrangler | Sahara | US |
2008 | Jeep | Wrangler | X | US |
2008 | Jeep | Wrangler | Unlimited Rubicon | US |
2009 | Jeep | Wrangler | Rubicon | US |
2009 | Jeep | Wrangler | Unlimited Rubicon | US |
2009 | Jeep | Wrangler | Unlimited Sahara | US |
2009 | Jeep | Wrangler | Unlimited X | US |
2009 | Jeep | Wrangler | X | US |
2009 | Jeep | Wrangler | Sahara | US |
2010 | Jeep | Wrangler | Unlimited Sport | US |
2010 | Jeep | Wrangler | X | US |
2010 | Jeep | Wrangler | Rubicon | US |
2010 | Jeep | Wrangler | Sahara | US |
2010 | Jeep | Wrangler | Sport | US |
2010 | Jeep | Wrangler | Unlimited X | US |
2010 | Jeep | Wrangler | Unlimited Rubicon | US |
2010 | Jeep | Wrangler | Unlimited Sahara | US |
2011 | Jeep | Wrangler | Rubicon | US |
2011 | Jeep | Wrangler | Sport | US |
2011 | Jeep | Wrangler | Unlimited Sport | US |
2011 | Jeep | Wrangler | Unlimited Rubicon | US |
2011 | Jeep | Wrangler | Sahara | US |
2011 | Jeep | Wrangler | Unlimited Sahara | US |
2012 | Jeep | Wrangler | Unlimited Sport | US |
2012 | Jeep | Wrangler | Unlimited Rubicon | US |
2012 | Jeep | Wrangler | Rubicon | US |
2012 | Jeep | Wrangler | Sport | US |
2012 | Jeep | Wrangler | Sahara | US |
2012 | Jeep | Wrangler | Unlimited Sahara | US |
2013 | Jeep | Wrangler | Unlimited Sport | US |
2013 | Jeep | Wrangler | Sahara | US |
2013 | Jeep | Wrangler | Unlimited Rubicon | US |
2013 | Jeep | Wrangler | Rubicon | US |
2013 | Jeep | Wrangler | Sport | US |
2013 | Jeep | Wrangler | Unlimited Sahara | US |
2014 | Jeep | Wrangler | Sahara | US |
2014 | Jeep | Wrangler | Unlimited Rubicon | US |
2014 | Jeep | Wrangler | Unlimited Sahara | US |
2014 | Jeep | Wrangler | Sport | US |
2014 | Jeep | Wrangler | Unlimited Sport | US |
2014 | Jeep | Wrangler | Rubicon | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |

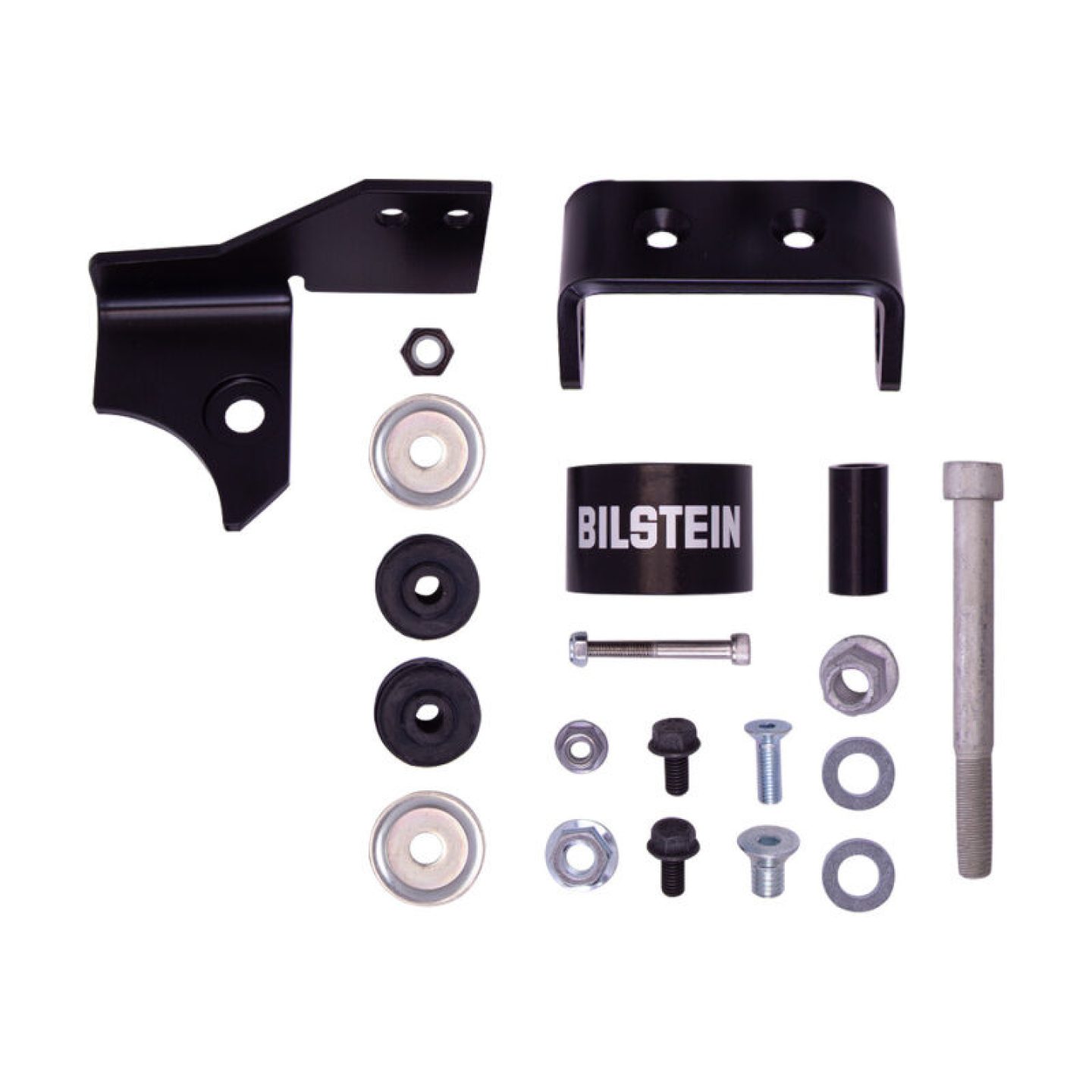

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
Jeep Wrangler 2017-2007, Wrangler JK 2018
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
Brand | Bilstein |
Manufacturer's Part Number | 25-291292 |
Part Type | Shocks and Struts |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
UPC | 651860899244 |
Ride Height | Stock |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Extended Length (in.) | 27.03 |
Collapsed Length (in.) | 17.20 |
Internal Design | Monotube |
Adjustable Valving | Yes |
Gas Charged | Yes |
Upper Mount | Stud |
Lower Mount | Eyelet |
Bushing Material | Rubber |
Bushing Color | Black |
Boot Included | No |
Boot Color | Gray |
Body Diameter (in.) | 2.360 |
Remanufactured | No |
Quantity | Sold individually. |
Bilstein 07-17 Jeep Wrangler / 2018 Jeep Wrangler JK B8 8100 (Bypass) Front Shock Absorber | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2007 | Jeep | Wrangler | Sahara | US |
2007 | Jeep | Wrangler | Unlimited Rubicon | US |
2007 | Jeep | Wrangler | Unlimited Sahara | US |
2007 | Jeep | Wrangler | Unlimited X | US |
2007 | Jeep | Wrangler | Rubicon | US |
2007 | Jeep | Wrangler | X | US |
2008 | Jeep | Wrangler | Unlimited X | US |
2008 | Jeep | Wrangler | Unlimited Sahara | US |
2008 | Jeep | Wrangler | Rubicon | US |
2008 | Jeep | Wrangler | Sahara | US |
2008 | Jeep | Wrangler | X | US |
2008 | Jeep | Wrangler | Unlimited Rubicon | US |
2009 | Jeep | Wrangler | Rubicon | US |
2009 | Jeep | Wrangler | Unlimited Rubicon | US |
2009 | Jeep | Wrangler | Unlimited Sahara | US |
2009 | Jeep | Wrangler | Unlimited X | US |
2009 | Jeep | Wrangler | X | US |
2009 | Jeep | Wrangler | Sahara | US |
2010 | Jeep | Wrangler | Unlimited Sport | US |
2010 | Jeep | Wrangler | X | US |
2010 | Jeep | Wrangler | Rubicon | US |
2010 | Jeep | Wrangler | Sahara | US |
2010 | Jeep | Wrangler | Sport | US |
2010 | Jeep | Wrangler | Unlimited X | US |
2010 | Jeep | Wrangler | Unlimited Rubicon | US |
2010 | Jeep | Wrangler | Unlimited Sahara | US |
2011 | Jeep | Wrangler | Rubicon | US |
2011 | Jeep | Wrangler | Sport | US |
2011 | Jeep | Wrangler | Unlimited Sport | US |
2011 | Jeep | Wrangler | Unlimited Rubicon | US |
2011 | Jeep | Wrangler | Sahara | US |
2011 | Jeep | Wrangler | Unlimited Sahara | US |
2012 | Jeep | Wrangler | Unlimited Sport | US |
2012 | Jeep | Wrangler | Unlimited Rubicon | US |
2012 | Jeep | Wrangler | Rubicon | US |
2012 | Jeep | Wrangler | Sport | US |
2012 | Jeep | Wrangler | Sahara | US |
2012 | Jeep | Wrangler | Unlimited Sahara | US |
2013 | Jeep | Wrangler | Unlimited Sport | US |
2013 | Jeep | Wrangler | Sahara | US |
2013 | Jeep | Wrangler | Unlimited Rubicon | US |
2013 | Jeep | Wrangler | Rubicon | US |
2013 | Jeep | Wrangler | Sport | US |
2013 | Jeep | Wrangler | Unlimited Sahara | US |
2014 | Jeep | Wrangler | Sahara | US |
2014 | Jeep | Wrangler | Unlimited Rubicon | US |
2014 | Jeep | Wrangler | Unlimited Sahara | US |
2014 | Jeep | Wrangler | Sport | US |
2014 | Jeep | Wrangler | Unlimited Sport | US |
2014 | Jeep | Wrangler | Rubicon | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
