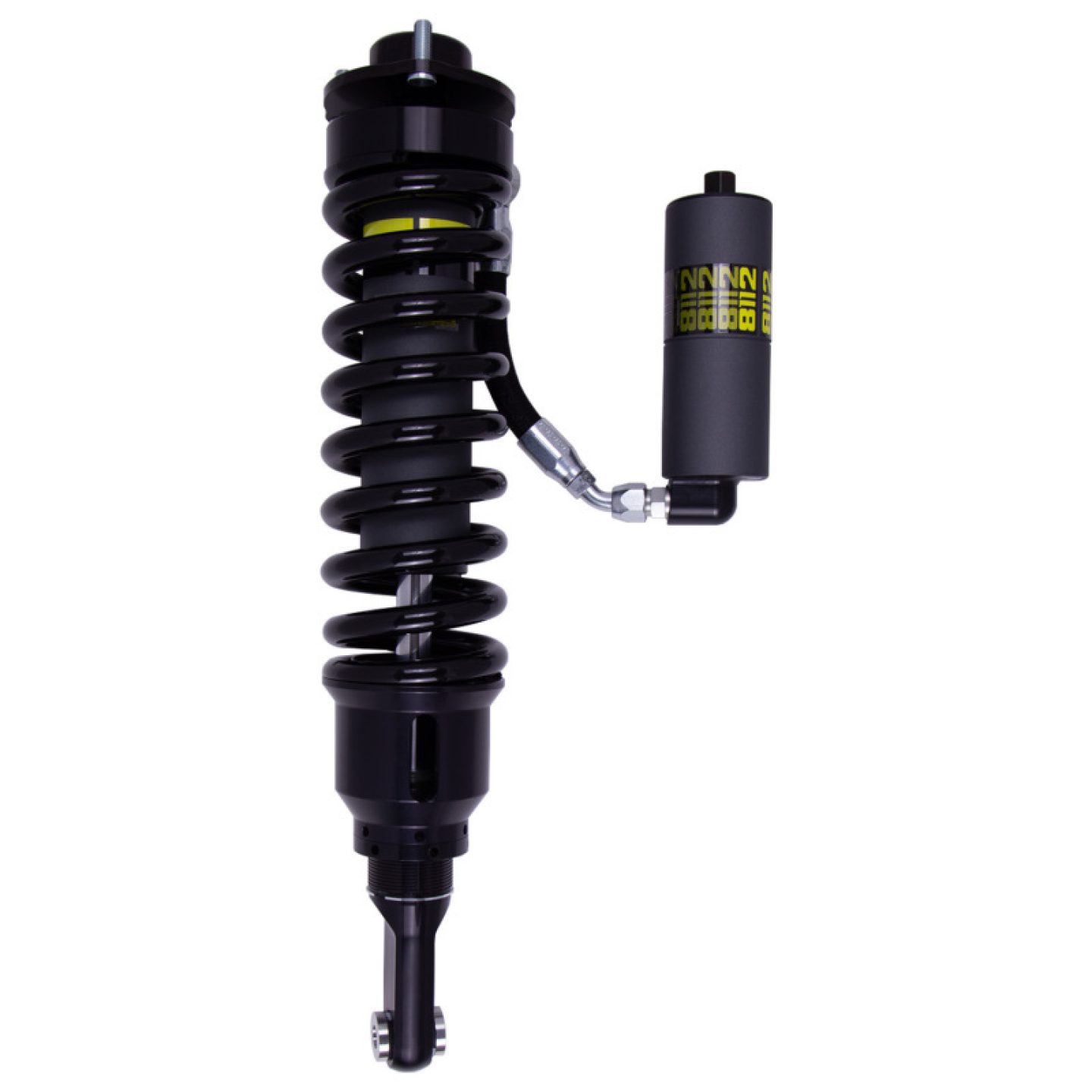

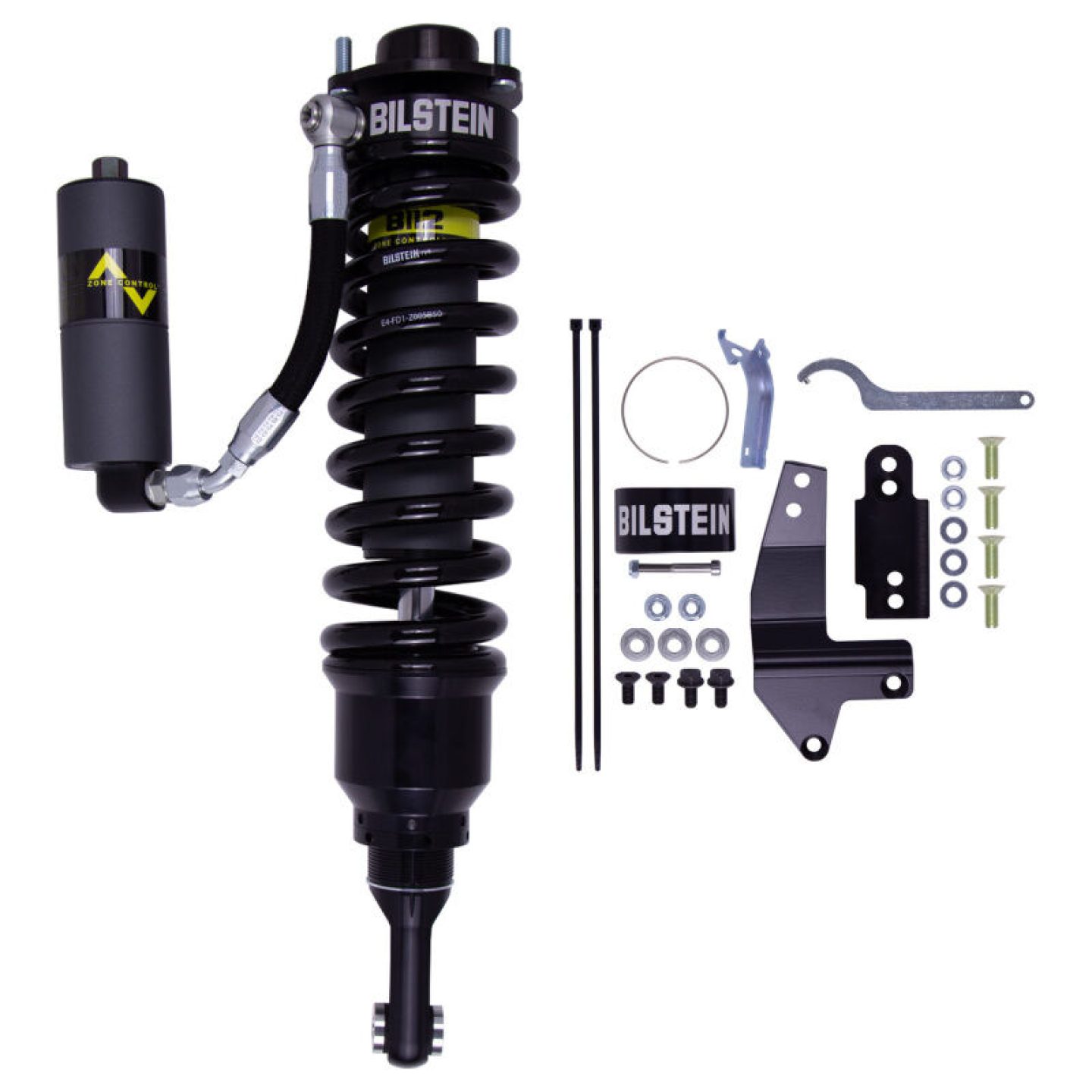

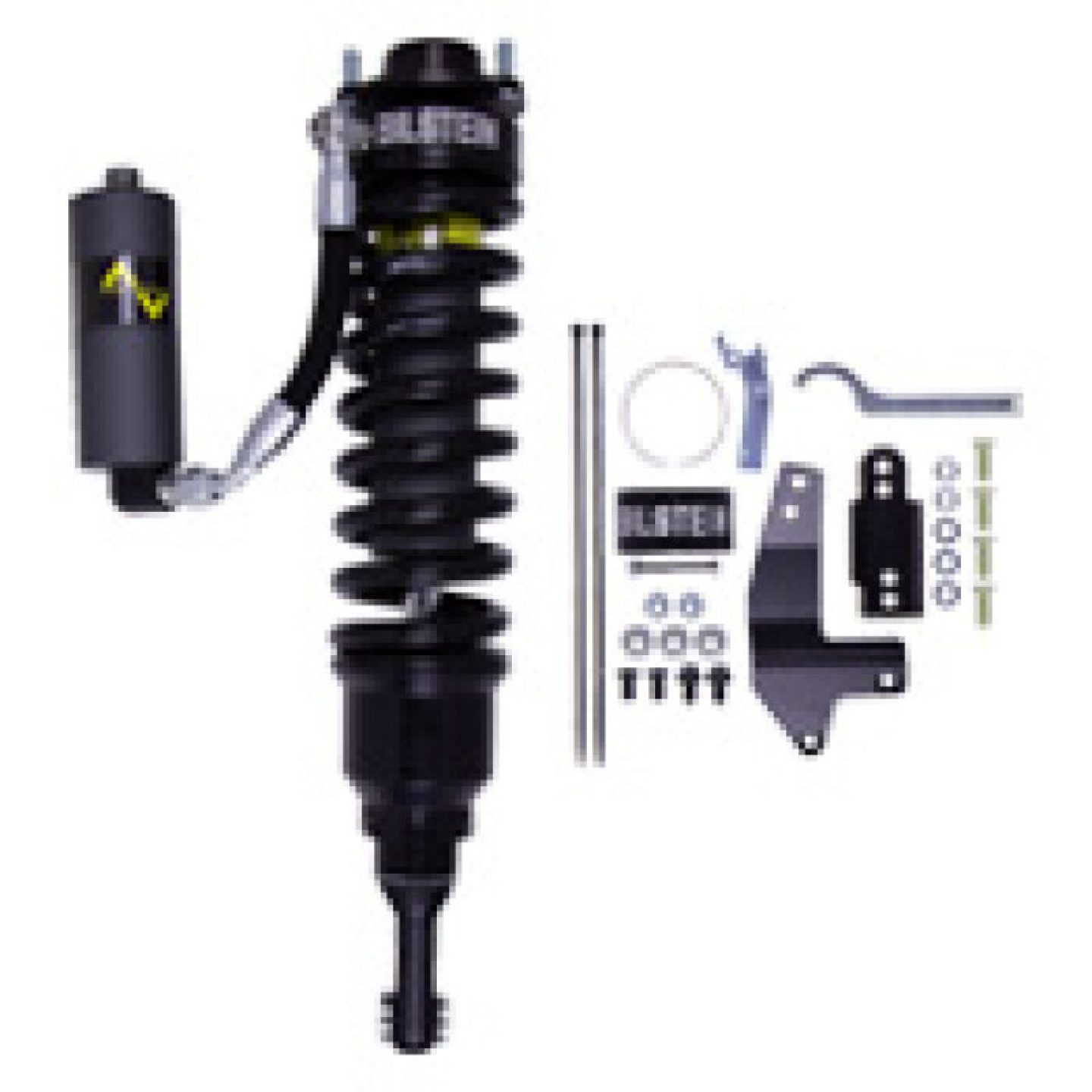

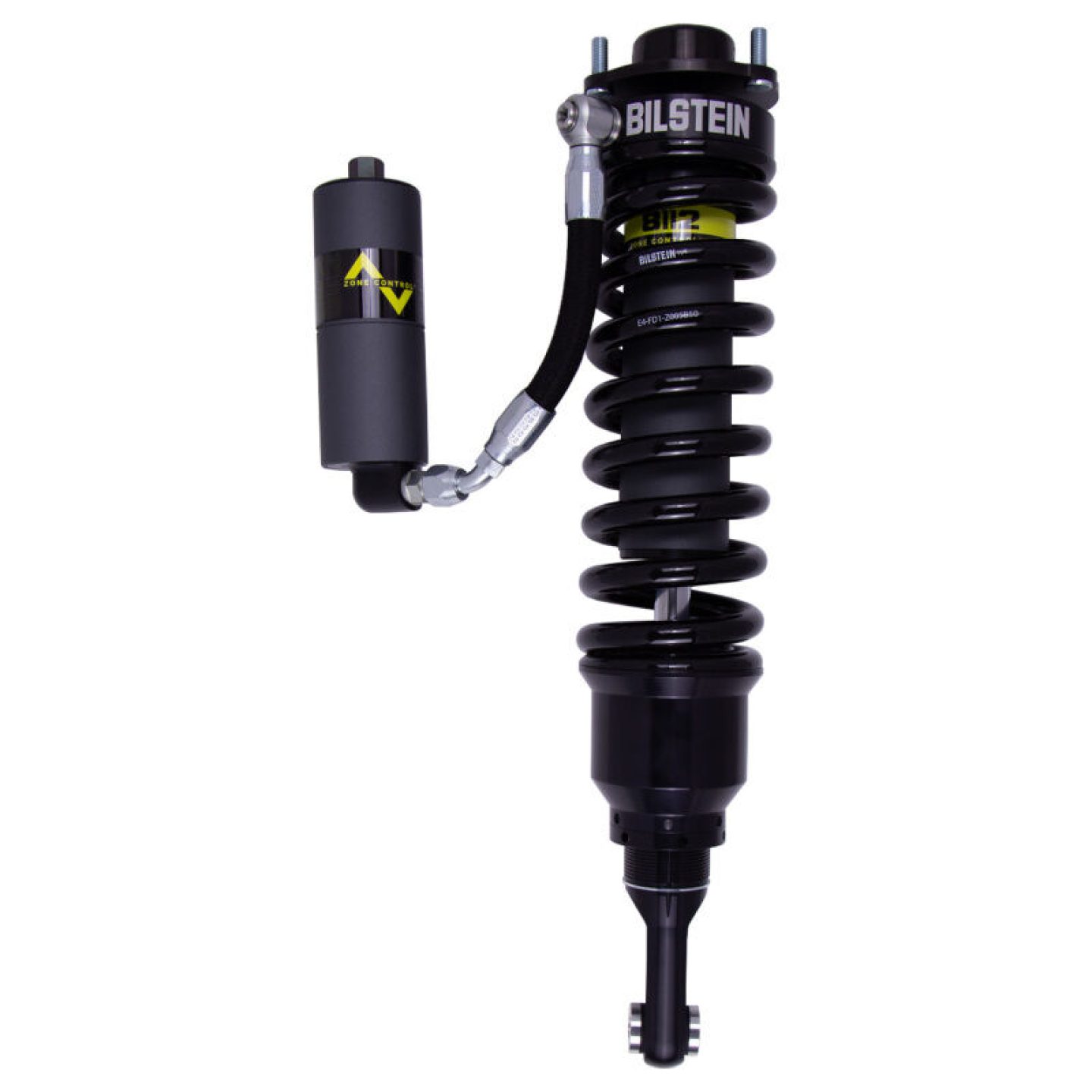

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
60mm Front Left Corner Module
Toyota 4Runner 2024-2010, FJ Cruiser 2014-2010
Suspension Shock Absorber and Coil Spring Assembly
Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Brand | Bilstein |
Manufacturer's Part Number | 41-324172 |
Part Type | Coilover Shocks and Struts |
Product Line | Bilstein B8 8112 Zone Control Coilover Shocks |
UPC | 651860896700 |
Coilover Shock Type | Triple-adjustable |
Suspension Height Adjustment | 1.5-3.5 in. raised |
Shock Body Material | Steel |
Shock Body Finish | Gray |
Adjustable Valving | Yes |
Number of Valving Selections | 40 |
Extended Length (in.) | 22.80 |
Collapsed Length (in.) | 17.99 |
Upper Mount | Stock |
Lower Mount | Eyelet |
Internal Design | Monotube |
Gas Charged | Yes |
Body Diameter (in.) | 2.362 |
Coilover Springs Included | Yes |
Spring Finish | Black |
Adjustable Mounting Bracket Included | No |

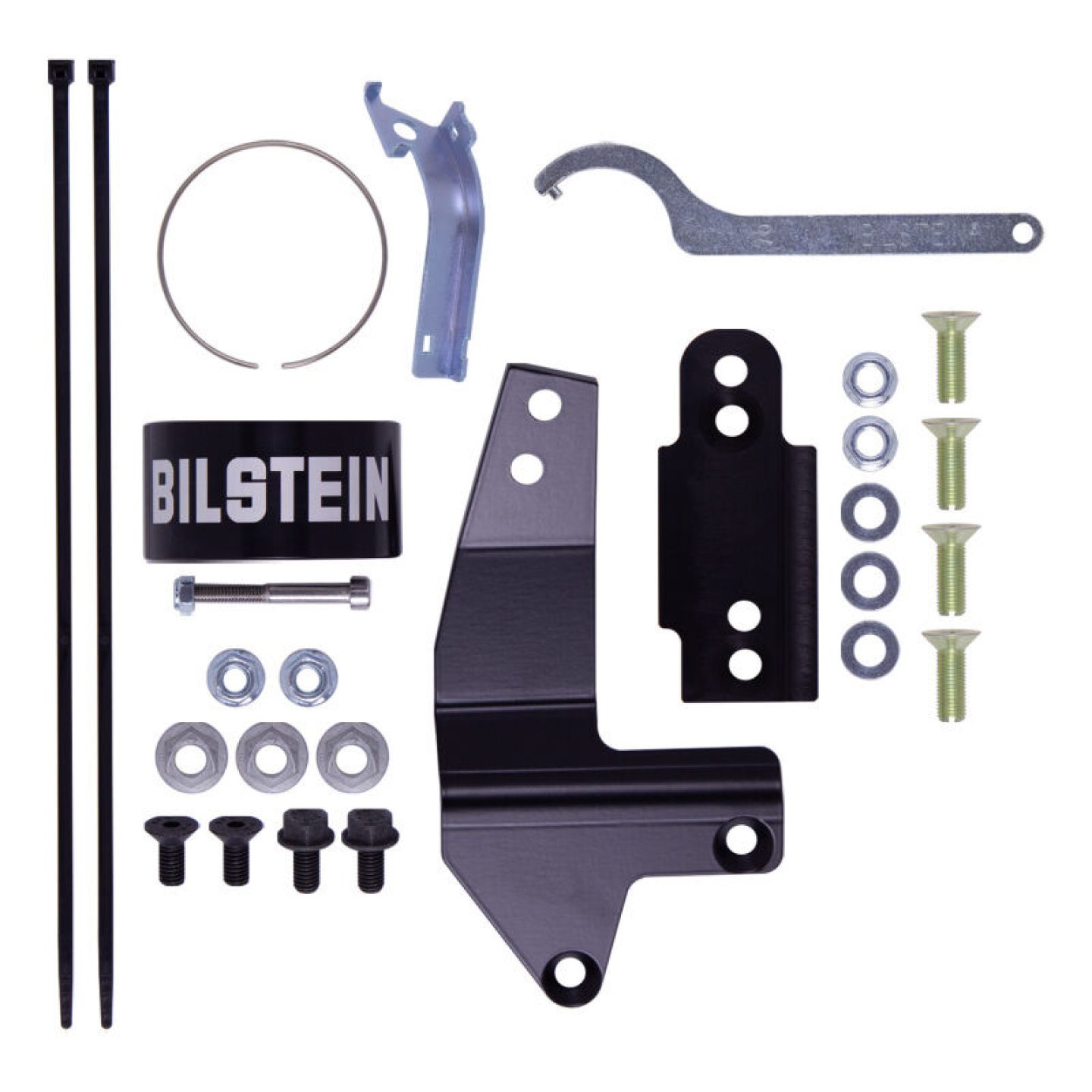

Hardware Included | Yes |
Quantity | Sold individually. |
Notes | Fits front driver side only. |
Bilstein B8 8112 Series 10-23 Toyota 4Runner Zone Control Monotube Front Left Corner Module | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2010 | Toyota | 4Runner | Trail | US |
2010 | Toyota | 4Runner | SR5 | US |
2010 | Toyota | FJ Cruiser | Base | US |
2011 | Toyota | 4Runner | SR5 | US |
2011 | Toyota | FJ Cruiser | Base | US |
2011 | Toyota | 4Runner | Trail | US |
2012 | Toyota | 4Runner | Trail | US |
2012 | Toyota | 4Runner | SR5 | US |
2012 | Toyota | FJ Cruiser | Base | US |
2013 | Toyota | 4Runner | SR5 | US |
2013 | Toyota | 4Runner | Trail | US |
2013 | Toyota | FJ Cruiser | Base | US |
2014 | Toyota | 4Runner | Trail | US |
2014 | Toyota | 4Runner | SR5 | US |
2014 | Toyota | FJ Cruiser | Base | US |
2015 | Toyota | 4Runner | Trail | US |
2015 | Toyota | 4Runner | TRD Pro | US |
2015 | Toyota | 4Runner | SR5 | US |
2016 | Toyota | 4Runner | TRD Pro | US |
2016 | Toyota | 4Runner | SR5 | US |
2016 | Toyota | 4Runner | Trail | US |
2017 | Toyota | 4Runner | TRD Pro | US |
2017 | Toyota | 4Runner | SR5 | US |
2017 | Toyota | 4Runner | TRD Off-Road | US |
2018 | Toyota | 4Runner | TRD Off-Road Premium | US |
2018 | Toyota | 4Runner | SR5 | US |
2018 | Toyota | 4Runner | TRD Off-Road | US |
2018 | Toyota | 4Runner | TRD Pro | US |
2018 | Toyota | 4Runner | SR5 Premium | US |
2019 | Toyota | 4Runner | TRD Pro | US |
2019 | Toyota | 4Runner | TRD Off-Road | US |
2019 | Toyota | 4Runner | SR5 | US |
2019 | Toyota | 4Runner | SR5 Premium | US |
2019 | Toyota | 4Runner | TRD Off-Road Premium | US |
2020 | Toyota | 4Runner | SR5 Premium | US |
2020 | Toyota | 4Runner | SR5 | US |
2020 | Toyota | 4Runner | TRD Pro | US |
2020 | Toyota | 4Runner | TRD Off-Road | US |
2020 | Toyota | 4Runner | Venture | US |
2020 | Toyota | 4Runner | TRD Off-Road Premium | US |
2021 | Toyota | 4Runner | Trail | US |
2021 | Toyota | 4Runner | TRD Off-Road | US |
2021 | Toyota | 4Runner | TRD Pro | US |
2021 | Toyota | 4Runner | SR5 Premium | US |
2021 | Toyota | 4Runner | SR5 | US |
2021 | Toyota | 4Runner | Venture | US |
2021 | Toyota | 4Runner | TRD Off-Road Premium | US |
2022 | Toyota | 4Runner | Trail | US |
2022 | Toyota | 4Runner | SR5 | US |
2022 | Toyota | 4Runner | SR5 Premium | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
