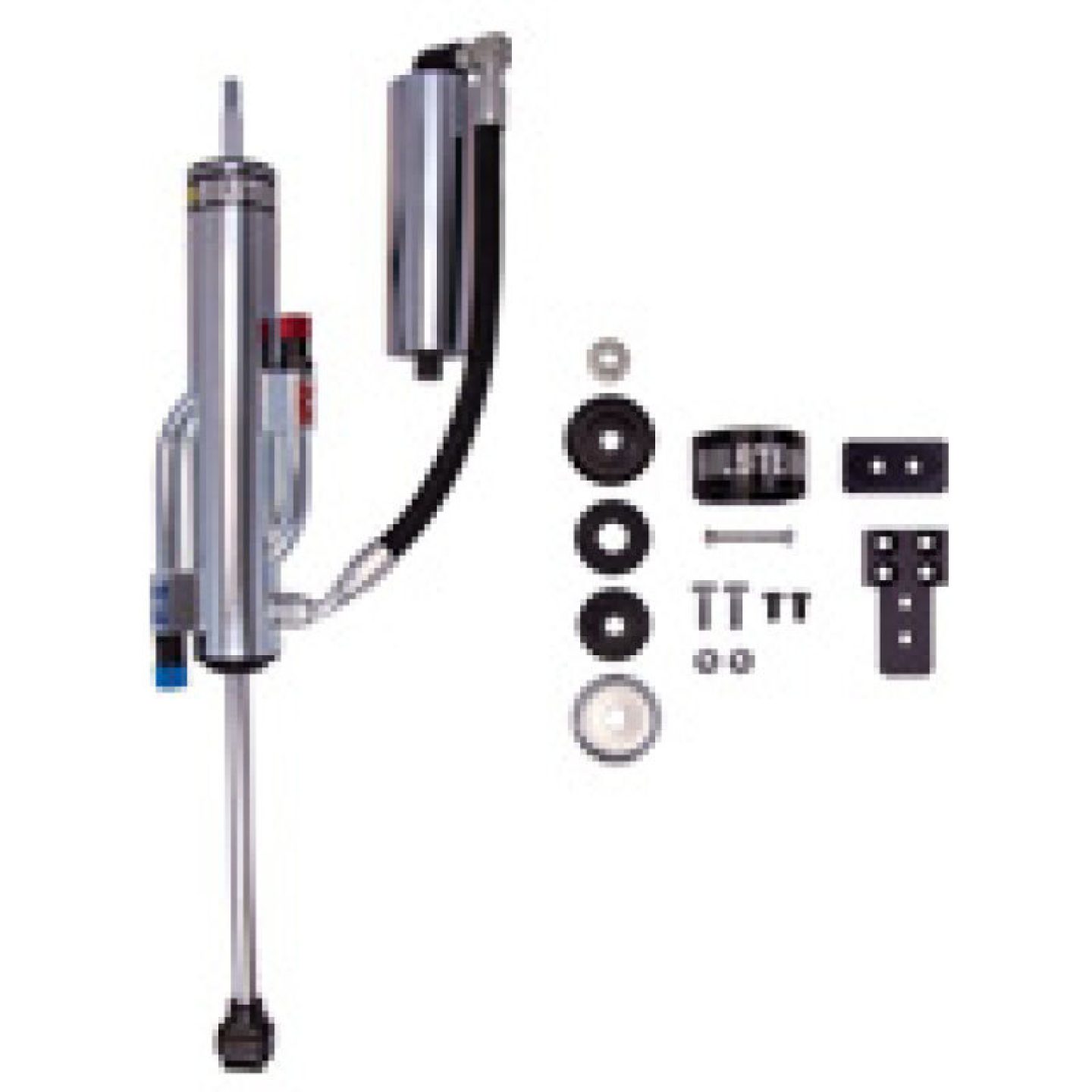

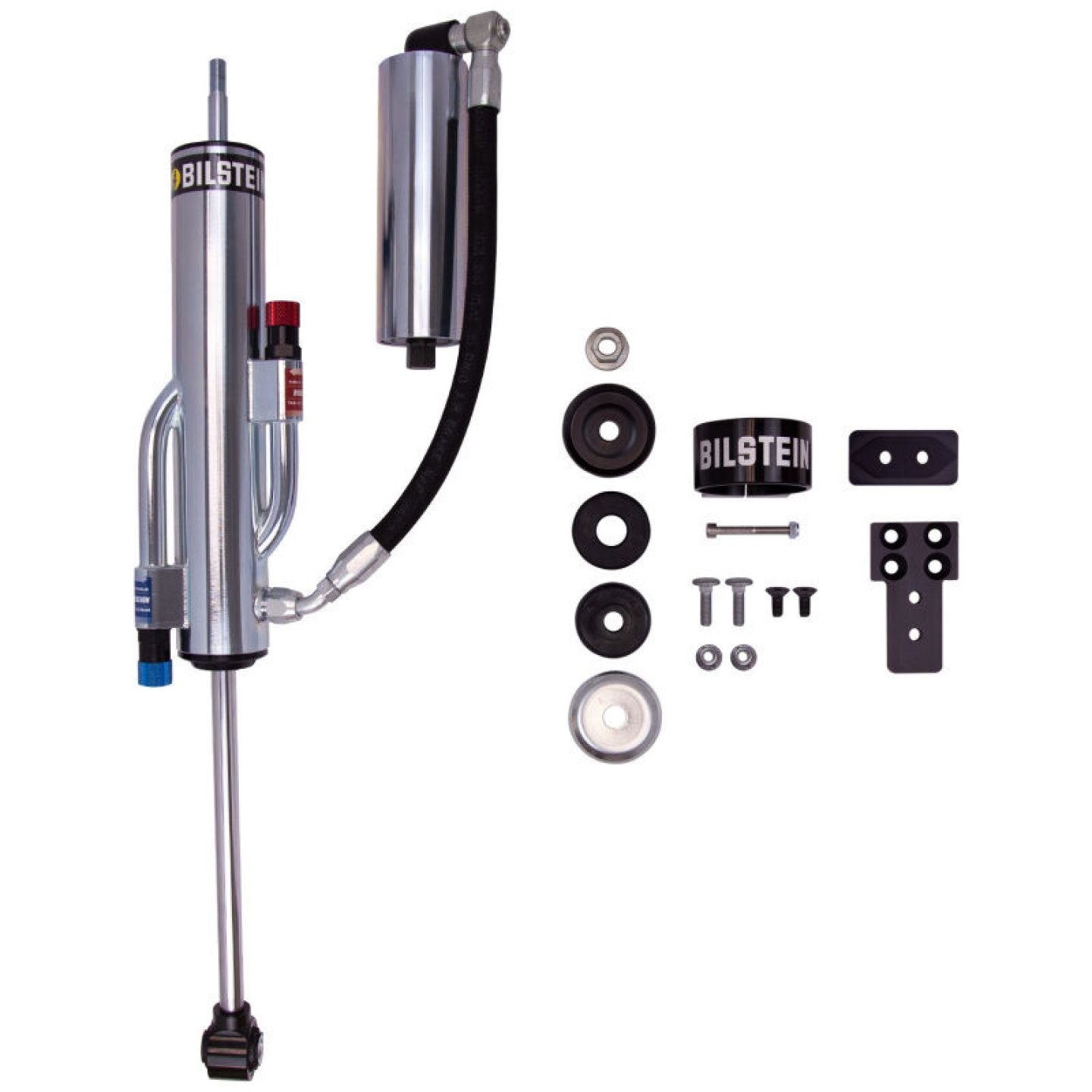

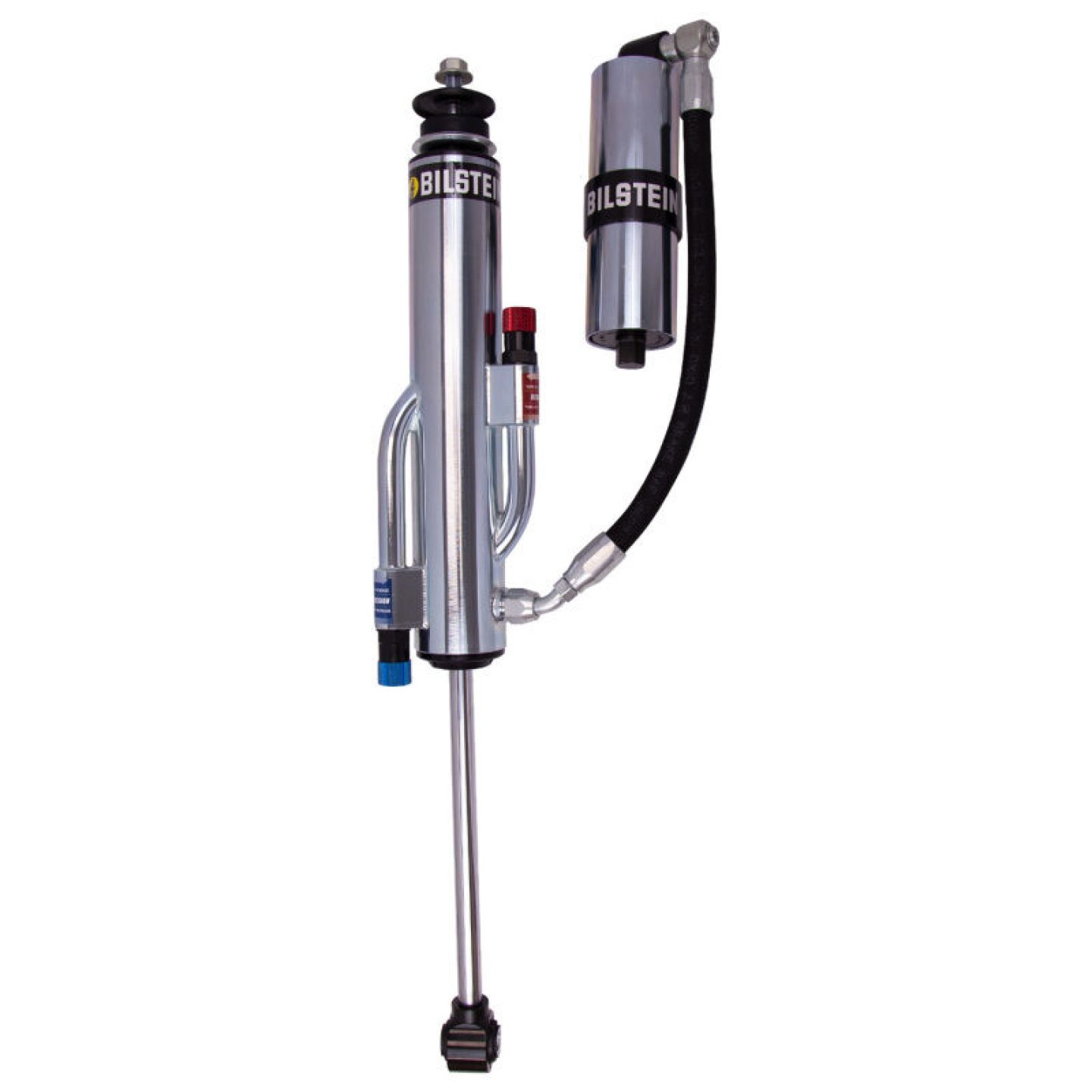

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
No Applications
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
UPC | 651860866628 |
Brand | Bilstein |
Quantity | Sold individually. |
Part Type | Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Ride Height | Stock/Lifted |
Upper Mount | Stud |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
Boot Included | No |
Bushing Color | Black |
Internal Design | Monotube |
Bushing Material | Rubber |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Adjustable Valving | Yes |
Body Diameter (in.) | 2.362 |
Extended Length (in.) | 25.82 |
Collapsed Length (in.) | 15.69 |
Lifted Amount Range (in.) | 0.00-2.00 in. |
Manufacturer's Part Number | 25-259018 |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Crew Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift 5 ft 7 in Bed Without Air Suspension |
Engine VIN Code | G |
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Crew Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. For Rear Lifted Height: 0-2" without factory Off-Road Package For Rear Lifted Height: 0-1" with factory Off-Road Package 5 ft 7 in Bed Without Air Suspension |
Engine VIN Code | G |
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Extended Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift 5 ft 7 in Bed Without Air Suspension |
Bilstein 19-22 Dodge Ram 1500 B8 8100 (Bypass) Rear Right Shock Absorber - 0-2in Lift | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2019 | Ram | 1500 | Rebel | US |
2019 | Ram | 1500 | Laramie Longhorn | US |
2019 | Ram | 1500 | Lone Star | US |
2019 | Ram | 1500 | Big Horn | US |
2019 | Ram | 1500 | Tradesman | US |
2019 | Ram | 1500 | Laramie | US |
2020 | Ram | 1500 | Lone Star | US |
2020 | Ram | 1500 | Laramie | US |
2020 | Ram | 1500 | Laramie Longhorn | US |
2020 | Ram | 1500 | Big Horn | US |
2020 | Ram | 1500 | Rebel | US |
2020 | Ram | 1500 | Tradesman | US |
2021 | Ram | 1500 | Laramie | US |
2021 | Ram | 1500 | Laramie Longhorn | US |
2021 | Ram | 1500 | Limited Longhorn | US |
2021 | Ram | 1500 | Longhorn | US |
2021 | Ram | 1500 | Rebel | US |
2021 | Ram | 1500 | Big Horn | US |
2021 | Ram | 1500 | Lone Star | US |
2021 | Ram | 1500 | Tradesman | US |
2022 | Ram | 1500 | Limited Longhorn | US |
2022 | Ram | 1500 | Lone Star | US |
2022 | Ram | 1500 | Rebel | US |
2022 | Ram | 1500 | Laramie | US |
2022 | Ram | 1500 | Big Horn | US |
2022 | Ram | 1500 | Tradesman | US |
2023 | Ram | 1500 | Lone Star | US |
2023 | Ram | 1500 | Rebel | US |
2023 | Ram | 1500 | Tradesman | US |
2023 | Ram | 1500 | Big Horn | US |
2023 | Ram | 1500 | Limited Longhorn | US |
2023 | Ram | 1500 | Laramie | US |

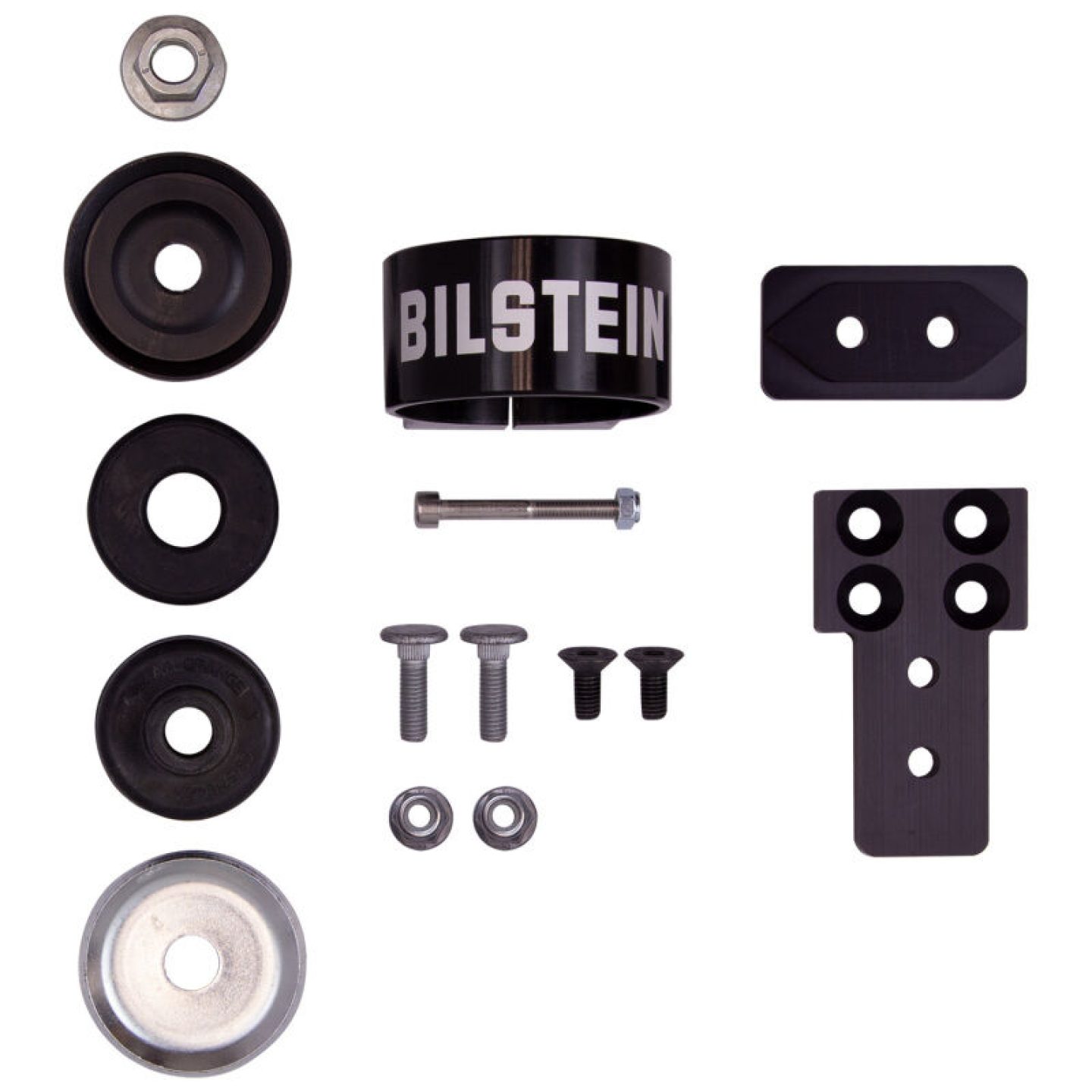

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
No Applications
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
UPC | 651860866628 |
Brand | Bilstein |
Quantity | Sold individually. |
Part Type | Shocks and Struts |
Gas Charged | Yes |
Lower Mount | Eyelet |
Ride Height | Stock/Lifted |
Upper Mount | Stud |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
Boot Included | No |
Bushing Color | Black |
Internal Design | Monotube |
Bushing Material | Rubber |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Adjustable Valving | Yes |
Body Diameter (in.) | 2.362 |
Extended Length (in.) | 25.82 |
Collapsed Length (in.) | 15.69 |
Lifted Amount Range (in.) | 0.00-2.00 in. |
Manufacturer's Part Number | 25-259018 |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Crew Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift 5 ft 7 in Bed Without Air Suspension |
Engine VIN Code | G |
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Crew Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. For Rear Lifted Height: 0-2" without factory Off-Road Package For Rear Lifted Height: 0-1" with factory Off-Road Package 5 ft 7 in Bed Without Air Suspension |
Engine VIN Code | G |
Universal | No |
Make | RAM |
Model | 1500 |
Submodel | BIG HORN |
Beginning Year | 2019 |
Ending Year | 2019 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Size | 3.6L/220 |
Engine Family | Mopar V6 |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Extended Cab Pickup |
Application Notes | Bed Length Metric: 171.2, Rear Spring Type: Coil. Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift 5 ft 7 in Bed Without Air Suspension |
Bilstein 19-22 Dodge Ram 1500 B8 8100 (Bypass) Rear Right Shock Absorber - 0-2in Lift | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2019 | Ram | 1500 | Rebel | US |
2019 | Ram | 1500 | Laramie Longhorn | US |
2019 | Ram | 1500 | Lone Star | US |
2019 | Ram | 1500 | Big Horn | US |
2019 | Ram | 1500 | Tradesman | US |
2019 | Ram | 1500 | Laramie | US |
2020 | Ram | 1500 | Lone Star | US |
2020 | Ram | 1500 | Laramie | US |
2020 | Ram | 1500 | Laramie Longhorn | US |
2020 | Ram | 1500 | Big Horn | US |
2020 | Ram | 1500 | Rebel | US |
2020 | Ram | 1500 | Tradesman | US |
2021 | Ram | 1500 | Laramie | US |
2021 | Ram | 1500 | Laramie Longhorn | US |
2021 | Ram | 1500 | Limited Longhorn | US |
2021 | Ram | 1500 | Longhorn | US |
2021 | Ram | 1500 | Rebel | US |
2021 | Ram | 1500 | Big Horn | US |
2021 | Ram | 1500 | Lone Star | US |
2021 | Ram | 1500 | Tradesman | US |
2022 | Ram | 1500 | Limited Longhorn | US |
2022 | Ram | 1500 | Lone Star | US |
2022 | Ram | 1500 | Rebel | US |
2022 | Ram | 1500 | Laramie | US |
2022 | Ram | 1500 | Big Horn | US |
2022 | Ram | 1500 | Tradesman | US |
2023 | Ram | 1500 | Lone Star | US |
2023 | Ram | 1500 | Rebel | US |
2023 | Ram | 1500 | Tradesman | US |
2023 | Ram | 1500 | Big Horn | US |
2023 | Ram | 1500 | Limited Longhorn | US |
2023 | Ram | 1500 | Laramie | US |
