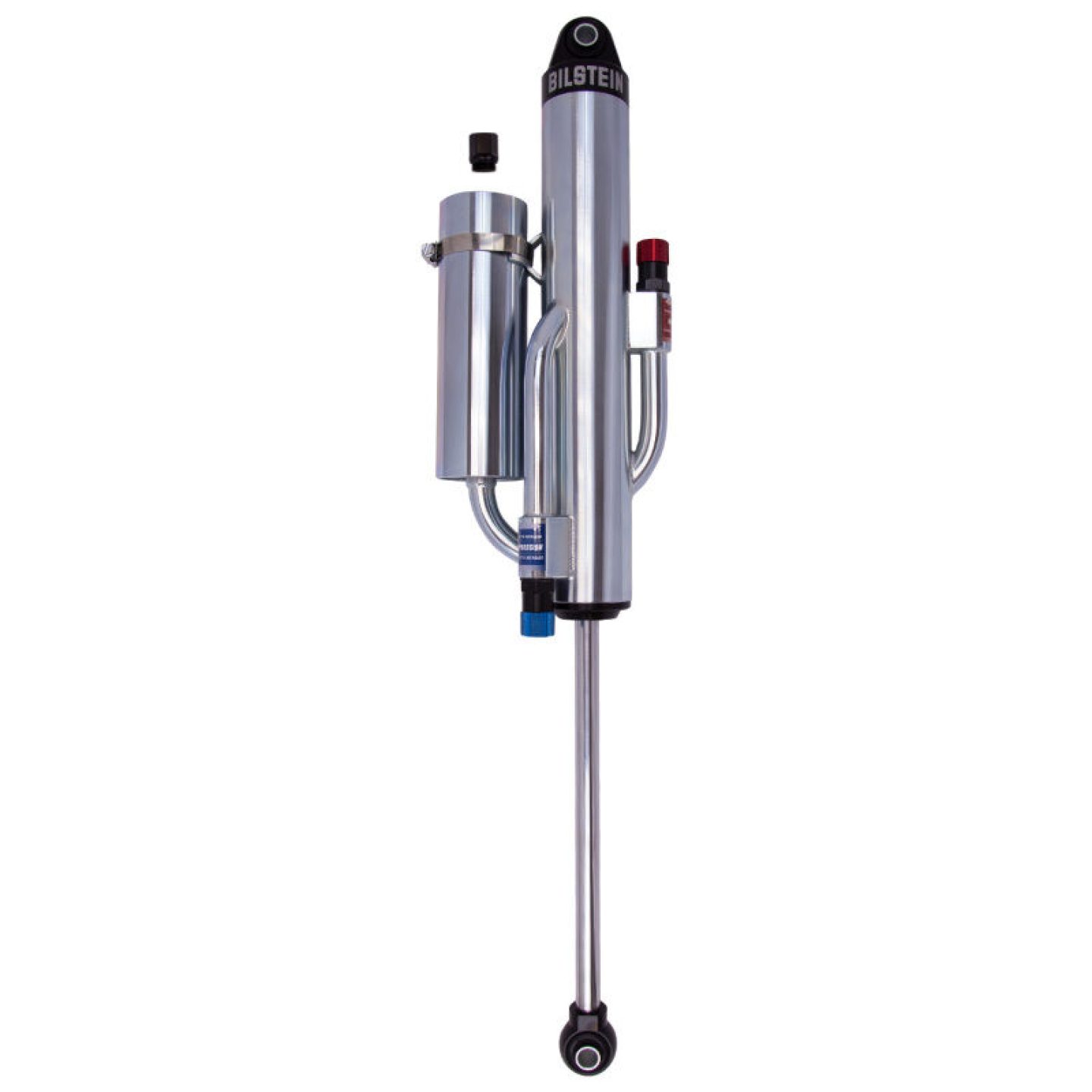

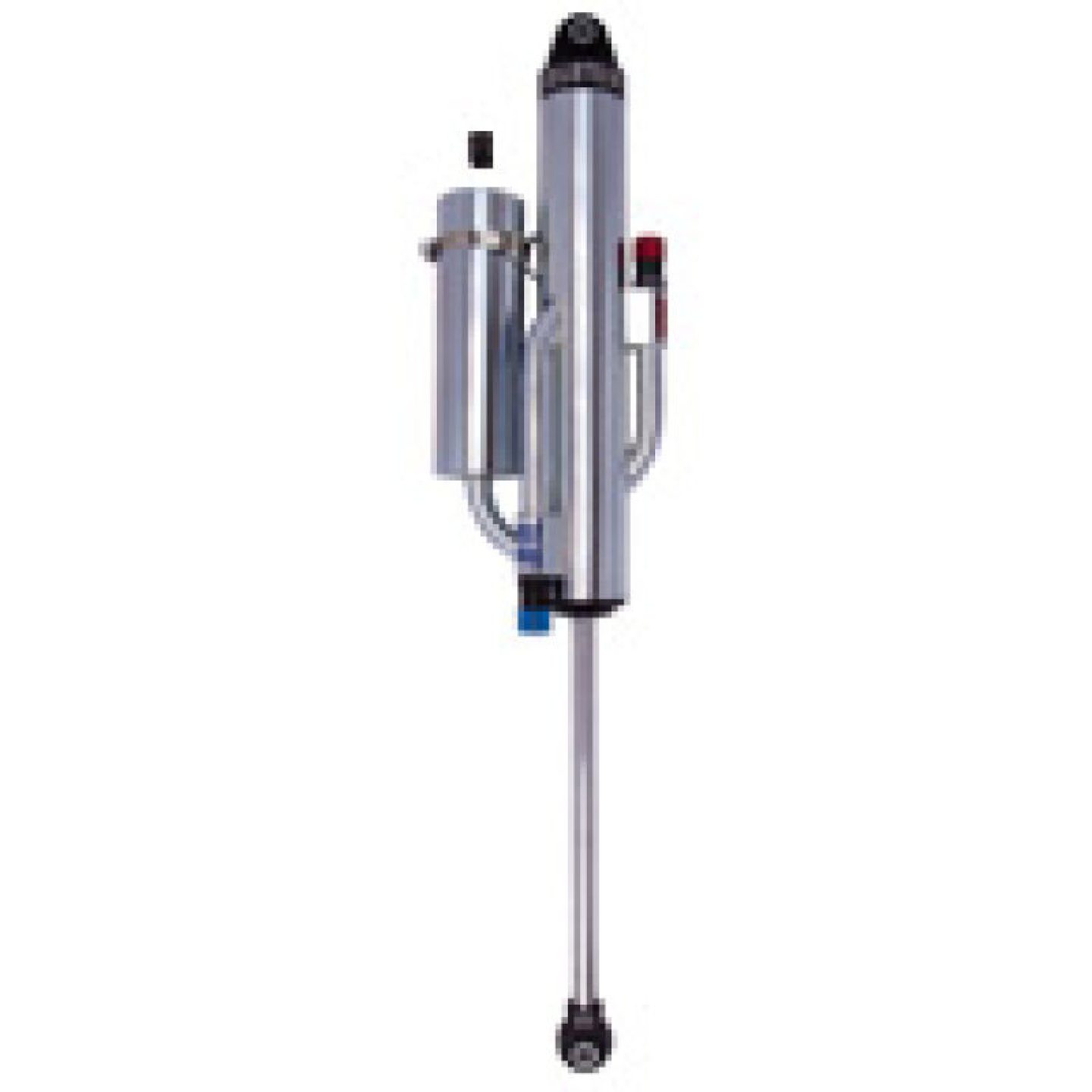

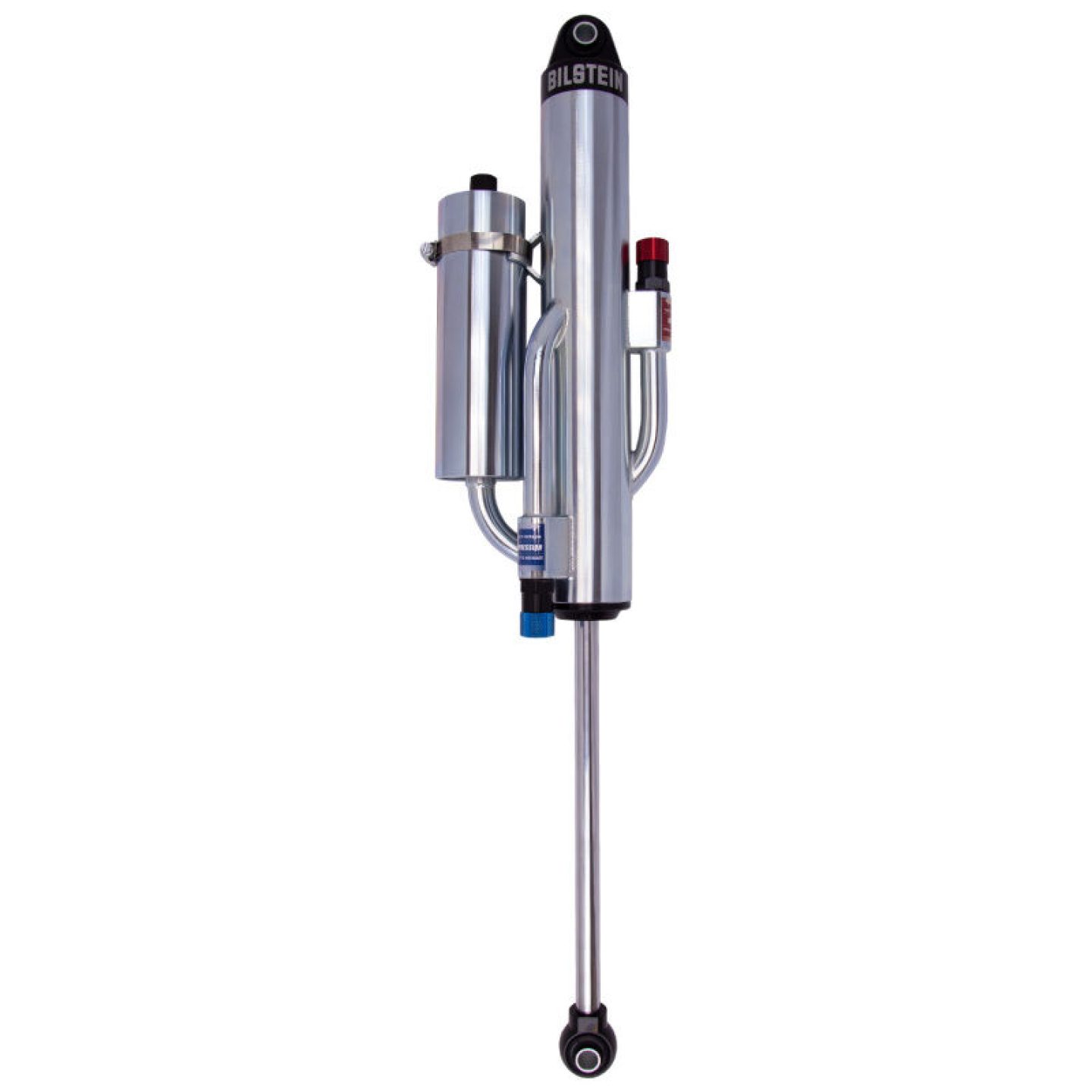

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
Jeep Gladiator 2024-2020
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
Brand | Bilstein |
Manufacturer's Part Number | 25-305258 |
Part Type | Shocks and Struts |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
UPC | 651860868417 |
Ride Height | Lifted |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Lifted Amount Range (in.) | 2.00-4.50 in. |
Extended Length (in.) | 29.33 |
Collapsed Length (in.) | 17.98 |
Internal Design | Monotube |
Adjustable Valving | Yes |
Gas Charged | Yes |
Upper Mount | Eyelet |
Lower Mount | Eyelet |
Boot Included | No |
Body Diameter (in.) | 2.362 |
Remanufactured | No |
Quantity | Sold individually. |
Bilstein 2019+ Jeep Gladiator JT B8 8100 Series Rear Shock Absorber | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2020 | Jeep | Gladiator | Rubicon | US |
2020 | Jeep | Gladiator | Sport | US |
2020 | Jeep | Gladiator | Altitude | US |
2020 | Jeep | Gladiator | Sport S | US |
2020 | Jeep | Gladiator | Overland | US |
2020 | Jeep | Gladiator | Launch Edition | US |
2021 | Jeep | Gladiator | Sport S | US |
2021 | Jeep | Gladiator | High Altitude | US |
2021 | Jeep | Gladiator | Rubicon | US |
2021 | Jeep | Gladiator | Sport | US |
2021 | Jeep | Gladiator | Overland | US |
2021 | Jeep | Gladiator | Willys | US |
2021 | Jeep | Gladiator | Willys Sport | US |
2021 | Jeep | Gladiator | 80th Anniversary | US |
2022 | Jeep | Gladiator | Willys Sport | US |
2022 | Jeep | Gladiator | Sport S | US |
2022 | Jeep | Gladiator | High Altitude | US |
2022 | Jeep | Gladiator | Overland | US |
2022 | Jeep | Gladiator | Sport | US |
2022 | Jeep | Gladiator | Altitude | US |
2022 | Jeep | Gladiator | Rubicon | US |
2022 | Jeep | Gladiator | Willys | US |
2023 | Jeep | Gladiator | High Altitude | US |
2023 | Jeep | Gladiator | Overland | US |
2023 | Jeep | Gladiator | Rubicon | US |
2023 | Jeep | Gladiator | Willys | US |
2023 | Jeep | Gladiator | Sport S | US |
2023 | Jeep | Gladiator | Willys Sport | US |
2023 | Jeep | Gladiator | Sport | US |
2023 | Jeep | Gladiator | Freedom | US |
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
Jeep Gladiator 2024-2020
Suspension Shock Absorber
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle.
Additional details:
Brand | Bilstein |
Manufacturer's Part Number | 25-305258 |
Part Type | Shocks and Struts |
Product Line | Bilstein B8 8100 Series Bypass Shocks |
UPC | 651860868417 |
Ride Height | Lifted |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Lifted Amount Range (in.) | 2.00-4.50 in. |
Extended Length (in.) | 29.33 |
Collapsed Length (in.) | 17.98 |
Internal Design | Monotube |
Adjustable Valving | Yes |
Gas Charged | Yes |
Upper Mount | Eyelet |
Lower Mount | Eyelet |
Boot Included | No |
Body Diameter (in.) | 2.362 |
Remanufactured | No |
Quantity | Sold individually. |
Bilstein 2019+ Jeep Gladiator JT B8 8100 Series Rear Shock Absorber | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2020 | Jeep | Gladiator | Rubicon | US |
2020 | Jeep | Gladiator | Sport | US |
2020 | Jeep | Gladiator | Altitude | US |
2020 | Jeep | Gladiator | Sport S | US |
2020 | Jeep | Gladiator | Overland | US |
2020 | Jeep | Gladiator | Launch Edition | US |
2021 | Jeep | Gladiator | Sport S | US |
2021 | Jeep | Gladiator | High Altitude | US |
2021 | Jeep | Gladiator | Rubicon | US |
2021 | Jeep | Gladiator | Sport | US |
2021 | Jeep | Gladiator | Overland | US |
2021 | Jeep | Gladiator | Willys | US |
2021 | Jeep | Gladiator | Willys Sport | US |
2021 | Jeep | Gladiator | 80th Anniversary | US |
2022 | Jeep | Gladiator | Willys Sport | US |
2022 | Jeep | Gladiator | Sport S | US |
2022 | Jeep | Gladiator | High Altitude | US |
2022 | Jeep | Gladiator | Overland | US |
2022 | Jeep | Gladiator | Sport | US |
2022 | Jeep | Gladiator | Altitude | US |
2022 | Jeep | Gladiator | Rubicon | US |
2022 | Jeep | Gladiator | Willys | US |
2023 | Jeep | Gladiator | High Altitude | US |
2023 | Jeep | Gladiator | Overland | US |
2023 | Jeep | Gladiator | Rubicon | US |
2023 | Jeep | Gladiator | Willys | US |
2023 | Jeep | Gladiator | Sport S | US |
2023 | Jeep | Gladiator | Willys Sport | US |
2023 | Jeep | Gladiator | Sport | US |
2023 | Jeep | Gladiator | Freedom | US |
