Front Kit

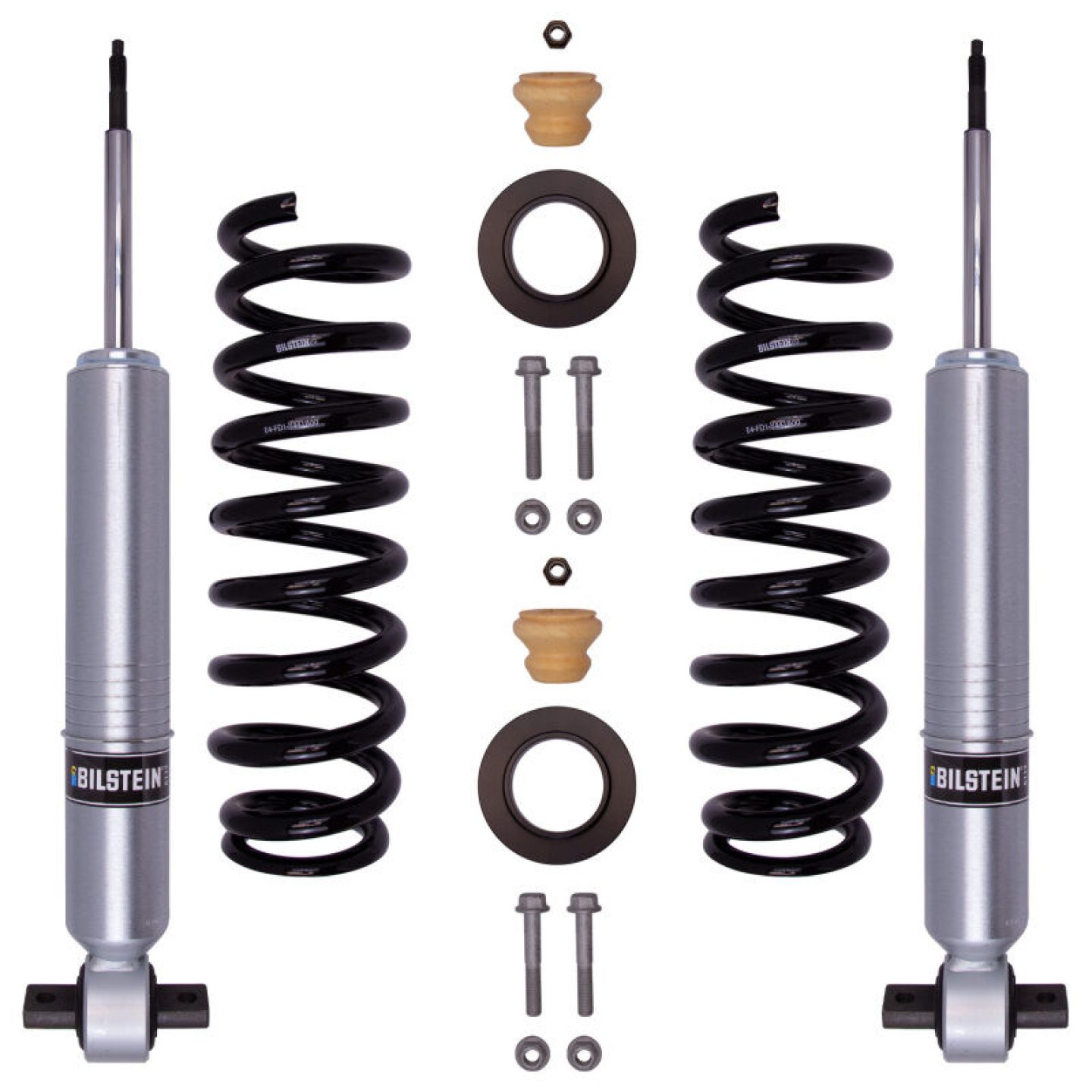

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Front Suspension Kit
Ford F-150 2024-2021
Suspension Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Suspension Lift Kit, B8 6112, Front, Ford, Kit
Bilstein B8 6112 suspension kits are for those seeking serious off-road action to carry them over the terrain. Each of their B8 kits will optimize the off-road capabilities of your rig with a 60mm digressive piston for increased damping control, specially designed cold wound springs, and an adjustable spring seat, which allows for vehicle leveling, larger tires, and increased ground clearance. They are a direct bolt-on for many applications and utilize the OEM top mount and spring isolators. Are you searching for the ultimate solution to your off-road adventures? One of these Bilstein B8 6112 front suspension kits will be the definitive answer.
UPC | 651860888309 |
Brand | Bilstein |
Quantity | Sold as a kit. |
Part Type | Suspension Leveling & Lift Kits |
Lift Style | Suspension Leveling Kit |
Product Line | Bilstein B8 6112 Suspension Kits |
Front Shock Type | Adjustable coilover |
Hardware Included | No |
Brake Lines Included | No |
FMVSS 126 Certification | No |
Manufacturer's Part Number | 47-323841 |
Rear Shocks/Struts Included | No |
Front Shocks/Struts Included | Yes |
Primary Front Lift Component | Coil spring |
Front Shock Quantity Per Wheel | 1 |
Bilstein 21-22 Ford F-150 4WD B8 6112 Series Front Suspension Kit | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2021-2024 | Ford | F-150 | XL, XLT, Platinum, Limited, Lariat, King Ranch, Tremor | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | FORD |
Model | F-150 |
Submodel | KING RANCH |
Beginning Year | 2021 |
Ending Year | 2022 |
Engine Type | V6 |
Engine Size | 3.5L/213 |
Engine Family | Ford Gas/Electric hybrid V6 |
Drivetrain | 4WD |
Amount of Lift Front | 0.000-2.400 in. |
Body Style | Crew Cab Pickup |
Make | FORD |
Model | F-150 |
Submodel | KING RANCH |
Beginning Year | 2021 |
Ending Year | 2022 |
Engine Type | V6 |
Engine Size | 3.5L/213 |
Engine Family | Ford V6 |
Drivetrain | 4WD |
Amount of Lift Front | 0.000-2.400 in. |
Body Style | Crew Cab Pickup |
Make | FORD |
Model | F-150 |
Submodel | LARIAT |
Beginning Year | 2021 |
Ending Year | 2022 |
Engine Type | V6 |
Engine Size | 3.5L/213 |
Engine Family | Ford Gas/Electric hybrid V6 |
Drivetrain | 4WD |
Amount of Lift Front | 0.000-2.400 in. |
Body Style | Crew Cab Pickup |
