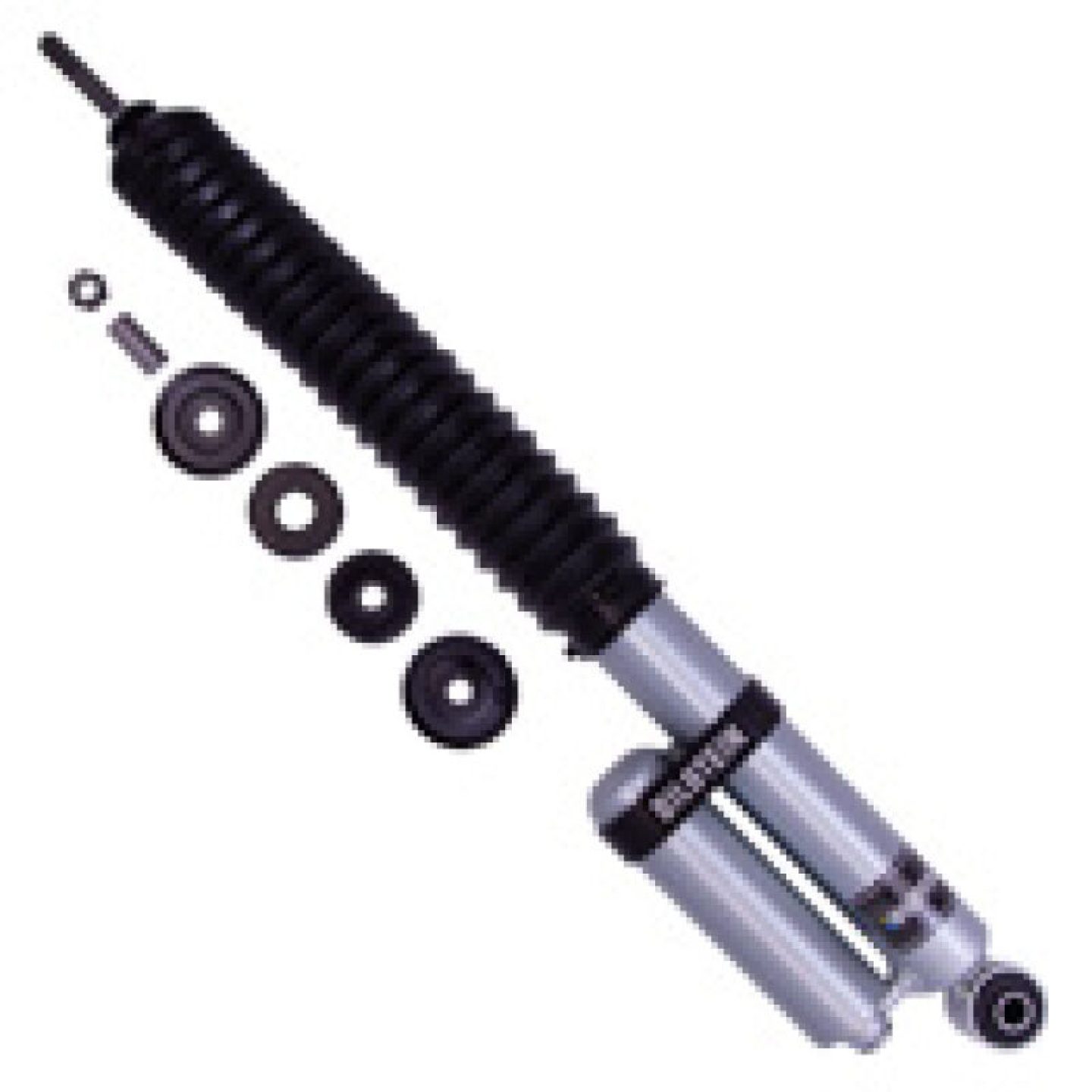

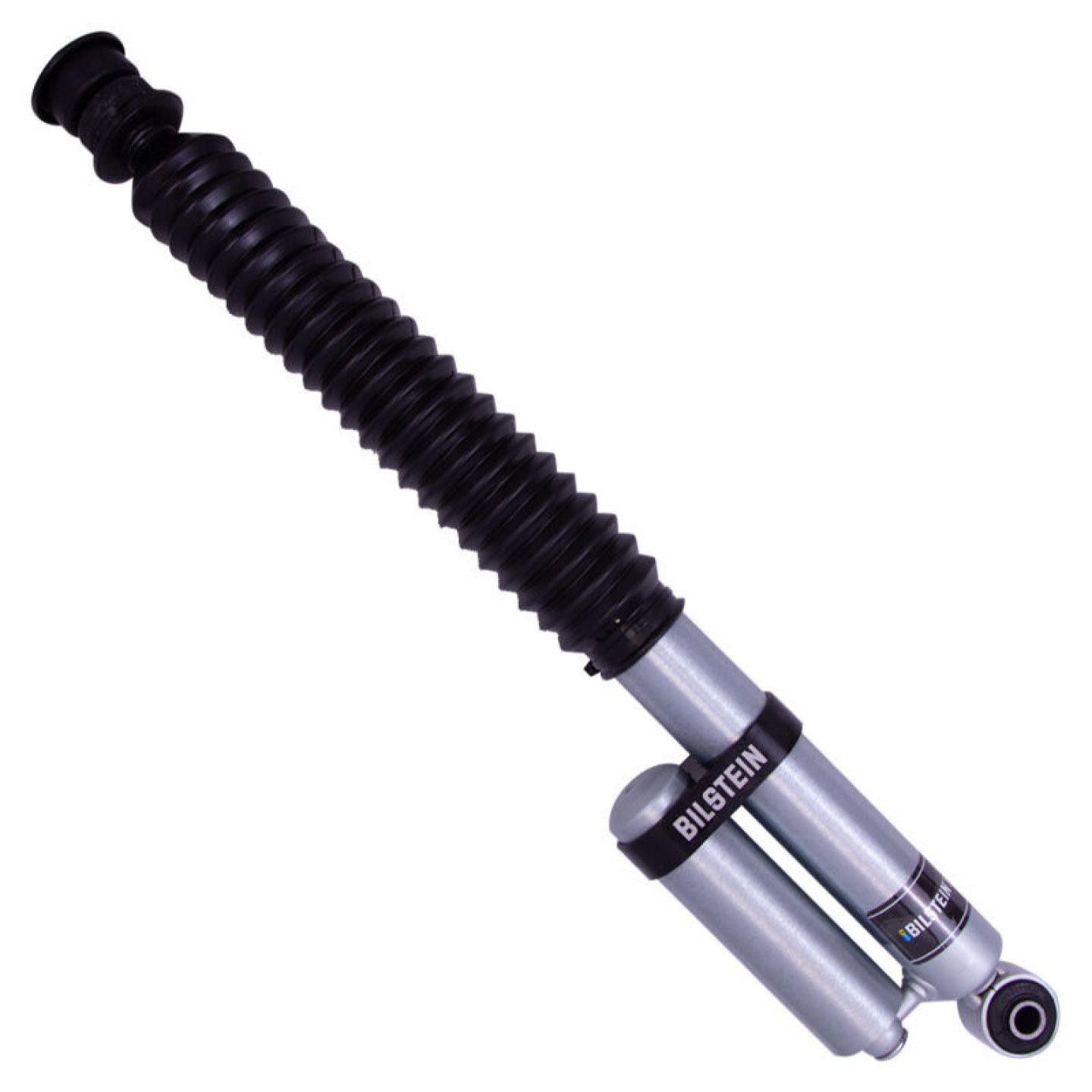

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
46mm Monotube Shock Absorber
Ram 2500 2024-2014
Suspension Shock Absorber
Bilstein B8 5160 Series stock-mount remote reservoir shocks feature the company's industry-leading monotube design, with a reservoir mounting configuration specifically designed for each application. Their unique digressive valving system instantly produces full damping capabilities for serious off-road performance and control. The remote reservoir dramatically increases shock oil capacity for excellent heat dissipation and damping sensitivity. A floating dividing piston is located in the reservoir of these shocks to offer increased wheel travel and more shaft movement. Special swivel banjo fittings on the reservoir hose allow for 360 degrees of rotation. Bilstein's exclusive Triple-C Technology finish provides the B8 5160 Series shocks with lasting great looks and easy care.
UPC | 651860886671 |
Brand | Bilstein |
Quantity | Sold individually. |
Part Type | Shocks and Struts |
Gas Charged | Yes |
Ride Height | Stock/Lifted |
Product Line | Bilstein B8 5160 Series Shocks |
Boot Included | No |
Internal Design | Monotube |
Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
Adjustable Valving | No |
Body Diameter (in.) | 1.811 |
Extended Length (in.) | 25.71 |
Collapsed Length (in.) | 17.17 |
Lifted Amount Range (in.) | 0.00-0.50 in. |
Manufacturer's Part Number | 25-293449 |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | RAM |
Model | 2500 |
Submodel | POWER WAGON |
Beginning Year | 2014 |
Ending Year | 2020 |
Engine Type | V8 |
Liter | 6.4 |
CID | 392 |
CC | 6424 |
Engine Size | 6.4L/392 |
Engine Family | Mopar Hemi Gen III |
Drivetrain | 4WD |
Shock Position | Rear Left |
Body Style | Crew Cab Pickup |
Application Notes | For Rear Lifted Height: 0-0.5" |
Engine VIN Code | J |
Universal | No |
Make | RAM |
Model | 2500 |
Submodel | POWER WAGON |
Beginning Year | 2014 |
Ending Year | 2020 |
Engine Type | V8 |
Liter | 6.4 |
CID | 392 |
CC | 6424 |
Engine Size | 6.4L/392 |
Engine Family | Mopar Hemi Gen III |
Drivetrain | 4WD |
Shock Position | Rear Right |
Body Style | Crew Cab Pickup |
Application Notes | For Rear Lifted Height: 0-0.5" |
Engine VIN Code | J |
Universal | No |
Make | RAM |
Model | 2500 |
Submodel | POWER WAGON |
Beginning Year | 2021 |
Ending Year | 2023 |
Engine Type | V8 |
Liter | 6.4 |
CID | 392 |
CC | 6424 |
Engine Size | 6.4L/392 |
Engine Family | Mopar Hemi Gen III |
Drivetrain | 4WD |
Shock Position | Rear Left |
Body Style | Crew Cab Pickup |
Application Notes | For Rear Lifted Height: 0-0.5" |
Bilstein B8 5160 Series 14-22 Dodge Ram 2500 Powerwagon 4WD (w/Lift 0-0.5in) Rear Shock Absorber | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2014 | Ram | 2500 | Power Wagon | US |
2015 | Ram | 2500 | Power Wagon | US |
2016 | Ram | 2500 | Power Wagon | US |
2017 | Ram | 2500 | Power Wagon | US |
2018 | Ram | 2500 | Power Wagon | US |
2019 | Ram | 2500 | Power Wagon | US |
2020 | Ram | 2500 | Power Wagon | US |
2021 | Ram | 2500 | Power Wagon | US |
2022 | Ram | 2500 | Power Wagon | US |
2023 | Ram | 2500 | Power Wagon | US |
