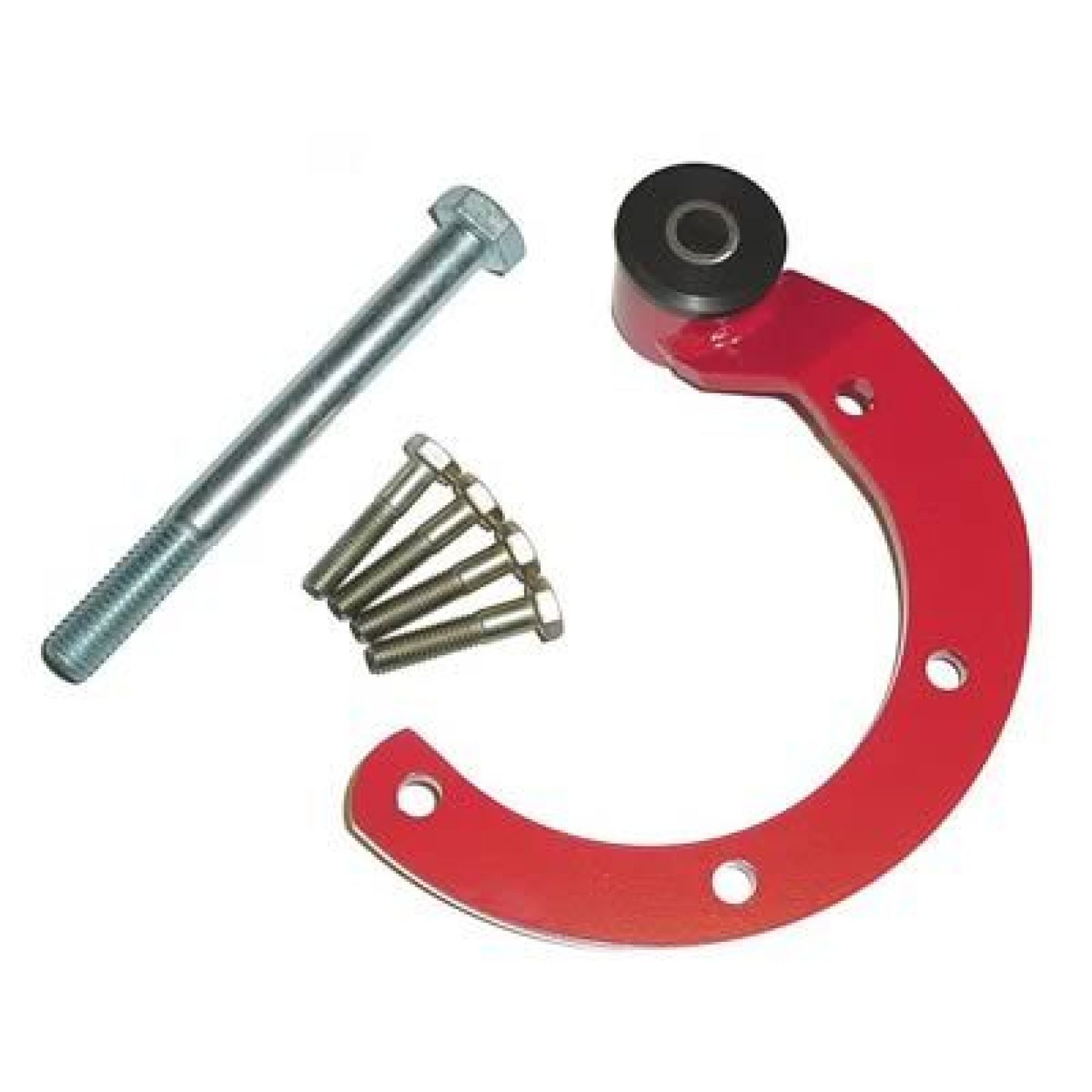

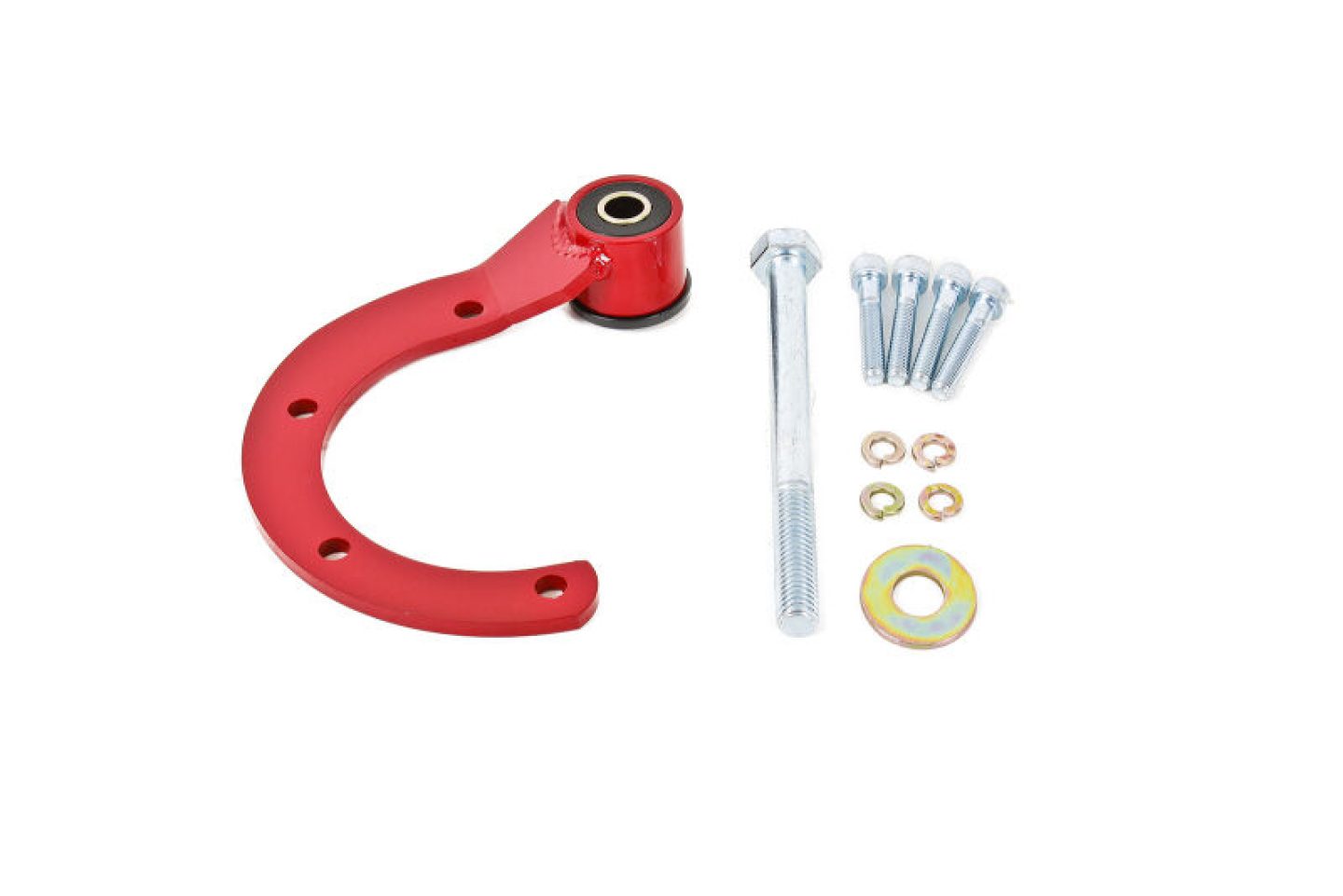

BMR 04-06 CTS-V Pinion Support Brace - Red
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Pinion Support Brace, Red powdercoated, Cadillac, Each
BMR pinion support braces add a low-deflection polyurethane bushing to the front mount and reduce deflection to almost zero off-idle. The results are immediately noticeable as they remove the "spongy" feel on off-idle and decrease the audible "thunk" that is heard when the OE bushings bottom out. The differential is mounted to the rear cradle by soft rubber bushings. There are two bushings in the rear and only one in the front. This front bushing is responsible for maintaining pinion angle, which is critical for U-joint life, launch consistency, and overall driveline efficiency.
UPC | 887753325181 |
Brand | BMR Suspension |
Quantity | Sold individually. |
Part Type | Pinion Support Braces |
Product Line | BMR Pinion Support Braces |
Bushing Color | Black |
Bushing Material | Polyurethane |
Bushings Included | Yes |
Pinion Support Finish | Red powdercoat |
Pinion Support Material | Steel |
Manufacturer's Part Number | PSB001R |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Size | 5.7L/346 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2006 |
Ending Year | 2006 |
Engine Type | V8 |
Engine Size | 6.0L/364 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
