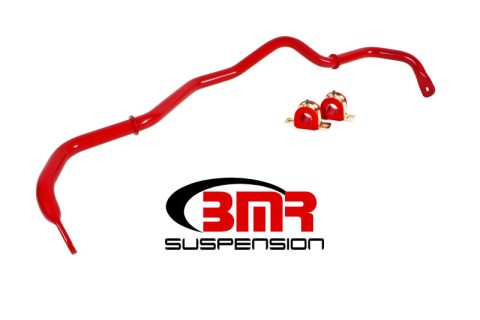

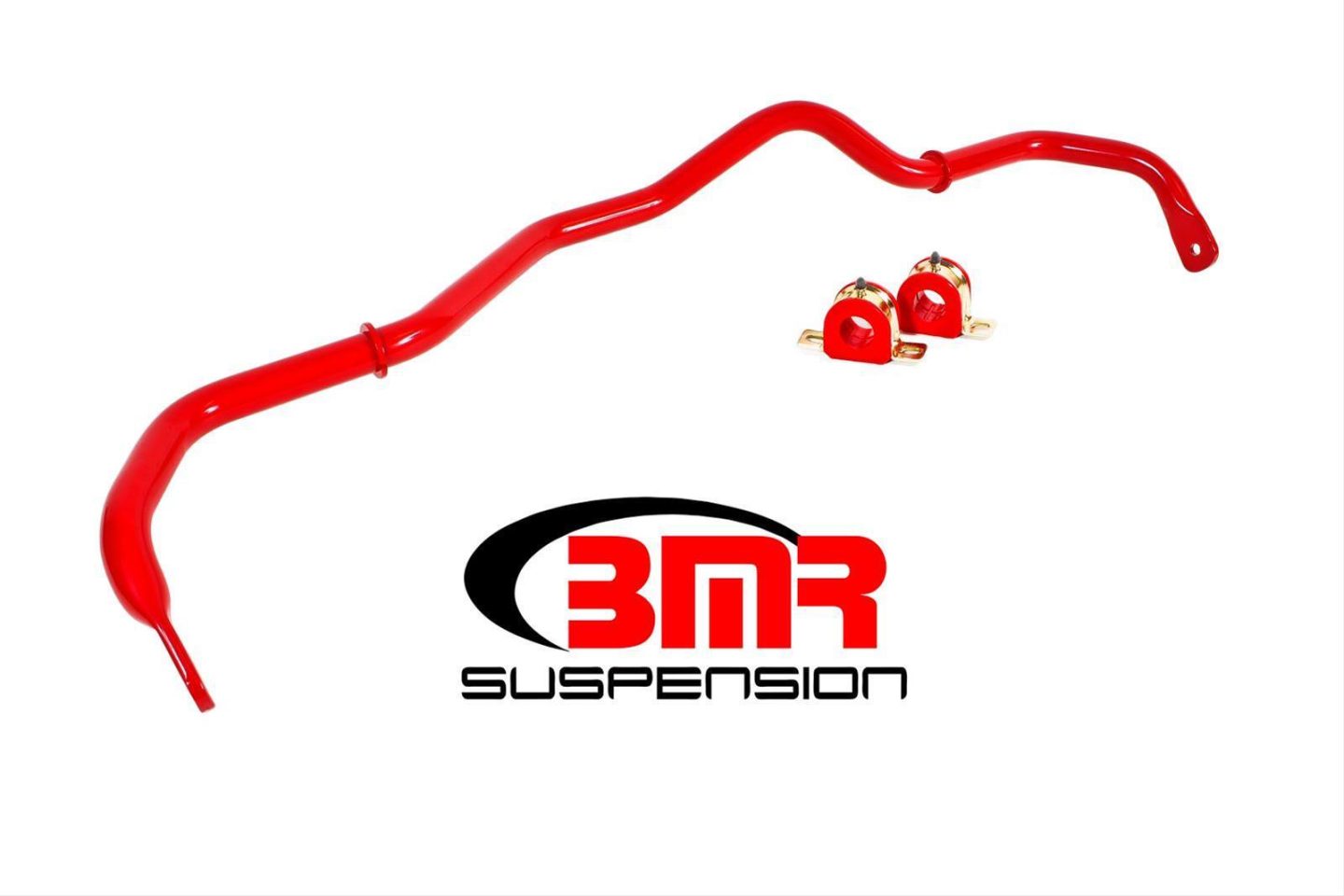

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension?s SB050 front sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 1.25-inch DOM steel tubing, the SB050 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the front bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers The SB050 attaches to your Sixth Gen Camaro with polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing.
BMR Suspension designed the SB050 sway bar kit for street performance, autocross, and road race applications.
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
BMR sway bars are the most significant handling upgrade you can make to your vehicle. With hand tools and about an hour or so of your time, BMR sway bars will deliver the most noticeable handling improvement to your ride. BMR chooses to cold form their tubular sway bars instead of the conventional hot formed process. For you that means better resistance to torsional fatigue, more consistent "memory" retention, and money well spent for lasting performance and driving enjoyment. BMR put countless hours into developing and testing the ideal rates for their bars, so feel their passion for perfection by installing one of their sway bar kits--you're in control with BMR Suspension.
UPC | 887753326386 |
Brand | BMR Suspension |
Quantity | Sold as a kit. |
Part Type | Sway Bars |
Product Line | BMR Sway Bars |
Sway Bar Color | Red |
Sway Bar Material | Steel |
Sway Bar Position | Front |
Front Sway Bar Type | Hollow |
Front Sway Bar Adjustable | Fixed |
Summit Racing Part Number | BMR-SB050R |
Manufacturer's Part Number | SB050R |
Mounting Hardware Included | Yes |
Front Sway Bar Diameter (mm) | 31.75 mm |
Front Sway Bar Diameter (in.) | 1.250 in. |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | LS |
Beginning Year | 2018 |
Ending Year | 2018 |
Engine Type | V6 |
Liter | 3.6 |
CID | 222 |
Drivetrain | RWD |
Engine Family | GM V6 |
Engine Size | 3.6L/222 |
Application Notes | Front |
Engine VIN Code | S |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | LS |
Beginning Year | 2018 |
Ending Year | 2020 |
Engine Type | L4 |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Engine Family | GM 4-cylinder |
Engine Size | 2.0L/122 |
Application Notes | Front |
Engine VIN Code | X |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | LT1 |
Beginning Year | 2020 |
Ending Year | 2020 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Drivetrain | RWD |
Engine Family | Chevy small block Gen V |
Engine Size | 6.2L/376 |
Application Notes | Front |
Engine VIN Code | 7 |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | LT |
Beginning Year | 2016 |
Ending Year | 2020 |
BMR 16-17 6th Gen Camaro Front Hollow 32mm Non-Adj. Sway Bar Kit - Red | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2016 | Chevrolet | Camaro | LT | US |
2016 | Chevrolet | Camaro | SS | US |
2017 | Chevrolet | Camaro | LT | US |
2017 | Chevrolet | Camaro | ZL1 | US |
2017 | Chevrolet | Camaro | SS | US |
2018 | Chevrolet | Camaro | SS | US |
2018 | Chevrolet | Camaro | LS | US |
2018 | Chevrolet | Camaro | ZL1 | US |
2018 | Chevrolet | Camaro | LT | US |
2019 | Chevrolet | Camaro | LS | US |
2019 | Chevrolet | Camaro | SS | US |
2019 | Chevrolet | Camaro | LT | US |
2019 | Chevrolet | Camaro | ZL1 | US |
2020 | Chevrolet | Camaro | ZL1 | US |
2020 | Chevrolet | Camaro | LT1 | US |
2020 | Chevrolet | Camaro | LT | US |
2020 | Chevrolet | Camaro | SS | US |
2020 | Chevrolet | Camaro | LS | US |
