With a .600" maximum lift, these Beehive Valve Springs were designed for Hydraulic Roller cams. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

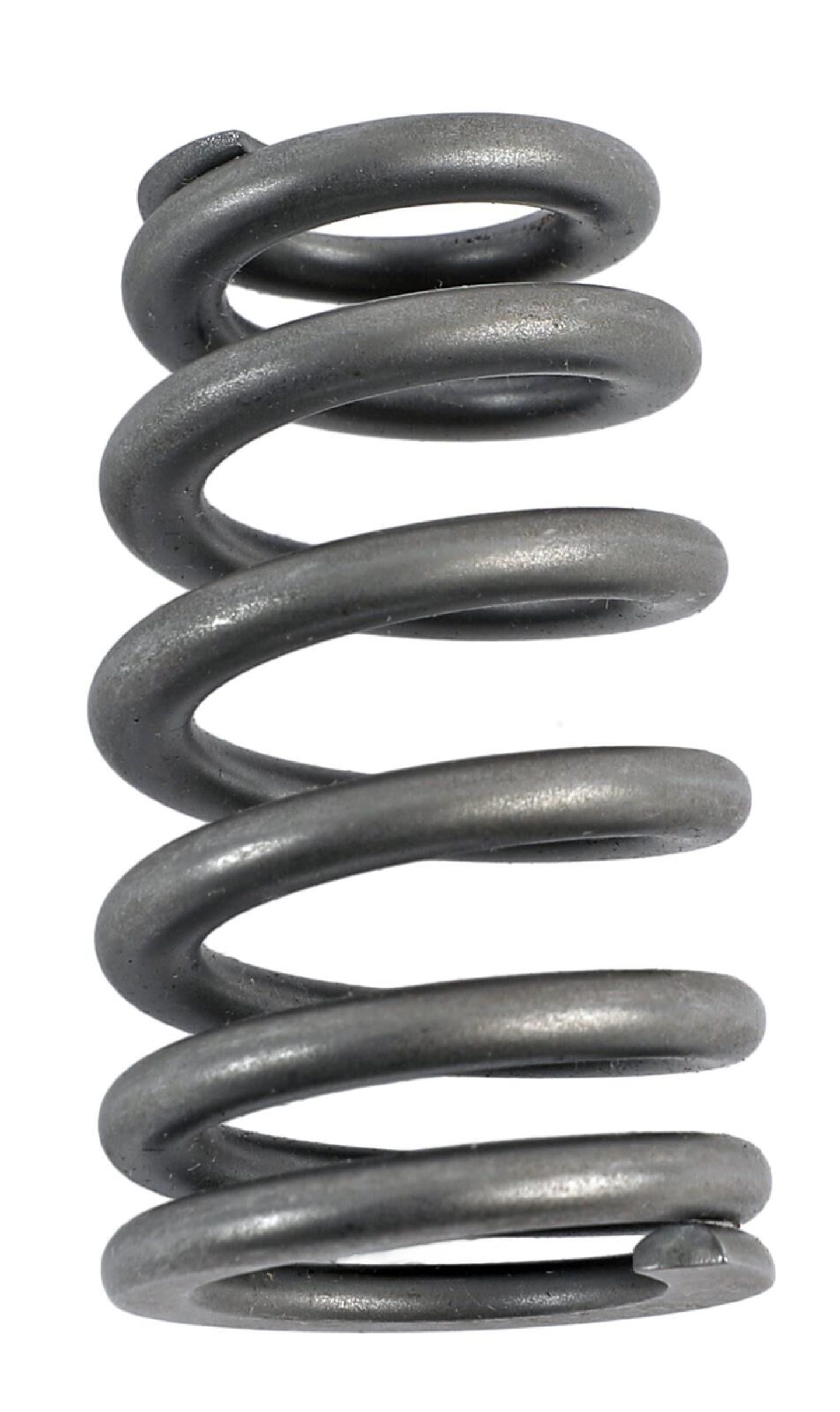

COMP Cams Beehive Valve Spring, 1.075"/1.310" OD, 125 lbs 1.800", 367 lbs 1.150", Single Piece
Engine Valve Spring
Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.
UPC | 036584077459 |
Brand | COMP Cams |
Notes | O.D. at the top of the spring is 1.075 in. and 1.310 in. at the bottom. I.D. at the top of the spring is 0.650 in. and 0.885 in. at the bottom. |
Quantity | Sold individually. |
Part Type | Valve Springs |
Product Line | COMP Cams Valve Springs |
Locks Included | No |
Retainers Included | No |
Valve Spring Style | Beehive |
Valve Springs Coated | No |
Spring Rate (lbs/in.) | 372 lbs./in. |
Coil Bind Height (in.) | 1.140 in. |
Damper Spring Included | No |
Maximum Valve Lift (in.) | 0.625 in. |
Summit Racing Part Number | CCA-26918-1 |
Valve Stem Seals Included | No |
Manufacturer's Part Number | 26918-1 |
Number of Springs Per Valve | Single |
Inside Diameter of Outer Spring (in.) | 0.650 in./0.885 in. |
Outside Diameter of Outer Spring (in.) | 1.075 in./1.310 in. |
Compatibility & Application Information | |
---|---|
Installed Height (in.) | 1.800 in. |
Seat Pressure at Installed Height (lbs.) | 125 lbs. |
Open Height (in.)(application) | 1.150 in. |
Open Pressure (lbs.) | 367 lbs. |
Application Notes | O.D. at the top of the spring is 1.075 in. and 1.310 in. at the bottom. I.D. at the top of the spring is 0.650 in. and 0.885 in. at the bottom. |
COMP Cams Valve Spring High Performancee | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1989 | Lincoln | Continental | Signature | US |
1989 | Ford | Taurus | LX | US |
1989 | Mercury | Cougar | XR-7 | US |
1989 | Ford | Thunderbird | Super Coupe | US |
1989 | Ford | Thunderbird | Base | US |
1989 | Ford | Thunderbird | LX | US |
1989 | Lincoln | Continental | Base | US |
1989 | Mercury | Cougar | LS | US |
1989 | Ford | Taurus | GL | US |
1989 | Mercury | Sable | LS | US |
1989 | Mercury | Sable | GS | US |
1990 | Mercury | Sable | LS | US |
1990 | Ford | Taurus | GL | US |
1990 | Ford | Thunderbird | LX | US |
1990 | Ford | Thunderbird | Super Coupe | US |
1990 | Lincoln | Continental | Signature | US |
1990 | Mercury | Cougar | XR-7 | US |
1990 | Mercury | Cougar | LS | US |
1990 | Ford | Thunderbird | Base | US |
1990 | Ford | Taurus | LX | US |
1990 | Mercury | Sable | GS | US |
1990 | Lincoln | Continental | Base | US |
1991 | Lincoln | Continental | Signature | US |
1991 | Ford | Taurus | GL | US |
1991 | Mercury | Sable | GS | US |
1991 | Lincoln | Continental | Base | US |
1991 | Lincoln | Continental | Executive | US |
1991 | Ford | Thunderbird | Super Coupe | US |
1991 | Ford | Taurus | LX | US |
1991 | Mercury | Cougar | LS | US |
1991 | Ford | Thunderbird | Base | US |
1991 | Mercury | Sable | LS | US |
1991 | Ford | Thunderbird | LX | US |
1991 | Ford | Taurus | L | US |
1992 | Lincoln | Continental | Executive | US |
1992 | Lincoln | Continental | Signature | US |
1992 | Ford | Thunderbird | Base | US |
1992 | Mercury | Sable | LS | US |
1992 | Ford | Taurus | GL | US |
1992 | Ford | Thunderbird | LX | US |
1992 | Ford | Taurus | LX | US |
1992 | Mercury | Sable | GS | US |
1992 | Ford | Thunderbird | Super Coupe | US |
1992 | Lincoln | Continental | Base | US |
1992 | Mercury | Cougar | LS | US |
1992 | Ford | Taurus | L | US |
1993 | Mercury | Cougar | XR-7 | US |
1993 | Ford | Thunderbird | Super Coupe | US |
1993 | Mercury | Sable | LS | US |
1993 | Ford | Thunderbird | LX | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
