This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, tool steel retainers, locks, seals and spring seats. With a .675? maximum lift, these COMP Cams Dual Valve Springs for race applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.

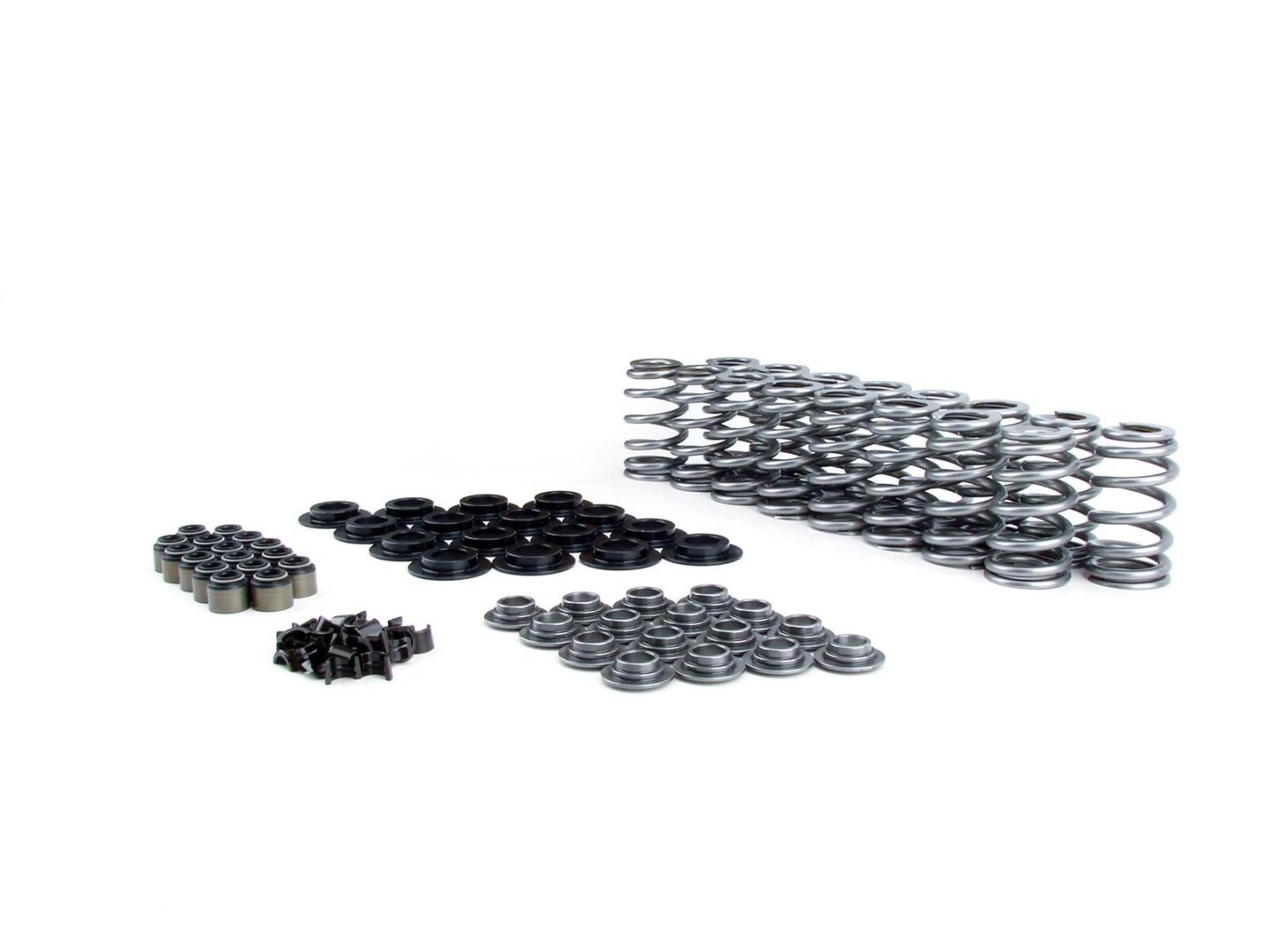

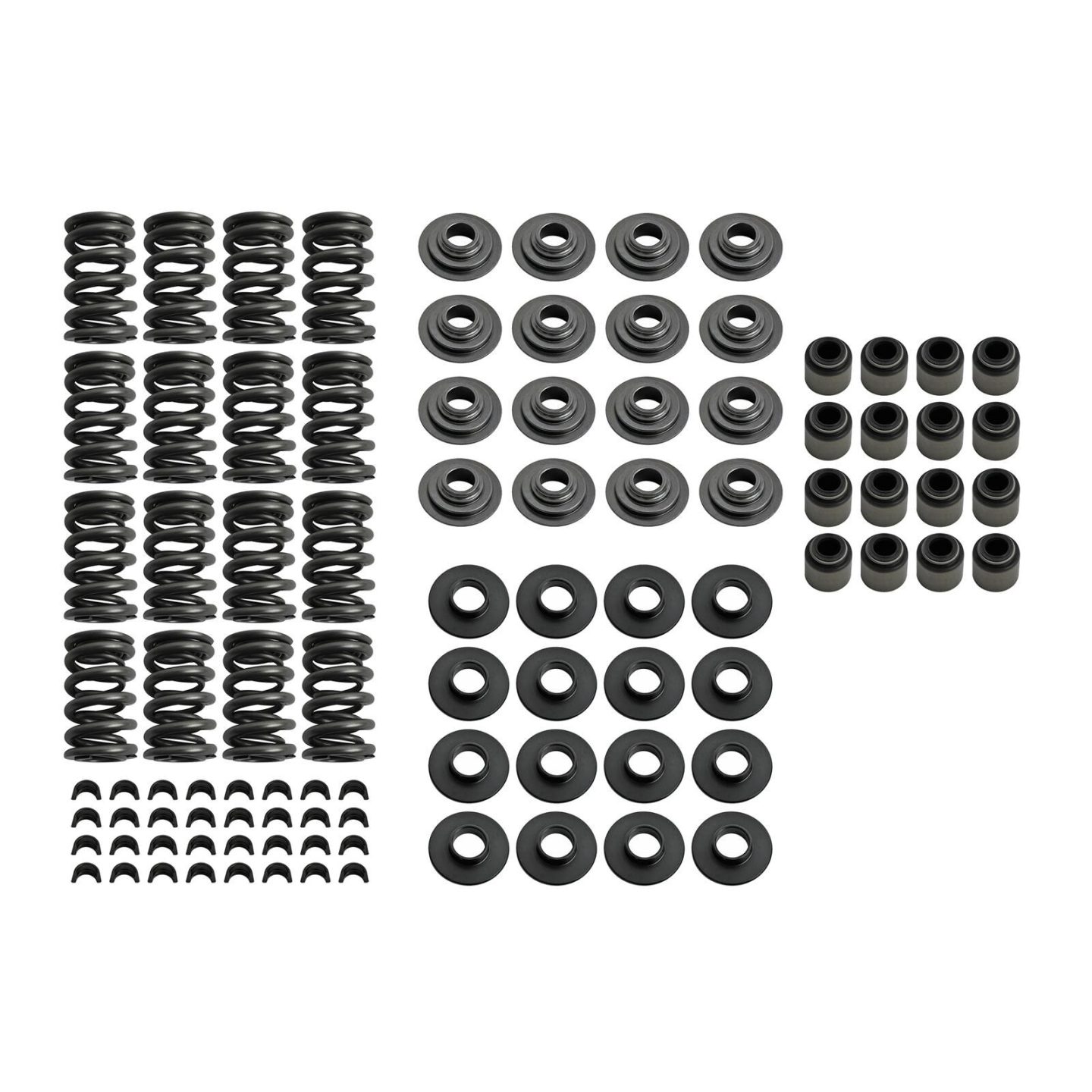

COMP Cams LS Engine Beehive Valve Spring Kit with Tool Steel Retainers and 26926 Valve Springs
GM LS engines including truck engines, excluding LS7.
Engine Valve Spring Kit
Simplify your valvetrain assembly! COMP Cams high performance valve spring kits have everything that you need for a complete valve spring assembly. Springs, seats, and retainers are included, along with complete instructions for a worry-free installation.
UPC | 036584225409 |
Brand | COMP Cams |
Quantity | Sold as a kit. |
Part Type | Valve Springs |
Lock Style | 7 degree |
Product Line | COMP Cams High Performance Valve Spring Kits |
Lock Material | Steel |
Locks Included | Yes |
Retainer Material | Tool steel |
Retainers Included | Yes |
Valve Spring Style | Standard |
Lock Groove Quantity | 1-groove |
Valve Springs Coated | No |
Spring Rate (lbs/in.) | 505 lbs./in. |
Coil Bind Height (in.) | 1.100 in. |
Damper Spring Included | No |
Maximum Valve Lift (in.) | 0.675 in. |
Valve Stem Diameter (mm) | 8.00mm |
Summit Racing Part Number | CCA-26926TS-KIT |
Valve Stem Diameter (in.) | 0.315 in. |
Valve Stem Seals Included | Yes |
Manufacturer's Part Number | 26926TS-KIT |
Number of Springs Per Valve | Dual |
Inside Diameter of Inner Spring (in.) | 0.654 in. |
Outside Diameter of Outer Spring (in.) | 1.320 in. |
Compatibility & Application Information | |
---|---|
Installed Height (in.) | 1.835 in. |
Seat Pressure at Installed Height (lbs.) | 129 lbs. |
Open Height (in.)(application) | 1.160 in. |
Open Pressure (lbs.) | 470 lbs. |
Make | BUICK |
Model | LACROSSE |
Submodel | SUPER |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | C |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | P |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2005 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | M |
Make | BUICK |
Model | RAINIER |
Submodel | CXL PLUS |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 5.3 |
COMP Cams Kit Dual Valve Spring Ts LS | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1997 | Chevrolet | Corvette | Base | US |
1998 | Pontiac | Firebird | Trans Am | US |
1998 | Chevrolet | Camaro | Z28 | US |
1998 | Chevrolet | Corvette | Base | US |
1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car | US |
1998 | Pontiac | Firebird | Formula | US |
1998 | Chevrolet | Camaro | Z28 SS | US |
1999 | Chevrolet | Silverado 1500 | LS | US |
1999 | Pontiac | Firebird | Trans Am | US |
1999 | Chevrolet | Camaro | Z28 | US |
1999 | Chevrolet | Silverado 1500 | LT | US |
1999 | GMC | Sierra 2500 | SL | US |
1999 | GMC | Sierra 2500 | SLE | US |
1999 | GMC | Sierra 2500 | SLT | US |
1999 | Chevrolet | Corvette | Base | US |
1999 | Chevrolet | Silverado 2500 | Base | US |
1999 | Chevrolet | Silverado 2500 | LS | US |
1999 | Chevrolet | Silverado 2500 | LT | US |
1999 | GMC | Sierra 1500 | SL | US |
1999 | GMC | Sierra 1500 | SLE | US |
1999 | Chevrolet | Silverado 1500 | Base | US |
1999 | Pontiac | Firebird | Formula | US |
1999 | GMC | Sierra 1500 | SLT | US |
1999 | Chevrolet | Camaro | Z28 SS | US |
2000 | Chevrolet | Camaro | Z28 SS | US |
2000 | GMC | Sierra 1500 | SLT | US |
2000 | Chevrolet | Tahoe | Base | US |
2000 | Chevrolet | Silverado 1500 | LS | US |
2000 | Chevrolet | Tahoe | LS | US |
2000 | Pontiac | Firebird | Trans Am | US |
2000 | Chevrolet | Camaro | Z28 | US |
2000 | Chevrolet | Tahoe | LT | US |
2000 | Chevrolet | Silverado 1500 | LT | US |
2000 | GMC | Sierra 2500 | SL | US |
2000 | GMC | Sierra 2500 | SLE | US |
2000 | GMC | Sierra 2500 | SLT | US |
2000 | Chevrolet | Corvette | Base | US |
2000 | Chevrolet | Silverado 2500 | Base | US |
2000 | Chevrolet | Silverado 2500 | LS | US |
2000 | GMC | Yukon | SLE | US |
2000 | GMC | Yukon | SLT | US |
2000 | GMC | Yukon XL 1500 | SLE | US |
2000 | GMC | Sierra 1500 | SL | US |
2000 | Chevrolet | Silverado 2500 | LT | US |
2000 | Chevrolet | Suburban 1500 | Base | US |
2000 | Chevrolet | Suburban 1500 | LS | US |
2000 | GMC | Yukon XL 1500 | SLT | US |
2000 | GMC | Sierra 1500 | SLE | US |
2000 | Chevrolet | Suburban 1500 | LT | US |
2000 | Chevrolet | Silverado 1500 | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
