Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.

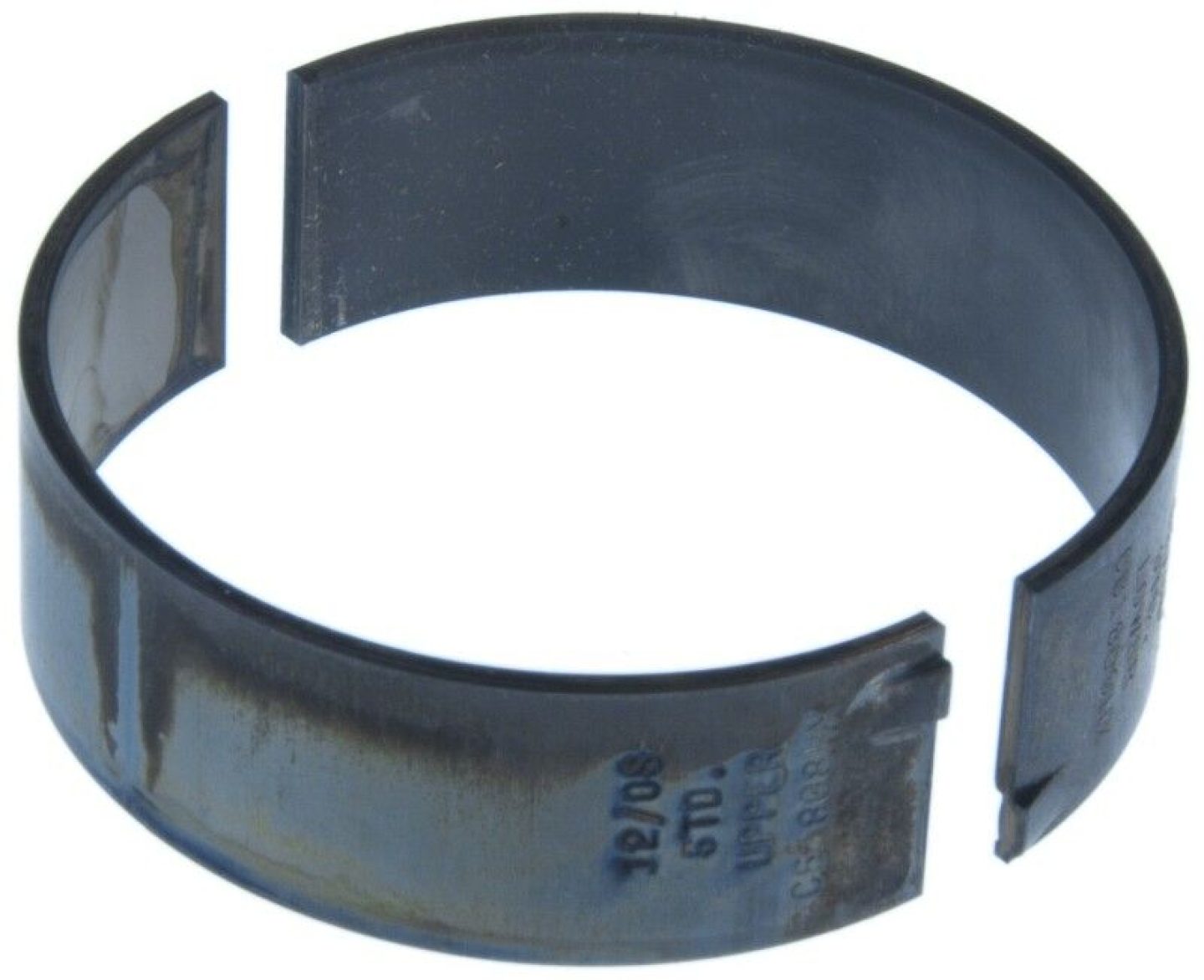

Engine Connecting Rod Bearing Pair
Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.
Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
UPC | 27067481177 |
Brand | Clevite Engine Parts |
Notes | Bearings have a .0005 in. thinner wall for .001 in. extra oil clearance. |
Quantity | Sold individually. |
Part Type | Rod Bearings |
Product Line | Clevite H-Series Rod Bearings |
Bearing Usage | Performance |
Dowel Pin Hole | No |
Narrow Bearing | Yes |
Bearing Material | Tri-metal, TM-77 |
Summit Racing Part Number | CLE-CB1808HXN |
Manufacturer's Part Number | CB-1808HXN |
Engine Crankshaft Undersize (mm) | Stock |
Engine Crankshaft Undersize (in.) | Stock |
Compatibility & Application Information | |
---|---|
Make | CHRYSLER |
Beginning Year | 2005 |
Ending Year | 2010 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 5.7L/345 |
Make | CHRYSLER |
Beginning Year | 2006 |
Ending Year | 2010 |
Engine Type | V8 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 6.1L/370 |
Make | CHRYSLER |
Beginning Year | 2009 |
Ending Year | 2009 |
Engine Type | V8 |
Engine Family | Mopar Gas/Electric hybrid V8 |
Engine Size | 5.7L/345 |
Make | CHRYSLER |
Model | 300 |
Submodel | C |
Beginning Year | 2005 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 5.7 |
CID | 345 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 5.7L/345 |
Application Notes | Column1 High Performance Column2 H Series (Tri-Metal) Column3 Standard Column4 XN - .001in Extra Oil Clearance / Narrowed Column13 Domestic Column20 14-05 CHR 5.7L-8.3L |
Engine VIN Code | H |
Make | CHRYSLER |
Model | 300 |
Submodel | C |
Beginning Year | 2005 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 5.7 |
CID | 345 |
Engine Family | Mopar Hemi Gen III |
Engine Size | 5.7L/345 |
Application Notes | Cylinder Head Type: OHV, Engine Version: HEMI, Valves Per Engine: 16. Material Grade: High Performance Series: H Series (Tri-Metal) Size: Standard Suffix: XN - .001" Extra Oil Clearance / Narrowed |
Engine VIN Code | H |
Make | CHRYSLER |
Model | 300 |
Submodel | C |
Beginning Year | 2005 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 5.7 |
CID | 345 |
Clevite Chrysler V8 5.7L 6.1L 6.4L Hemi Con Rod Bearing Set | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2003 | Dodge | Ram 2500 | SLT | US |
2003 | Dodge | Ram 3500 | ST | US |
2003 | Dodge | Ram 3500 | SLT | US |
2003 | Dodge | Ram 2500 | Laramie | US |
2003 | Dodge | Ram 1500 | SLT | US |
2003 | Dodge | Viper | SRT-10 | US |
2003 | Dodge | Ram 1500 | ST | US |
2003 | Dodge | Ram 1500 | Laramie | US |
2003 | Dodge | Ram 2500 | ST | US |
2004 | Dodge | Ram 3500 | Laramie | US |
2004 | Dodge | Ram 2500 | ST | US |
2004 | Dodge | Ram 3500 | ST | US |
2004 | Dodge | Durango | SLT | US |
2004 | Dodge | Ram 1500 | SRT-10 | US |
2004 | Dodge | Ram 1500 | SLT | US |
2004 | Dodge | Ram 1500 | Laramie | US |
2004 | Dodge | Ram 2500 | SLT | US |
2004 | Dodge | Ram 3500 | SLT | US |
2004 | Dodge | Viper | SRT-10 | US |
2004 | Dodge | Ram 1500 | ST | US |
2004 | Dodge | Durango | Limited | US |
2005 | Dodge | Ram 1500 | Laramie | US |
2005 | Dodge | Durango | Limited | US |
2005 | Dodge | Ram 3500 | ST | US |
2005 | Dodge | Ram 1500 | SRT-10 | US |
2005 | Chrysler | 300 | C SRT8 | US |
2005 | Dodge | Ram 1500 | ST | US |
2005 | Dodge | Durango | SLT | US |
2005 | Dodge | Ram 1500 | SLT | US |
2005 | Dodge | Ram 2500 | SLT | US |
2005 | Dodge | Ram 2500 | Laramie | US |
2005 | Dodge | Ram 3500 | Laramie | US |
2005 | Dodge | Ram 2500 | ST | US |
2005 | Dodge | Ram 3500 | SLT | US |
2005 | Chrysler | 300 | C | US |
2005 | Dodge | Magnum | R/T | US |
2005 | Dodge | Viper | SRT-10 | US |
2005 | Dodge | Durango | ST | US |
2005 | Jeep | Grand Cherokee | Limited | US |
2006 | Dodge | Ram 2500 | Sport | US |
2006 | Dodge | Ram 3500 | ST | US |
2006 | Dodge | Ram 1500 | TRX4 | US |
2006 | Dodge | Ram 2500 | TRX4 | US |
2006 | Dodge | Ram 2500 | Power Wagon | US |
2006 | Dodge | Ram 2500 | SLT | US |
2006 | Chrysler | 300 | C | US |
2006 | Dodge | Ram 3500 | Laramie | US |
2006 | Dodge | Ram 3500 | SLT | US |
2006 | Dodge | Magnum | SRT8 | US |
2006 | Jeep | Grand Cherokee | SRT8 | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
