Cylinder Head Gasket

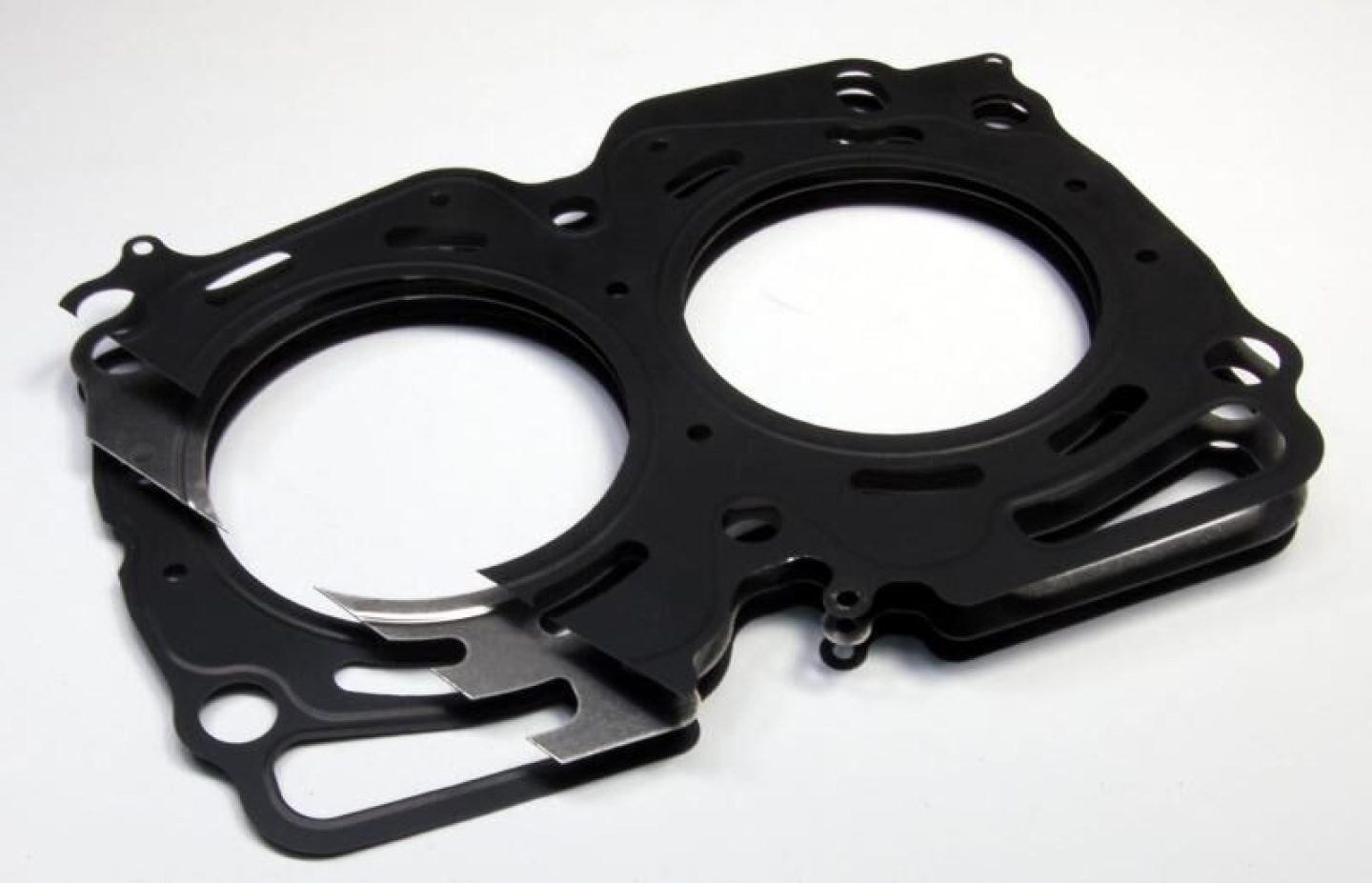

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

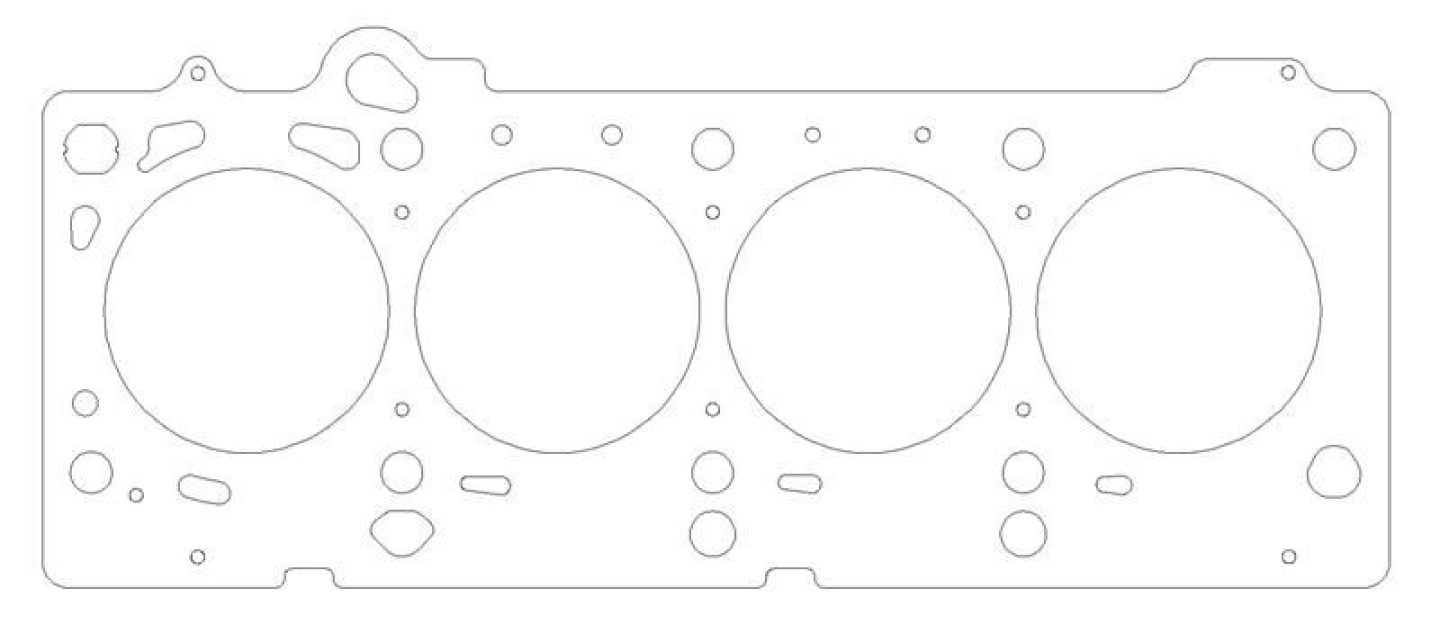

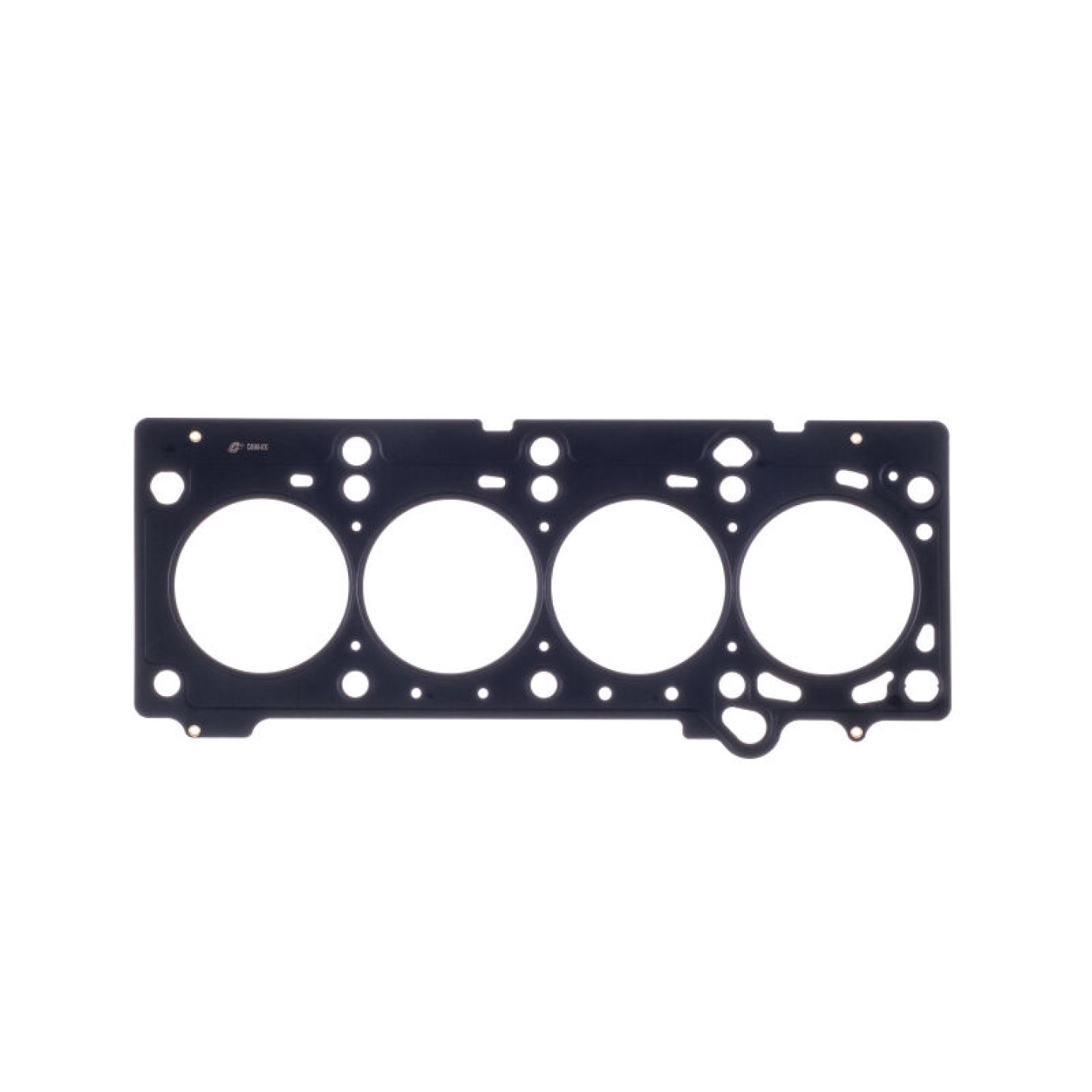

Chrysler ED1/EDV/EDZ .040 " MLS Cylinder Head Gasket, 87.5mm Bore
Engine Cylinder Head Gasket
.040" MLS 87.5MM BORE H/G
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
UPC | 191070115197 |
Brand | Cometic |
Quantity | Sold individually. |
Bore (mm) | 87.500mm |
Lock Wire | No |
Part Type | Head Gaskets |
Bore (in.) | 3.445 in. |
Product Line | Cometic MLS Head Gaskets |
Gasket Material | Multi-layer stainless steel |
Compressed Volume (cc) | 6.110cc |
Compressed Thickness (in.) | 0.040 in. |
Manufacturer's Part Number | C4548-040 |
Cometic 03-05 SRT-4 2.4L Turbo 87.5mm .040 inch MLS Head Gasket | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2003-2009 | Chrysler | PT Cruiser | Limited, GT | US |
2003-2005 | Dodge | Neon | SRT-4 | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
