Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070". US Spec Only. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

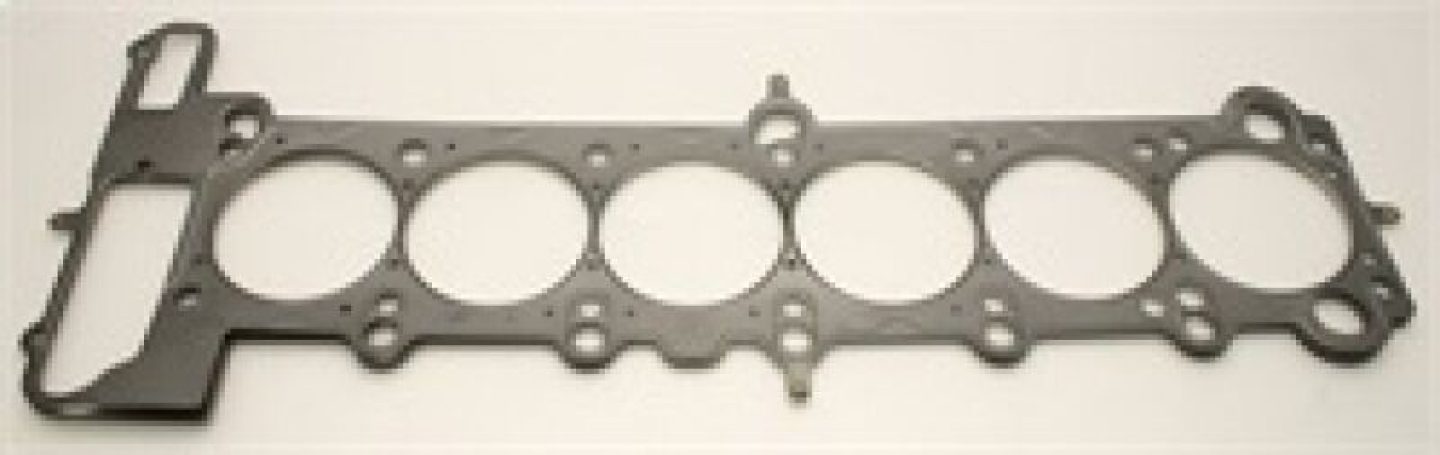

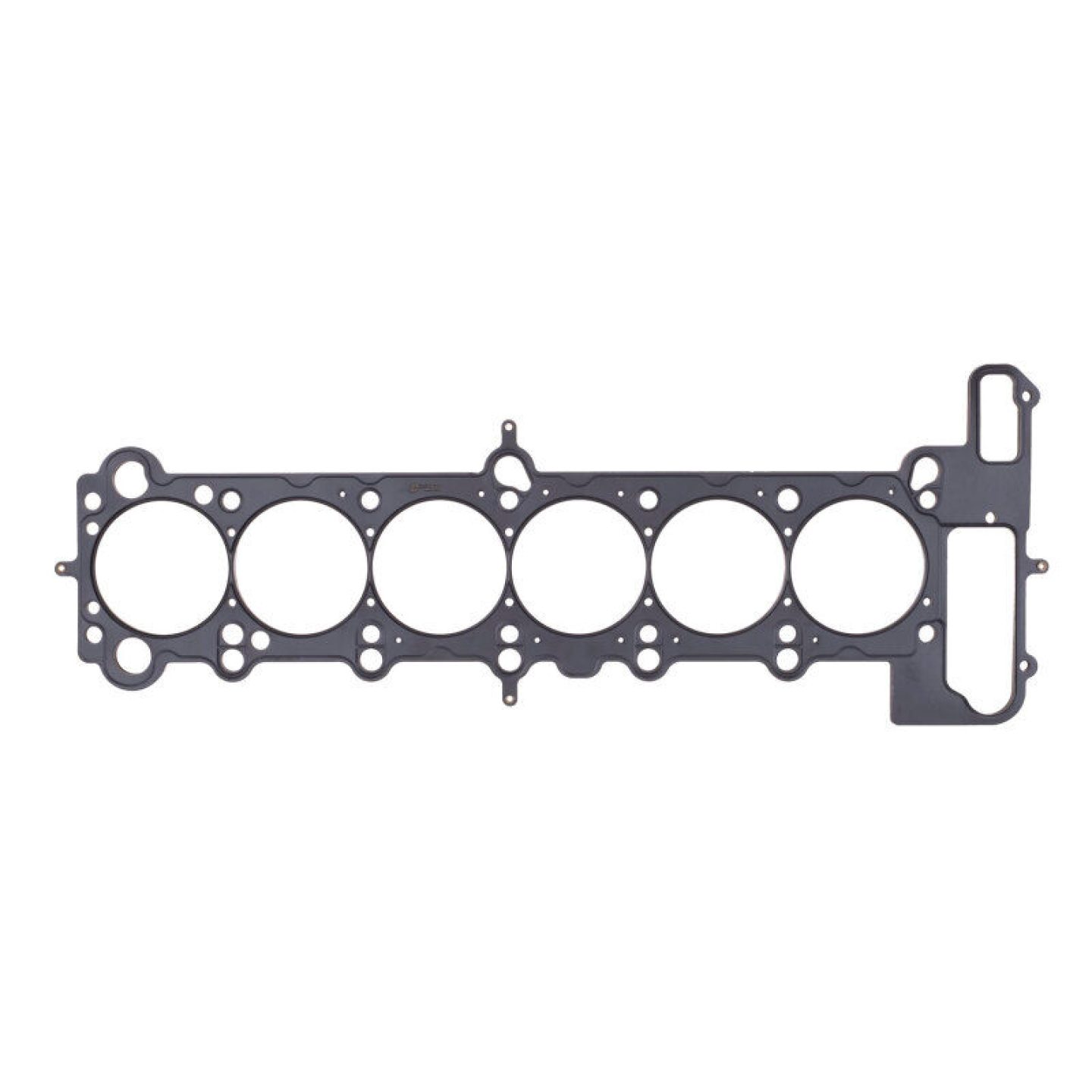

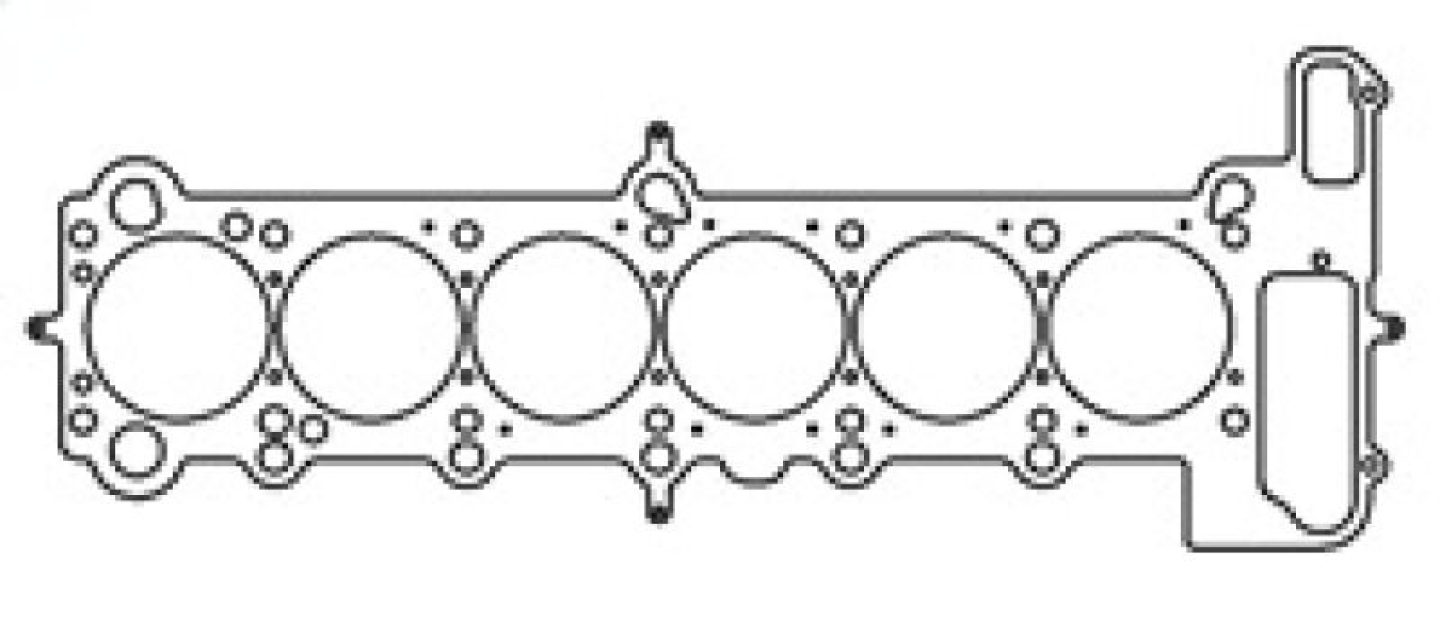

BMW S50B30US/S52B32 .070 " MLS Cylinder Head Gasket, 87mm Bore
Engine Cylinder Head Gasket
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
UPC | 191070027582 |
Brand | Cometic |
Notes | With S50B30, S50B32 engines, US spec only. |
Quantity | Sold individually. |
Bore (mm) | 87.000mm |
Lock Wire | No |
Part Type | Head Gaskets |
Bore (in.) | 3.425 in. |
Product Line | Cometic MLS Head Gaskets |
Gasket Material | Multi-layer stainless steel |
Compressed Volume (cc) | 10.570cc |
Compressed Thickness (in.) | 0.070 in. |
Manufacturer's Part Number | C4329-070 |
Compatibility & Application Information | |
---|---|
Make | BMW |
Beginning Year | 1996 |
Ending Year | 2000 |
Engine Type | L6 |
Engine Family | BMW inline 6-cylinder |
Engine Size | 3.2L/3152cc |
Cometic BMW S50B30/S52B32 US ONLY 87mm .070 inch MLS Head Gasket M3/Z3 92-99 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1995 | BMW | M3 | Base | US |
1995 | BMW | M3 | Lightweight | US |
1996 | BMW | M3 | Base | US |
1997 | BMW | M3 | Base | US |
1998 | BMW | Z3 | M Roadster | US |
1998 | BMW | M3 | Base | US |
1999 | BMW | Z3 | M Roadster | US |
1999 | BMW | Z3 | M Coupe | US |
1999 | BMW | M3 | Base | US |
2000 | BMW | Z3 | M Coupe | US |
2000 | BMW | Z3 | M Roadster | US |
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070". US Spec Only. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
BMW S50B30US/S52B32 .070 " MLS Cylinder Head Gasket, 87mm Bore
Engine Cylinder Head Gasket
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
UPC | 191070027582 |
Brand | Cometic |
Notes | With S50B30, S50B32 engines, US spec only. |
Quantity | Sold individually. |
Bore (mm) | 87.000mm |
Lock Wire | No |
Part Type | Head Gaskets |
Bore (in.) | 3.425 in. |
Product Line | Cometic MLS Head Gaskets |
Gasket Material | Multi-layer stainless steel |
Compressed Volume (cc) | 10.570cc |
Compressed Thickness (in.) | 0.070 in. |
Manufacturer's Part Number | C4329-070 |
Compatibility & Application Information | |
---|---|
Make | BMW |
Beginning Year | 1996 |
Ending Year | 2000 |
Engine Type | L6 |
Engine Family | BMW inline 6-cylinder |
Engine Size | 3.2L/3152cc |
Cometic BMW S50B30/S52B32 US ONLY 87mm .070 inch MLS Head Gasket M3/Z3 92-99 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1995 | BMW | M3 | Base | US |
1995 | BMW | M3 | Lightweight | US |
1996 | BMW | M3 | Base | US |
1997 | BMW | M3 | Base | US |
1998 | BMW | Z3 | M Roadster | US |
1998 | BMW | M3 | Base | US |
1999 | BMW | Z3 | M Roadster | US |
1999 | BMW | Z3 | M Coupe | US |
1999 | BMW | M3 | Base | US |
2000 | BMW | Z3 | M Coupe | US |
2000 | BMW | Z3 | M Roadster | US |
