Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.030". Right Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

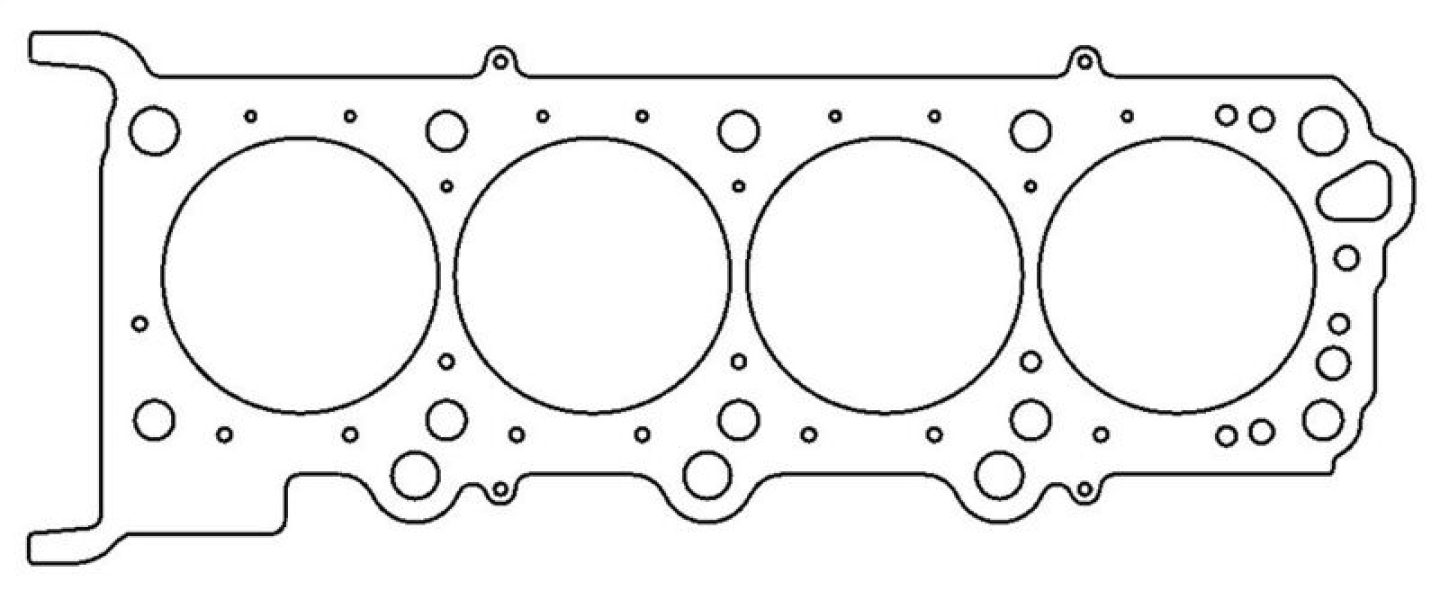

Ford 4.6/5.4L Modular V8 .030 " MLS Cylinder Head Gasket, 92mm Bore, RHS
Engine Cylinder Head Gasket
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
UPC | 191070011475 |
Brand | Cometic |
Notes | Right side only. |
Quantity | Sold individually. |
Bore (mm) | 92.000mm |
Lock Wire | No |
Part Type | Head Gaskets |
Bore (in.) | 3.622 in. |
Product Line | Cometic MLS Head Gaskets |
Gasket Material | Multi-layer stainless steel |
Compressed Volume (cc) | 5.065cc |
Compressed Thickness (in.) | 0.030 in. |
Manufacturer's Part Number | C5119-030 |
Compatibility & Application Information | |
---|---|
Make | FORD |
Beginning Year | 1992 |
Ending Year | 2014 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Make | FORD |
Beginning Year | 1997 |
Ending Year | 2014 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Cometic Ford 4.6L V-8 Right Side 92MM .030 inch MLS Headgasket | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1991 | Lincoln | Town Car | Base | US |
1991 | Lincoln | Town Car | Signature | US |
1991 | Lincoln | Town Car | Cartier | US |
1991 | Lincoln | Town Car | Cypress | US |
1991 | Lincoln | Town Car | Executive | US |
1991 | Lincoln | Town Car | Touring Edition | US |
1992 | Ford | Crown Victoria | Touring Sedan | US |
1992 | Ford | Crown Victoria | LX | US |
1992 | Ford | Crown Victoria | S | US |
1992 | Lincoln | Town Car | Cypress | US |
1992 | Lincoln | Town Car | Touring Edition | US |
1992 | Lincoln | Town Car | Base | US |
1992 | Lincoln | Town Car | Executive | US |
1992 | Mercury | Grand Marquis | LS | US |
1992 | Ford | Crown Victoria | Base | US |
1992 | Lincoln | Town Car | Signature | US |
1992 | Lincoln | Town Car | Cartier | US |
1992 | Mercury | Grand Marquis | GS | US |
1993 | Ford | Crown Victoria | Police Interceptor | US |
1993 | Lincoln | Town Car | Touring Edition | US |
1993 | Ford | Crown Victoria | LX | US |
1993 | Lincoln | Town Car | Cartier | US |
1993 | Lincoln | Town Car | Base | US |
1993 | Lincoln | Mark VIII | Base | US |
1993 | Mercury | Grand Marquis | LS | US |
1993 | Lincoln | Town Car | Signature | US |
1993 | Lincoln | Town Car | Executive | US |
1993 | Mercury | Grand Marquis | GS | US |
1993 | Ford | Crown Victoria | Base | US |
1993 | Ford | Crown Victoria | S | US |
1993 | Lincoln | Town Car | Jack Nicklaus | US |
1993 | Lincoln | Town Car | Cypress | US |
1994 | Mercury | Cougar | XR-7 | US |
1994 | Ford | Crown Victoria | LX | US |
1994 | Ford | Crown Victoria | S | US |
1994 | Lincoln | Town Car | Cartier | US |
1994 | Lincoln | Town Car | Touring Edition | US |
1994 | Ford | Thunderbird | LX | US |
1994 | Mercury | Grand Marquis | LS | US |
1994 | Ford | Crown Victoria | Base | US |
1994 | Ford | Crown Victoria | Police Interceptor | US |
1994 | Lincoln | Town Car | Executive | US |
1994 | Lincoln | Town Car | Signature | US |
1994 | Lincoln | Mark VIII | Base | US |
1994 | Lincoln | Town Car | Cypress | US |
1994 | Lincoln | Town Car | Tournament Edition | US |
1994 | Lincoln | Town Car | Base | US |
1994 | Mercury | Grand Marquis | GS | US |
1995 | Lincoln | Town Car | Base | US |
1995 | Mercury | Grand Marquis | LS | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
