Good street/strip camshaft with very wide range.
Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)

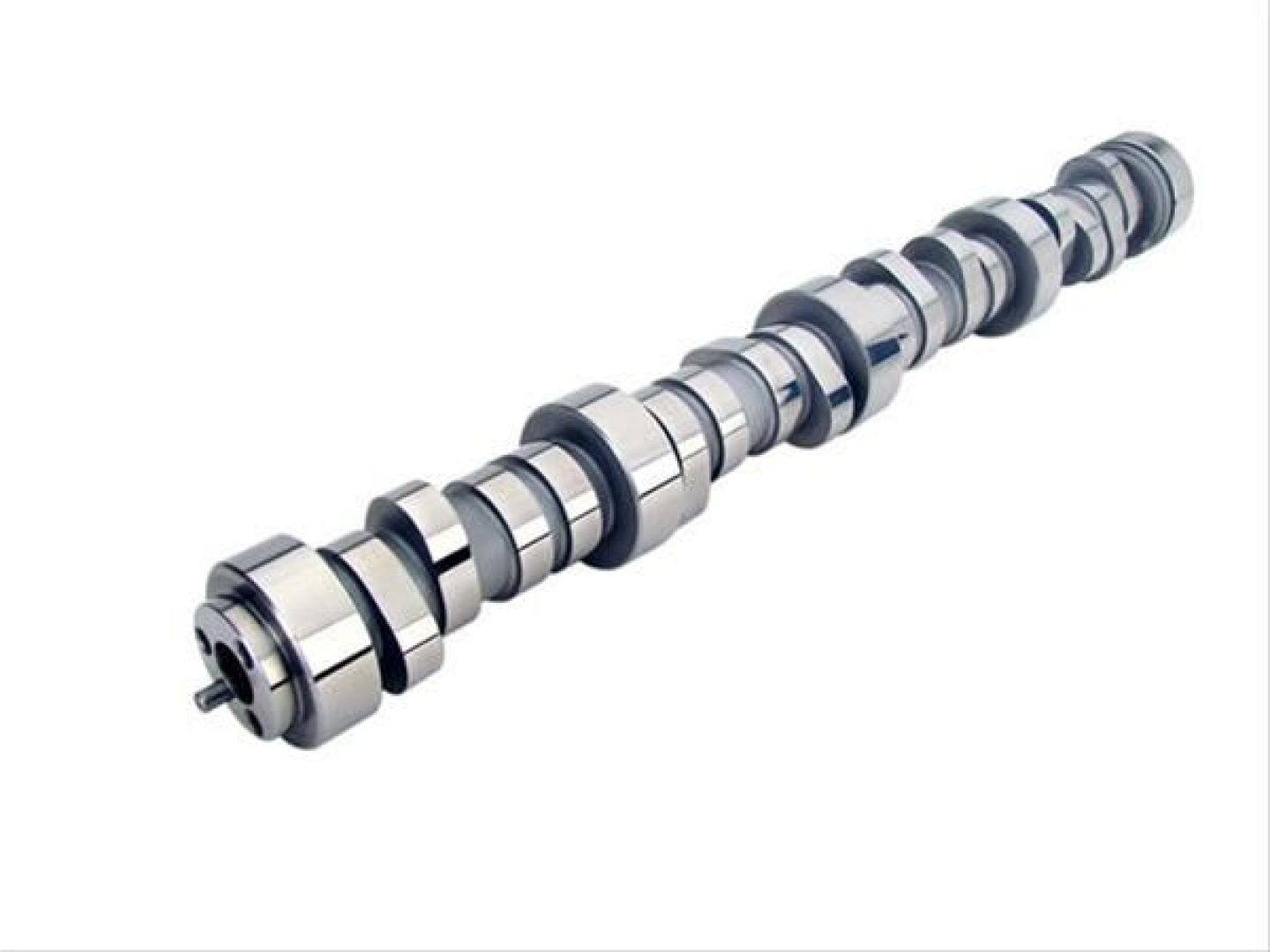

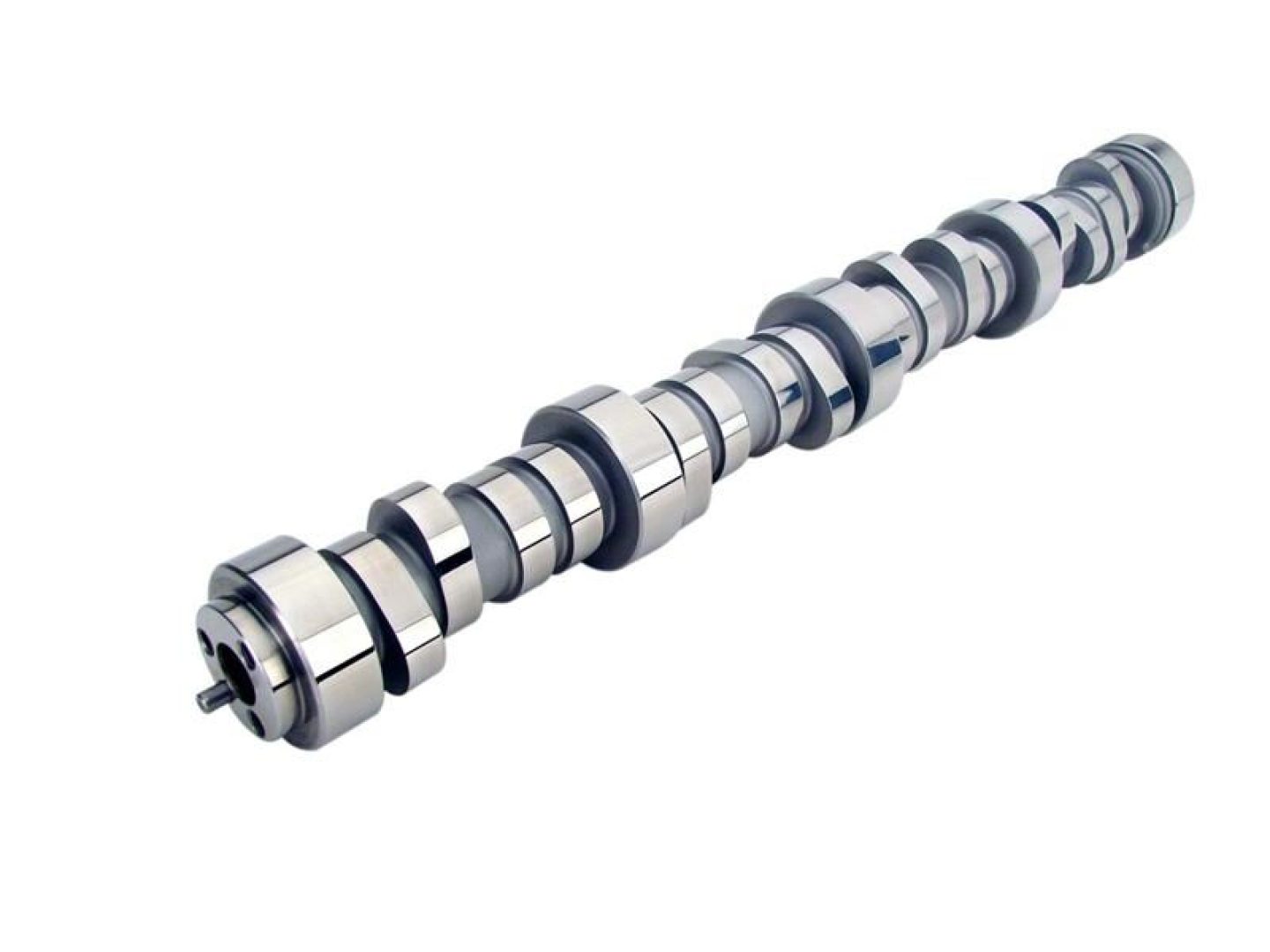

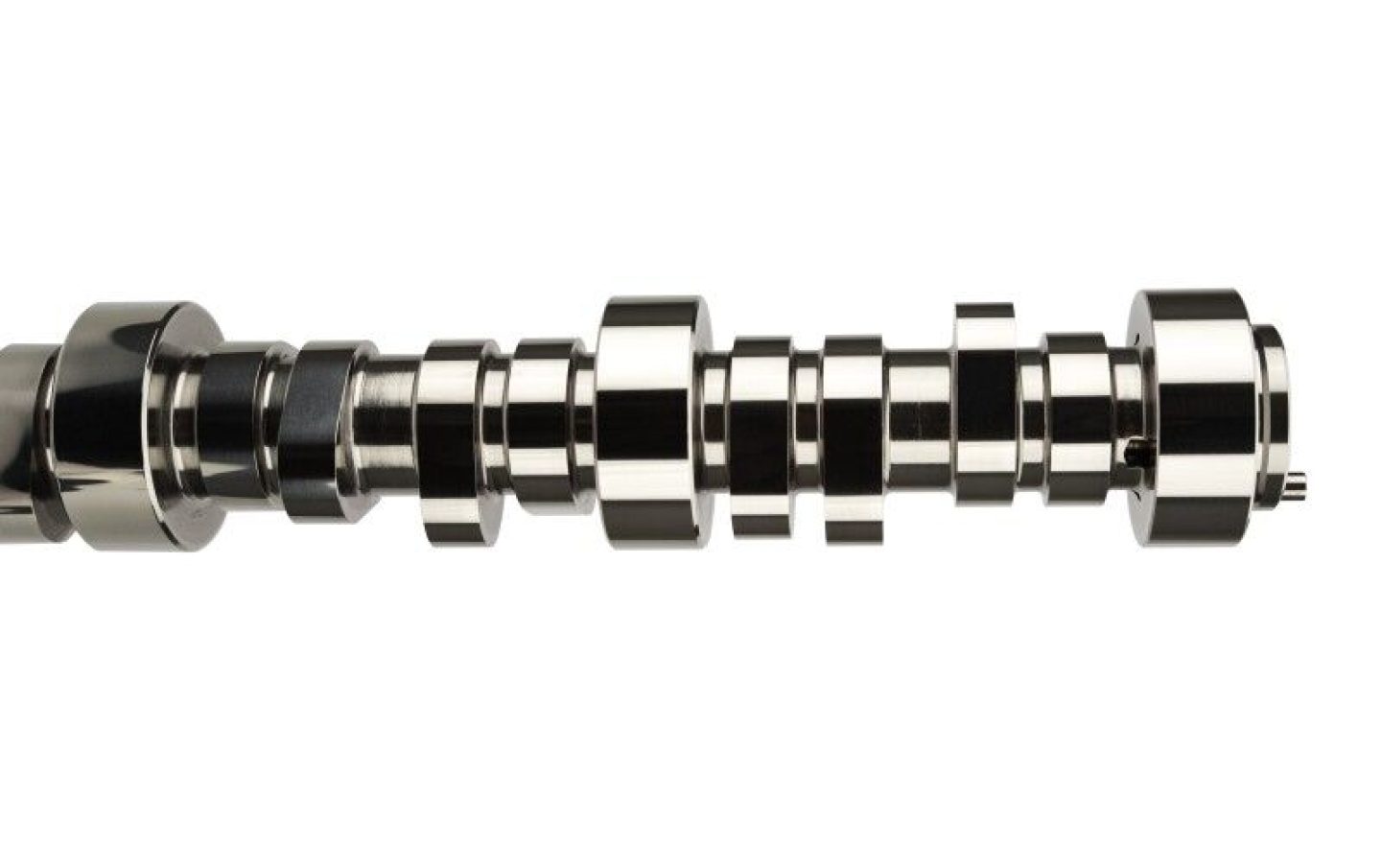

Engine Camshaft
COMP Cams LSR Series hydraulic roller camshafts feature modern lobe profiles that take full advantage of high-flowing late model GM LS3 rectangular port cylinder heads. They are tailored for a specific rpm range and usage, from torque to high-rpm horsepower. Give your Chevy LS3 engine a shot in the arm with one of these COMP Cams LSR Series hydraulic roller camshafts.
UPC | 036584213758 |
Brand | COMP Cams |
Notes | Will not work with factory computer program, variable valve timing, or active fuel management. |
Quantity | Sold individually. |
Cam Style | Hydraulic roller, OE roller |
Part Type | Camshafts |
Camshaft Use | Street/Strip |
Grind Number | 277LRR HR13 |
Product Line | COMP Cams LSR Series Hydraulic Roller Camshafts |
Advertised Duration | 277 int./293 exh. |
Valve Springs Required | No |
Camshaft Gear Attachment | 3-bolt |
Basic Operating RPM Range | 1,900-7,000 |
Duration at 050 inch Lift | 227 int./243 exh. |
Lobe Separation (degrees) | 113 |
Summit Racing Part Number | CCA-54-454-11 |
Advertised Intake Duration | 277 |
Manufacturer's Part Number | 54-454-11 |
Advertised Exhaust Duration | 293 |
Computer-Controlled Compatible | Yes |
Intake Duration at 050 inch Lift | 227 |
Exhaust Duration at 050 inch Lift | 243 |
Camshaft Manufacturers Description | Good street/strip camshaft with very wide range. |
Valve Lift with Factory Rocker Arm Ratio | 0.614 int./0.624 exh. |
Intake Valve Lift with Factory Rocker Arm Ratio | 0.614 in. |
Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.624 in. |
Compatibility & Application Information | |
---|---|
Make | BUICK |
Model | LACROSSE |
Submodel | SUPER |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | C |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | P |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2005 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | Engine Manufacturer: General Motors |
Engine VIN Code | M |
Make | BUICK |
Model | RAINIER |
Submodel | CXL PLUS |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
COMP Cams Camshaft LS1 277Lrr HR-113 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1999 | Chevrolet | Silverado 2500 | LT | US |
1999 | Chevrolet | Silverado 1500 | LS | US |
1999 | GMC | Sierra 1500 | SLT | US |
1999 | Chevrolet | Silverado 1500 | LT | US |
1999 | GMC | Sierra 2500 | SL | US |
1999 | Chevrolet | Silverado 2500 | Base | US |
1999 | GMC | Sierra 2500 | SLE | US |
1999 | GMC | Sierra 1500 | SL | US |
1999 | Chevrolet | Silverado 2500 | LS | US |
1999 | Chevrolet | Silverado 1500 | Base | US |
1999 | GMC | Sierra 2500 | SLT | US |
1999 | GMC | Sierra 1500 | SLE | US |
2000 | GMC | Yukon | SLE | US |
2000 | GMC | Sierra 2500 | SLT | US |
2000 | GMC | Sierra 1500 | SLE | US |
2000 | GMC | Yukon | SLT | US |
2000 | Chevrolet | Suburban 1500 | LT | US |
2000 | Chevrolet | Silverado 2500 | LT | US |
2000 | Chevrolet | Silverado 1500 | LS | US |
2000 | GMC | Yukon XL 1500 | SLE | US |
2000 | GMC | Sierra 1500 | SLT | US |
2000 | Chevrolet | Tahoe | Base | US |
2000 | Chevrolet | Tahoe | LS | US |
2000 | Chevrolet | Silverado 1500 | LT | US |
2000 | GMC | Yukon XL 1500 | SLT | US |
2000 | Chevrolet | Tahoe | LT | US |
2000 | GMC | Sierra 2500 | SL | US |
2000 | Chevrolet | Silverado 2500 | Base | US |
2000 | GMC | Sierra 2500 | SLE | US |
2000 | GMC | Sierra 1500 | SL | US |
2000 | Chevrolet | Suburban 1500 | Base | US |
2000 | Chevrolet | Silverado 2500 | LS | US |
2000 | Chevrolet | Suburban 1500 | LS | US |
2000 | Chevrolet | Silverado 1500 | Base | US |
2001 | GMC | Sierra 1500 | SLE | US |
2001 | GMC | Yukon | SLT | US |
2001 | GMC | Sierra 2500 | SLT | US |
2001 | Chevrolet | Suburban 1500 | LT | US |
2001 | Chevrolet | Silverado 2500 | LT | US |
2001 | Chevrolet | Silverado 1500 | LS | US |
2001 | GMC | Yukon XL 1500 | SLE | US |
2001 | GMC | Sierra 1500 | SLT | US |
2001 | Chevrolet | Tahoe | Base | US |
2001 | Chevrolet | Silverado 2500 HD | Base | US |
2001 | GMC | Sierra 2500 HD | SL | US |
2001 | Chevrolet | Tahoe | LS | US |
2001 | Chevrolet | Silverado 1500 | LT | US |
2001 | GMC | Yukon XL 1500 | SLT | US |
2001 | GMC | Sierra 2500 HD | SLE | US |
2001 | Chevrolet | Silverado 2500 HD | LS | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
