XERSC 238/240 Ford4V
DOHC - XE-R Supercharged and Nitrous: Optimized combination for power and torque with acceptable fuel economy for your daily driver or highway cruiser. Programmer upgrade required.
Max strip and street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body, mass air, injectors and exhaust upgrades. Requires lower gears and custom tuning. Use a 2500+ stall. Rough idle.
Qvale: Mangusta 01 - 02 4.6 L Engine, Lincoln: Blackwood 02 - 03 5.4 L Engine, Mercury: Marauder 03 - 04 4.6 L Engine, Panoz: AIV Roadster 99 - 00 4.6 L Engine, Ford: Mustang 96 - 04 4.6 L Engine, Lincoln: Navigator 99 - 05 5.4 L Engine, Lincoln: Mark VIII 93 - 98 4.6 L Engine, Ford: Mustang 00 - 12 5.4 L Engine, Lincoln: Continental 95 - 02 4.6 L Engine, Ford: GT 05 - 06 5.4 L Engine, Panoz: Esperante 01 - 07 4.6 L Engine, Ford: Mustang 13 - 14 5.8 L Engine, Lincoln: Aviator 03 - 05 4.6 L Engine
Engine Camshaft
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

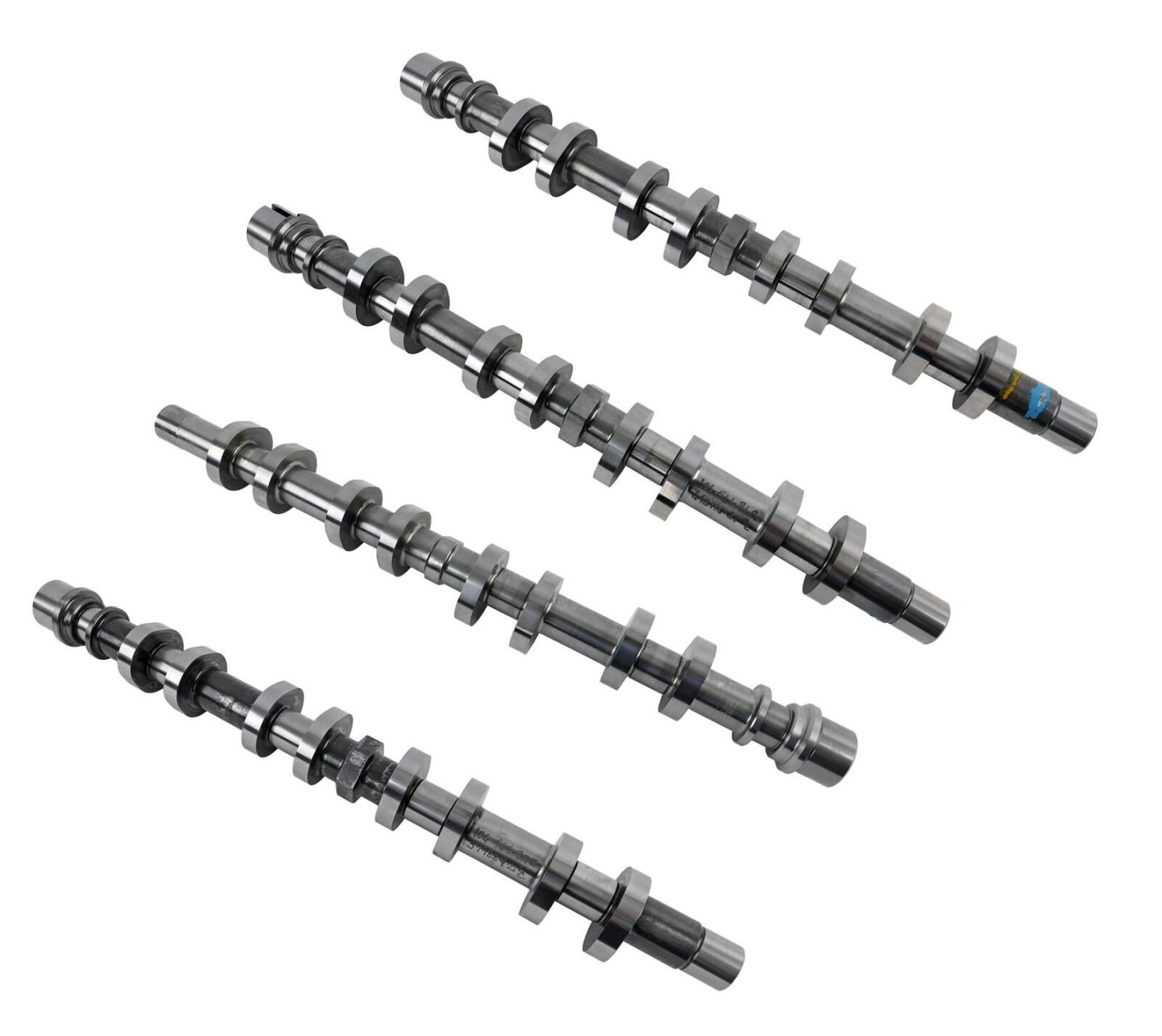

Camshafts, Hydraulic Roller Follower, Advertised Duration 273/275, Lift .475/.450, Ford, V8, 4V, Set of 4
COMP Cams XE-R supercharged and nitrous series modular 4-valve camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. XE-R supercharged and nitrous series camshafts from COMP Cams are available in a variety of mild-to-aggressive styles. They work with your supercharger or nitrous system to help provide the most power possible.
UPC | 036584096993 |
Brand | COMP Cams |
Notes | Fits 4V DOHC engines only, requires lower gears, exhaust upgrades, larger fuel injectors, throttle body, MAF sensor, and computer modifications. |
Quantity | Sold as a set of 4. |
Cam Style | DOHC |
Part Type | Camshafts |
Camshaft Use | Street/Strip |
Grind Number | XE274BH-116 |
Product Line | COMP Cams XE-R Supercharged and Nitrous Series Modular 4V Camshafts |
Advertised Duration | 273 int./275 exh. |
Valve Springs Required | Yes |
Basic Operating RPM Range | 2,000-6,400 |
Duration at 050 inch Lift | 238 int./240 exh. |
Lobe Separation (degrees) | 116 |
Advertised Intake Duration | 273 |
Manufacturer's Part Number | 106460 |
Advertised Exhaust Duration | 275 |
Computer-Controlled Compatible | Yes |
Intake Duration at 050 inch Lift | 238 |
Exhaust Duration at 050 inch Lift | 240 |
Camshaft Manufacturers Description | Max strip and street cams for supercharged or nitrous engines. Large gains in power with computer modifications, larger throttle body, mass air, injectors and exhaust upgrades. Requires lower gears. Automatics use a 2500 stall. Features a rough idle. |
Valve Lift with Factory Rocker Arm Ratio | 0.475 int./0.450 exh. |
Intake Valve Lift with Factory Rocker Arm Ratio | 0.475 in. |
Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.450 in. |
COMP Cams Camshaft Set F4.6/5.4D XE274B | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2005-2006 | Ford | GT | Base | US |
1996-2001 | Ford | Mustang | SVT Cobra, GT, SVT Cobra R | US |
2003-2004 | Ford | Mustang | SVT Cobra, GT, Mach 1, SVT Cobra 10th Anniversary | US |
2007-2014 | Ford | Mustang | Shelby GT500, Shelby GT500KR | US |
2003-2005 | Lincoln | Aviator | Base | US |
2002 | Lincoln | Blackwood | Base | US |
1995-2002 | Lincoln | Continental | Diamond Anniversary, Signature, Spinnaker Edition, Anniversary, Base | US |
1993-1998 | Lincoln | Mark VIII | Base, LSC, Anniversary | US |
1999-2004 | Lincoln | Navigator | Base | US |
2003-2004 | Mercury | Marauder | Base | US |
1999-2000 | Panoz | AIV Roadster | Base | US |
2001-2007 | Panoz | Esperante | Base, GT, GTLM | US |
2001-2002 | Qvale | Mangusta | Base | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | FORD |
Beginning Year | 1993 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Make | FORD |
Beginning Year | 1999 |
Ending Year | 2012 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
