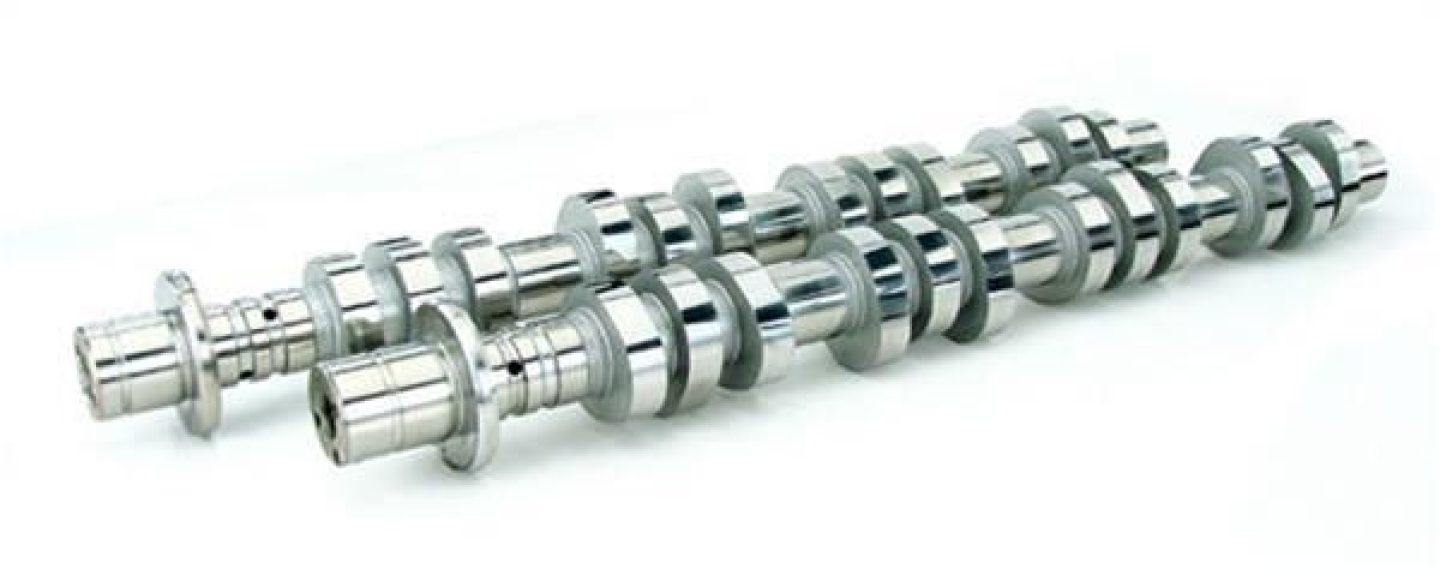

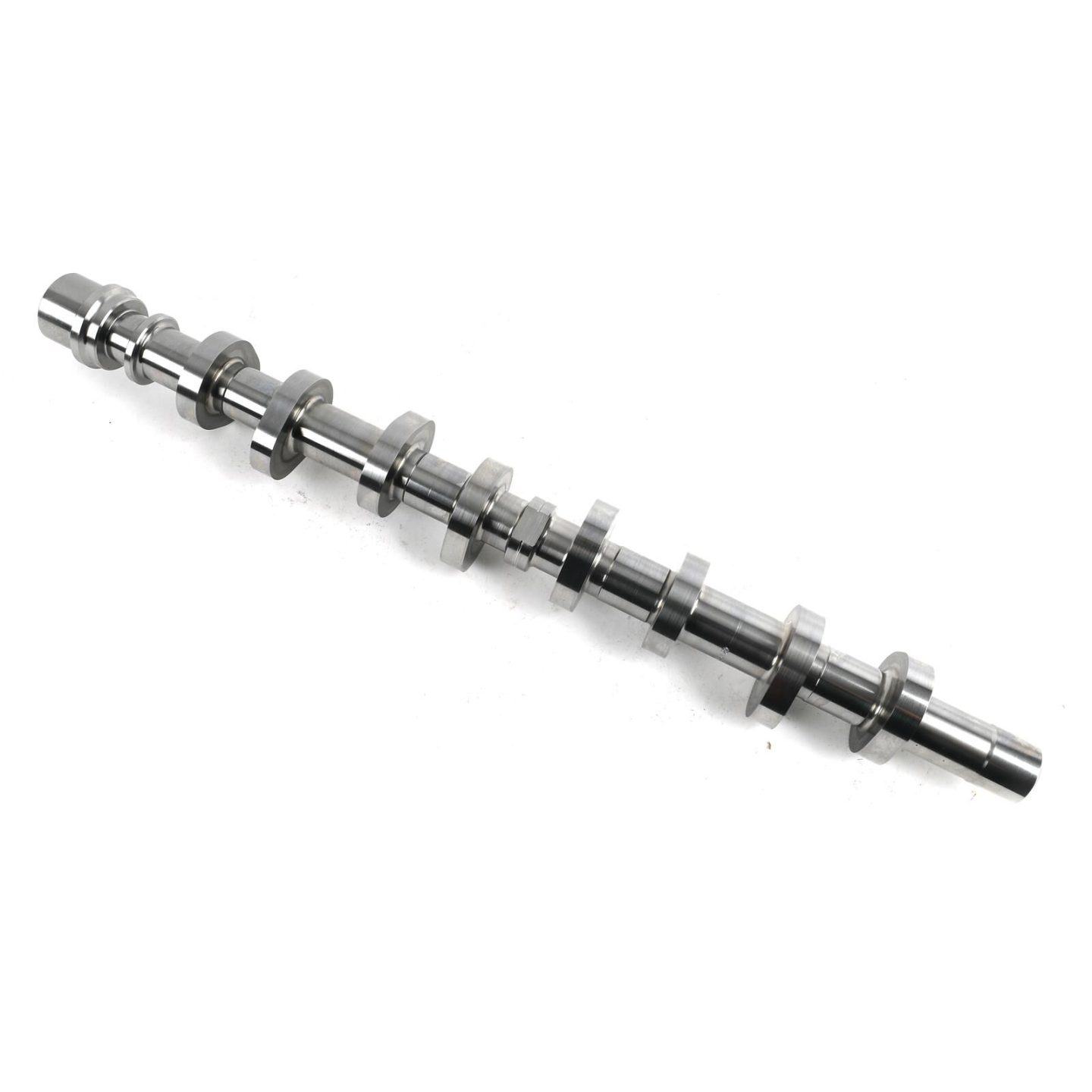

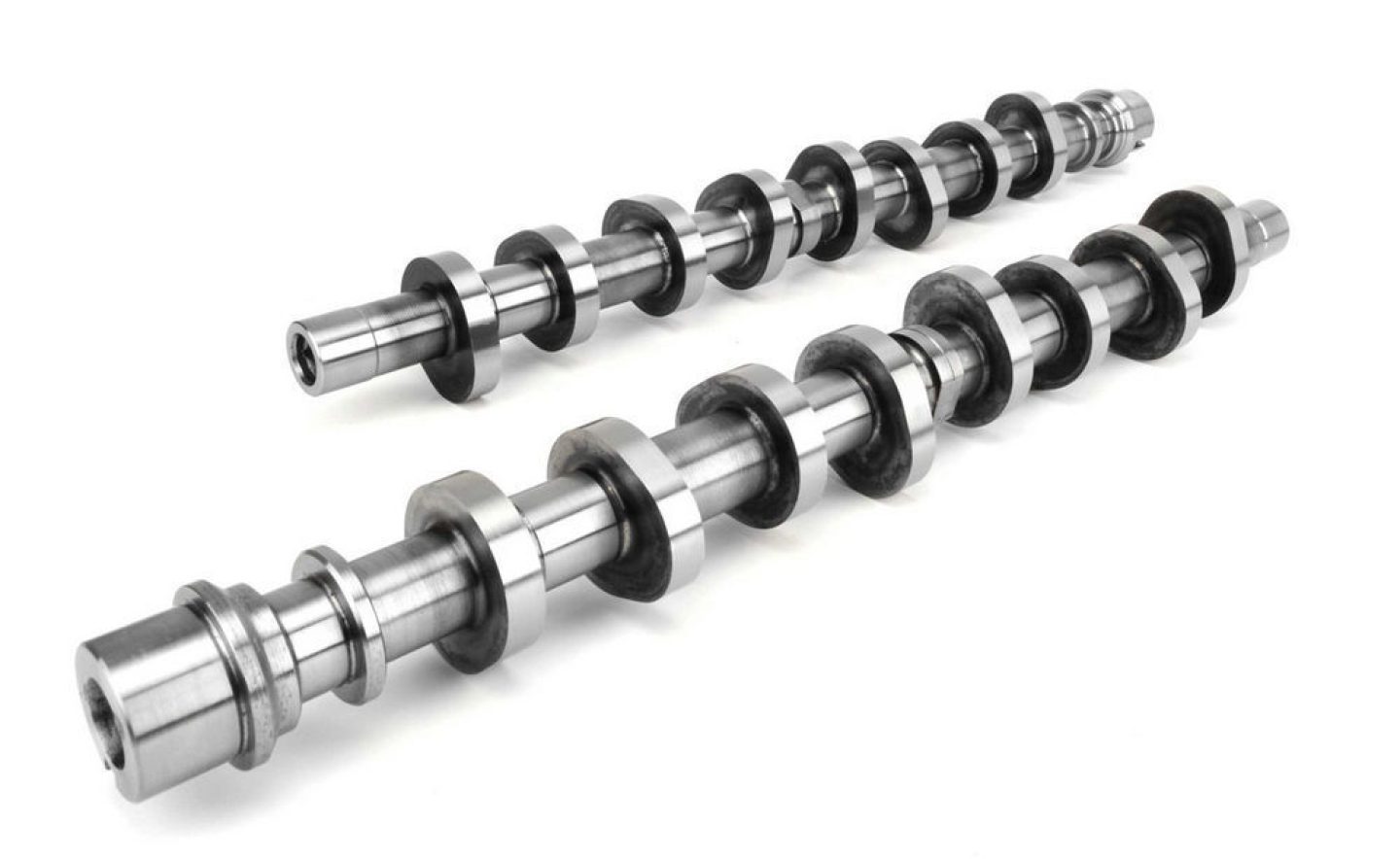

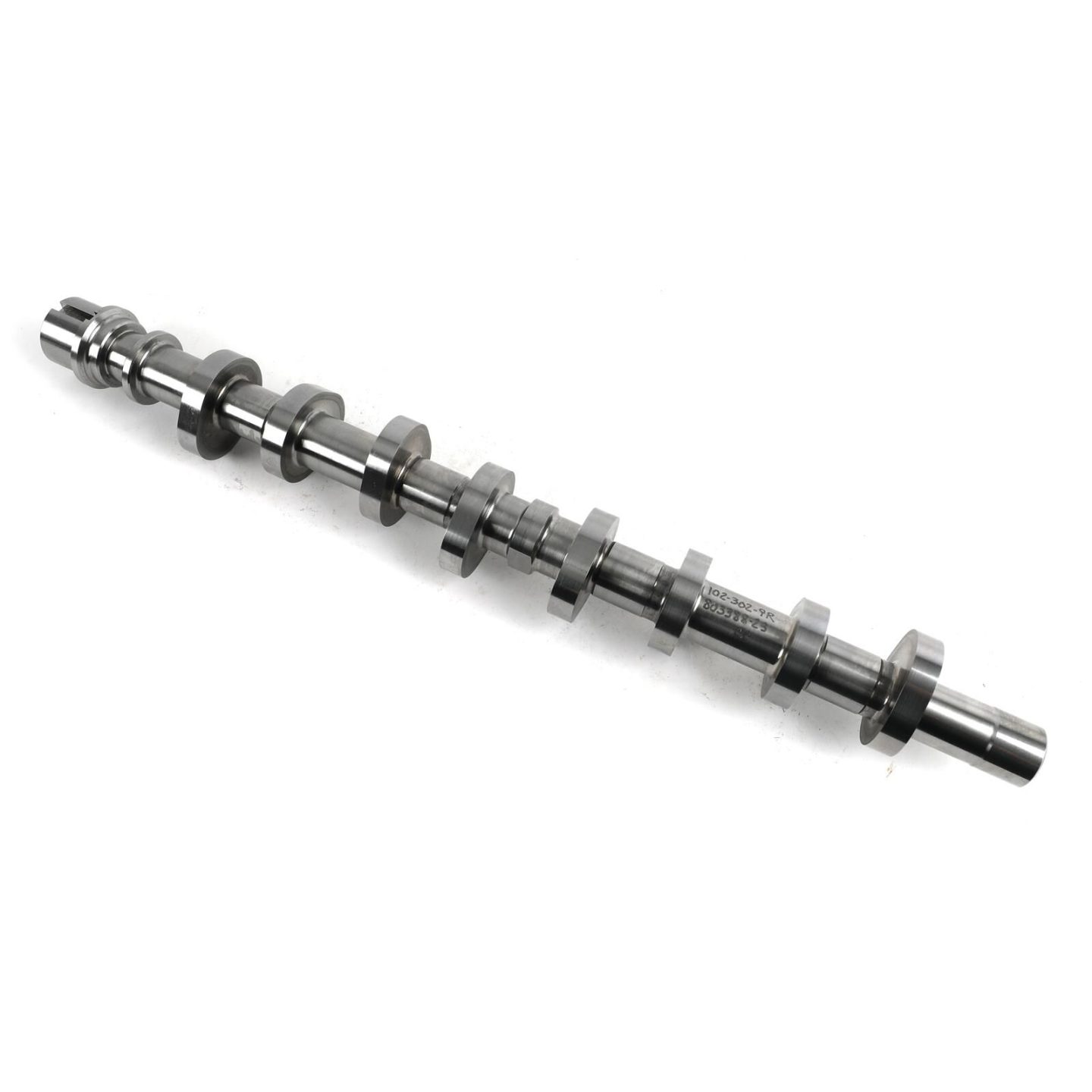

COMP Cams Xtreme Energy 274H-14 Camshaft Set for 4.6L and 5.4L SOHC Modular 2 Valve SOHC - Xtreme Energy: Hot street, 3.55-3.73 gears, 2000+ stall, rough idle. Requires custom tuning.
Hot street, 3.55-3.73 gears, 2000+ stall. Requires custom tuning. Rough idle.
Engine Camshaft
COMP Cams Xtreme Energy modular 2-valve camshafts are specifically created for high-demanding, overhead-camshaft engine configurations. From stock replacements to ultimate performance, there is an Xtreme Energy cam to meet your performance goals.
UPC | 036584072409 |
Brand | COMP Cams |
Notes | Fits 2V SOHC engines only. |
Quantity | Sold as a pair. |
Cam Style | SOHC |
Part Type | Camshafts |
Camshaft Use | Street/Strip |
Grind Number | XE274H |
Product Line | COMP Cams Xtreme Energy Modular 2-Valve Camshafts |
Advertised Duration | 274 int./278 exh. |
Valve Springs Required | Yes |
Basic Operating RPM Range | 2,000-6,000 |
Duration at 050 inch Lift | 236 int./240 exh. |
Lobe Separation (degrees) | 114 |
Summit Racing Part Number | CCA-102300 |
Advertised Intake Duration | 274 |
Manufacturer's Part Number | 102300 |
Advertised Exhaust Duration | 278 |
Computer-Controlled Compatible | Yes |
Intake Duration at 050 inch Lift | 236 |
Exhaust Duration at 050 inch Lift | 240 |
Camshaft Manufacturers Description | Fits SOHC engine. Hot street cam. Use with 3.55-3.73 gears 2000+ stall. Computer upgrade recommended. Rough idle. |
Valve Lift with Factory Rocker Arm Ratio | 0.500 int./0.500 exh. |
Intake Valve Lift with Factory Rocker Arm Ratio | 0.500 in. |
Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.500 in. |
Compatibility & Application Information | |
---|---|
Make | FORD |
Beginning Year | 1991 |
Ending Year | 1998 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Fits 2-valve heads only. |
Make | FORD |
Beginning Year | 1997 |
Ending Year | 1998 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Application Notes | Fits 2-valve heads only. |
Make | FORD |
Model | CROWN VICTORIA |
Submodel | BASE |
Beginning Year | 1992 |
Ending Year | 2008 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Aspiration: Naturally Aspirated, Cylinder Head Type: SOHC, Engine Manufacturer: Ford, Engine Version: N/R, Valves Per Engine: 16 |
Engine VIN Code | W |
Make | FORD |
Model | CROWN VICTORIA |
Submodel | BASE |
Beginning Year | 1996 |
Ending Year | 1996 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Aspiration: Naturally Aspirated, Cylinder Head Type: SOHC, Engine Manufacturer: Ford, Engine Version: Triton, Valves Per Engine: 16 |
Engine VIN Code | 6 |
Make | FORD |
Model | CROWN VICTORIA |
Submodel | BASE |
Beginning Year | 1996 |
Ending Year | 2005 |
Engine Type | V8 |
Liter | 4.6 |
CID | 281 |
Engine Family | Ford modular V8 |
Engine Size | 4.6L/281 |
Application Notes | Aspiration: Naturally Aspirated, Cylinder Head Type: SOHC, Engine Manufacturer: Ford, Engine Version: N/R, Valves Per Engine: 16 |
Engine VIN Code | 9 |
COMP Cams Camshaft Set F4.6S XE274H-14 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1991 | Lincoln | Town Car | Base | US |
1991 | Lincoln | Town Car | Signature | US |
1991 | Lincoln | Town Car | Cartier | US |
1991 | Lincoln | Town Car | Cypress | US |
1991 | Lincoln | Town Car | Executive | US |
1991 | Lincoln | Town Car | Touring Edition | US |
1992 | Ford | Crown Victoria | Touring Sedan | US |
1992 | Ford | Crown Victoria | LX | US |
1992 | Ford | Crown Victoria | S | US |
1992 | Lincoln | Town Car | Cypress | US |
1992 | Lincoln | Town Car | Touring Edition | US |
1992 | Lincoln | Town Car | Base | US |
1992 | Lincoln | Town Car | Executive | US |
1992 | Mercury | Grand Marquis | LS | US |
1992 | Ford | Crown Victoria | Base | US |
1992 | Lincoln | Town Car | Signature | US |
1992 | Lincoln | Town Car | Cartier | US |
1992 | Mercury | Grand Marquis | GS | US |
1993 | Ford | Crown Victoria | Police Interceptor | US |
1993 | Lincoln | Town Car | Touring Edition | US |
1993 | Ford | Crown Victoria | LX | US |
1993 | Lincoln | Town Car | Cartier | US |
1993 | Lincoln | Town Car | Base | US |
1993 | Mercury | Grand Marquis | LS | US |
1993 | Lincoln | Town Car | Signature | US |
1993 | Lincoln | Town Car | Executive | US |
1993 | Mercury | Grand Marquis | GS | US |
1993 | Ford | Crown Victoria | Base | US |
1993 | Ford | Crown Victoria | S | US |
1993 | Lincoln | Town Car | Jack Nicklaus | US |
1993 | Lincoln | Town Car | Cypress | US |
1994 | Mercury | Cougar | XR-7 | US |
1994 | Ford | Crown Victoria | LX | US |
1994 | Ford | Crown Victoria | S | US |
1994 | Lincoln | Town Car | Cartier | US |
1994 | Lincoln | Town Car | Touring Edition | US |
1994 | Ford | Thunderbird | LX | US |
1994 | Mercury | Grand Marquis | LS | US |
1994 | Ford | Crown Victoria | Base | US |
1994 | Ford | Crown Victoria | Police Interceptor | US |
1994 | Lincoln | Town Car | Executive | US |
1994 | Lincoln | Town Car | Signature | US |
1994 | Lincoln | Town Car | Cypress | US |
1994 | Lincoln | Town Car | Tournament Edition | US |
1994 | Lincoln | Town Car | Base | US |
1994 | Mercury | Grand Marquis | GS | US |
1995 | Lincoln | Town Car | Base | US |
1995 | Mercury | Grand Marquis | LS | US |
1995 | Ford | Crown Victoria | Police Interceptor | US |
1995 | Lincoln | Town Car | Signature | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
