Engine Valve Spring
With a .590" maximum lift, these Beehive Valve Springs were designed for Hydraulic or solid flat tappet cams as well as Hydraulic Roller cams. They allow big block engines to turn more RPM. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
COMP Cams Beehive Valve Springs
Engine Valve Spring Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

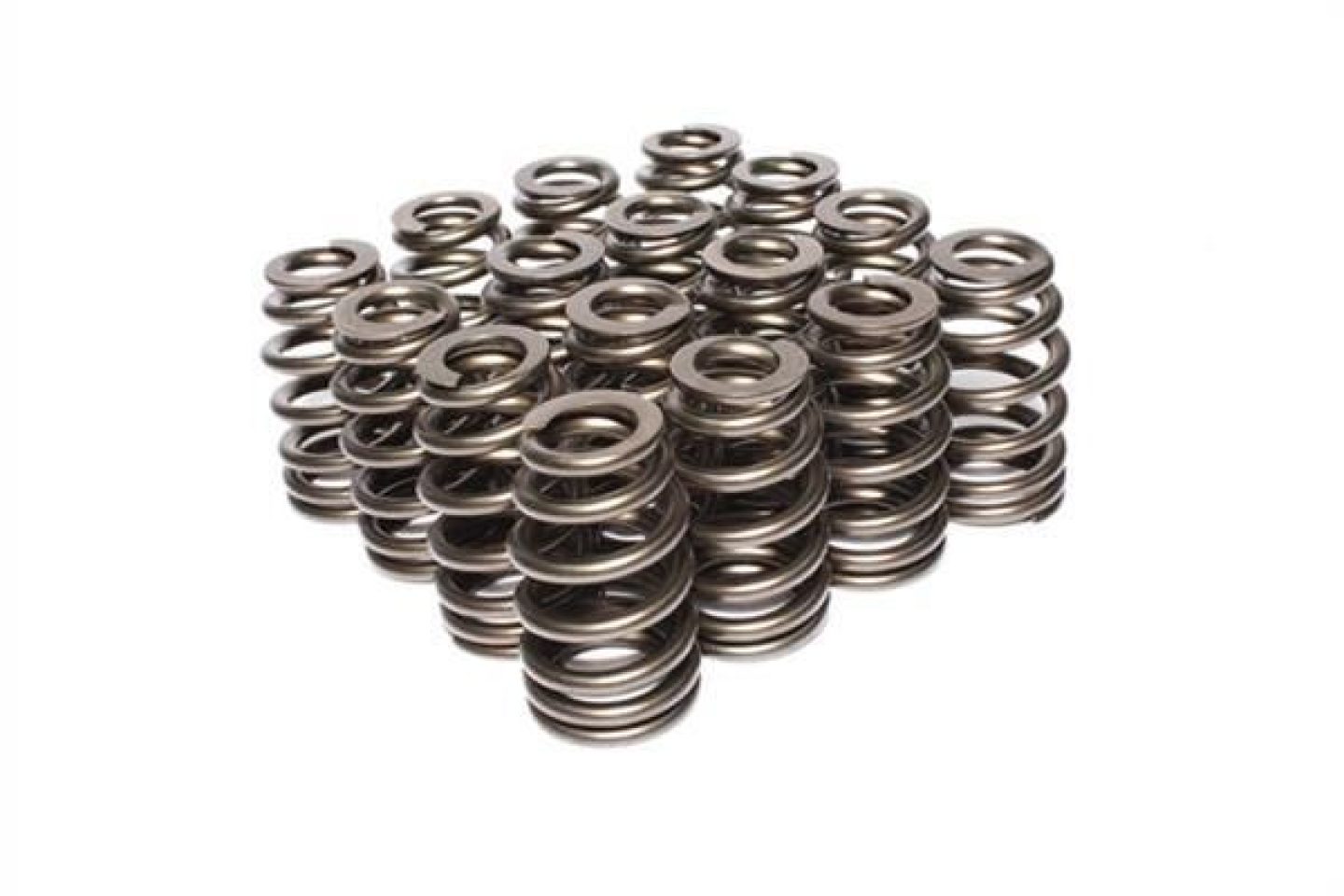

Valve Springs, Single, 1.445 in. Outside Diameter, 370 lbs./in. Rate, 1.230 in. Coil Bind Height, Set of 16
Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.
UPC | 036584088646 |
Brand | COMP Cams |
Notes | O.D at top of spring is 1.095 in. and I.D. at top is 0.650 in. |
Quantity | Sold as a set of 16. |
Part Type | Valve Springs |
Product Line | COMP Cams Valve Springs |
Locks Included | No |
Retainers Included | No |
Valve Spring Style | Beehive |
Valve Springs Coated | No |
Spring Rate (lbs/in.) | 370 lbs./in. |
Coil Bind Height (in.) | 1.230 in. |
Damper Spring Included | No |
Maximum Valve Lift (in.) | 0.600 in. |
Valve Stem Seals Included | No |
Manufacturer's Part Number | 26120-16 |
Number of Springs Per Valve | Single |
Inside Diameter of Outer Spring (in.) | 0.650 in. |
Outside Diameter of Outer Spring (in.) | 1.445 in. |
COMP Cams Valve Springs 1.445in Beehive | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1971 | Buick | Centurion | Base | US |
1973 | Buick | Centurion | Base | US |
1974 | Buick | Century | Base, Luxus | US |
1967-1971 | Buick | Electra | Base, Custom, 225, 225 Custom | US |
1973 | Buick | Electra | Base, 225, 225 Custom | US |
1970-1971 | Buick | Estate Wagon | Base | US |
1968-1969 | Buick | GS 400 | Base | US |
1970 | Buick | GS 455 | Base, GSX | US |
1967 | Buick | Gran Sport | Base | US |
1970-1971 | Buick | LeSabre | Base, Custom | US |
1973-1974 | Buick | LeSabre | Base, Custom, Luxus | US |
1973-1974 | Buick | Regal | Base | US |
1967-1971 | Buick | Riviera | Base, Gran Sport | US |
1967-1968 | Buick | Skylark | Base, Custom | US |
1970-1971 | Buick | Skylark | Base, Custom | US |
1968 | Buick | Sportwagon | Base, Custom | US |
1970 | Buick | Sportwagon | Base | US |
1967-1970 | Buick | Wildcat | Base, Custom | US |
2002-2003 | Chevrolet | Avalanche 2500 | Base | US |
1965-1975 | Chevrolet | Bel Air | Base | US |
1965-1972 | Chevrolet | Biscayne | Base | US |
1973 | Chevrolet | Blazer | Base | US |
1972 | Chevrolet | Brookwood | Base | US |
1975-1980 | Chevrolet | C10 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Big Ten | US |
1968-1974 | Chevrolet | C10 Pickup | Base | US |
1968-1980 | Chevrolet | C10 Suburban | Base, Custom Deluxe, Scottsdale, Silverado | US |
1990-1993 | Chevrolet | C1500 | 454 SS, Cheyenne, Scottsdale, Silverado, WT | US |
1975-1986 | Chevrolet | C20 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1968-1974 | Chevrolet | C20 Pickup | Base | US |
1968-1986 | Chevrolet | C20 Suburban | Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1991-1995 | Chevrolet | C2500 | Cheyenne, Silverado, Scottsdale, Base, WT | US |
1992-1995 | Chevrolet | C2500 Suburban | Base, Silverado, LS, LT | US |
1975-1986 | Chevrolet | C30 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1968-1974 | Chevrolet | C30 Pickup | Base | US |
1988-1995 | Chevrolet | C3500 | Cheyenne, Scottsdale, Silverado, Base | US |
1967-1972 | Chevrolet | Camaro | Base, RS, SS, Z28 | US |
1966-1976 | Chevrolet | Caprice | Base, Classic, Estate, Classic Sport, Estate Wagon, Classic Landau, Classic Estate | US |
1965-1973 | Chevrolet | Chevelle | Base, SS, Concours, Deluxe, 300, 300 Deluxe, Malibu, Nomad, Concours Estate, Greenbrier | US |
1968 | Chevrolet | Chevy II | Nova | US |
1966-1974 | Chevrolet | Corvette | Base | US |
1966-1975 | Chevrolet | El Camino | Base, Custom, SS | US |
2001-2002 | Chevrolet | Express 3500 | Base, LS | US |
1973-1974 | Chevrolet | G10 Van | Base | US |
1976 | Chevrolet | G20 | Beauville, Chevy Van | US |
1973-1974 | Chevrolet | G20 Van | Base, Sportvan | US |
1975-1976 | Chevrolet | G30 | Beauville, Chevy Van, Hi-Cube | US |
1988-1996 | Chevrolet | G30 | Beauville, Chevy Van, Hi-Cube, Sportvan | US |
1973-1974 | Chevrolet | G30 Van | Base | US |
1965-1976 | Chevrolet | Impala | Base, SS, Custom, Sport, S, Custom Landau | US |
Note: Displaying first 50 entries. |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Installed Height (in.) | 1.880 in. |
Seat Pressure at Installed Height (lbs.) | 155 lbs. |
Open Height (in.)(application) | 1.280 in. |
Open Pressure (lbs.) | 377 lbs. |
Application Notes | O.D at top of spring is 1.095 in. and I.D. at top is 0.650 in. |
