Engine Valve Spring
With a .550" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 and 3 Valve engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

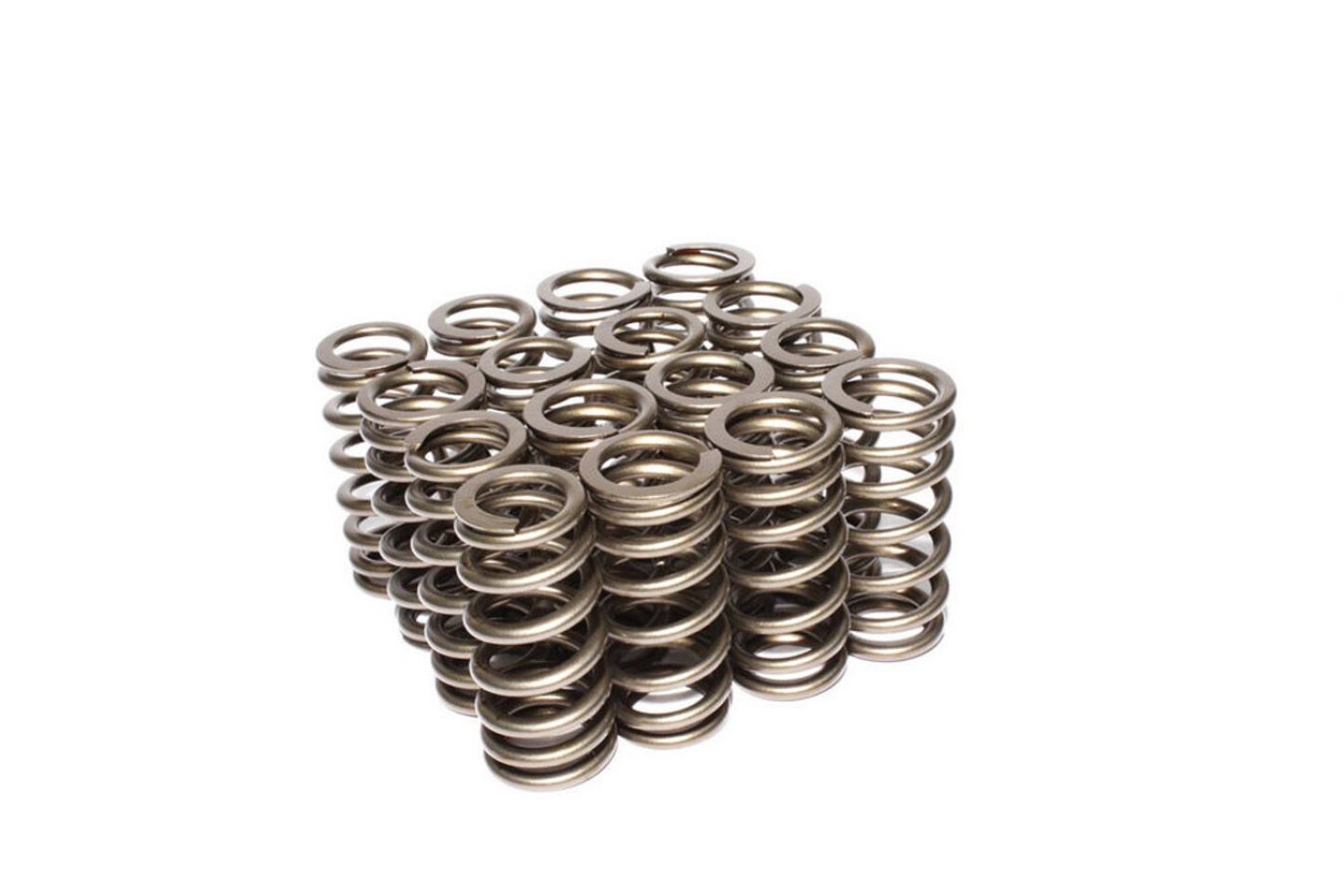

COMP Cams Beehive Valve Springs for Ford 4.6L and 5.4L Modular 2 Valve Engines
Engine Valve Spring Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Valve Springs, Single, 0.959 in. Outside Diameter, 191 lbs./in. Rate, 0.952 in. Coil Bind Height, Set of 16
Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.
UPC | 036584044376 |
Brand | COMP Cams |
Notes | O.D. at top of spring is 0.959 in. and I.D. at top is 0.636 in. |
Quantity | Sold as a set of 16. |
Part Type | Valve Springs |
Product Line | COMP Cams Valve Springs |
Locks Included | No |
Retainers Included | No |
Valve Spring Style | Beehive |
Valve Springs Coated | No |
Spring Rate (lbs/in.) | 191 lbs./in. |
Coil Bind Height (in.) | 0.952 in. |
Damper Spring Included | No |
Maximum Valve Lift (in.) | 0.570 in. |
Valve Stem Seals Included | No |
Manufacturer's Part Number | 26113-16 |
Number of Springs Per Valve | Single |
Inside Diameter of Outer Spring (in.) | 0.640 in. |
Outside Diameter of Outer Spring (in.) | 1.061 in. |
COMP Cams Valve Springs Ford 4.6L 2 Valve | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1997-2000 | Ford | E-150 Econoline | Base, XL | US |
1997-2000 | Ford | E-150 Econoline Club Wagon | Chateau, Custom, XLT | US |
1997-2000 | Ford | E-250 Econoline | Base, XL | US |
1997-1998 | Ford | E-350 Econoline | Base, XL | US |
1997-2000 | Ford | E-350 Econoline Club Wagon | Chateau, Custom, XLT, XLT HD, XL HD | US |
1999-2000 | Ford | E-350 Super Duty | Base, XL | US |
2000 | Ford | E-450 Econoline Super Duty | Custom | US |
1997-1998 | Ford | Econoline Super Duty | Custom | US |
2000 | Ford | Excursion | Limited, XLT | US |
1997-2000 | Ford | Expedition | Eddie Bauer, XLT | US |
1997-2000 | Ford | F-150 | Base, Lariat, XL, XLT, Lightning, Harley-Davidson Edition | US |
1997-1999 | Ford | F-250 | Base, Lariat, XL, XLT | US |
1999-2000 | Ford | F-250 Super Duty | Lariat, XL, XLT | US |
1999-2000 | Ford | F-350 Super Duty | Lariat, XL, XLT | US |
2006-2007 | Ford | Mustang | GT, Shelby GT | US |
1998-1999 | Lincoln | Navigator | Base | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
