DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.
DW400 Pump Module for Chevy Silverado 1500 & GMC Sierra 1500 2014-18 V8 (5.3L, 6.2L)
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

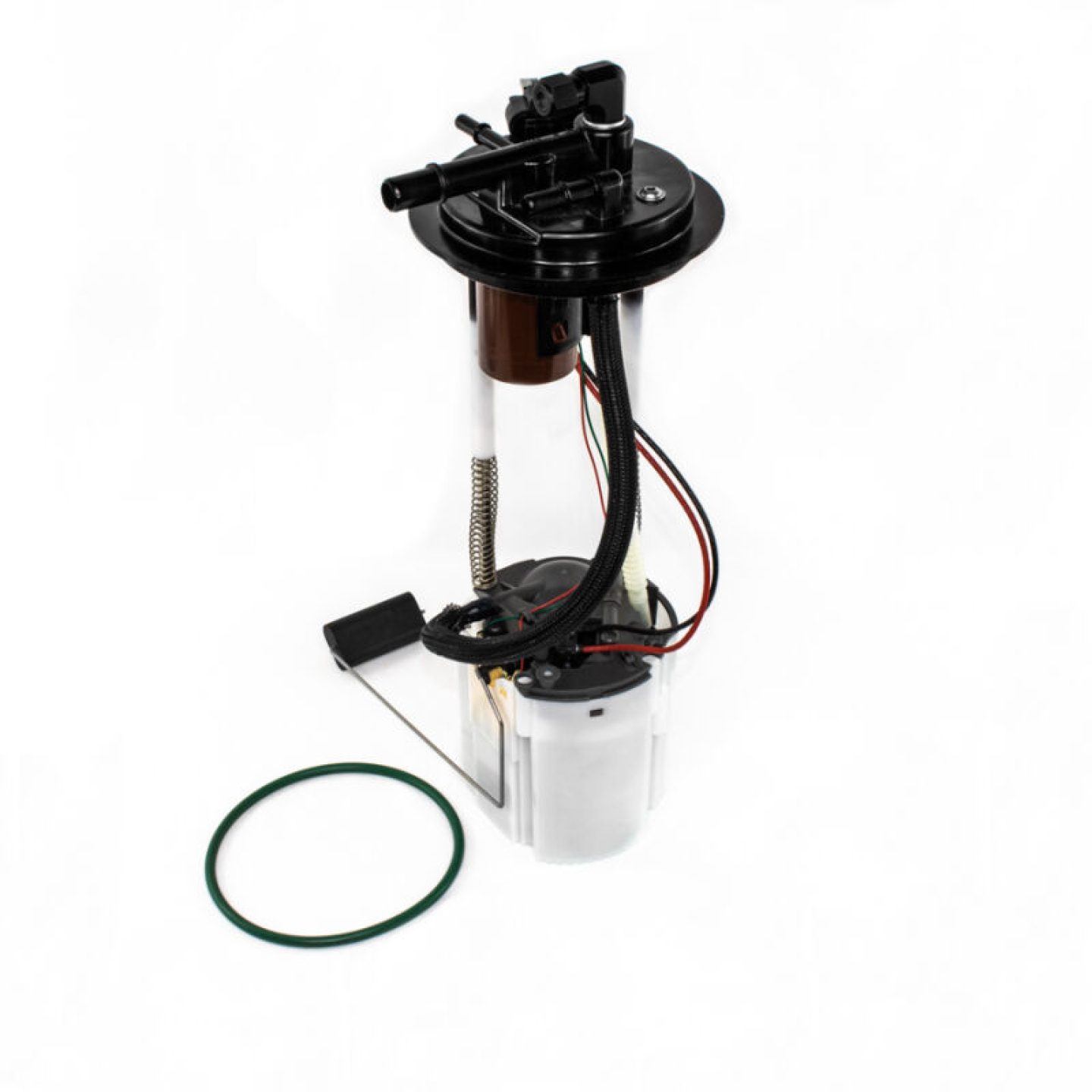

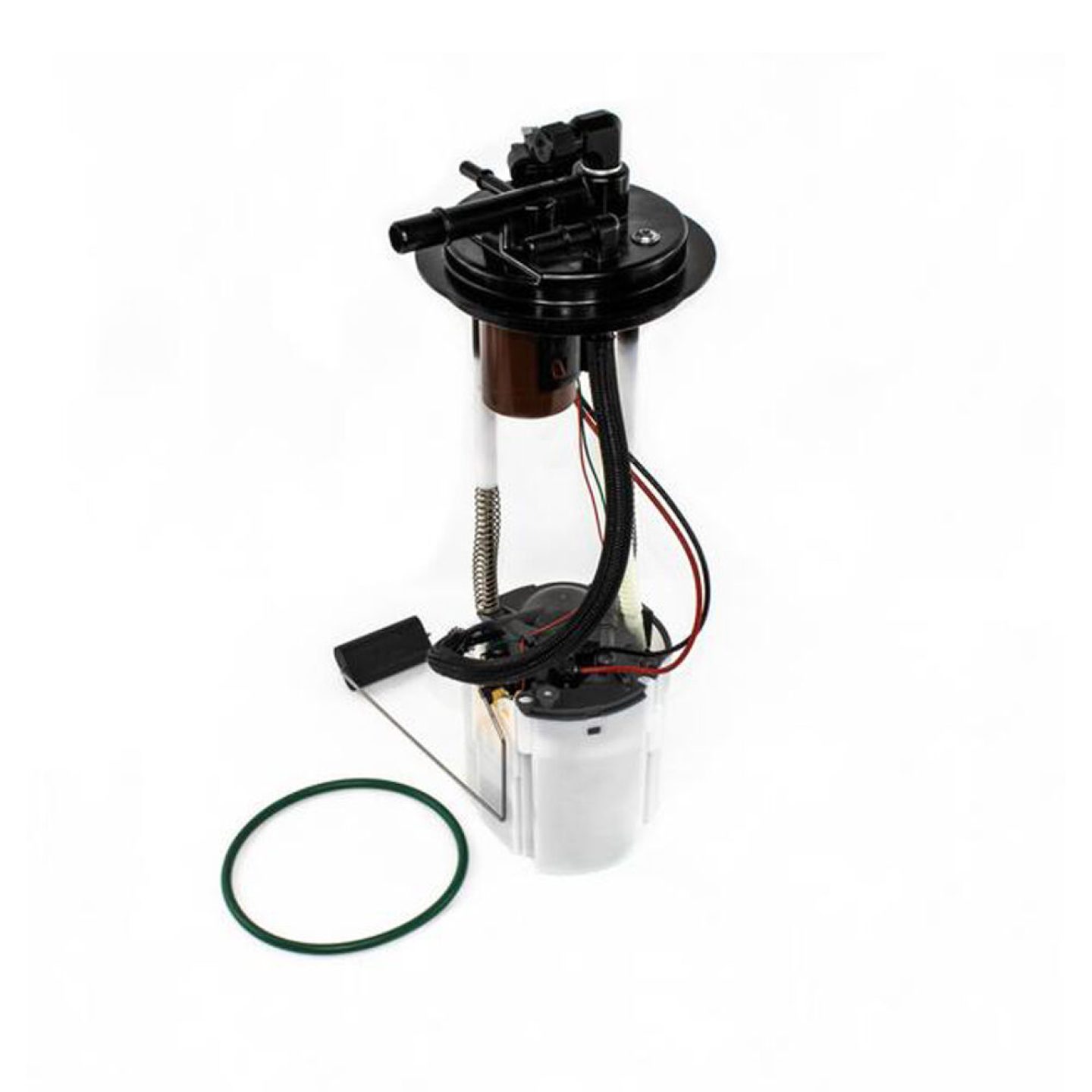

Pump Module DW400 Pump for Chevy Silverado 1500 & GMC Sierra 1500 2014-18 V8 (5.3L, 6.2L)
DeatschWerks have taken their DW400 electric fuel pump and turned it into an in-tank drop-in module. These modules feature a fuel pump that flows 415 lph and uses an impeller made of a lightweight composite that's impervious to fuels like E85 and race fuel. DeatschWerks DW400 in-tank electric fuel pump modules are available for a variety of applications.
UPC | 887753534682 |
Brand | DeatschWerks |
Quantity | Sold as a kit. |
Flow Rate | 109 gph/415 lph |
Part Type | Fuel Pumps |
Product Line | DeatschWerks DW400 In-Tank Electric Fuel Pump Modules |
Fuel Pump Type | Electric In-tank |
Inlet Quantity | 1 |
Gasket Included | Yes |
Outlet Quantity | 1 |
Pulley Included | No |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Hose barb |
Fuel Pressure (psi) | 40 psi |
Fuel Pump Inlet Size | Stock |
Sending Unit Included | Yes |
Wiring Harness Included | No |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 9-401-7014 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
DeatschWerks 14-18 GM Truck DW400 Pump Module | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2014-2018 | Chevrolet | Silverado 1500 | WT, LT, LTZ, High Country, SSV, LS, Custom | US |
2014-2018 | GMC | Sierra 1500 | SLE, SLT, Base, Denali | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | SILVERADO 1500 |
Submodel | CUSTOM |
Beginning Year | 2016 |
Ending Year | 2018 |
Engine Type | V6 |
Liter | 4.3 |
CID | 262 |
Engine Family | GM V6 |
Engine Size | 4.3L/262 |
Drivetrain | 4WD |
Application Notes | V8 5.3L, 6.2L |
Engine VIN Code | H |
Universal | No |
Make | CHEVROLET |
Model | SILVERADO 1500 |
Submodel | CUSTOM |
Beginning Year | 2016 |
Ending Year | 2018 |
Engine Type | V6 |
Liter | 4.3 |
CID | 262 |
Engine Family | GM V6 |
Engine Size | 4.3L/262 |
Drivetrain | RWD |
Application Notes | V8 5.3L, 6.2L |
Engine VIN Code | H |
Universal | No |
Make | CHEVROLET |
Model | SILVERADO 1500 |
Submodel | CUSTOM |
Beginning Year | 2016 |
Ending Year | 2018 |
Engine Type | V8 |
Liter | 5.3 |
CC | 5328 |
CID | 325 |
Engine Family | Chevy small block Gen V |
Engine Size | 5.3L/325 |
Drivetrain | 4WD |
Application Notes | V8 5.3L, 6.2L |
Engine VIN Code | C |
