Regulator
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.

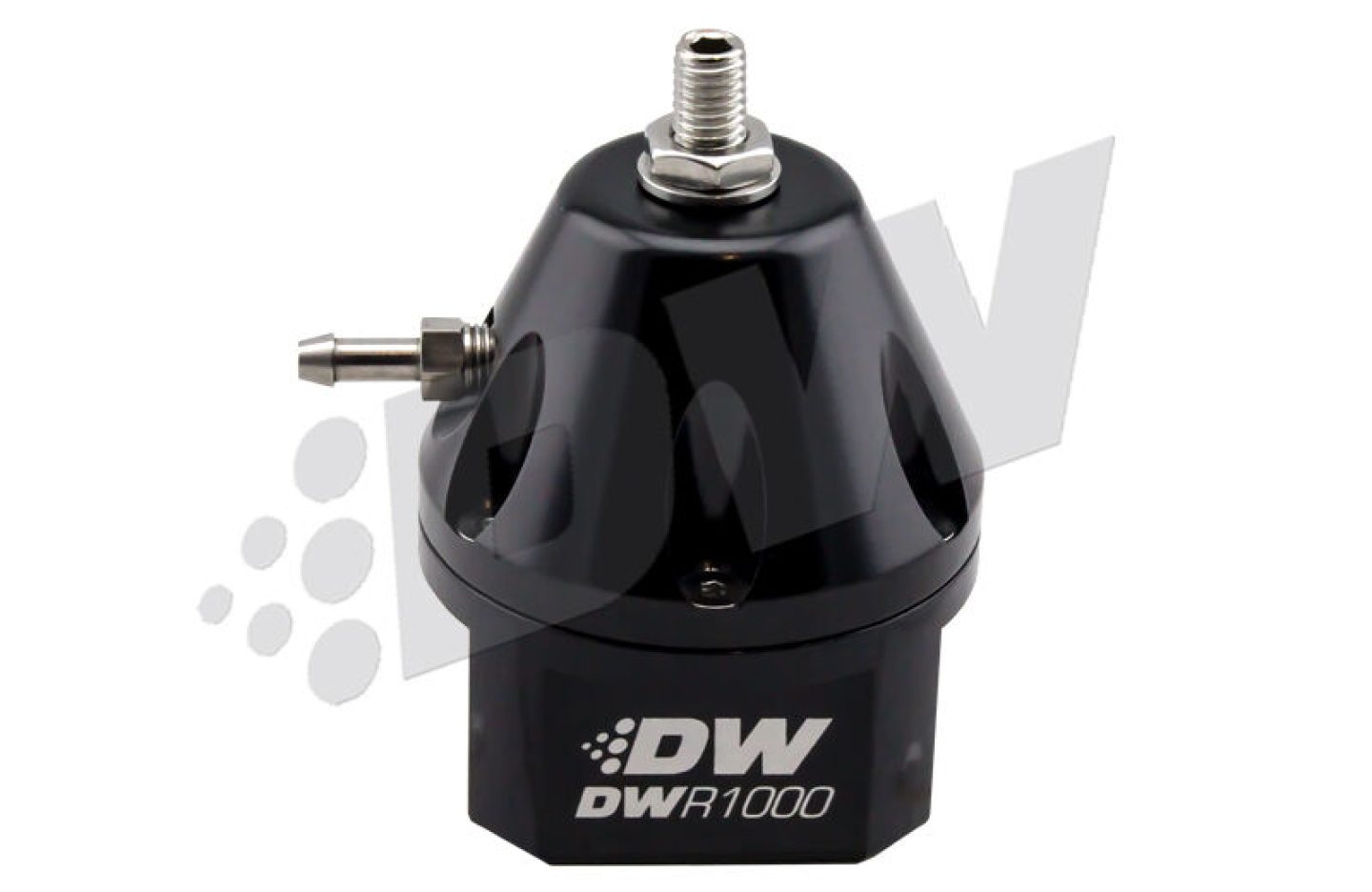

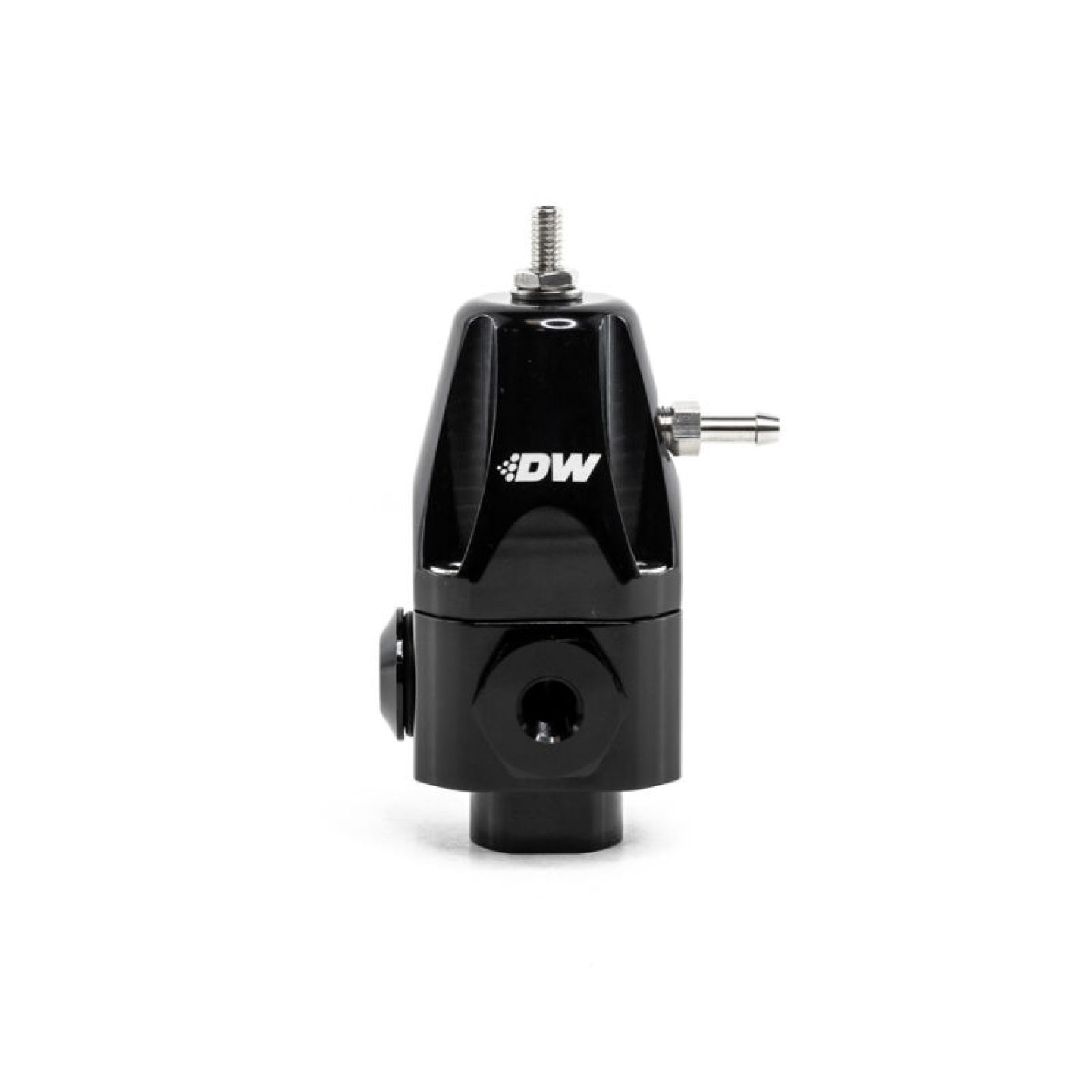

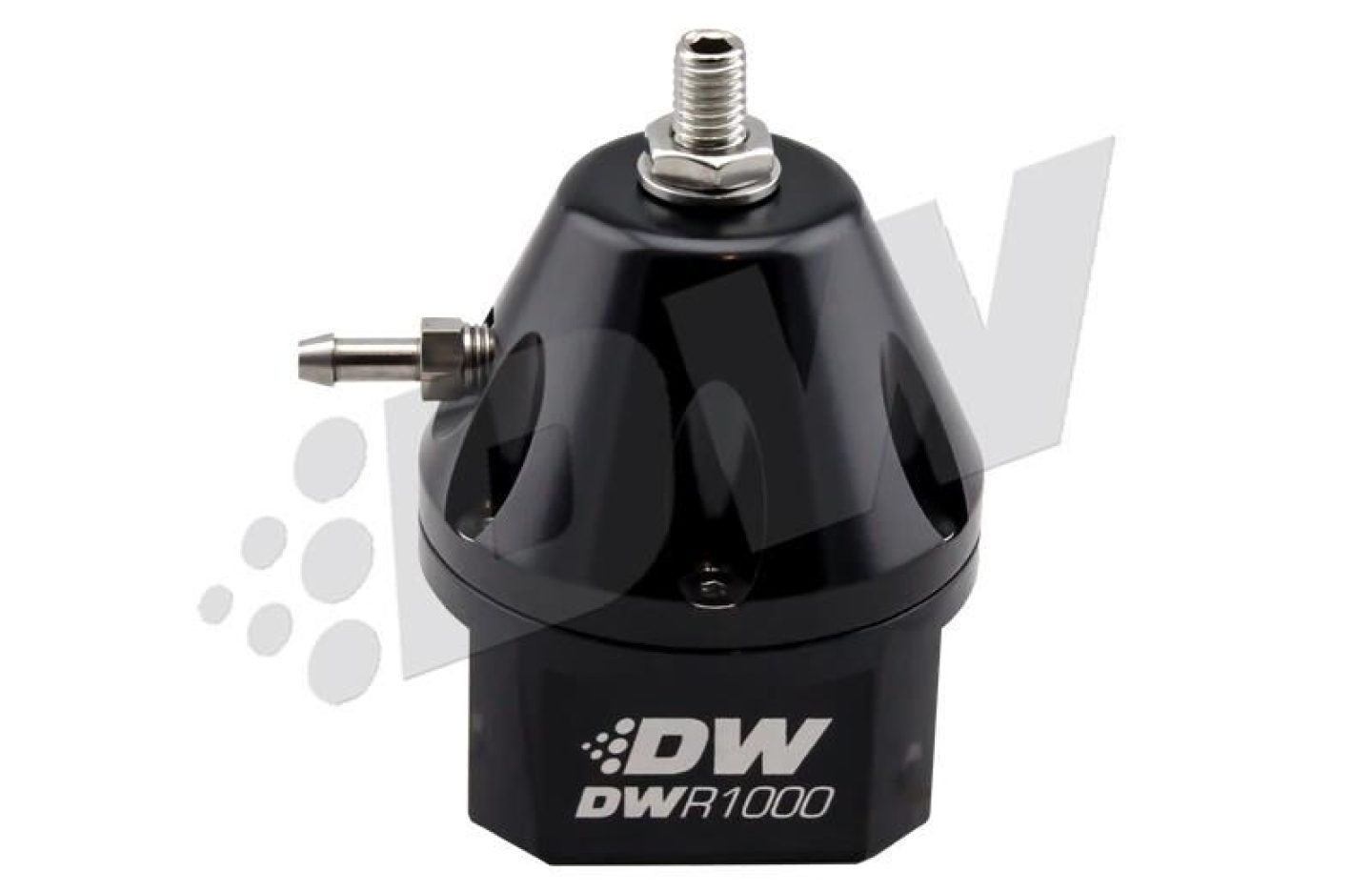

DWR1000 adjustable fuel pressure regulator, anodized black. Dual -8AN inlet and -6AN outlet. Universal fitment
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Pressure Regulators, Return, 30-100 psi, Aluminum, Black Anodized, Two -8 AN O-ring Female Inlet/Outlet, One -6 AN O-ring Female Return, Each
DeatschWerks fuel pressure regulators provide the quality, precision, and reliability that your high performance fuel system requires to deliver optimum performance. DW adjustable regulators come in 1,000 and 2,000 hp models, with both featuring dual AN inlets, single bottom mounted AN returns, and semi-compact 60mm footprints for maximum installation flexibility. They utilize stainless steel hardware, nitrile fiber diaphragms, anodized housings, and 100 percent brass-free construction to be compatible with ethanol and methanol. The design of the DeatschWerks fuel pressure regulators will also allow for precision pressure adjustment via their ball-bearing mechanism, combined with a 2 psi-per-turn pressure ratio that makes dialing-in your desired target easy.
UPC | 00887753528513 |
Brand | DeatschWerks |
Quantity | Sold individually. |
Part Type | Fuel Pressure Regulators |
Gauge Port | Yes |
Rebuildable | No |
Product Line | DeatschWerks Fuel Pressure Regulators |
Inlet Quantity | 2 |
Outlet Quantity | 1 |
Regulator Style | Return |
Inlet Attachment | Female straight cut O-ring |
Regulator Finish | Black anodized |
Fittings Included | No |
Outlet Attachment | Female straight cut O-ring |
Return Attachment | Female straight cut O-ring |
Regulator Location | Inline |
Regulator Material | Aluminum |
Return Fitting Size | -6 AN |
Regulator Inlet Size | -8 AN |
Regulator Outlet Size | -8 AN |
Regulator Pressure (psi) | 30-100 |
Mounting Bracket Included | Yes |
Manufacturer's Part Number | 6-1000-FRB |
Boost/Vacuum Reference Port | Yes |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | ALCOHOL |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | FLEX |
Regulator Usage | Multi-port injection |
Universal | Yes |
Fuel Type | GAS |
Regulator Usage | Multi-port injection |
