TransTunnelPatch

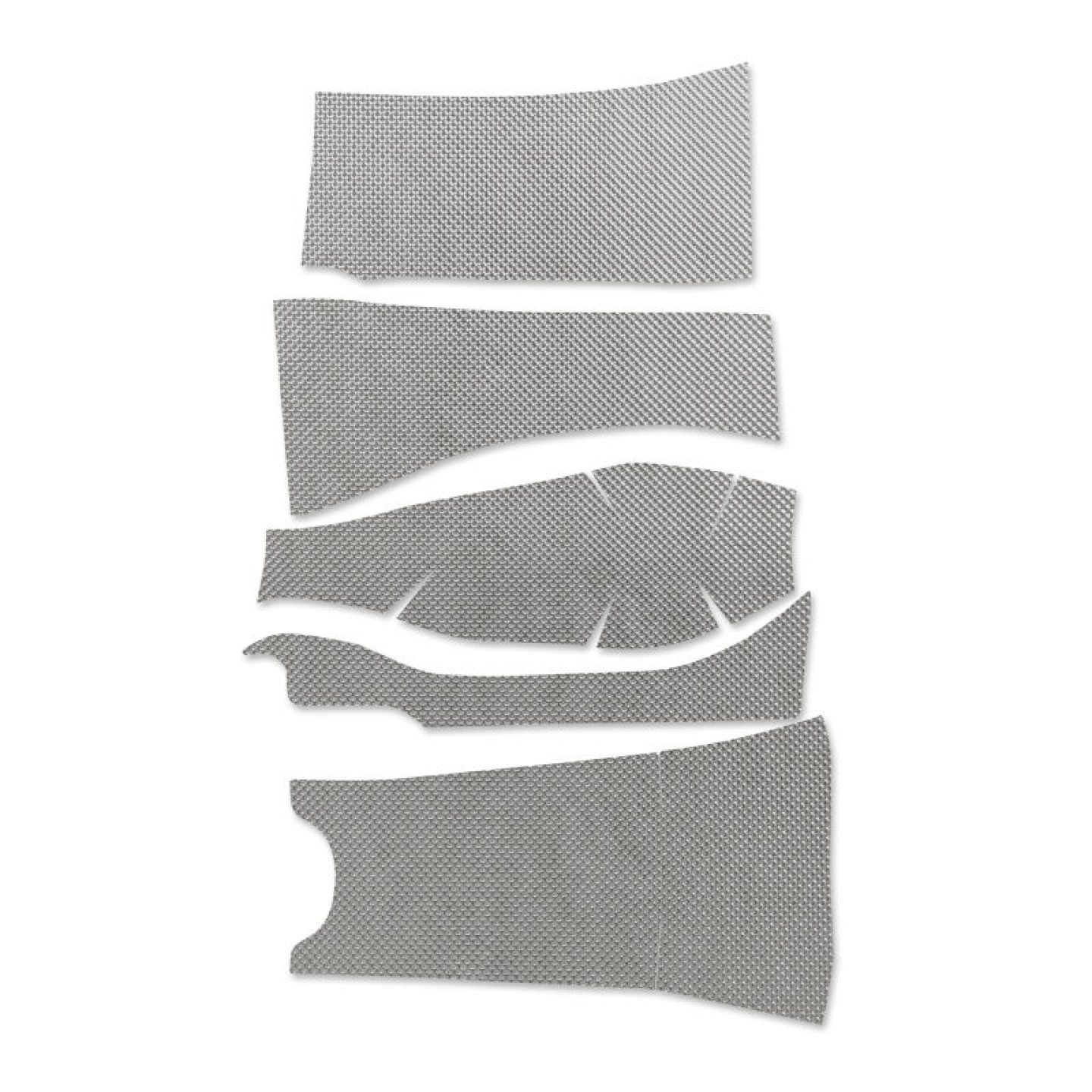

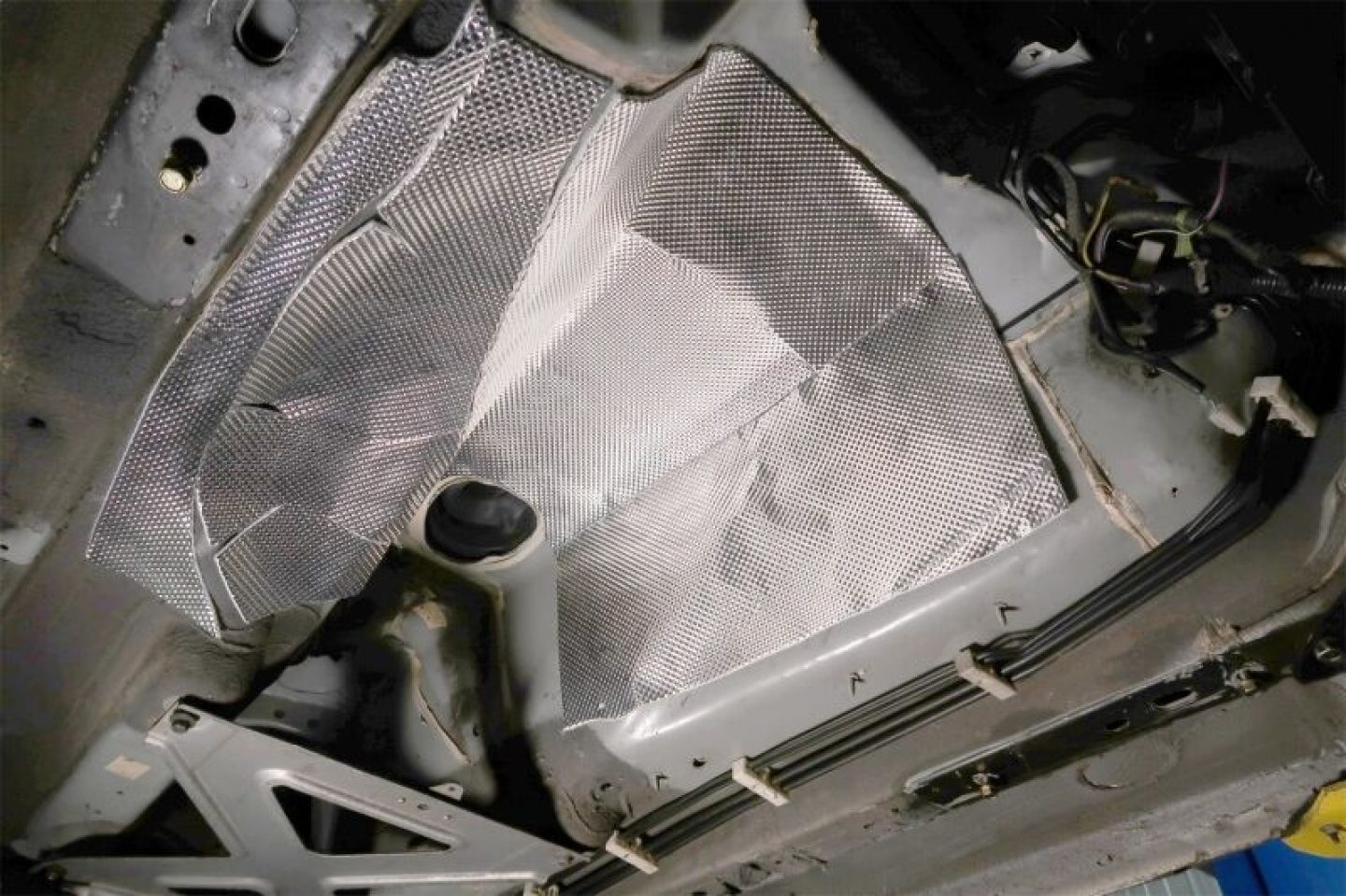

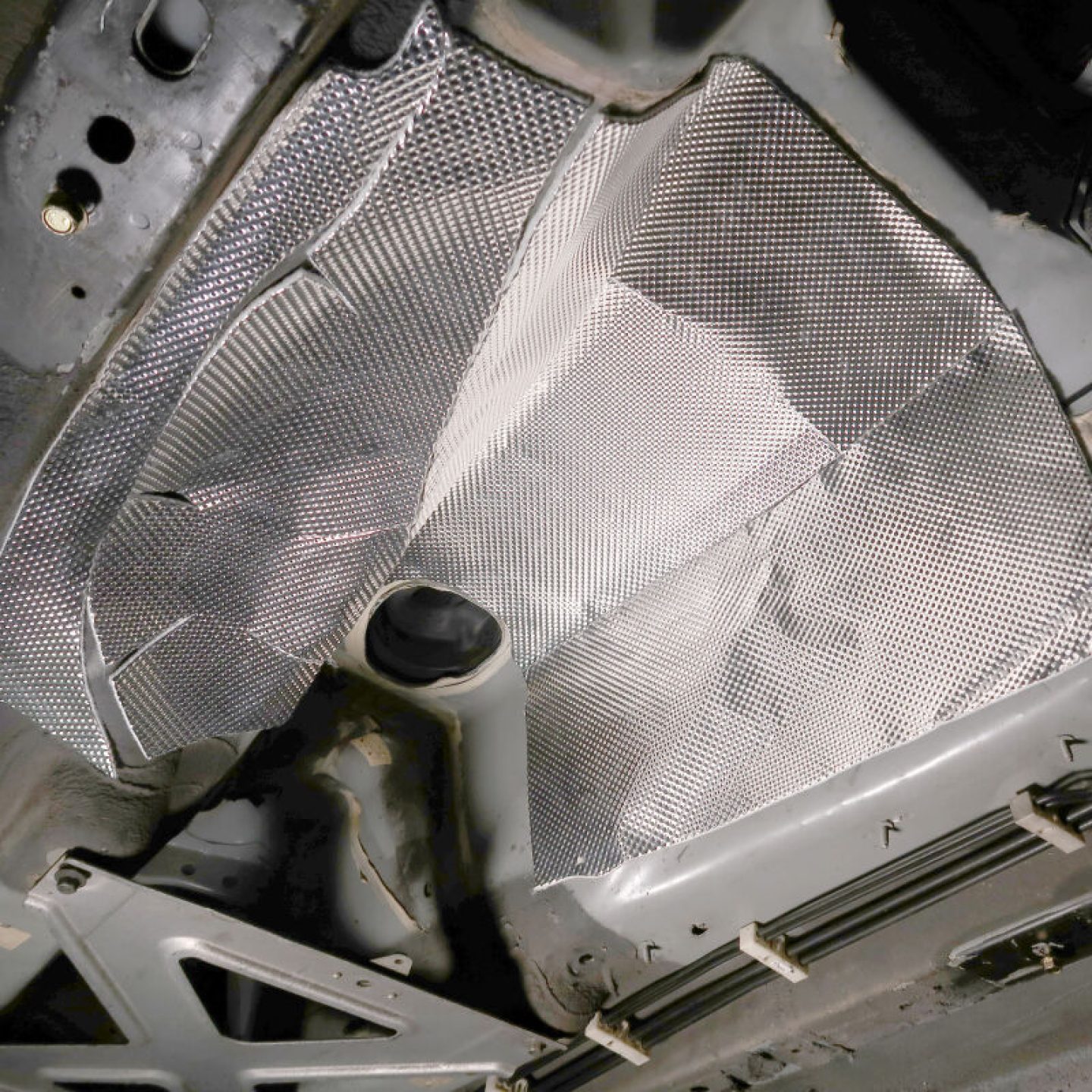

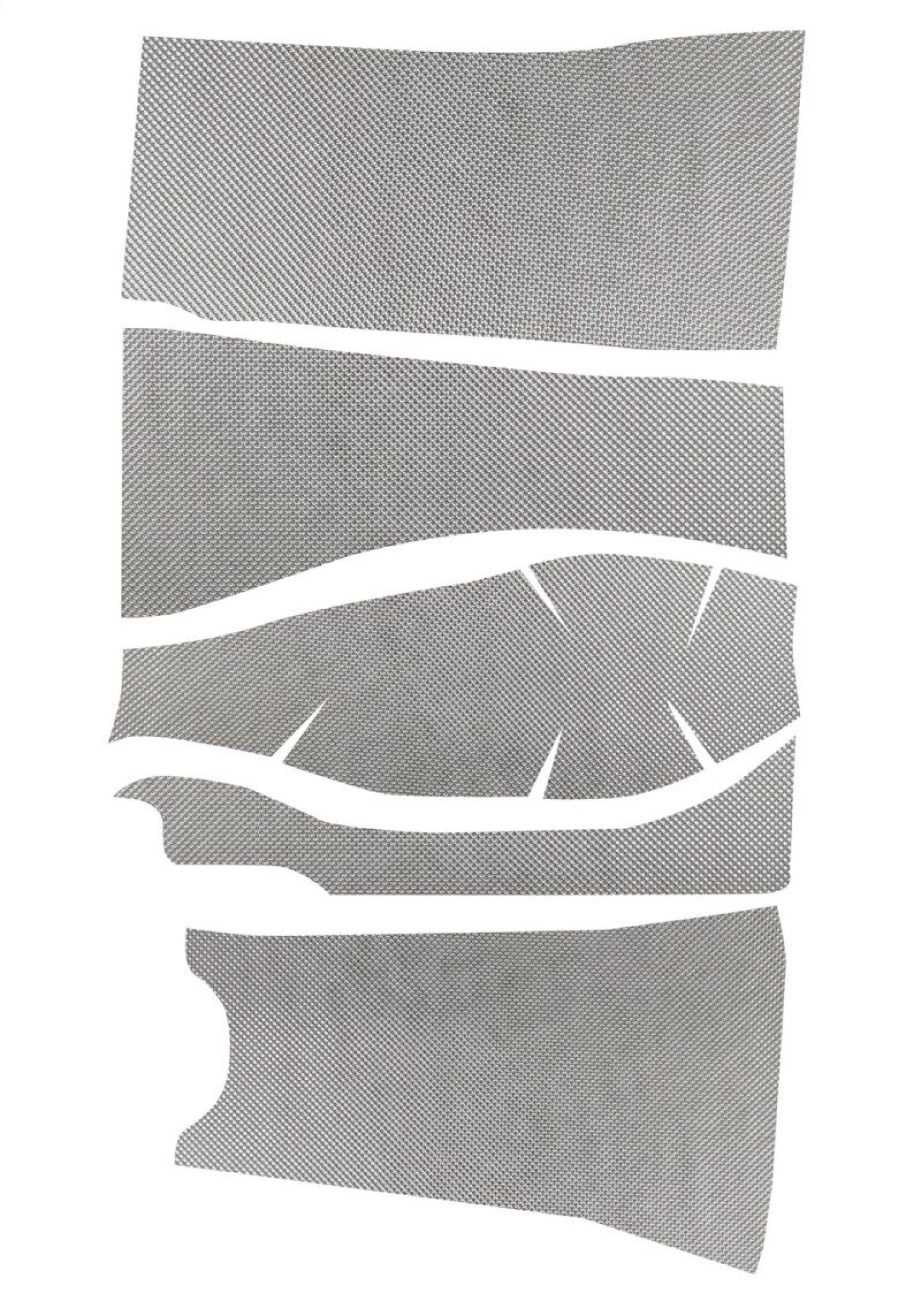

The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750°F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750°F (954°C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions
Transmission Tunnel Heat Shield;
Floor Pan Patch Panel
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Transmission Tunnel Heat Shield Kit - Miata
DEI Floor and Tunnel Shields II add a new dimension to heat control with minimal clearance needed--only 3/16 in.! Constructed utilizing an embossed aluminum face bonded to a composite fiberglass insulation and backed with an aggressive adhesive that holds past 450 degrees F, these barrier sheets are capable of handling direct temperatures up to 1,750 degrees F. The shields are tough enough for under-vehicle applications. They're also great as a sound barrier, blocking out up to 50 percent of unwanted road noise. DEI Floor and Tunnel Shields II can be cut with tin snips to any shape needed for your application. (Note: Some shields use spray-on adhesive.)
Brand | Design Engineering DEI |
Manufacturer's Part Number | 10950 |
Part Type | Heat Barrier and Sound Deadening Mats |
Product Line | DEI Floor and Tunnel Shields II |
UPC | 607078109507 |
Mat Position | Tunnel plate |
Mat Use | Heat barrier |
Thickness (in.) | 0.187 |
Thickness (mm) | 4.76 |
Installation | Self-adhesive |
Maximum Ambient Temperature (degrees F) | 1,750 degrees F |
Heat Protection Color | Silver |
Quantity | Sold as a kit. |
No specific fitment data available for this part. For clarification, please contact us.
