DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and a fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.

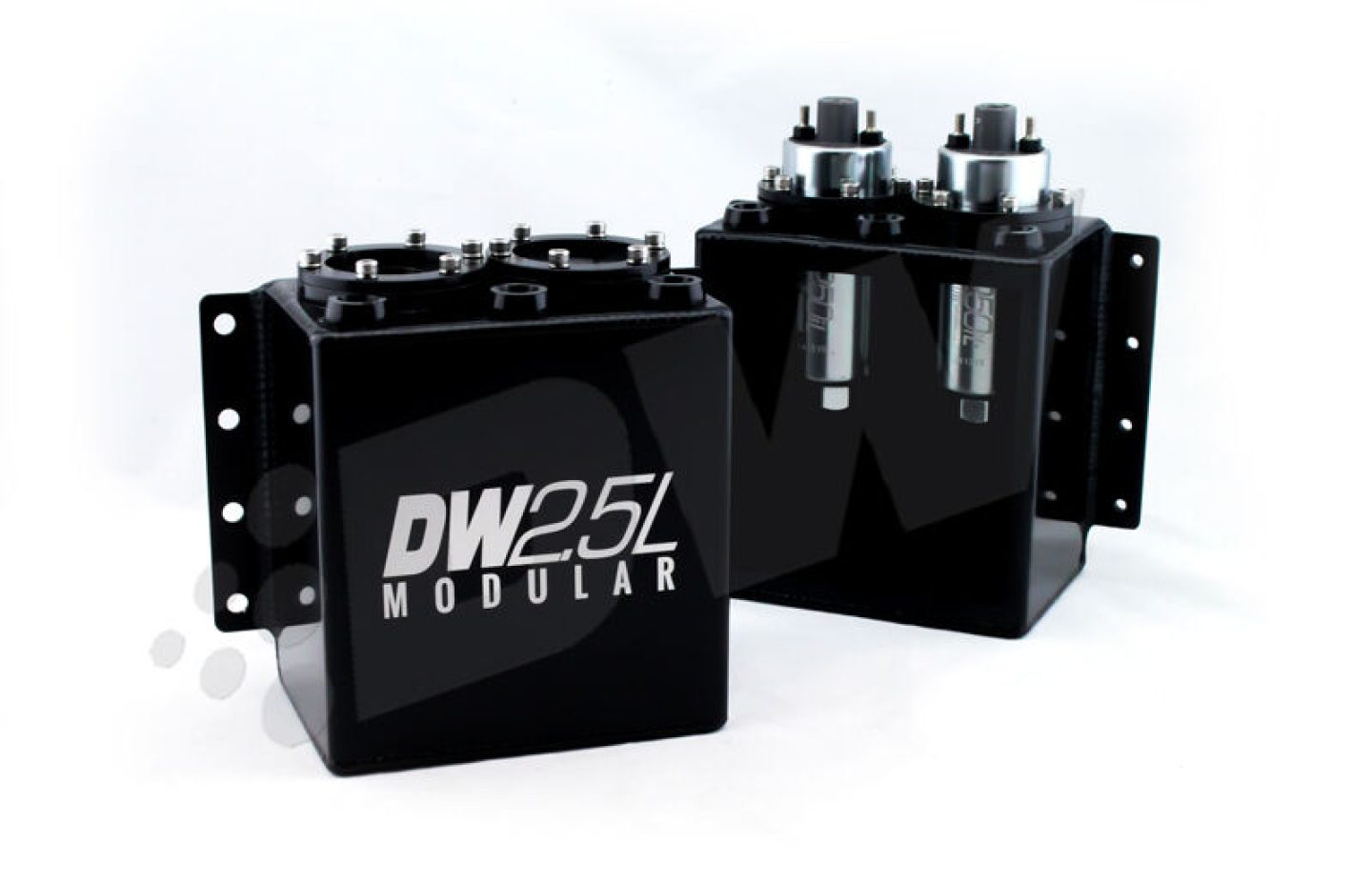

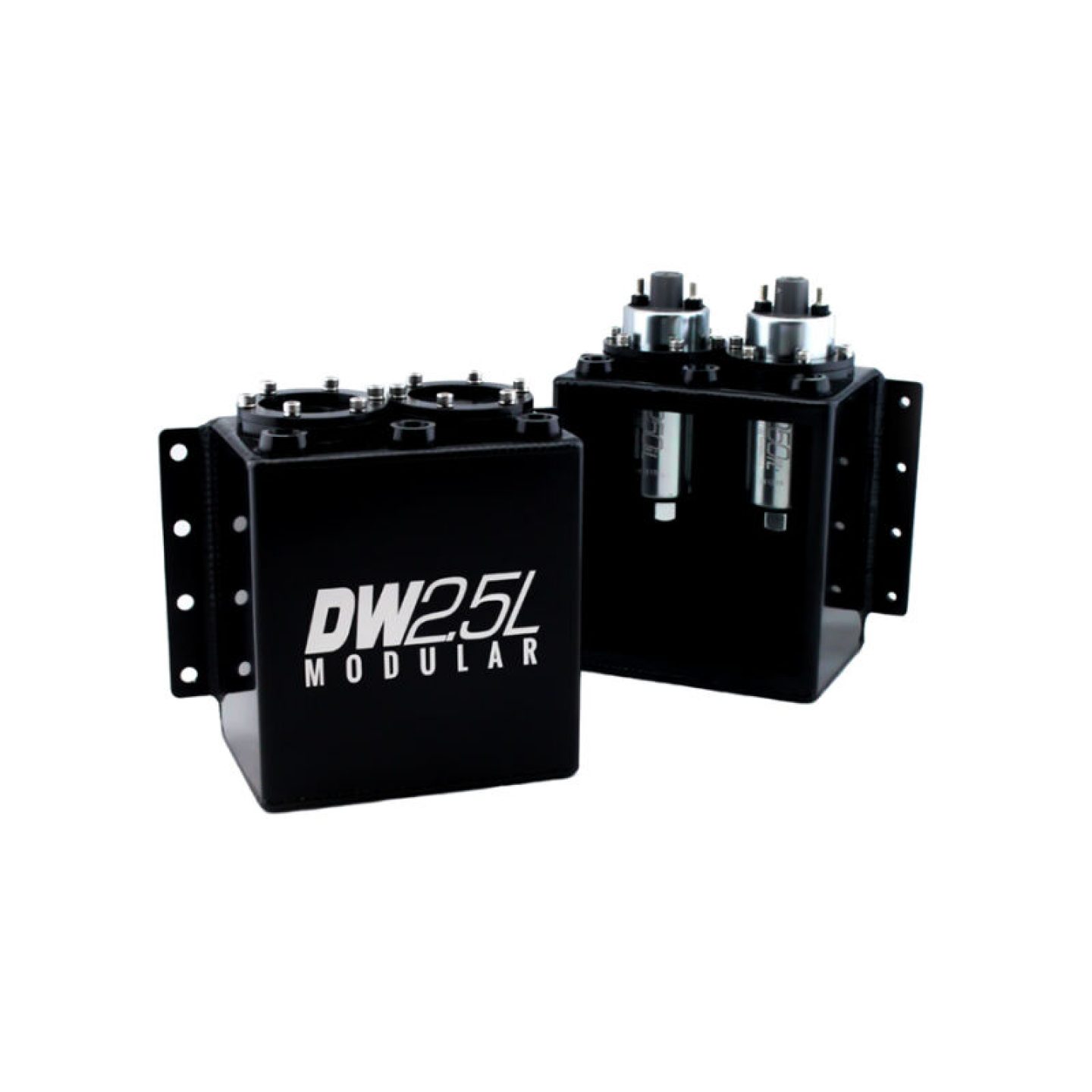

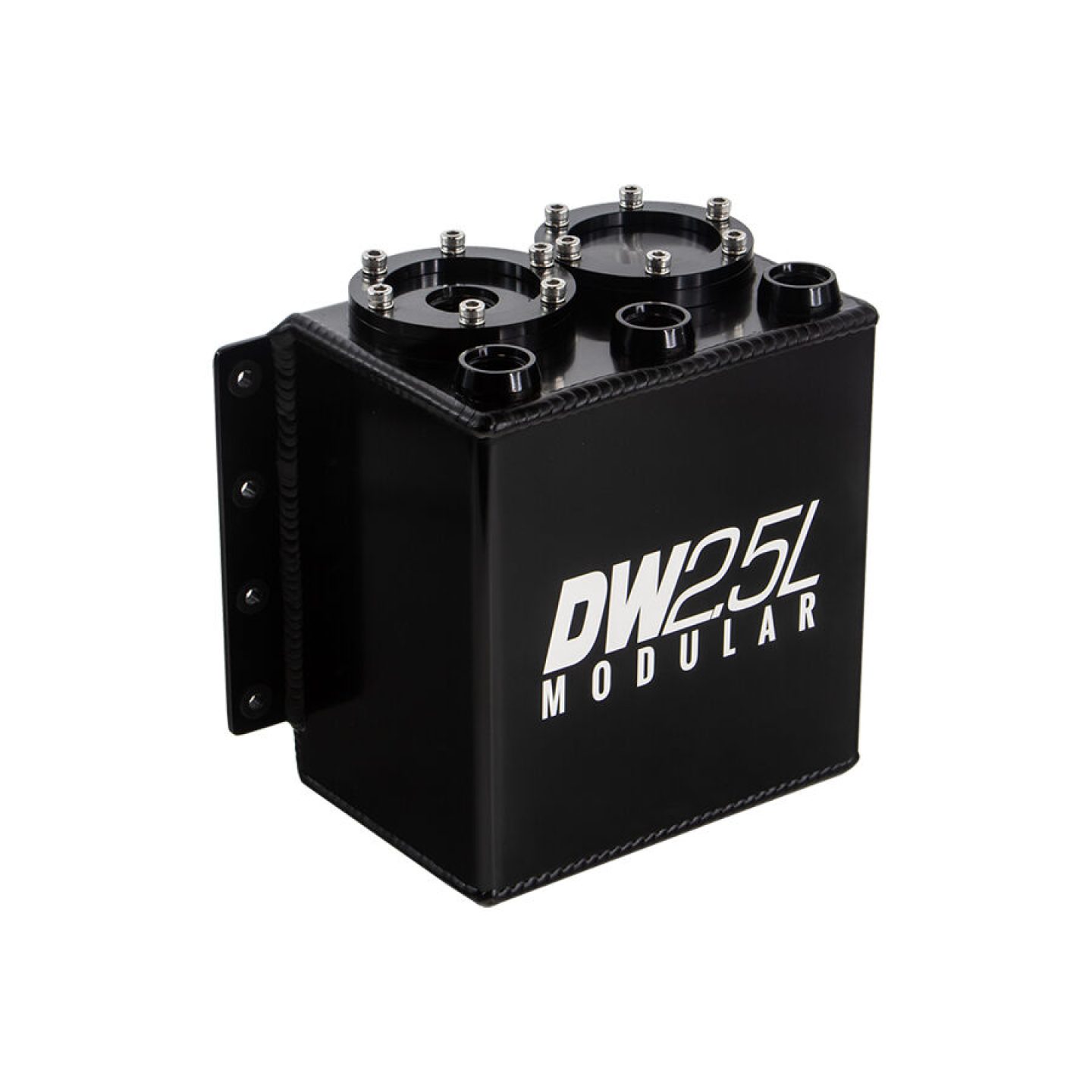

2.5L modular surge tank, universal. Fits 1 or 2 DW250il fuel pumps, PN 9-250
Fuel Surge Tank
DeatschWerks modular surge tanks are universal units for racing and high-horsepower applications where traditional in-tank pumps do not meet the needs of the build. Motorsports surge tanks provide a small fuel reserve to avoid fuel starvation in high-G corners and low fuel tank levels. DW's modular surge tanks take all the functionality of traditional motorsports surge tanks and add compact packaging, decreased pump noise, and increased flexibility. In addition to providing a reserve of fuel, they provide an ideal location for mounting additional fuel pumps to supplement an inadequate in-tank pump. DeatschWerks modular surge tanks are available with or without inline fuel pumps. Choose the model best suited to your build.
UPC | 00887753528599 |
Brand | DeatschWerks |
Capacity | 2.5 liter |
Quantity | Sold individually. |
Part Type | Surge Tanks |
Width (in.) | 4.330 in. |
Height (in.) | 7.640 in. |
Length (in.) | 8.540 in. |
Product Line | DeatschWerks Modular Surge Tanks |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 2 |
Inlet Attachment | Female threads |
Outlet Attachment | Female threads |
Fuel Pump Included | No |
Fuel Pump Outlet Size | -8 AN |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | Yes |
Summit Racing Part Number | DWK-6-000-25ST |
Manufacturer's Part Number | 6-000-25ST |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
Compatibility & Application Information | |
---|---|
Universal | Yes |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
