4340 Rod

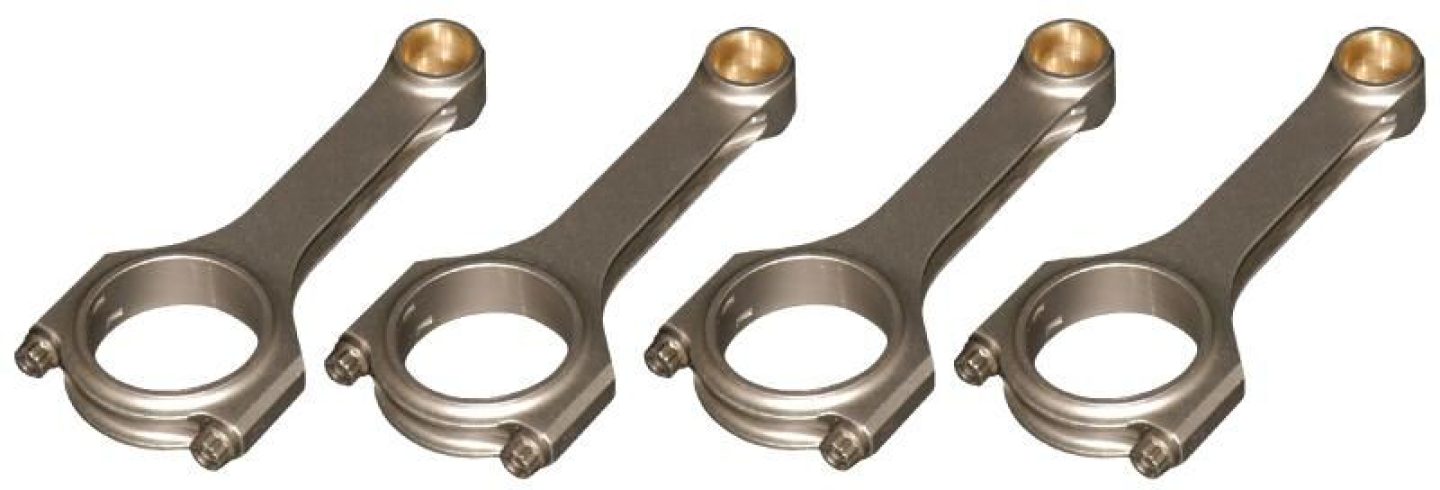

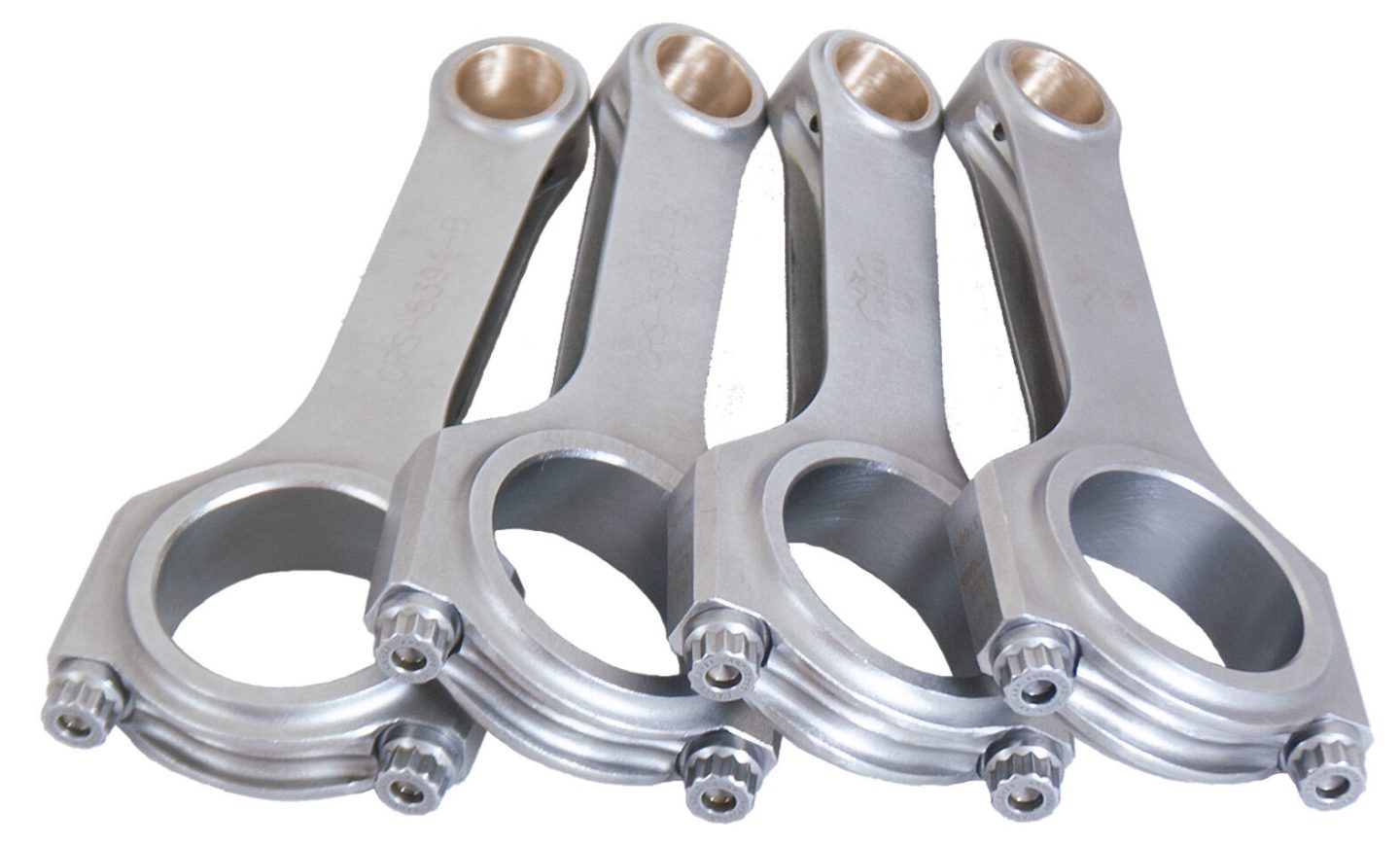

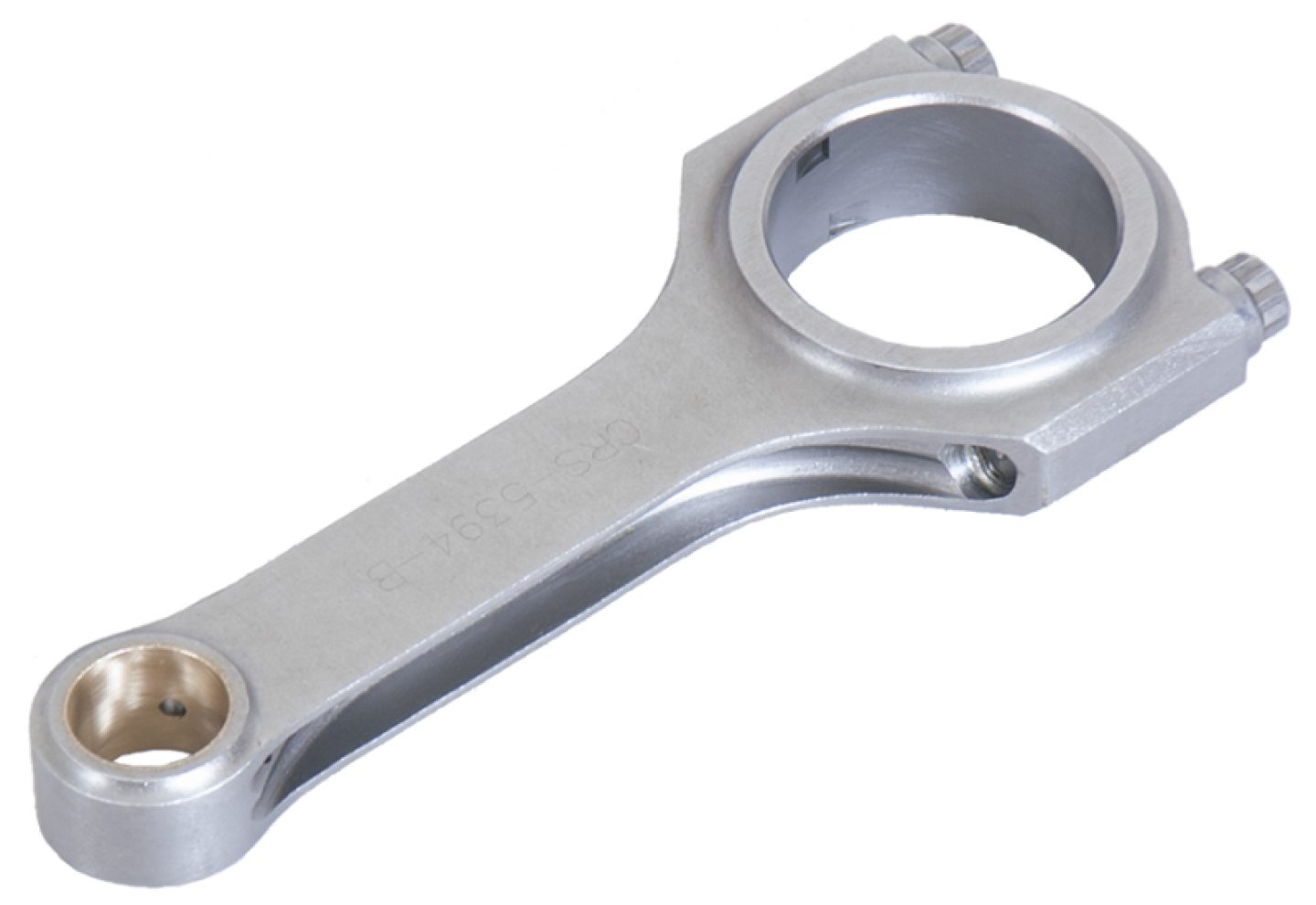

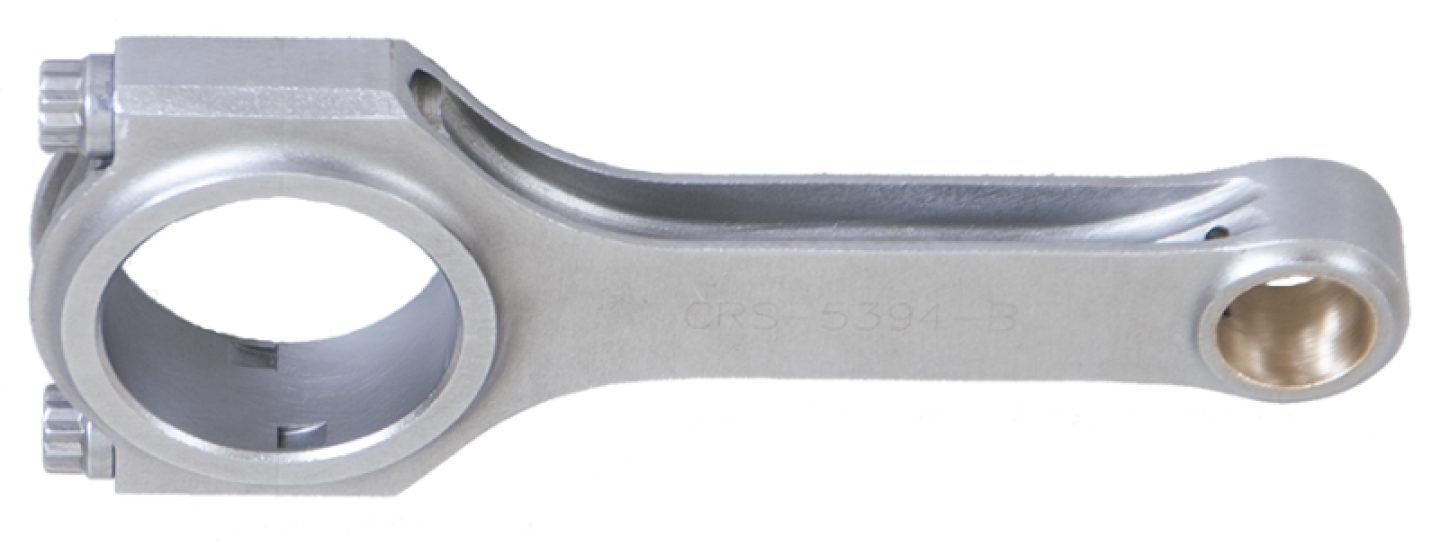

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Forged 4340 Steel H-Beam Rods - HONDA B18/B20 NON-VTEC.
Acura B18
Engine Connecting Rod
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Connecting Rods, ESP 4340 Steel H-Beam, Cap Screw, Bushed, for use on Honda®/Acura®, 4-Cylinder, Set of 4
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
Brand | Eagle Specialty Products |
Manufacturer's Part Number | CRS5394A3D |
Part Type | Connecting Rods |
Product Line | Eagle H-Beam Connecting Rods |
UPC | 793348025803 |
Connecting Rod Length Center to Center (in.) | 5.394 in. |
Connecting Rod Beam Style | H-beam |
Connecting Rod Material | Forged 4340 steel |
Wrist Pin Style | Floating |
Pin End Bore Diameter | 0.748 in. |
Big End Bore Diameter (in.) | 1.7710 |
Quantity | Sold as a set of 4. |
Cap Retention Style | Cap screw |
Big End Width (in.) | 0.935 |
Clearanced for Stroker | No |
Connecting Rod Bolt Brand | ARP |
Connecting Rod Bolt Diameter | 3/8 in. |
Connecting Rod Bolt Material | ARP2000 alloy |
Fastener Tensile Strength (psi) | 200,000 psi |
Connecting Rod Bolt Head Style | 12-point |
Approximate Connecting Rod Weight (g) | 510 |
Advertised Horsepower Rating | 900 hp |
Advertised RPM Rating | 7,500 rpm |
Pin End Width (in.) | 0.935 in. |
Weight Matched Set | Yes |
Remanufactured | No |
Magnafluxed | Yes |
Connecting Rod Color | Shot-peened |
Eagle Acura B18A/B Engine (Length=5.394) Connecting Rods (Set of 4) | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1990-2001 | Acura | Integra | GS, LS, RS, GS-R, Special Edition, Type R | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
