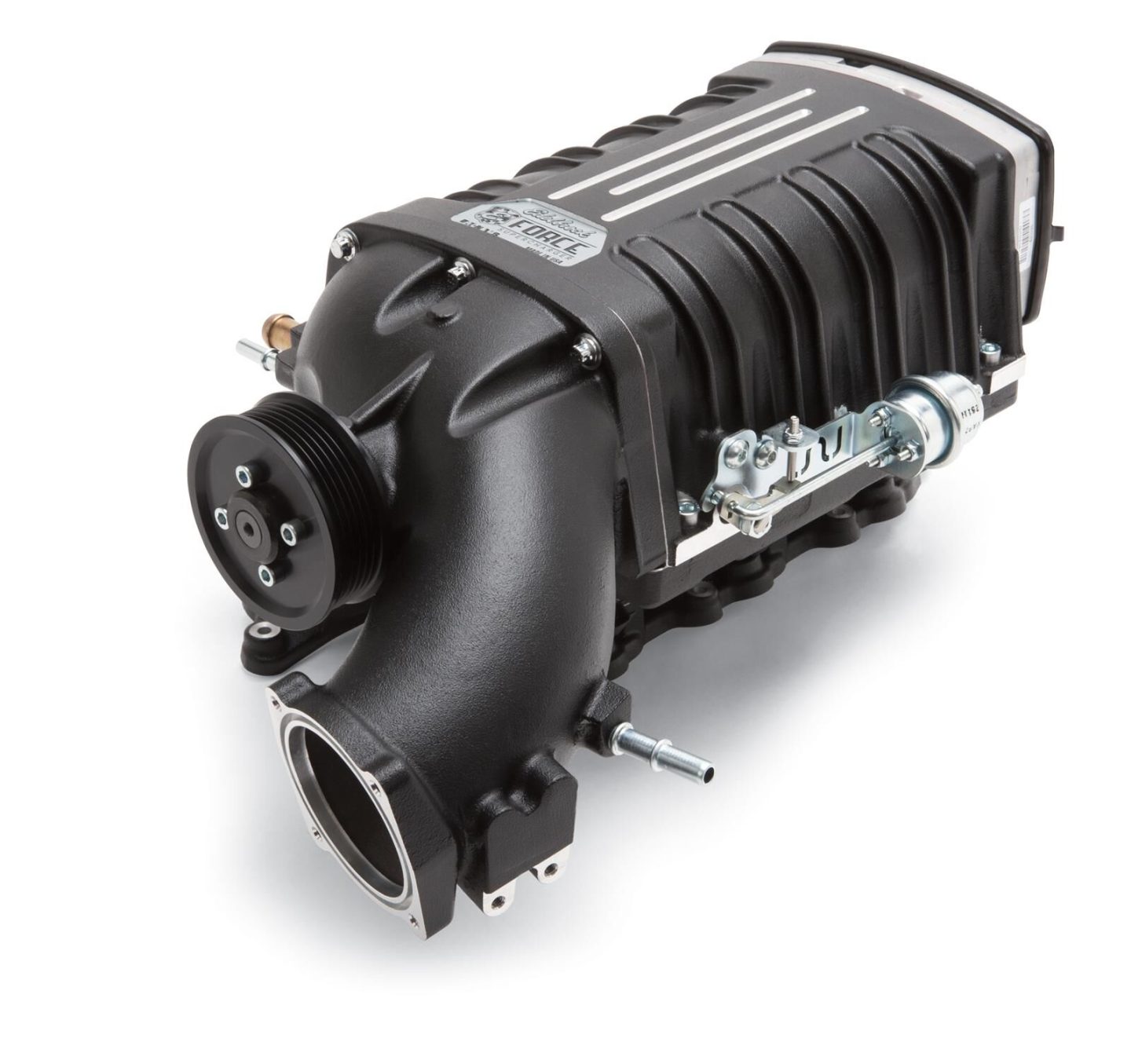

The Edelbrock Supercharger System #1528 for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path that for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modification, no handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.
E-Force Supercharger for 2015-18 Jeep Wrangler 3.6L
Jeep:Pentastar V6:220 (3.6L)

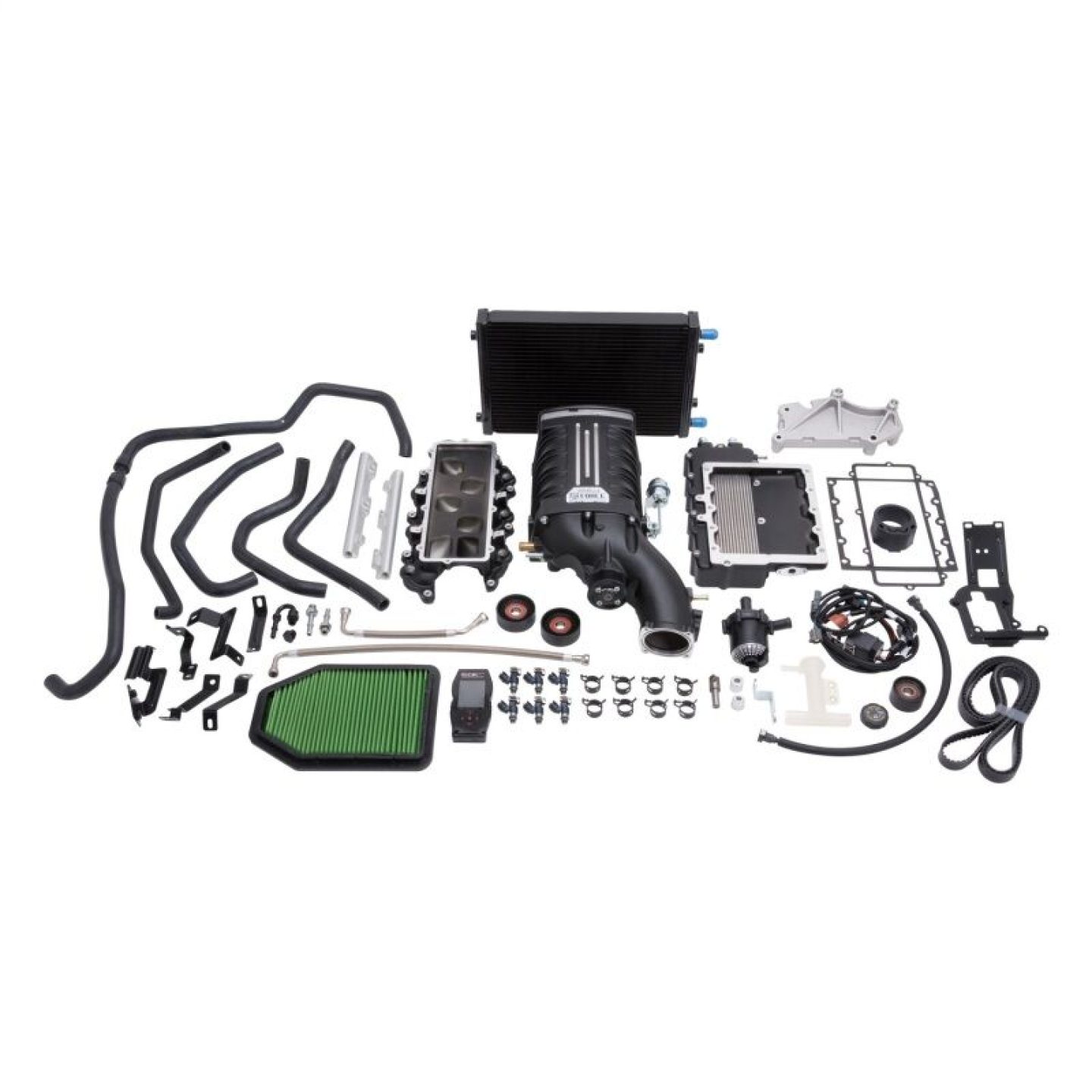

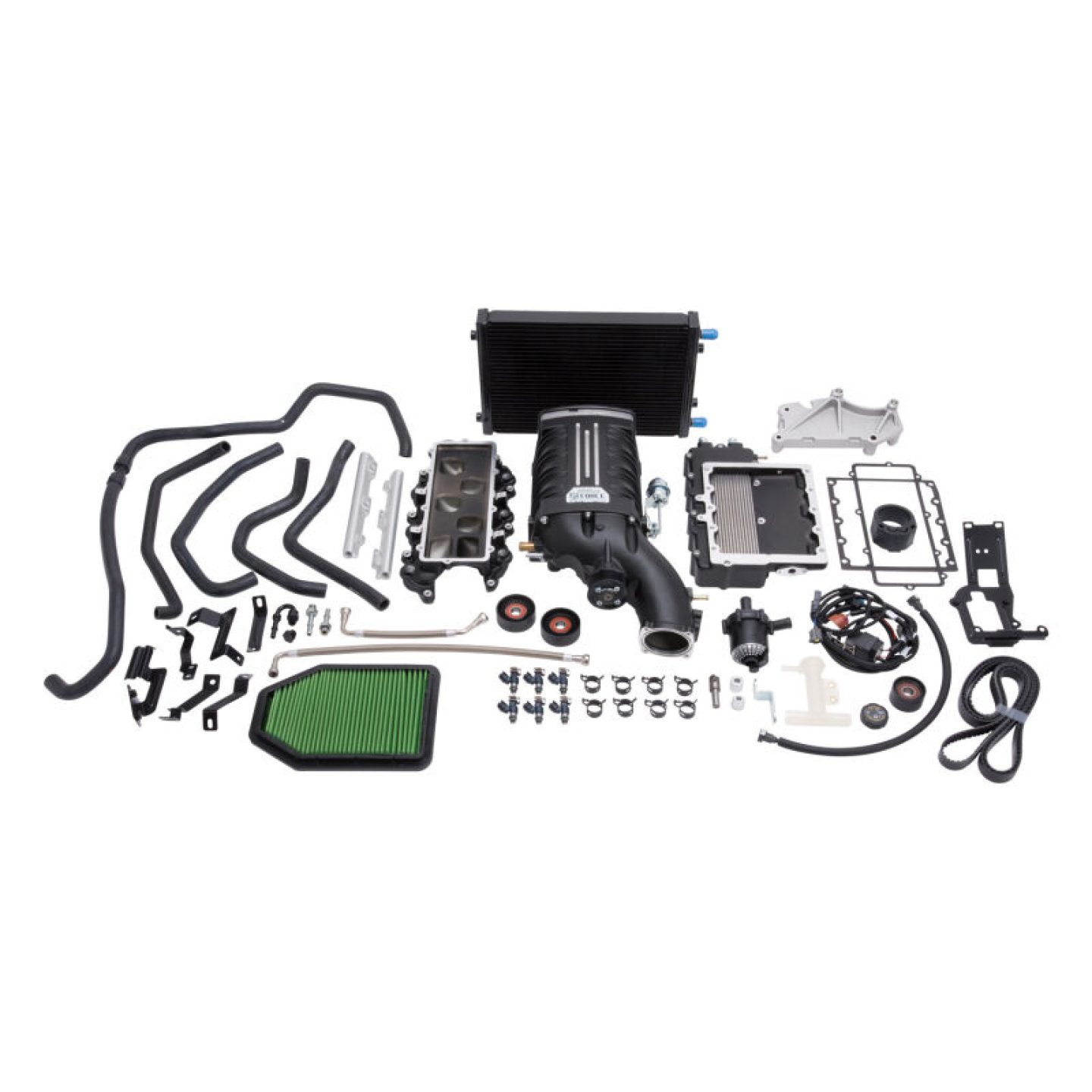

Supercharger Kit
Now you can get more power for your Pentastar equipped JK! These all-new Edelbrock E-Force Jeep Wrangler supercharger kits are designed exclusively for the Pentastar 3.6L V6 engine. They'll increase torque for improved towing and off-road performance when you need it the most, while retaining great daily driving manners. The superchargers have been designed from the ground-up, and utilize the Eaton Gen VI 1320 TVS rotor assembly for maximum efficiency in a compact package. The manifold assembly also features a dual-pass intercooler for reduced air temperature. Edelbrock E-Force Jeep Wrangler Supercharger Kits have great looks, as well, black powdercoated with machined highlights for durability and a unique appearance to give your engine compartment a distinctive look.
Here are a few more Edelbrock E-Force Jeep Wrangler supercharger kit features:
UPC | 085347015283 |
Brand | Edelbrock |
Notes | Requires the ECM and TCM to be sent into Edelbrock for modification, no hand held programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
Quantity | Sold as a kit. |
Emissions | California EO Approved |
Part Type | Superchargers, Roots Style Kits |
Product Line | Edelbrock E-Force Jeep Wrangler Supercharger Kits |
Pulley Style | Serpentine |
Damper Included | No |
Linkage Included | No |
CARB EO Number(s) | D-215-118 |
PTFE Lined Rotors | No |
Fuel Pump Included | No |
Regulator Included | No |
Supercharger Model | Eaton TVS 1320 |
Supercharger Finish | Black |
Intercooler Included | Yes |
Belt Tensioner Included | Yes |
Fuel Injectors Included | Yes |
Wiring Harness Included | Yes |
Engine Block Deck Height | Standard deck |
Manufacturer's Part Number | 1528 |
Cylinder Head Configuration | Stock |
Supercharger Pulley Included | Yes |
Multi-Port Fuel Rails Included | Yes |
Computer Chip/Programmer Included | No |
Compatibility & Application Information | |
---|---|
Make | JEEP |
Model | WRANGLER |
Submodel | 75TH ANNIVERSARY |
Beginning Year | 2016 |
Ending Year | 2016 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Family | Mopar V6 |
Engine Size | 3.6L/220 |
Transmission | Automatic |
Engine VIN Code | G |
Make | JEEP |
Model | WRANGLER |
Submodel | 75TH ANNIVERSARY |
Beginning Year | 2016 |
Ending Year | 2016 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Family | Mopar V6 |
Engine Size | 3.6L/220 |
Transmission | Manual |
Engine VIN Code | G |
Make | JEEP |
Model | WRANGLER |
Submodel | RUBICON |
Beginning Year | 2015 |
Ending Year | 2017 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Family | Mopar V6 |
Engine Size | 3.6L/220 |
Transmission | Automatic |
Engine VIN Code | G |
Make | JEEP |
Model | WRANGLER |
Submodel | RUBICON |
Beginning Year | 2015 |
Ending Year | 2017 |
Engine Type | V6 |
Liter | 3.6 |
CID | 220 |
CC | 3604 |
Engine Family | Mopar V6 |
Engine Size | 3.6L/220 |
Edelbrock SC Jeep Wrangler 2015-2016 3 6L V6 Pentastar | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2015 | Jeep | Wrangler | Unlimited Sahara | US |
2015 | Jeep | Wrangler | Unlimited Sport | US |
2015 | Jeep | Wrangler | Sport | US |
2015 | Jeep | Wrangler | Unlimited Rubicon | US |
2015 | Jeep | Wrangler | Rubicon | US |
2015 | Jeep | Wrangler | Sahara | US |
2016 | Jeep | Wrangler | Rubicon | US |
2016 | Jeep | Wrangler | Sport | US |
2016 | Jeep | Wrangler | 75th Anniversary | US |
2016 | Jeep | Wrangler | Unlimited 75th Anniversary | US |
2016 | Jeep | Wrangler | Unlimited Sport | US |
2016 | Jeep | Wrangler | Unlimited Sport S | US |
2016 | Jeep | Wrangler | Unlimited Rubicon | US |
2016 | Jeep | Wrangler | Sport S | US |
2016 | Jeep | Wrangler | Unlimited Sahara | US |
2016 | Jeep | Wrangler | Sahara | US |
2017 | Jeep | Wrangler | Unlimited Sahara | US |
2017 | Jeep | Wrangler | Rubicon | US |
2017 | Jeep | Wrangler | Sahara | US |
2017 | Jeep | Wrangler | Unlimited Rubicon | US |
2017 | Jeep | Wrangler | Unlimited Sport | US |
2017 | Jeep | Wrangler | Sport | US |
2018 | Jeep | Wrangler JK | Unlimited Sport | US |
2018 | Jeep | Wrangler JK | Sport S | US |
2018 | Jeep | Wrangler JK | Sport | US |
2018 | Jeep | Wrangler JK | Unlimited Rubicon | US |
2018 | Jeep | Wrangler JK | Sahara | US |
2018 | Jeep | Wrangler JK | Unlimited Sahara | US |
2018 | Jeep | Wrangler JK | Rubicon | US |
2018 | Jeep | Wrangler JK | Unlimited Sport S | US |
