FUEL INJECTION

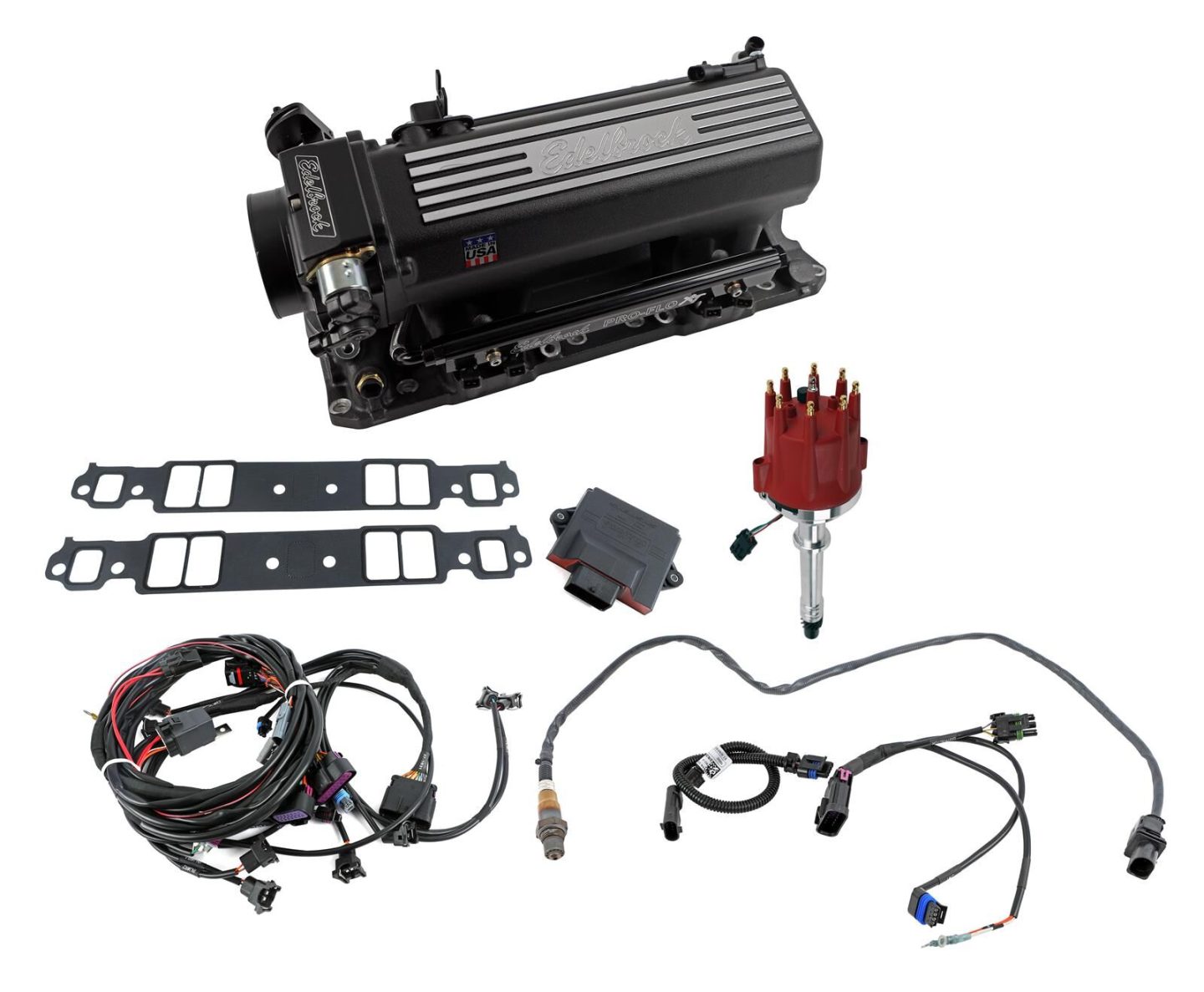

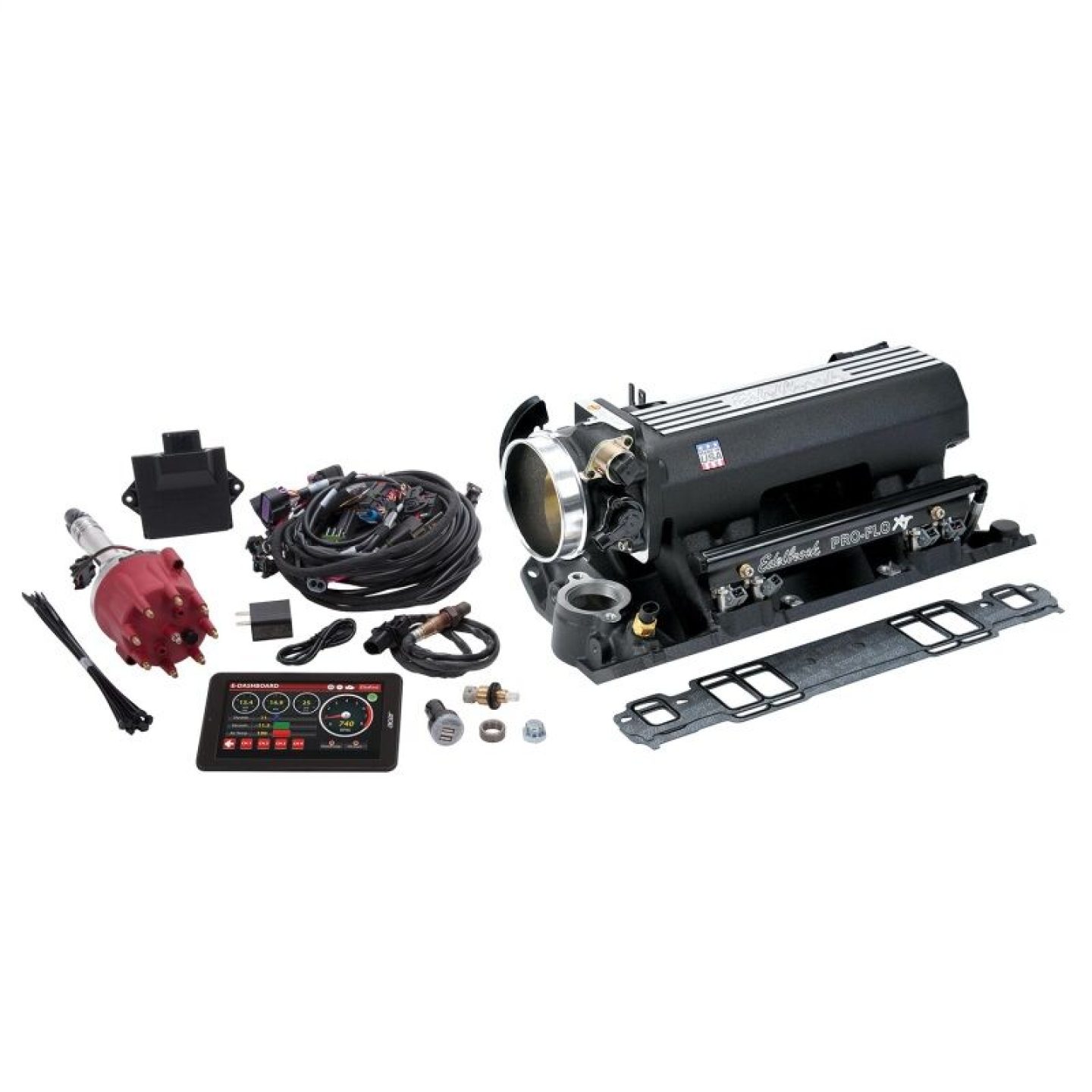

The Edelbrock Pro-Flo 4 XT EFI Kit #35813 for 1986-earlier Small-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black powder-coated XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 625 horsepower with 35 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor, wire harnesses and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35813 for the Small-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.
PRO FLO 4 FUEL INJECTION KIT XT SEQUENTIAL PORT SBC 1986/EARLIER 625 MAX HP 35 LbHr INJECTORS BLACK
Fuel Injection System
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Fuel Injection System, Pro-Flo 4 XT, Self-Learning, Sequential Multi-Port, Black Powdercoated, 550 HP Max, Pre 1986 Small Block Chevy, Kit
Edelbrock Pro-Flo 4 XT EFI systems provide you with a high performance Pro-Flo XT-style intake and 90mm throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno. Edelbrock Pro-Flo 4 XT EFI systems include and feature: * Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design * Fully assembled XT intake manifold with air valve, fuel rails, and injectors * Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation * E-Tuner application for setup and engine monitoring * Wideband oxygen sensor * Distributor * Gaskets and hardware * Installation instructions * Ready to run out of the box with pre-loaded calibrations * Self-learning technology--no tuning experience or laptop tuning required * Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg * Offered with multiple fuel injector choices * Now boost compatible up to 15 psi by switching to a 2.5-bar TMAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control. * Systems automatically compensate for altitude and weather changes * E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel.
Brand | Edelbrock |
Manufacturer's Part Number | 35813 |
Part Type | Fuel Injection Systems |
Product Line | Edelbrock Pro-Flo 4 XT EFI Systems |
UPC | 085347358137 |
Fuel Injection Style | Multi-port |
Fuel Injection System Type | Multi-port Throttle Body |
Maximum Horsepower with Gas | 550 |
Timing Control Compatible | Yes |
ECM Included | Yes |
Self Tuning | Yes |
User Tunable | Yes |
Fuel System Included | None |
Ignition System Included | Distributor |
Power Distribution Included | None |
User Interface Included | Bluetooth |
EGR | No |
Transmission Controller Included | No |
Metering Style | Speed density |
Intake Material | Aluminum |
Intake Color | Black |
Engine Block Deck Height | Standard deck |
Multi-Port Fuel Rails Included | Yes |
Throttle Body Included | Yes |
Venturi Quantity | 1 |
Venturi Diameter (mm) | 90.00mm |
Airflow Rate (cfm) | 1,100 cfm |
Throttle Body Material | Cast aluminum |
Throttle Body Color | Natural |
Injectors Included | Yes |
Injector Size (lbs/hr) | 35 lbs./hr. |
Calibration Module Included | No |
Wiring Harness Included | Yes |
Oxygen Sensor Included | Yes |
Fuel Pressure Regulator Included | No |
MAP Sensor Included | Yes |
IAT Sensor Included | Yes |
TPS Sensor Included | Yes |
IAC Motor Included | Yes |
Quantity | Sold as a kit. |
Notes | Supports up to 550 HP; Tuning and set-up app can be downloaded to a Bluetooth capable tablet or smart phone from either the Apple or Google app stores. Use with boosted applications requires a 2.5-bar MAP sensor. |
Edelbrock Pro Flo 4 Fuel Inject Kit XT Seq Port SBC 429/460 1986 625 Max HP 35 LbHr Injectors Black | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1959 | Chevrolet | 3B | 3200 | US |
1959 | Chevrolet | 3C | 3400 | US |
1959 | Chevrolet | 3D | 3500 | US |
1959 | Chevrolet | 3E | 3600 | US |
1959 | Chevrolet | 3F | 3700 | US |
1959 | Chevrolet | 3G | 3800 | US |
1957-1975 | Chevrolet | Bel Air | Base, Nomad | US |
1958-1972 | Chevrolet | Biscayne | Base, Fleetmaster | US |
1969-1974 | Chevrolet | Blazer | Base | US |
1958-1961 | Chevrolet | Brookwood | Base | US |
1969-1972 | Chevrolet | Brookwood | Base | US |
1975-1986 | Chevrolet | C10 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Big Ten, Custom, Deluxe | US |
1960-1974 | Chevrolet | C10 Pickup | Base | US |
1967-1986 | Chevrolet | C10 Suburban | Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1975-1986 | Chevrolet | C20 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1960-1974 | Chevrolet | C20 Pickup | Base | US |
1967-1986 | Chevrolet | C20 Suburban | Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1975-1986 | Chevrolet | C30 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1960-1974 | Chevrolet | C30 Pickup | Base | US |
1960-1962 | Chevrolet | C40 | Base | US |
1967-1981 | Chevrolet | Camaro | Base, RS, SS, Z28, LT, Rally Sport, LT Rally Sport, Berlinetta, Sport | US |
1966-1982 | Chevrolet | Caprice | Base, Classic, Estate, Classic Sport, Estate Wagon, Classic Landau, Classic Estate | US |
1985-1986 | Chevrolet | Caprice | Classic, Base | US |
1964-1973 | Chevrolet | Chevelle | Base, SS, Deluxe, Concours, 300, 300 Deluxe, Malibu, Nomad, Concours Estate, Greenbrier | US |
1963-1968 | Chevrolet | Chevy II | Base, Nova, Nova SS | US |
1957-1982 | Chevrolet | Corvette | Base, Stingray, Indianapolis 500 Pace Car, Silver Anniversary Edition, Collector's Edition | US |
1984-1986 | Chevrolet | Corvette | Base, Indianapolis 500 Pace Car | US |
1957-1958 | Chevrolet | Del Ray | Base | US |
1959-1960 | Chevrolet | El Camino | Base | US |
1964-1979 | Chevrolet | El Camino | Base, Custom, SS, Classic, Conquista, Royal Knight | US |
1969-1970 | Chevrolet | Estate | Base | US |
1975-1986 | Chevrolet | G10 | Beauville, Chevy Van, Sportvan, Bonaventure | US |
1970-1974 | Chevrolet | G10 Van | Base, Sportvan | US |
1975-1986 | Chevrolet | G20 | Beauville, Chevy Van, Sportvan, Nomad, Bonaventure | US |
1967 | Chevrolet | G20 Van | Base | US |
1970-1974 | Chevrolet | G20 Van | Base, Sportvan | US |
1975-1986 | Chevrolet | G30 | Beauville, Chevy Van, Hi-Cube, Sportvan, Bonaventure | US |
1970-1974 | Chevrolet | G30 Van | Sportvan, Base | US |
1958-1985 | Chevrolet | Impala | Base, SS, Custom, Sport, S, Custom Landau, Landau, Estate | US |
1975-1986 | Chevrolet | K10 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1960-1974 | Chevrolet | K10 Pickup | Base | US |
1967-1986 | Chevrolet | K10 Suburban | Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1975-1986 | Chevrolet | K20 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1967 | Chevrolet | K20 Panel | Base | US |
1960-1974 | Chevrolet | K20 Pickup | Base | US |
1967-1986 | Chevrolet | K20 Suburban | Base, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1977-1986 | Chevrolet | K30 | Cheyenne, Custom Deluxe, Scottsdale, Silverado, Custom, Deluxe | US |
1968-1974 | Chevrolet | K30 Pickup | Base | US |
1975-1986 | Chevrolet | K5 Blazer | Cheyenne, Custom Deluxe, Base, Silverado, Custom, Deluxe, Scottsdale | US |
1959-1961 | Chevrolet | Kingswood | Base | US |
Note: Displaying first 50 entries. |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
