These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump.
FUEL SYSTEM UNIVERSAL FUEL SUMP MODULE ADJUSTABLE 255 LPH
Fuel Tank Sump

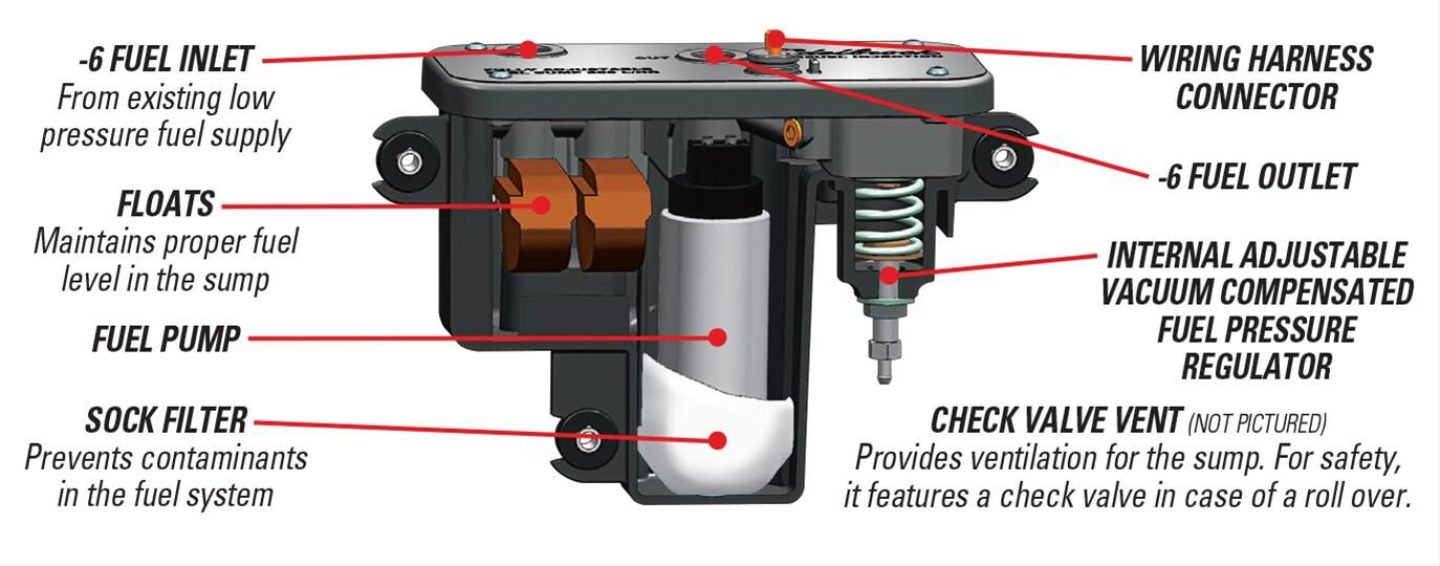

Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump.
These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system.

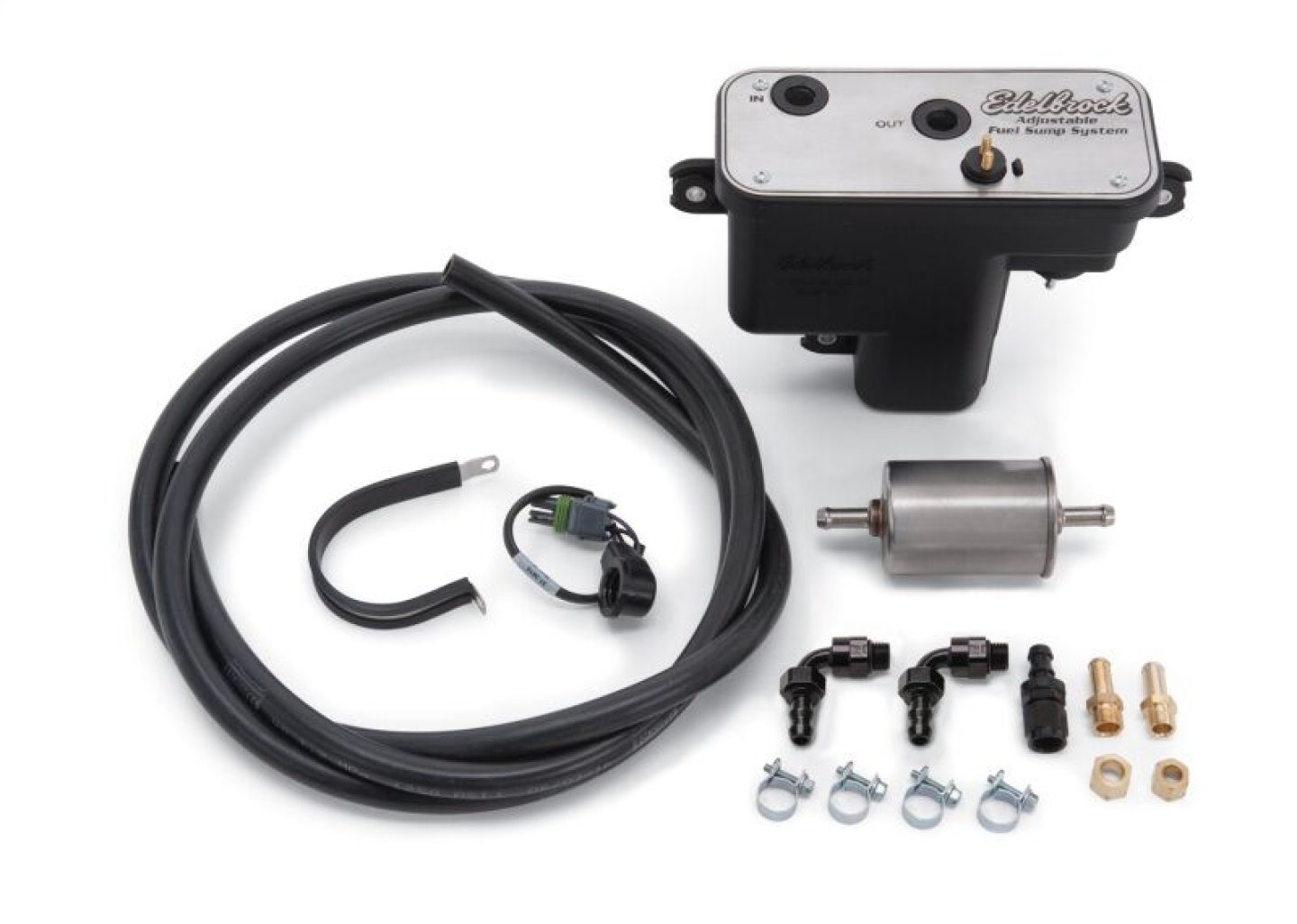

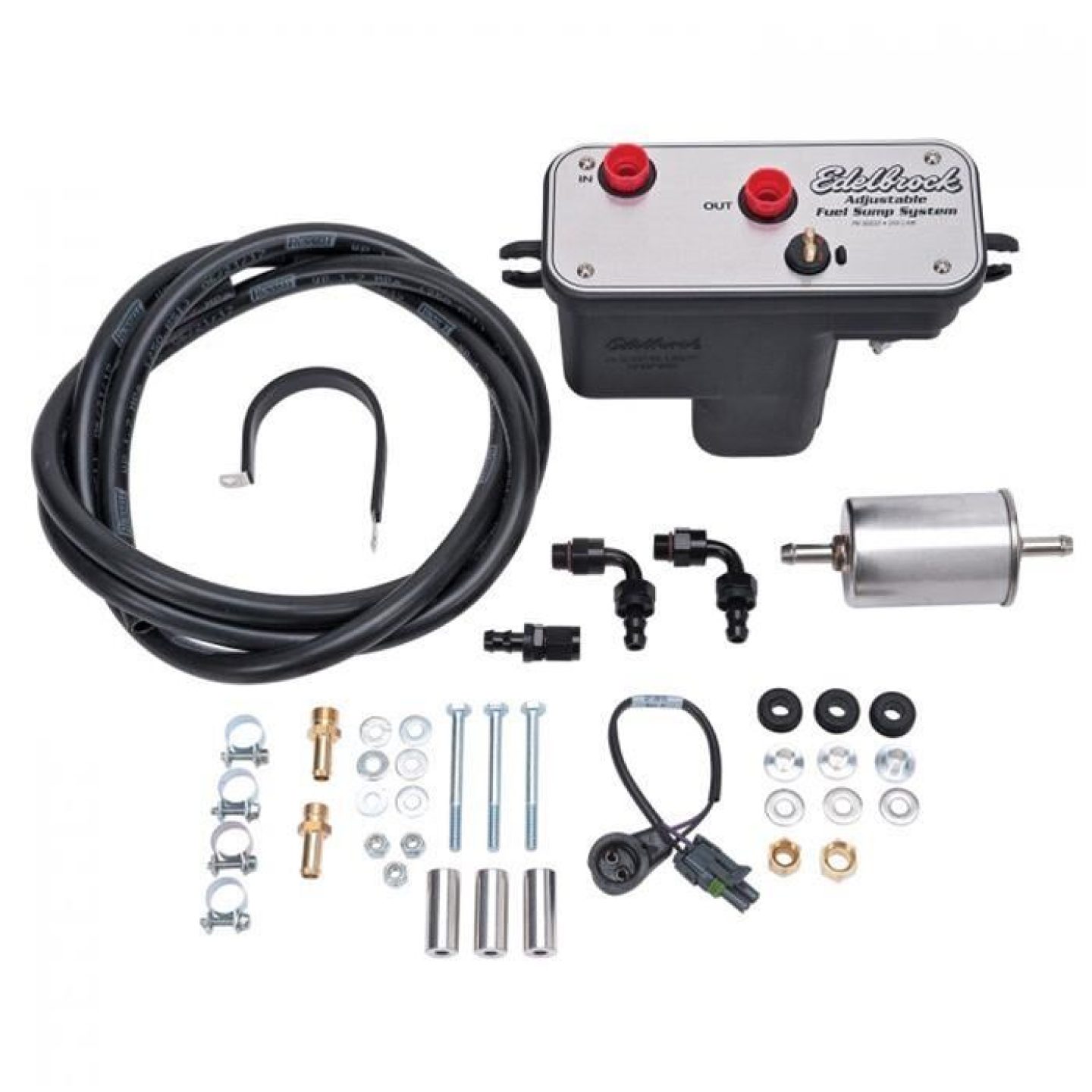

Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation.
UPC | 085347360314 |
Brand | Edelbrock |
Quantity | Sold as a kit. |
Flow Rate | 67 gph/255 lph |
Part Type | Surge Tanks |
Width (in.) | 3.750 in. |
Height (in.) | 10.000 in. |
Length (in.) | 9.000 in. |
Product Line | Edelbrock Universal EFI Sump Fuel Systems |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Inlet Attachment | Female O-ring |
Outlet Attachment | Female O-ring |
Fuel Pump Included | Yes |
Fuel Pump Inlet Size | -6 AN |
Fuel Pump Outlet Size | -6 AN |
Sending Unit Included | No |
Maximum Pressure (psi) | 90 psi |
Wiring Harness Included | Yes |
Mounting Bracket Included | Yes |
Summit Racing Part Number | EDL-36031 |
Manufacturer's Part Number | 36031 |
Mounting Hardware Included | Yes |
Fuel Pressure Regulator Included | Yes |
Compatibility & Application Information | |
---|---|
Universal | Yes |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
