ELECTRONICS

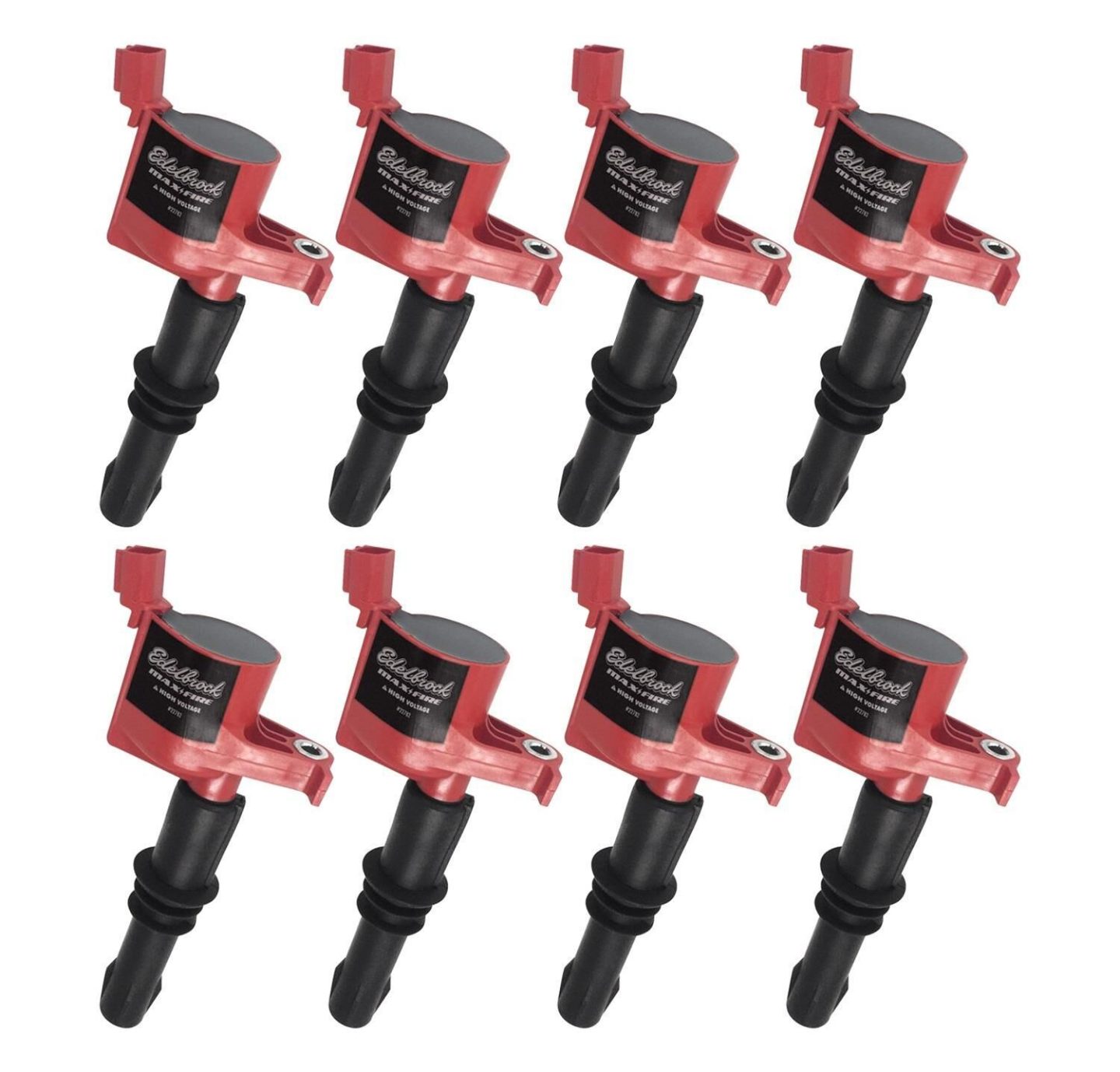

Edelbrock Coil Pack #22783 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2004-08 Ford 4.6L-5.4L 3-valve V8 engines. Each coil in the #22783 pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is also sold individually under #22782.
Edelbrock Part #22783 Coil on Plug
Ford V8 4.6L-5.4L, 2004-08
Ignition Coil Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Ignition Coil, Coil-on-Plug, Modular, 68:1 Turns Ratio, 28,000 Volts, Black and Red, 4.6L, 5.4L, 6.8L, Black 4.000 in. Boot, 3-Valve, Ford, Set of 8
Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. The coils are sealed with a high temperature epoxy for shock and vibration resistance—as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack recommended for your vehicle.
UPC | 085347227839 |
Brand | Edelbrock |
Quantity | Sold as a set of 8. |
Part Type | Ignition Coils |
Coil Color | Black/Red |
Coil Shape | Round |
Coil Style | Coil pack |
Turns Ratio | 68:1 |
Product Line | Edelbrock Max-Fire Coil On Plug Ignition Coils |
Maximum Voltage | 28,000 V |
Special Attention | Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil. |
Coil Wire Included | No |
Ballast Resistor Included | No |
Mounting Bracket Included | No |
Coil Internal Construction | Silicone |
Manufacturer's Part Number | 22783 |
Edelbrock Ford 2004-2008 V8 4.6L/5.4L Ignition Coil - Set of 8 | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1998-2008 | Ford | Crown Victoria | Base, LX, Police Interceptor, S, LWB, LX Sport, Special Edition, Fleet | US |
2003-2008 | Ford | E-150 | Base, Chateau, XL, XLT | US |
2003-2005 | Ford | E-150 Club Wagon | Chateau, XL, XLT | US |
1998-2002 | Ford | E-150 Econoline | Base, XL | US |
1998-2002 | Ford | E-150 Econoline Club Wagon | Chateau, Custom, XLT, XL | US |
2003-2008 | Ford | E-250 | Base | US |
1998-2002 | Ford | E-250 Econoline | Base, XL | US |
2003-2005 | Ford | E-350 Club Wagon | Chateau, XL, XLT | US |
1998 | Ford | E-350 Econoline | Base, XL | US |
1998-2002 | Ford | E-350 Econoline Club Wagon | Chateau, Custom, XLT, XL HD, XLT HD, XL | US |
1999-2008 | Ford | E-350 Super Duty | Base, XL, XLT, Chateau | US |
2000-2005 | Ford | Excursion | Limited, XLT, Eddie Bauer, XLS | US |
1998-2008 | Ford | Expedition | Eddie Bauer, XLT, XLS, NBX, XLT Sport, Limited, King Ranch, EL Eddie Bauer, EL Limited, EL XLT, Funkmaster Flex Edition, EL King Ranch | US |
2002-2008 | Ford | Explorer | Eddie Bauer, Limited, Postal, XLS, XLT, NBX, XLS Sport, XLT Sport | US |
2007-2008 | Ford | Explorer Sport Trac | XLT, Limited | US |
1998-2010 | Ford | F-150 | Base, Lariat, XL, XLT, Lightning, Harley-Davidson Edition, King Ranch, STX, FX4, FX2, Limited, THE 60TH ANNIVERSARY EDITION, Platinum, SVT Raptor | US |
2004 | Ford | F-150 Heritage | XL, XLT, SVT Lightning | US |
1998-1999 | Ford | F-250 | Base, Lariat, XL, XLT | US |
1999-2008 | Ford | F-250 Super Duty | Lariat, XL, XLT, Harley-Davidson Edition, King Ranch, FX4 | US |
1999-2008 | Ford | F-350 Super Duty | Lariat, XL, XLT, King Ranch, Harley-Davidson Edition, FX4 | US |
2005-2006 | Ford | GT | Base | US |
1998-2008 | Ford | Mustang | Base, SVT Cobra, GT, SVT Cobra R, GT Bullitt, Mach 1, SVT Cobra 10th Anniversary, Shelby GT500, Shelby GT, Bullitt, Shelby GT500KR | US |
2006-2008 | Lincoln | Mark LT | Base | US |
2005-2008 | Lincoln | Navigator | Base, Luxury, Ultimate, L Ultimate, L Luxury, L | US |
2006-2008 | Mercury | Mountaineer | Premier, Luxury | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | FORD |
Model | EXCURSION |
Submodel | EDDIE BAUER |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Application Notes | Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil. |
Universal | No |
Make | FORD |
Model | EXCURSION |
Submodel | LIMITED |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Application Notes | Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil. |
Universal | No |
Make | FORD |
Model | EXCURSION |
Submodel | XLS |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Engine Family | Ford modular V8 |
Engine Size | 5.4L/330 |
Application Notes | Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil. |
